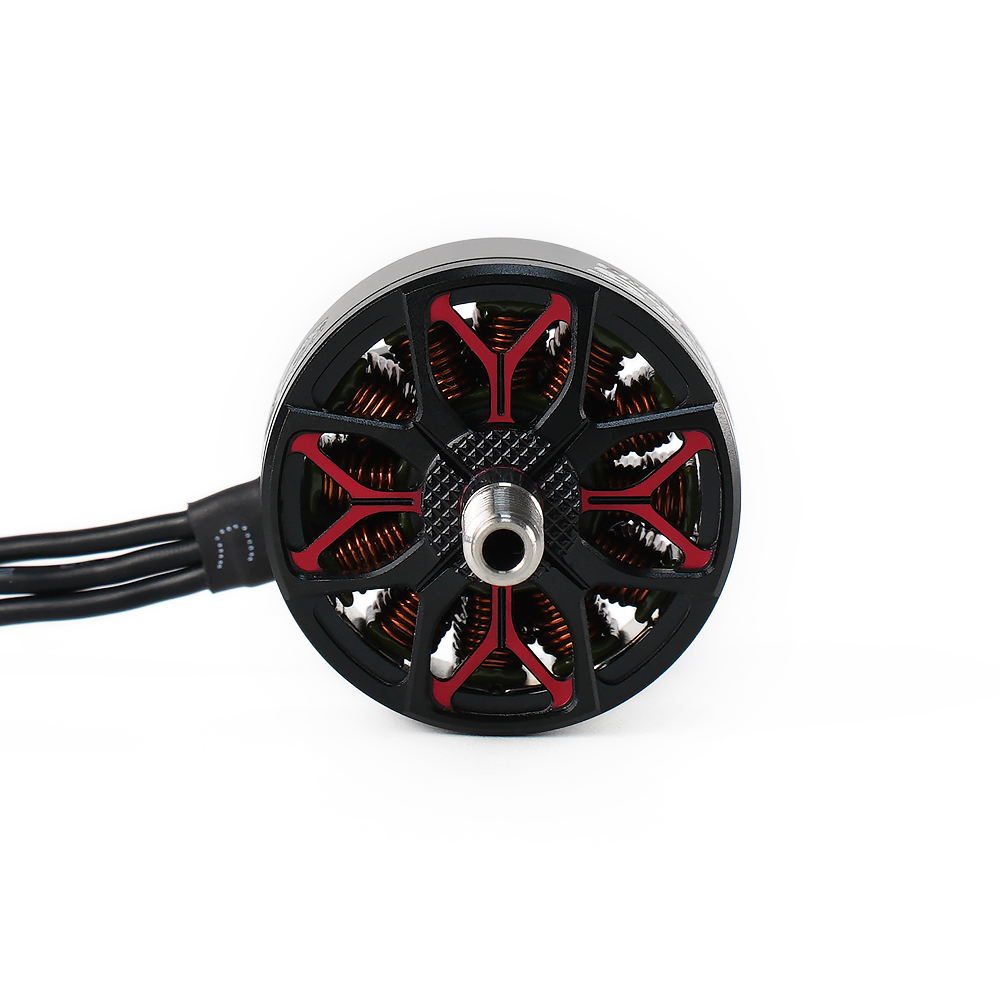

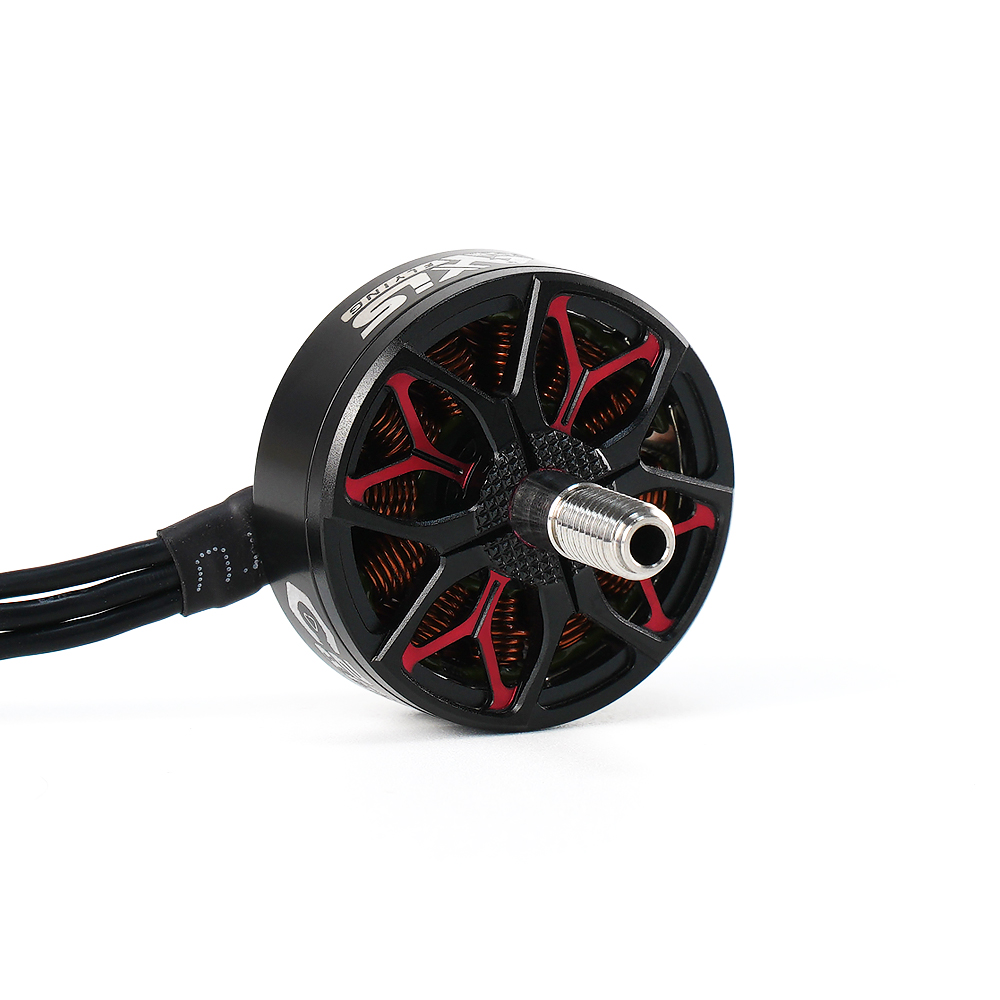

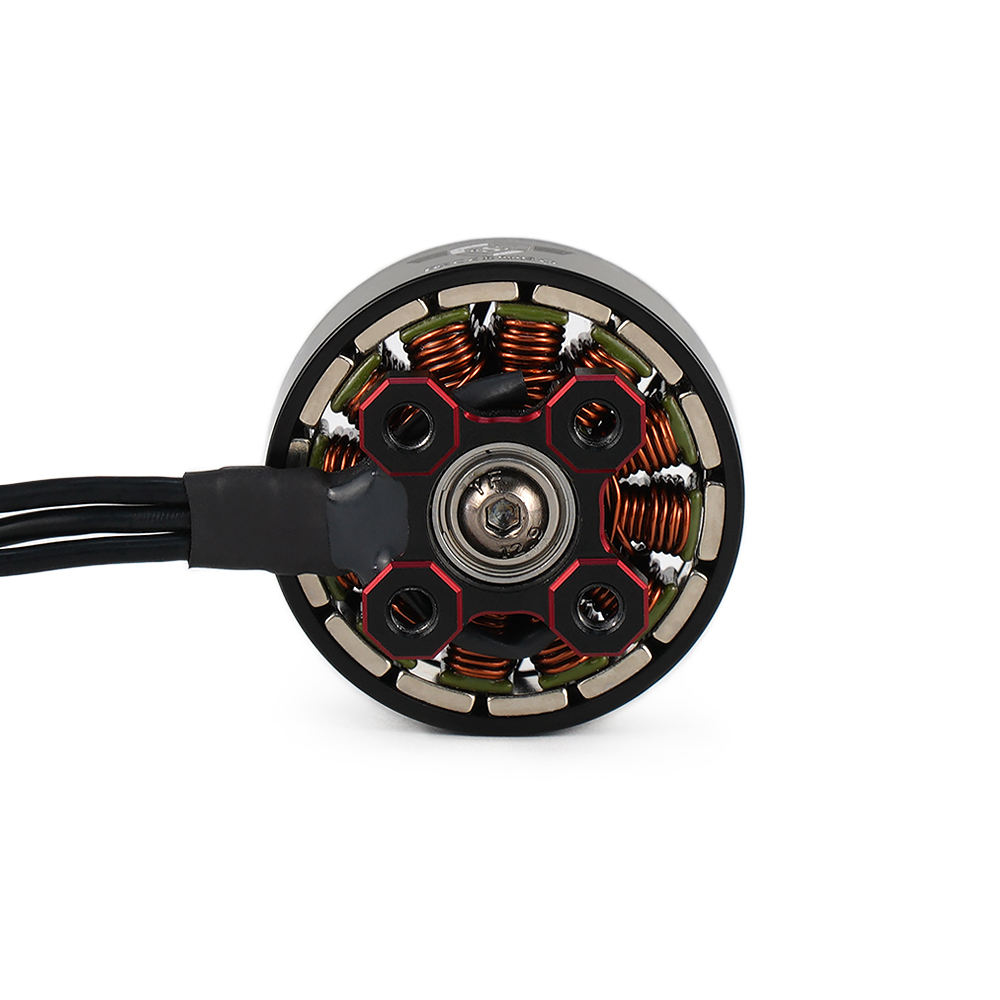

Axisflying fpv brushless motor C246 2406 for 5"/6" of freestyle / sbang / cinematic shooting drone

Guarantee safe & secure checkout
Guarantee & safe checkout
On all order
Category :

Description

  • With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

– The C246 motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

– We’ve designed the C series motors with the contribution of the cinematic FPV experts: Antoine DG (@Escape_fpv) and Fry (@Fry_fpv). Their cinematic knowledge and ideas led us today to introduce you to these top-grade cinematic motors.

– We want to thank David and Jasonfpv who helped us with their repeated testing and feedback to accelerate the presence of Axisflying in the growing cinematic FPV market.

*Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

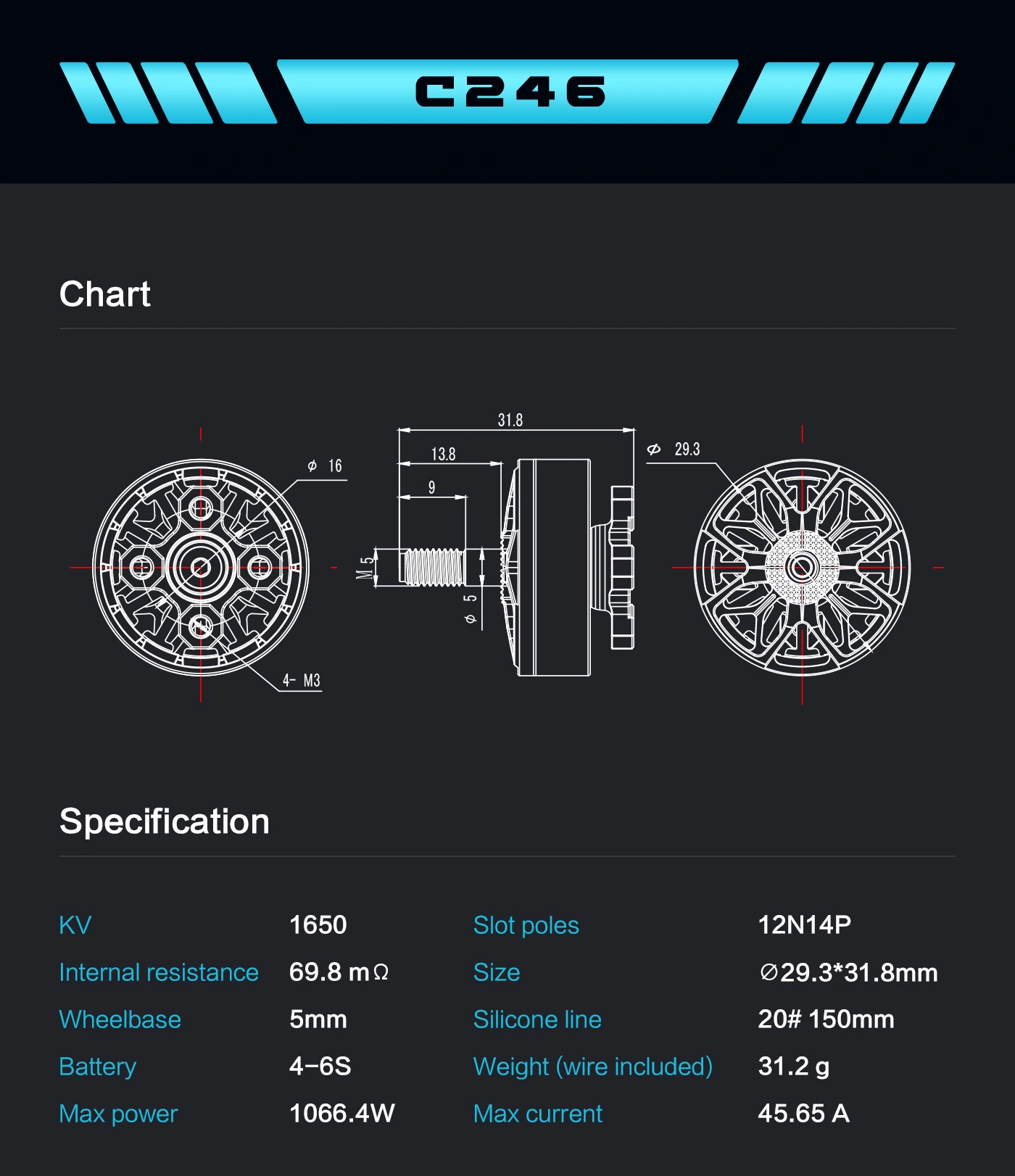

*Specs

– 1650KV is for 6inch props @6S of cinematic shooting

– 1850KV is for 5inch props @6S of speed cinematic shooting (such as motorcycle race)

– 2050KV is for 5inch props @6S of sbang freestyle

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2406

– Motor mounting hole size: 4*M3 (Φ16mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ29.3*31.8MM  / M5 shaft

– Motor weight (including 150MM cables) : 31g

– The motor is very powerful that can get over 2KG and most current is about 45A

*Package

– 1* C246 motor

– 4* M3*8 screws for motor

– 1* M3*4 screw for lock shaft

– 1* M5 Flanged Nylon Insert lock

– 1* O-ring

– 1* Washer

  • With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

*Forword

– The C246 motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

– We’ve designed the C series motors with the contribution of the cinematic FPV experts: Antoine DG (@Escape_fpv) and Fry (@Fry_fpv). Their cinematic knowledge and ideas led us today to introduce you to these top-grade cinematic motors.

– We want to thank David and Jasonfpv who helped us with their repeated testing and feedback to accelerate the presence of Axisflying in the growing cinematic FPV market.

*Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

*Specs

– 1650KV is for 6inch props @6S of cinematic shooting

– 1850KV is for 5inch props @6S of speed cinematic shooting (such as motorcycle race)

– 2050KV is for 5inch props @6S of sbang freestyle

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2406

– Motor mounting hole size: 4*M3 (Φ16mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ29.3*31.8MM  / M5 shaft

– Motor weight (including 150MM cables) : 31g

– The motor is very powerful that can get over 2KG and most current is about 45A

*Package

– 1* C246 motor

– 4* M3*8 screws for motor

– 1* M3*4 screw for lock shaft

– 1* M5 Flanged Nylon Insert lock

– 1* O-ring

– 1* Washer
