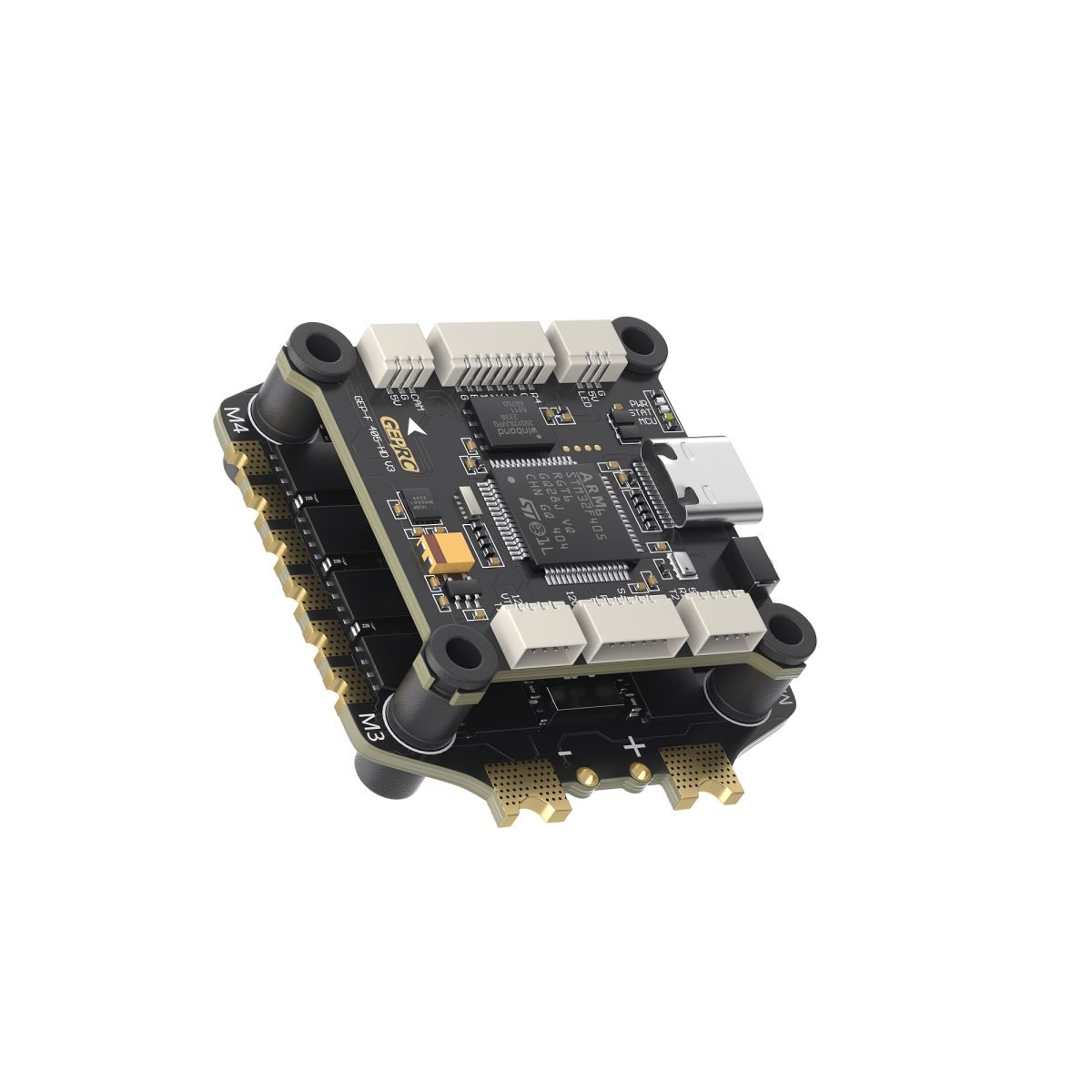

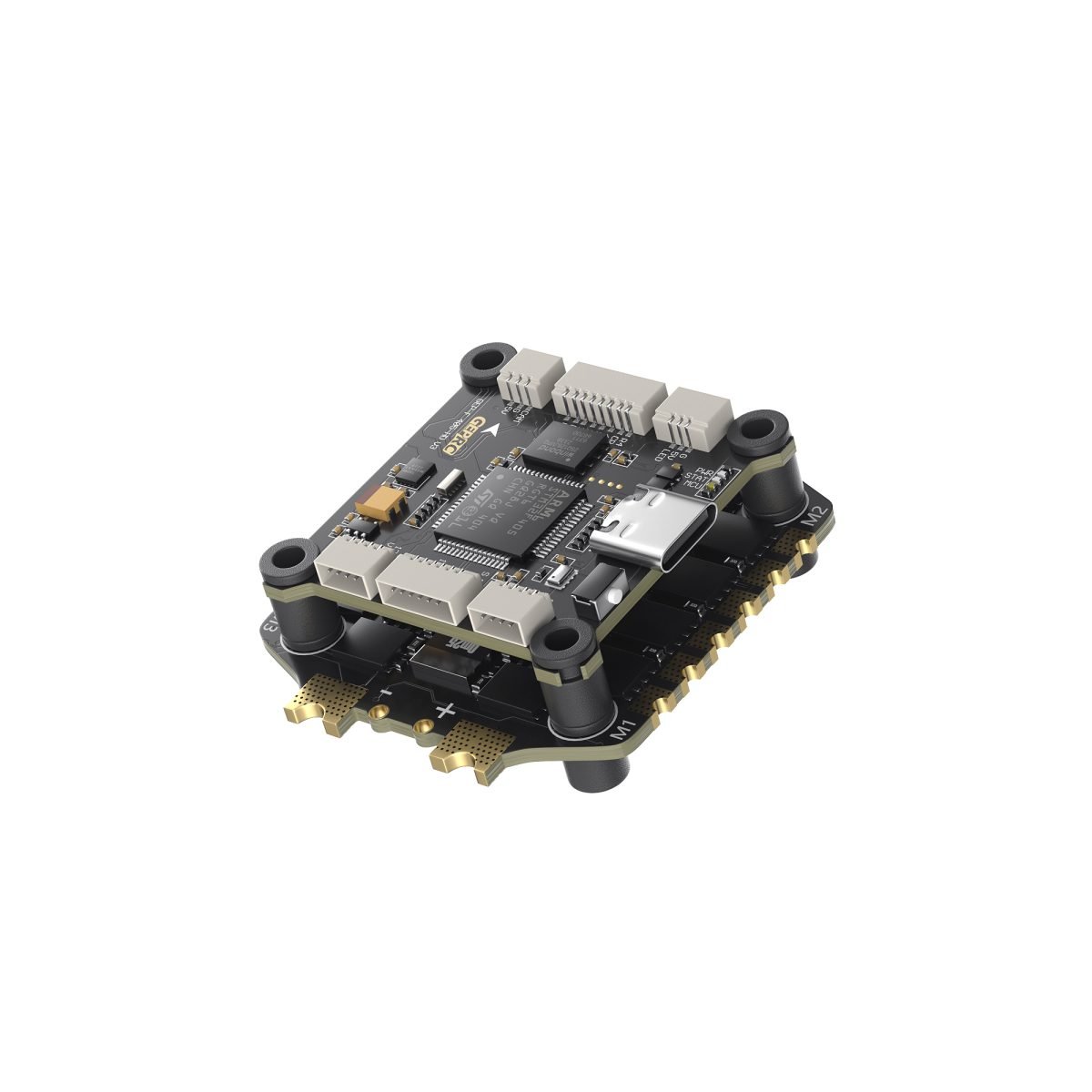

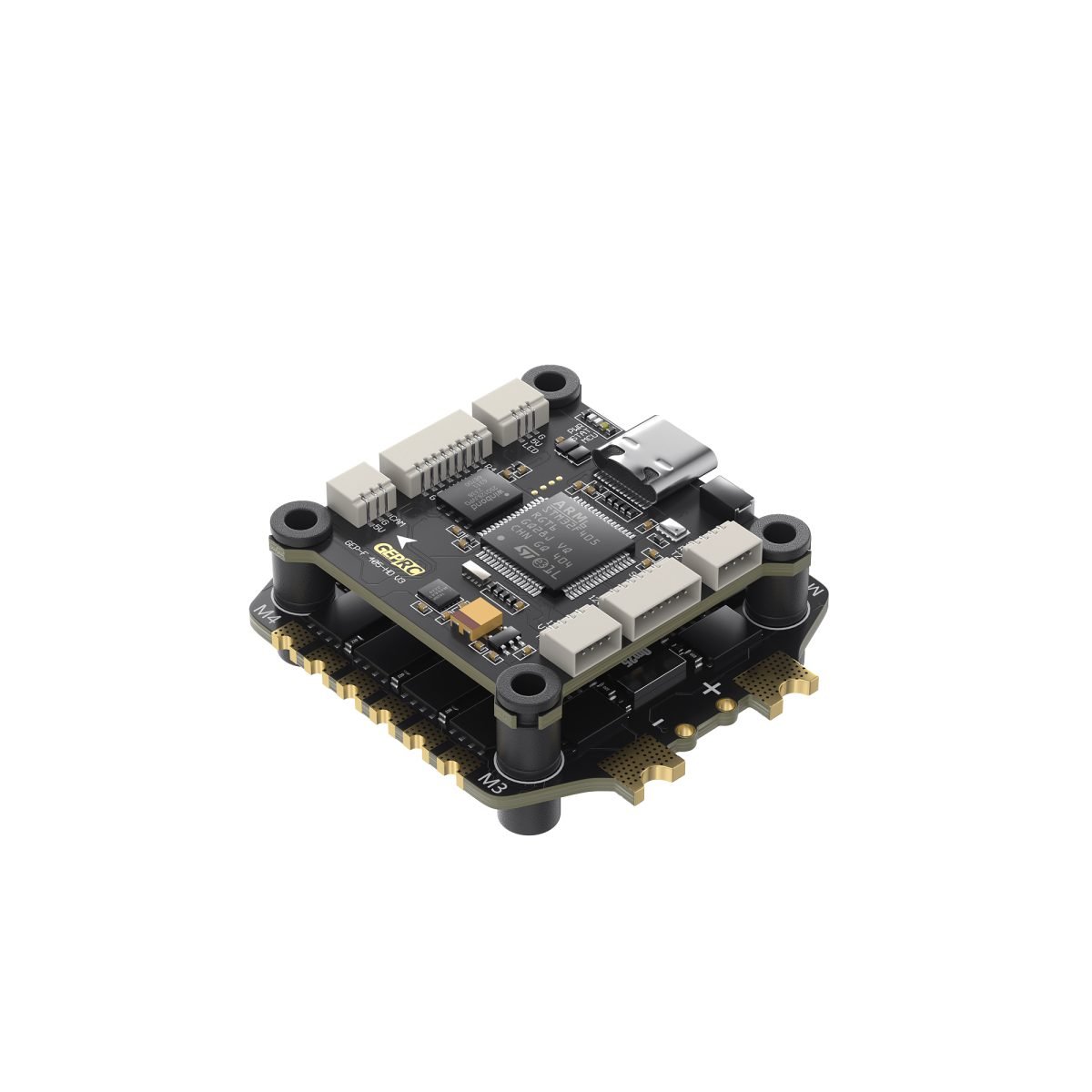

GEPRC TAKER F405 BLS 60A V2 STACK

Description

Features

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. 12V@2.5A + 5V@3A dual independent BEC

Specifications

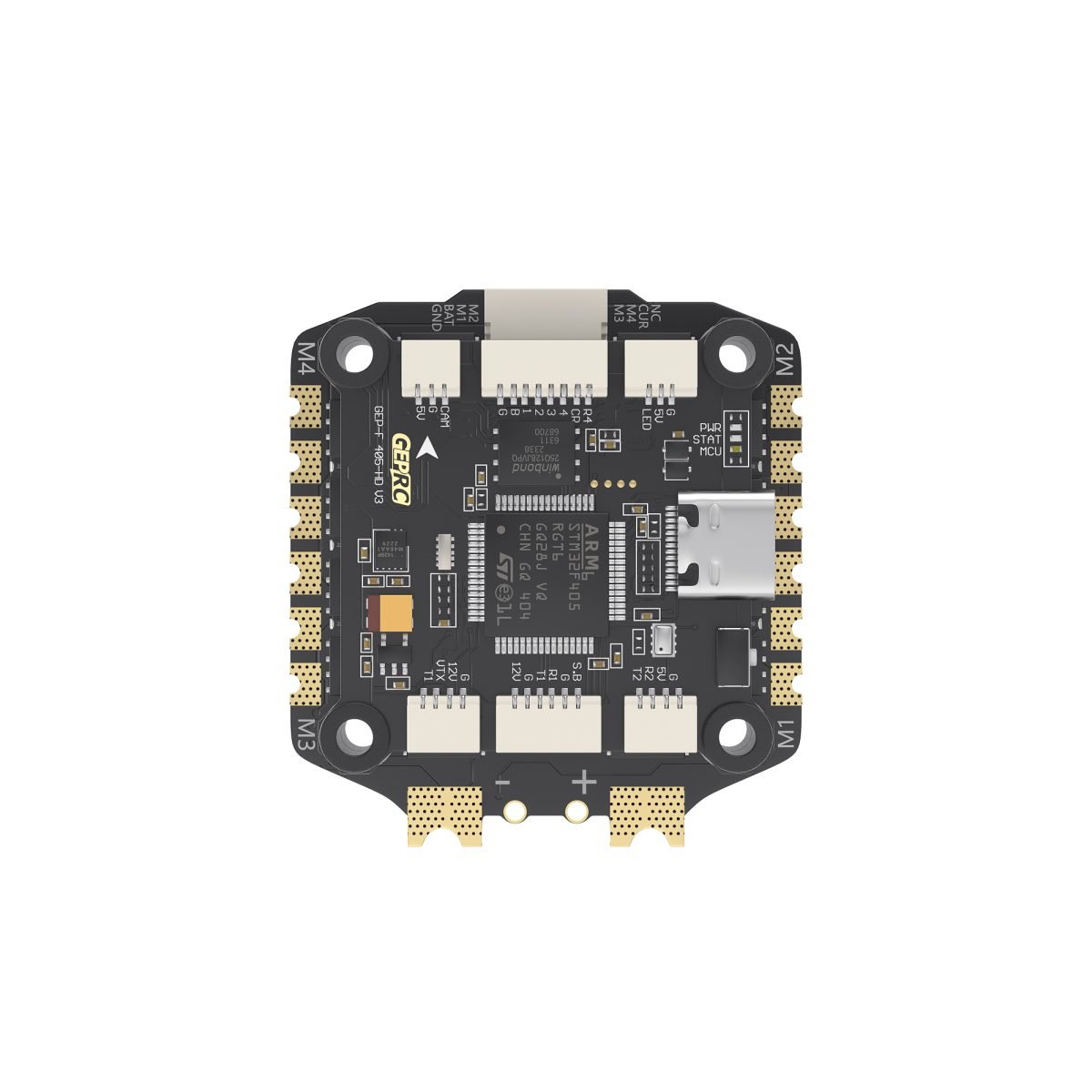

GEP-F405-HD V3 Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• Barometer: BMP280
• Motor outputs：M1-M6
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,12V@2.5A dual BEC
• Firmware Target：GEPRCF405
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage：3-6S LiPo
• UART：6 UARTs
• Power Filter：Integrated LC filter
• Weight：7.3g

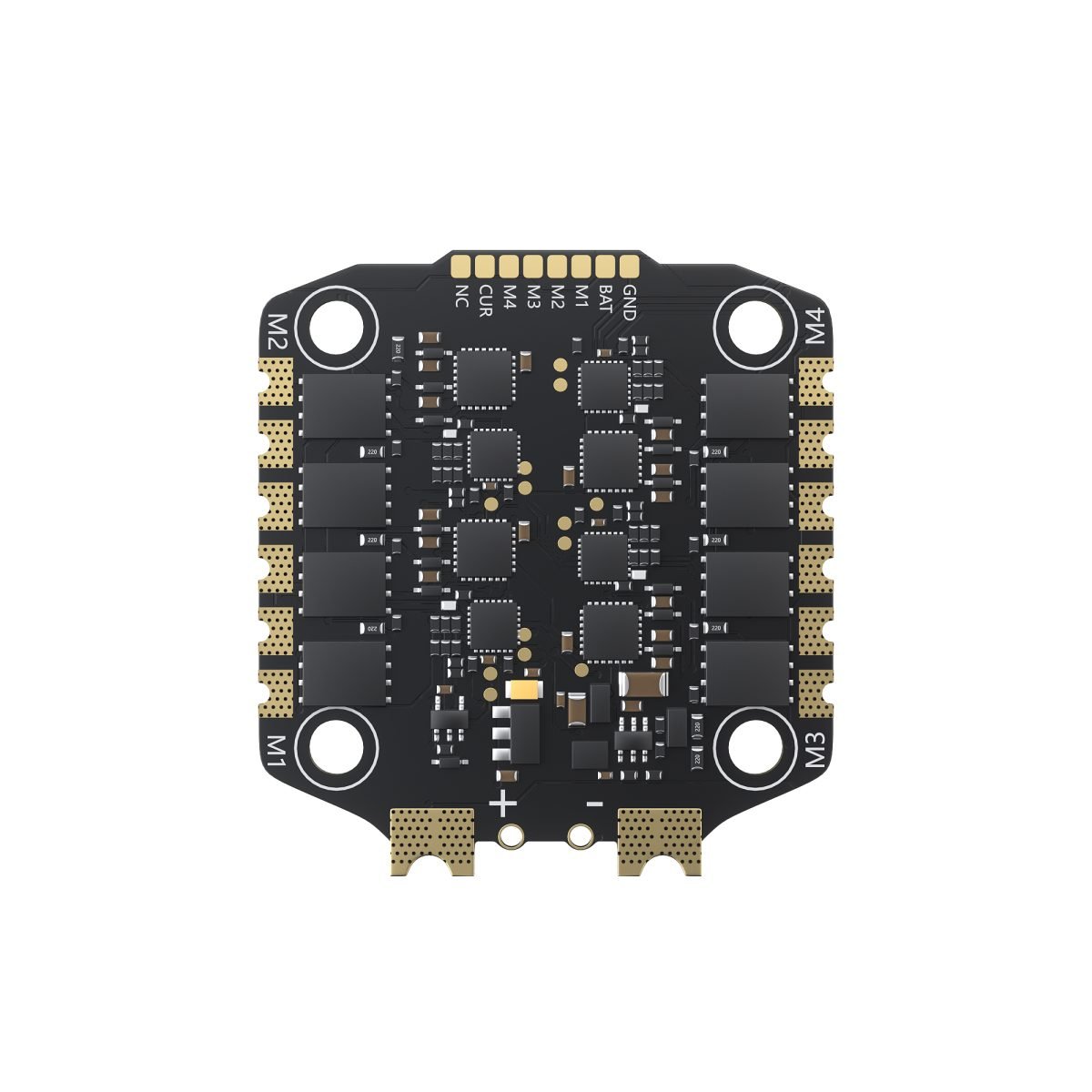

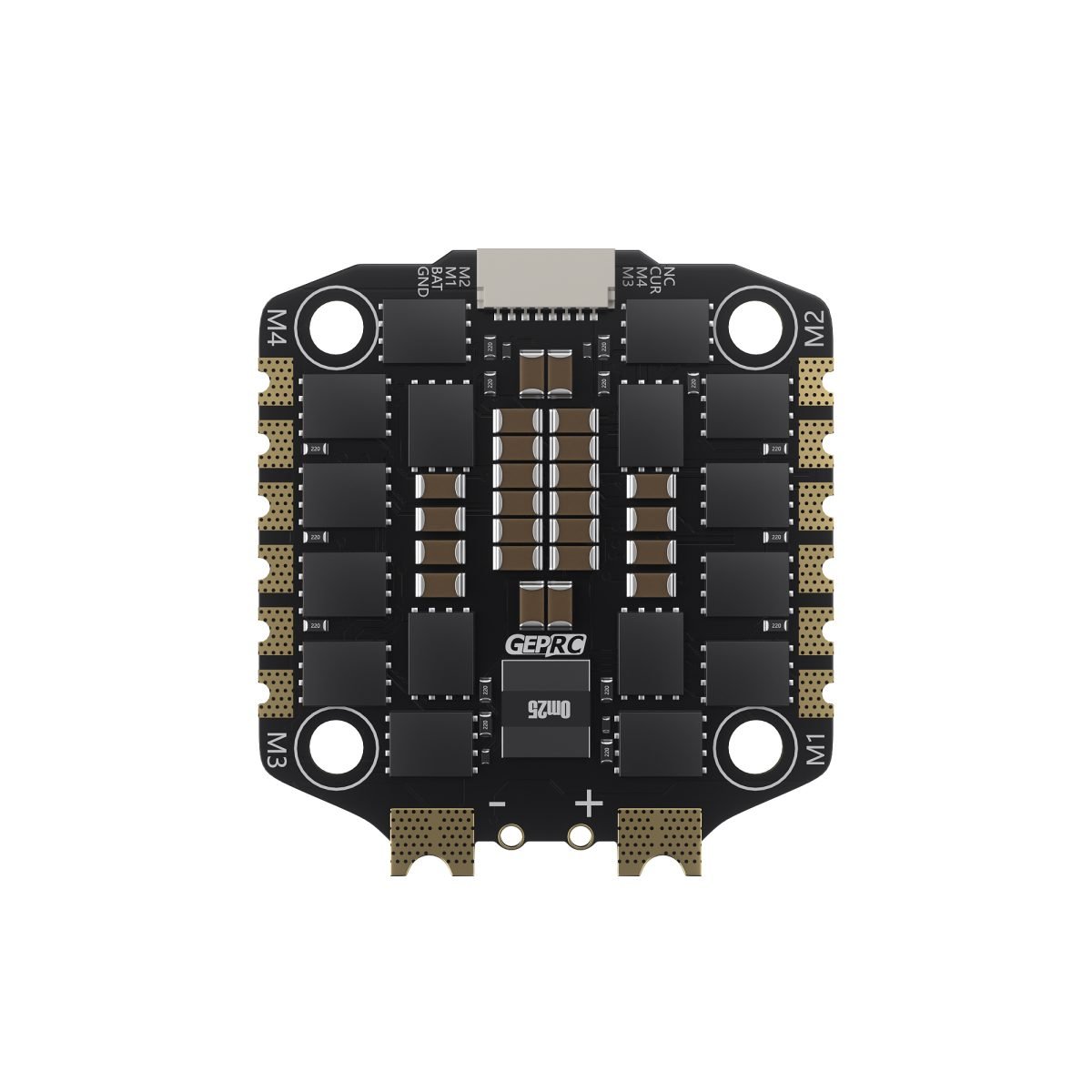

TAKER H60_BLS 60A 4IN1 ESC

• Input Voltage: 3-6S Lipo
• Ammeter: Support
• Continue Current：60A
• Burst Current：65A（5 second）
• Support Protocol: Dshot 150/300/600
• Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 14.9g
• Target: B_X_30

Includes

1 x Flight Controller

1 x ESC
