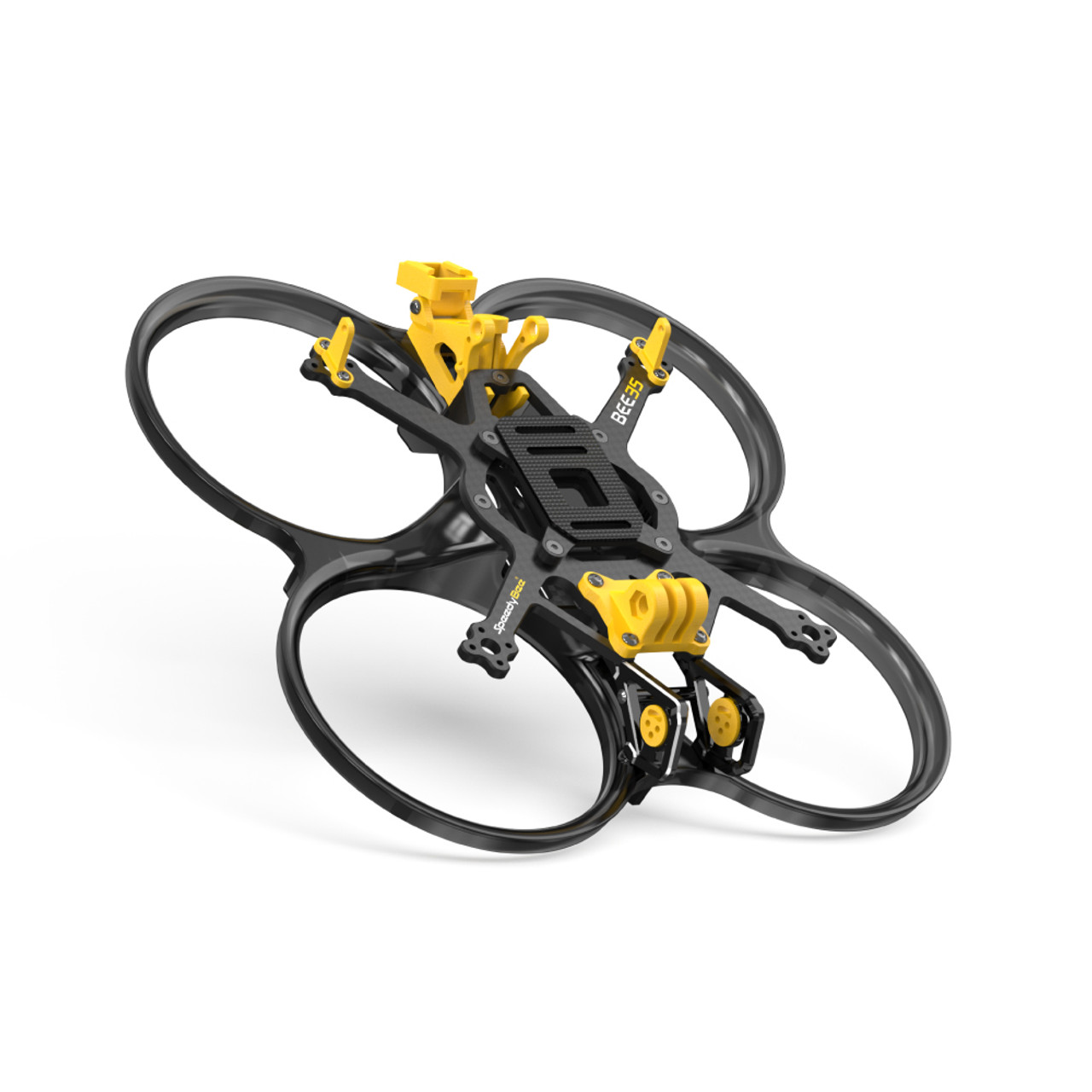

SpeedyBee Bee35 3.5 inch Frame

0.00

Add to cart
Guarantee safe & secure checkout
Guarantee & safe checkout
On all order
SKU : N/A Category :

Description

INTRODUCTION TO DESIGN HIGHLIGHTS

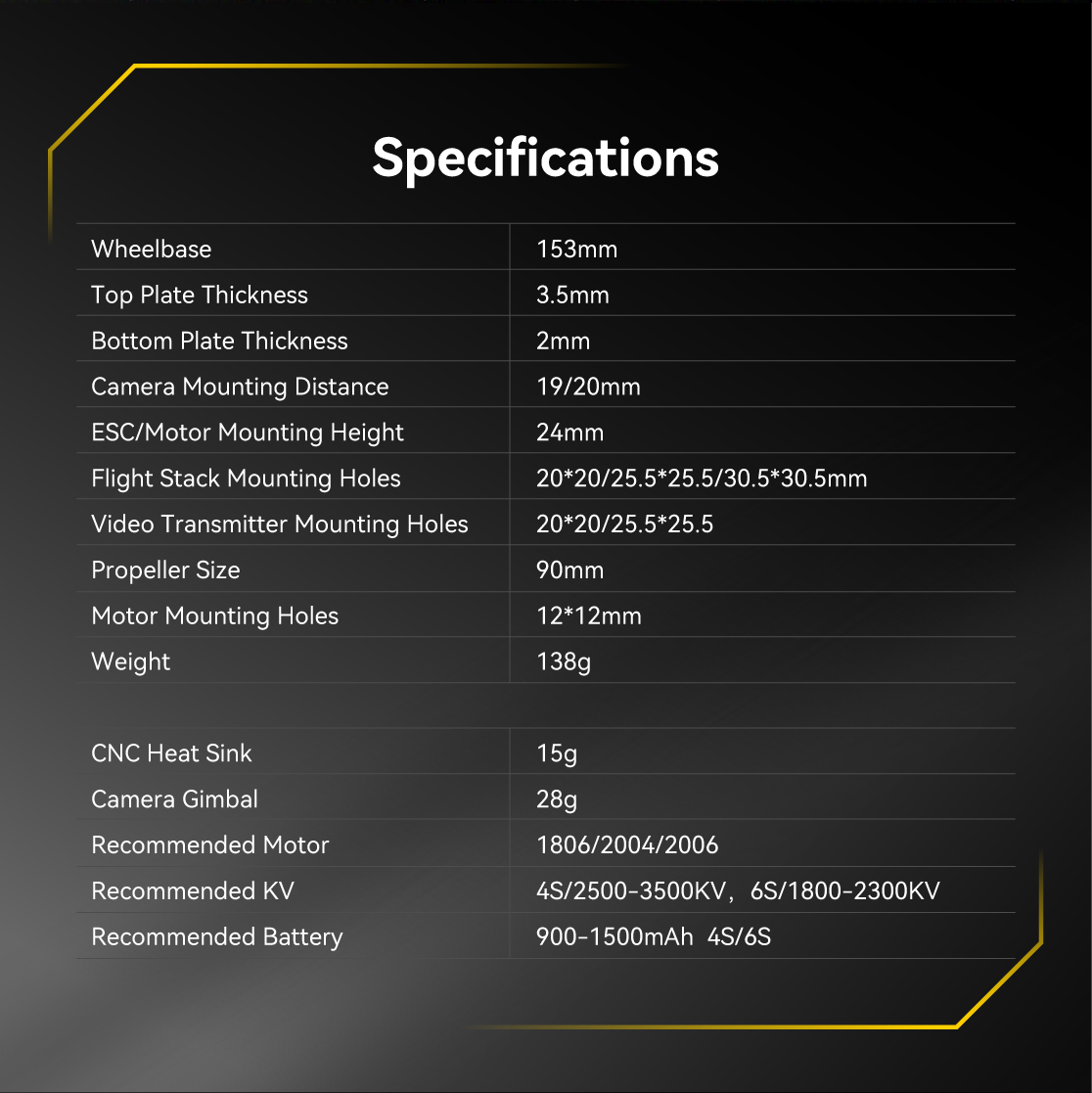

Specifications
Product Name SpeedyBee Bee35 Frame
Wheelbase 153mm

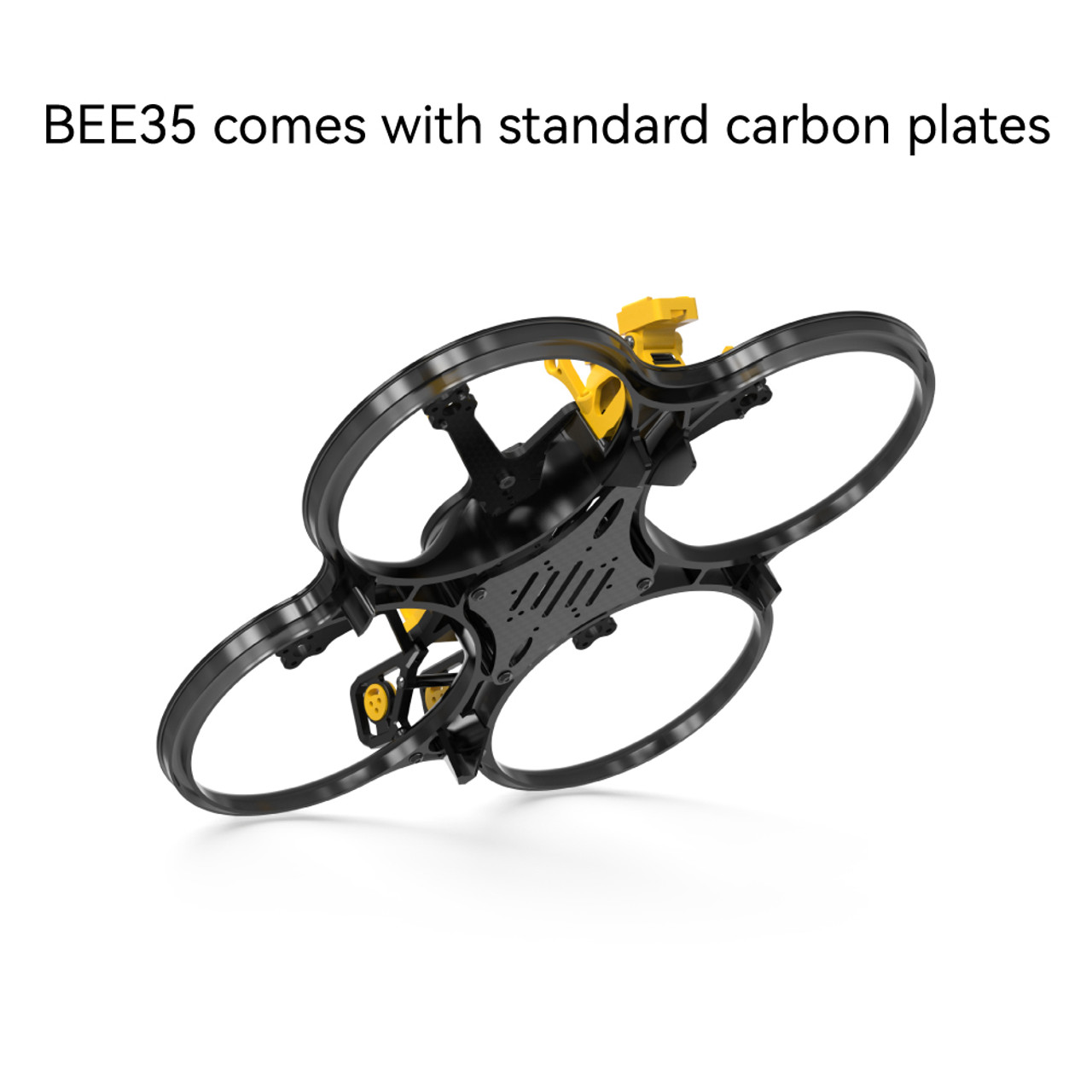

Top Plate Thickness 3.5mm
Bottom Plate Thickness 2mm

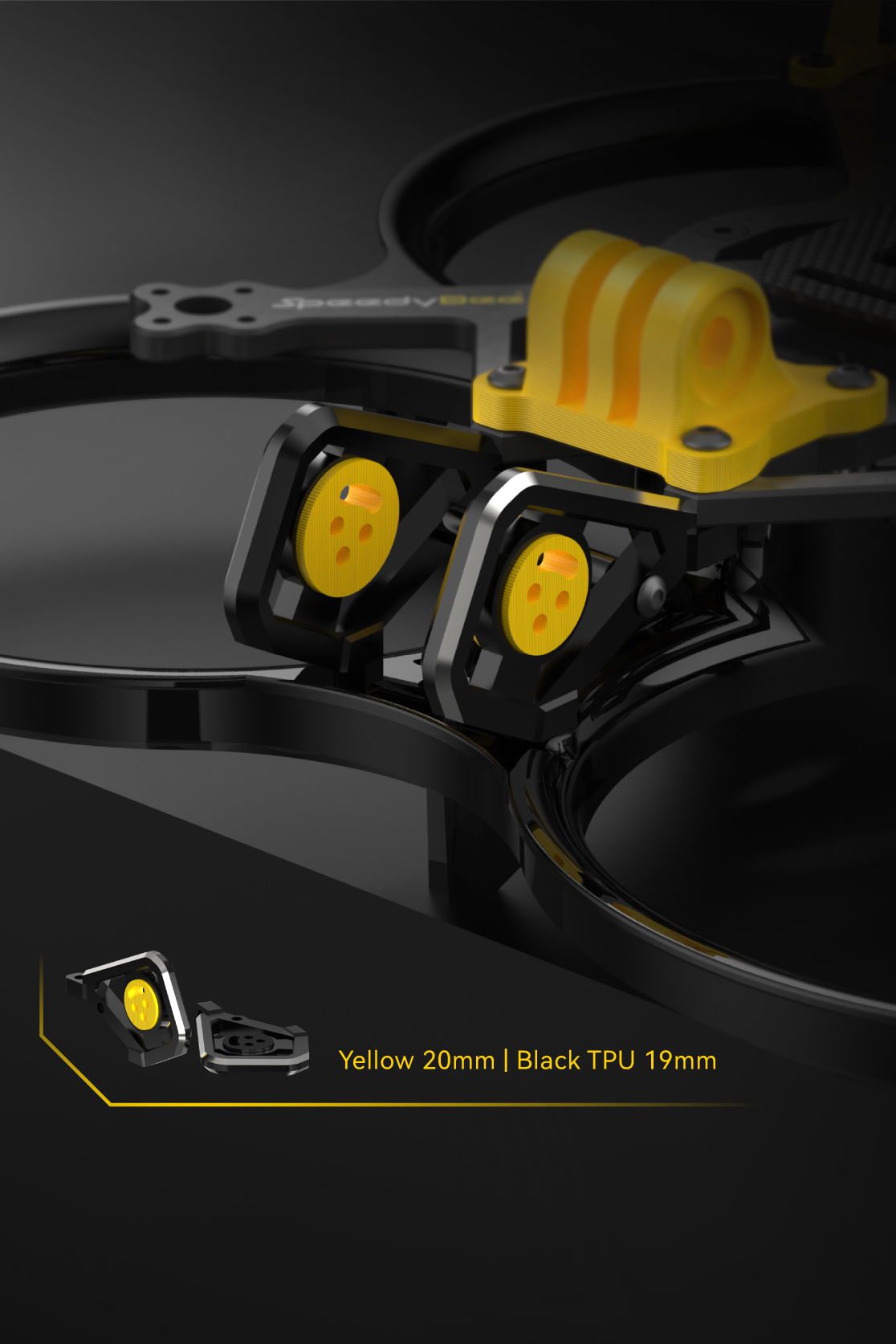

Camera Mounting Distance 19/20mm
ESC/Motor Mounting Height 24mm
Flight Stack Mounting Holes 20*20/25.5*25.5/30.5*30.5mm

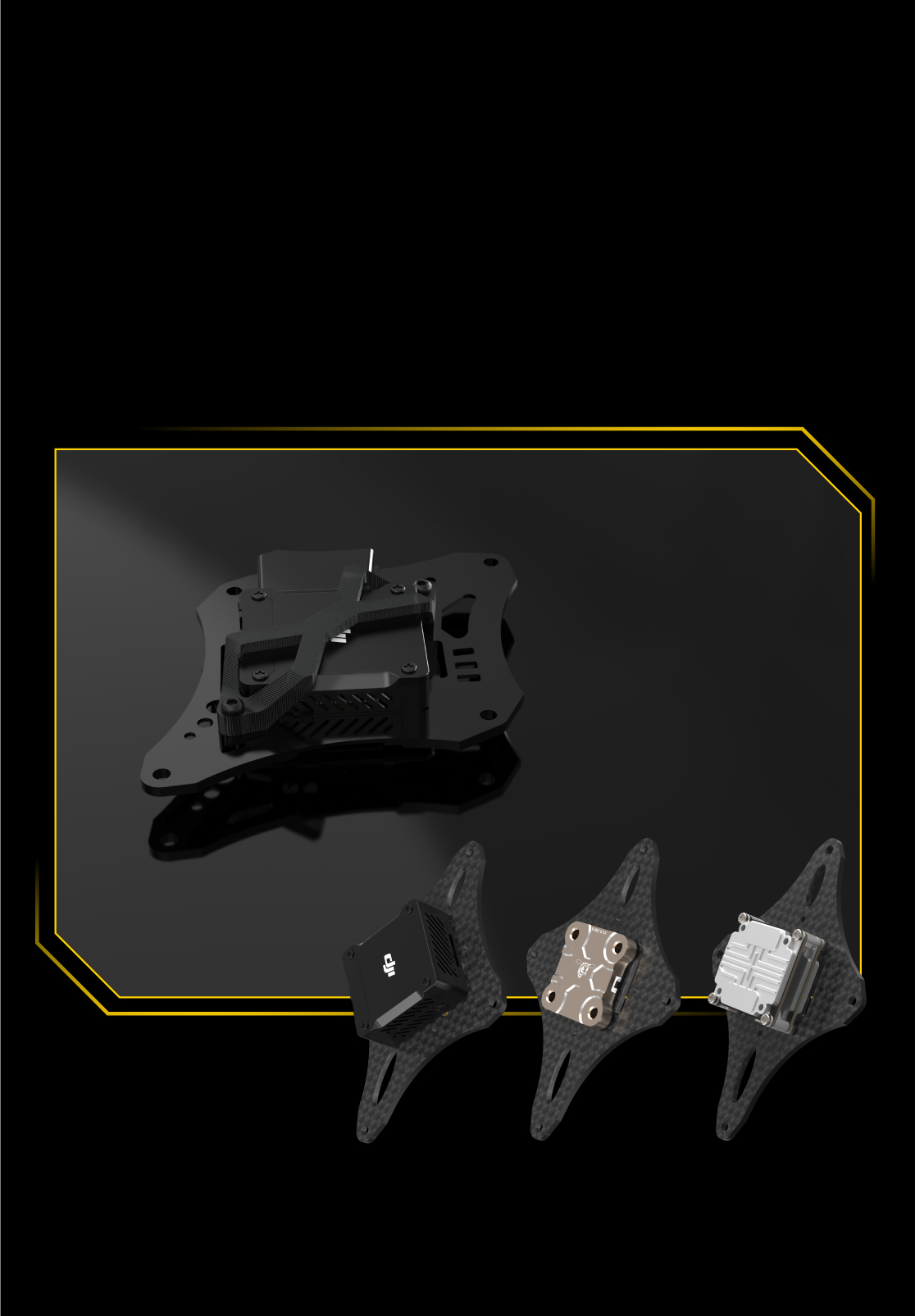

Video Transmitter Mounting Holes 20*20/25.5*25.5
Propeller Size 90mm
Motor Mounting Holes 12*12mm
Weight 138g

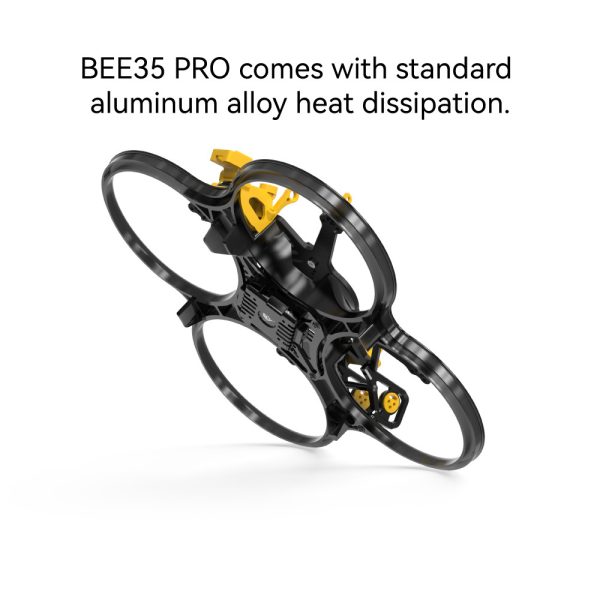

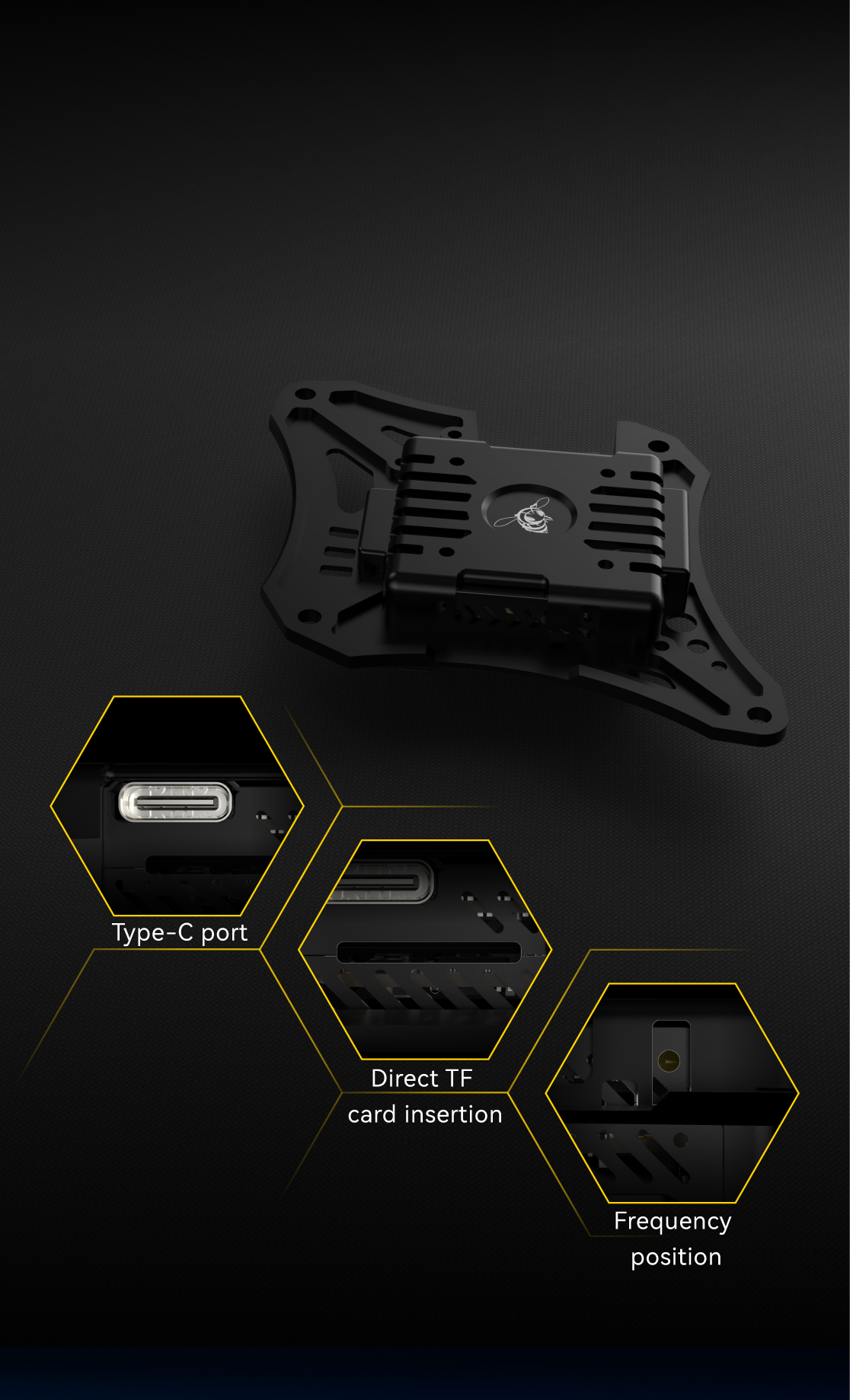

CNC Heat Sink 15g

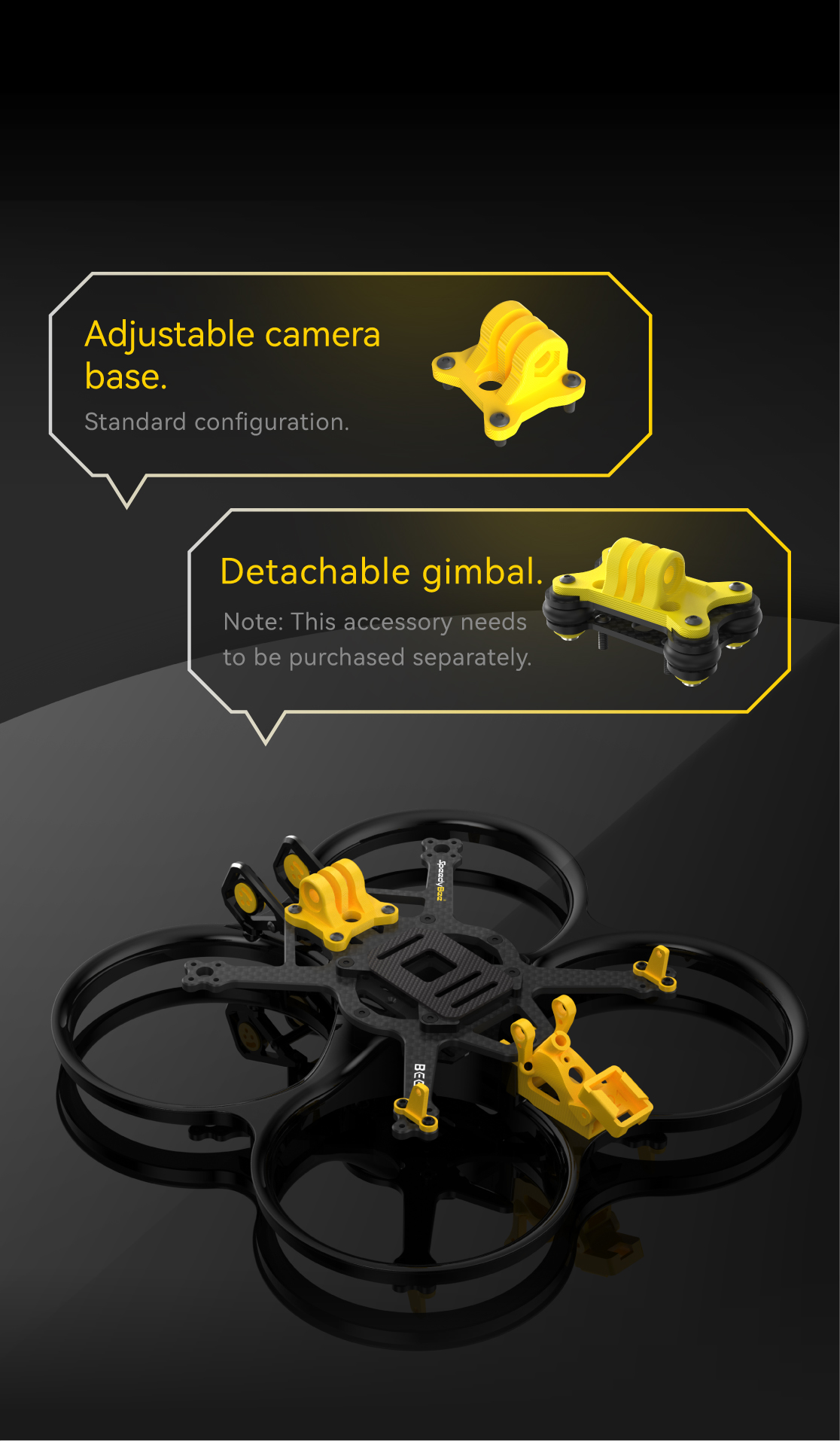

Camera Gimbal 28g
Recommended Motor 1806/2004/2006
Recommended KV 4S/2500-3500KV,6S/1800-2300KV

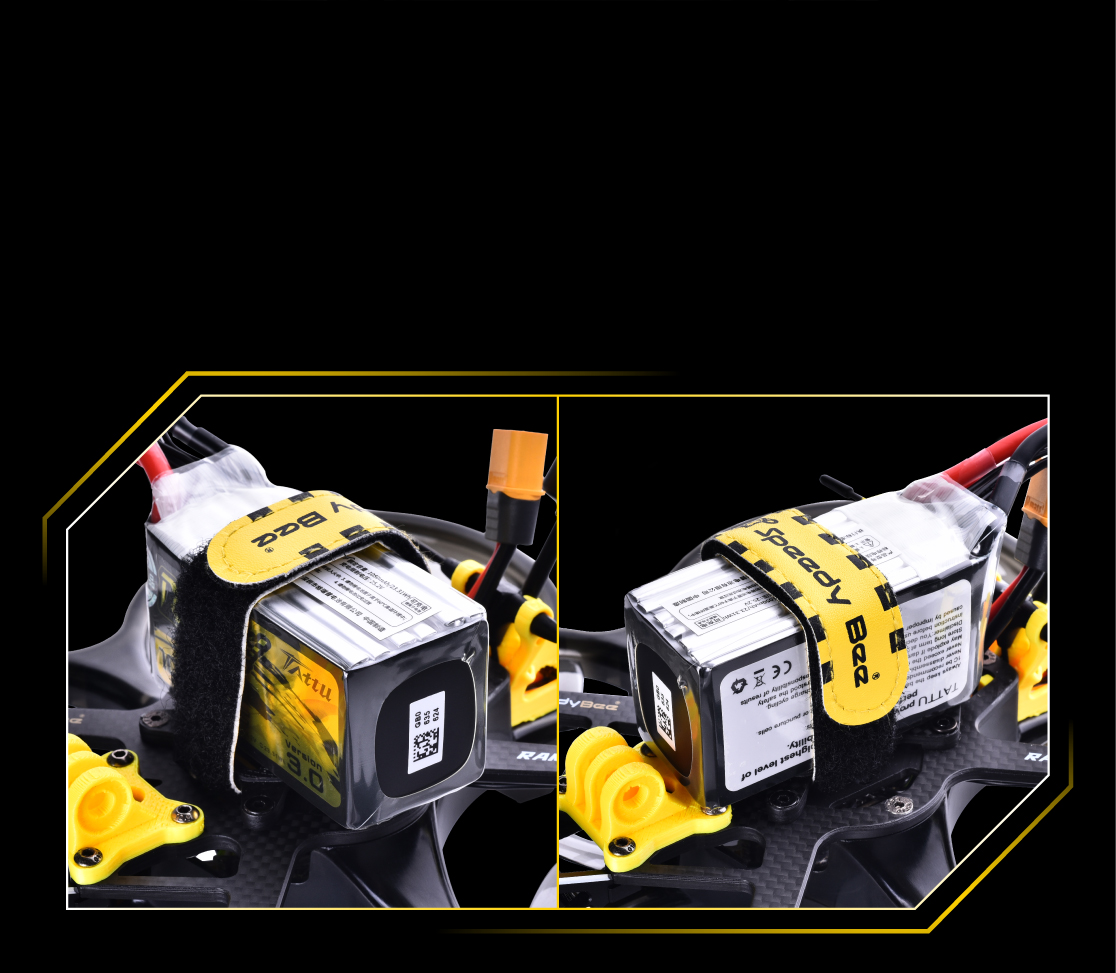

Recommended Battery 900-1500mAh 4S/6S

Additional information

SpeedyBee Bee35 3.5 inch

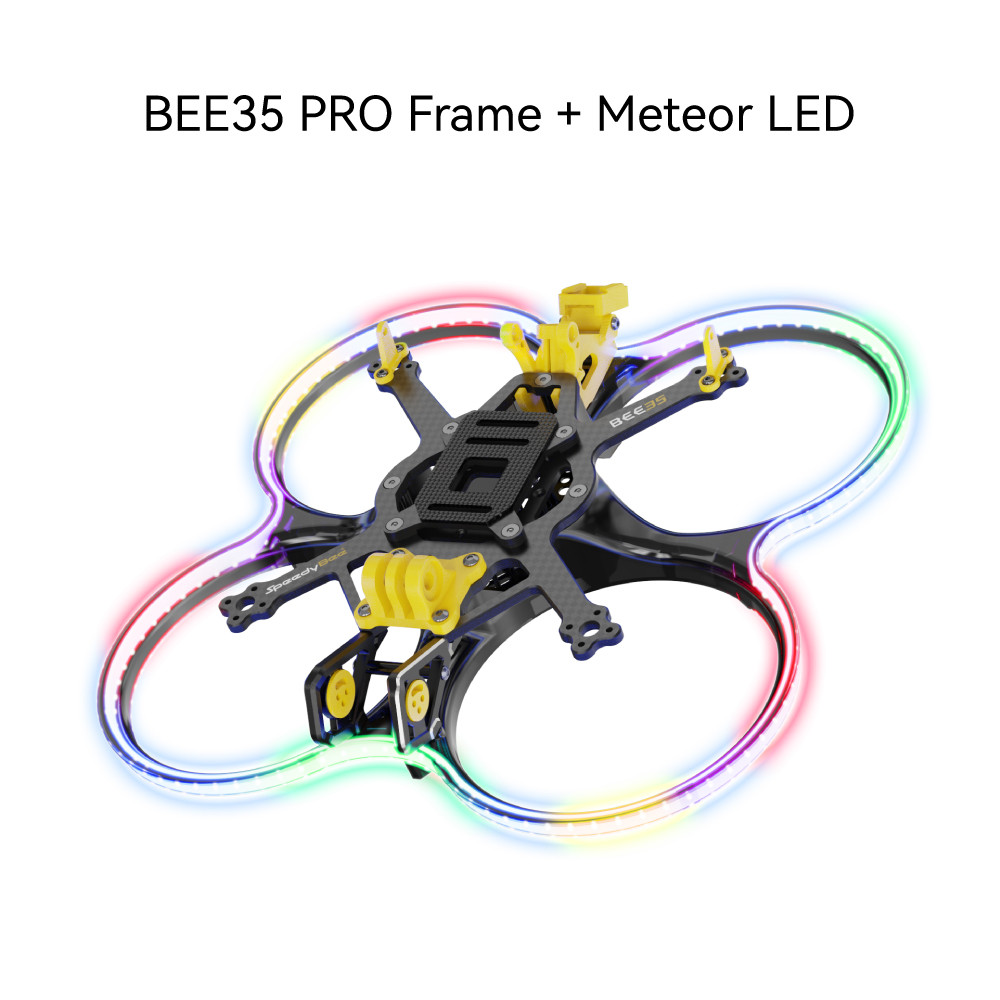

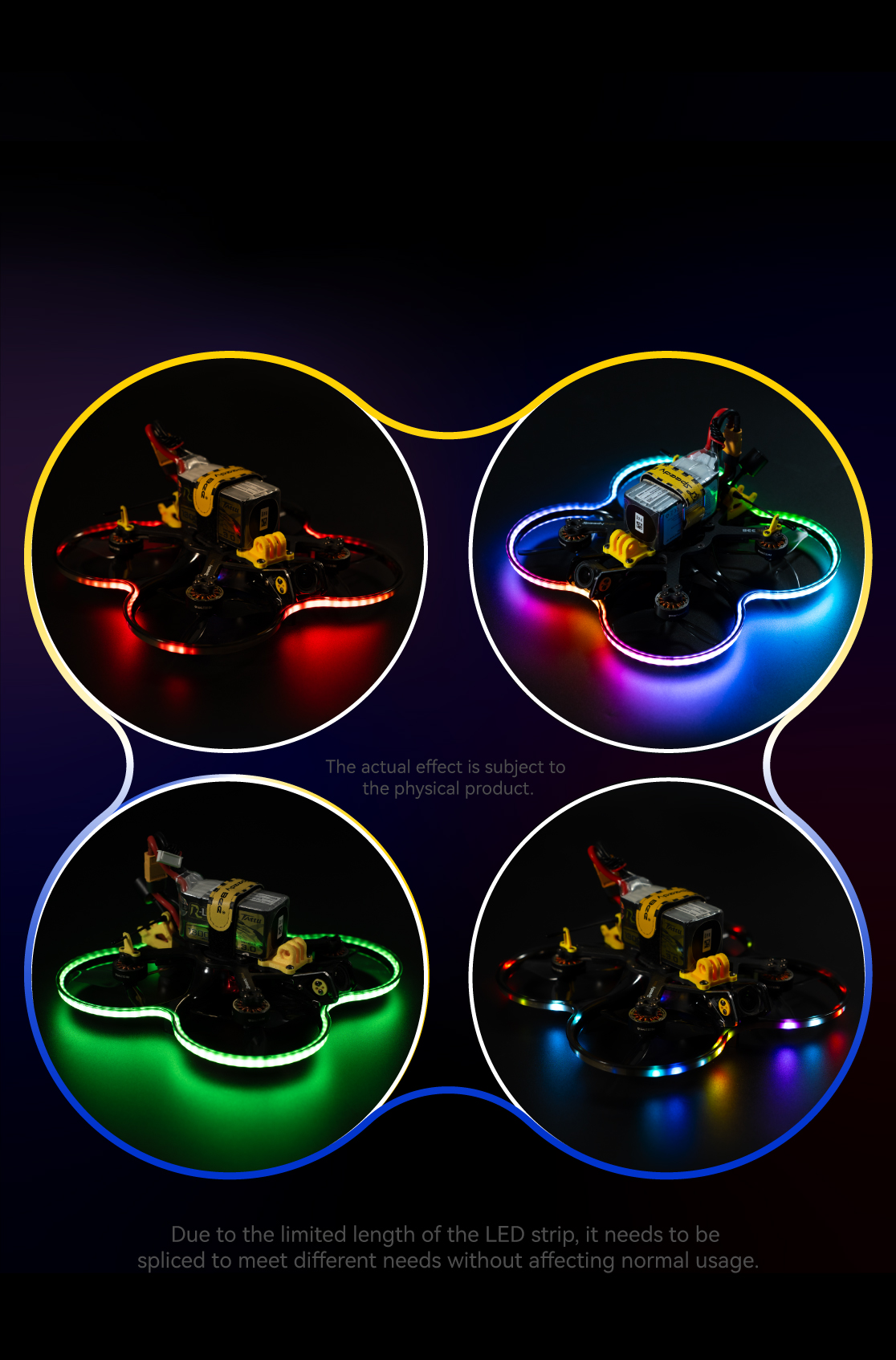

Bee35, Bee35 Pro, Bee35 Pro LED
