Description
Specifications

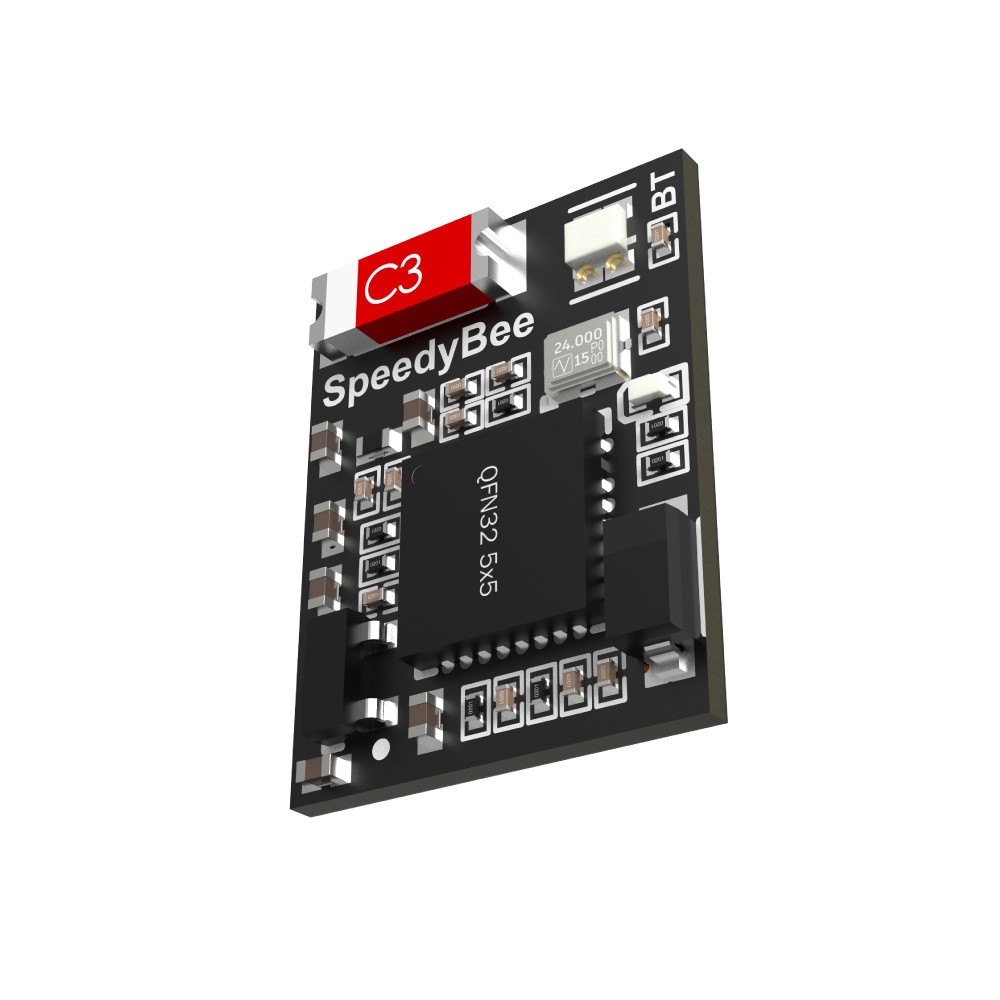

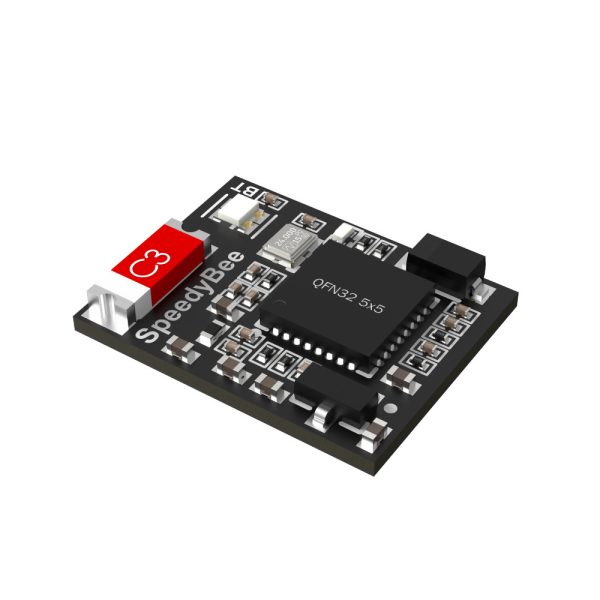

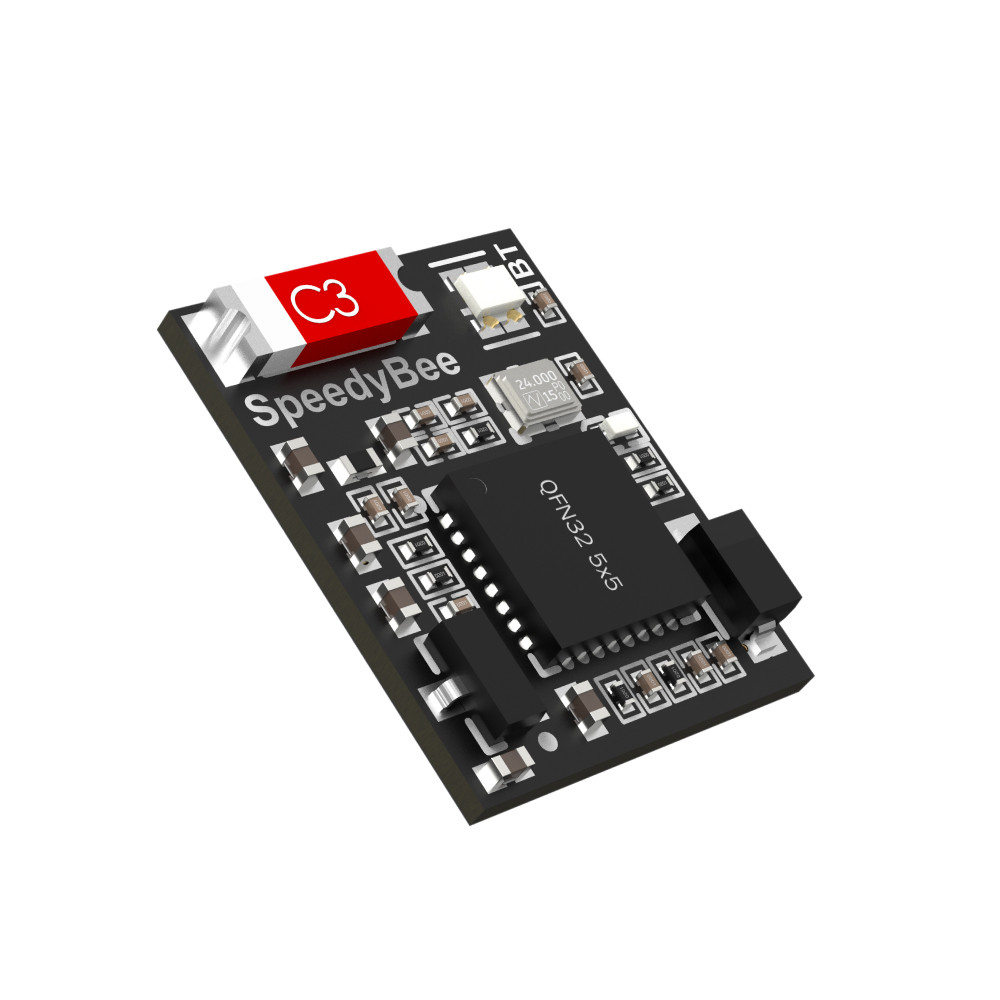

| Product Name | SpeedyBee BT Nano 3 |
| Operating Voltage | 5V |
| Working Current | MAX~87mA(5V) |
| Bluetooth Low Energy | Supports |
| WiFi | Supports. It will be turned on automatically only when upgrading the firmware of the module itself. |

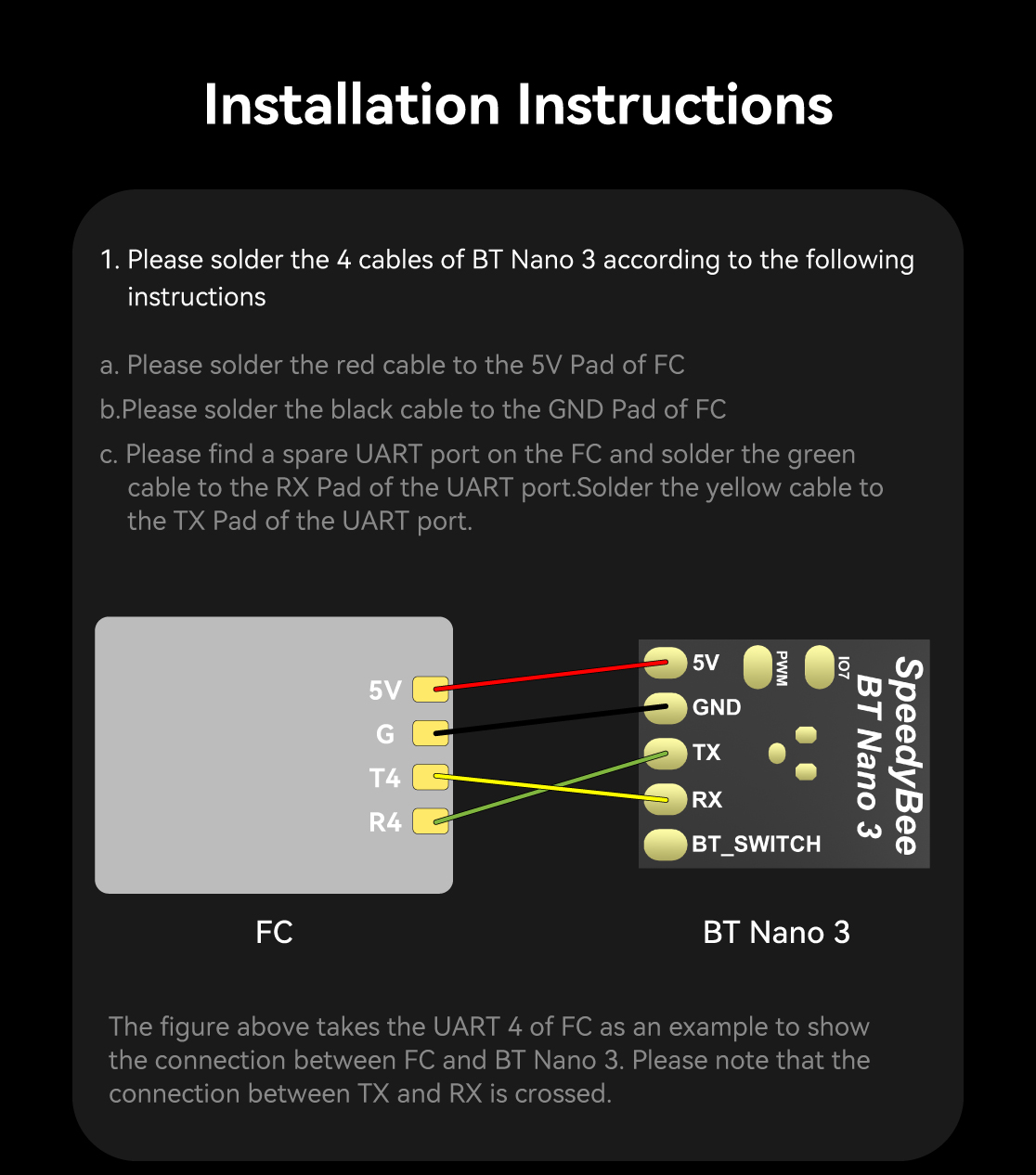

| Communication Port | UART |
| Baudrate | 115200 |

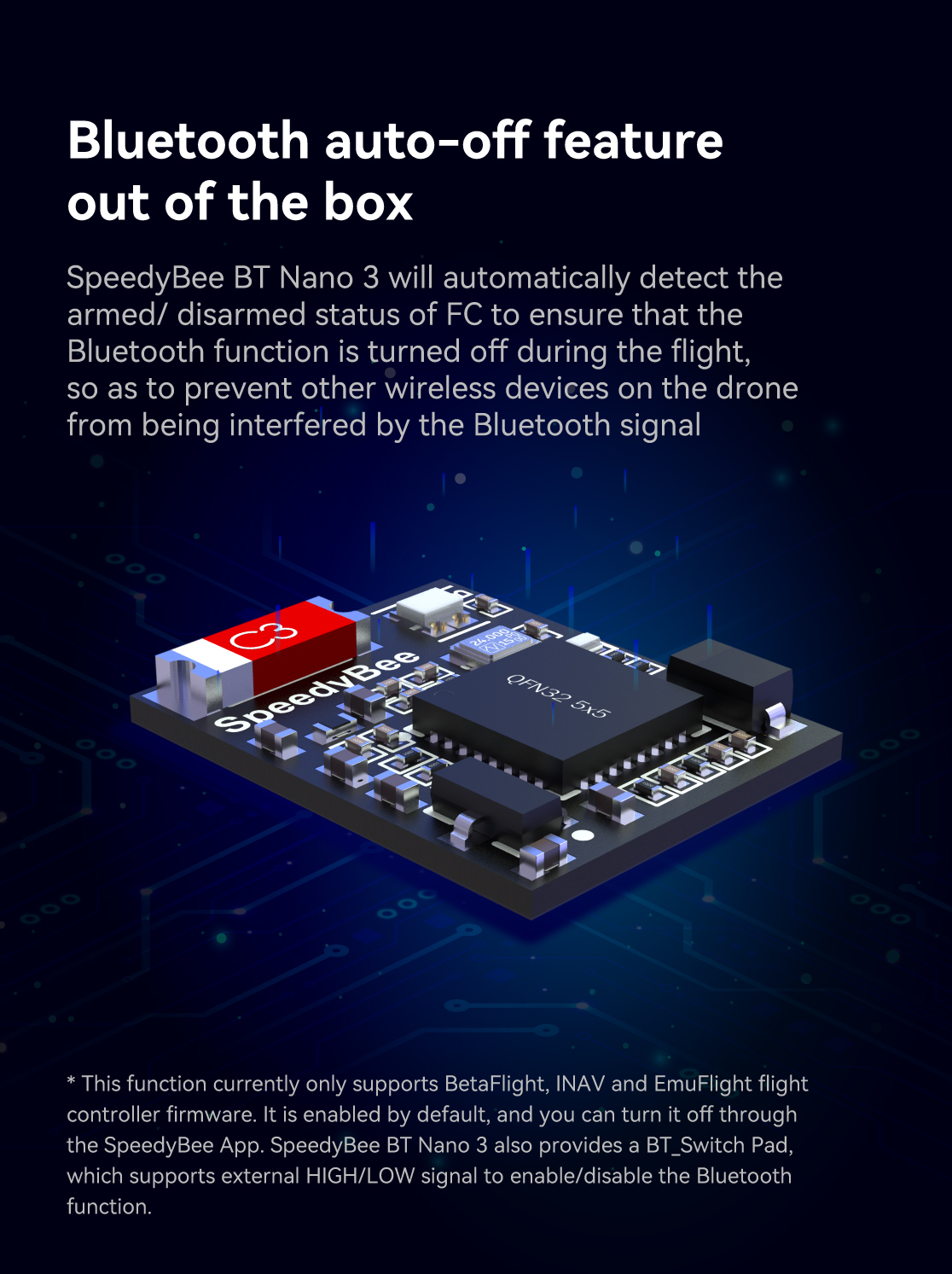

| Bluetooth Automatically Turns Off | Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal. |

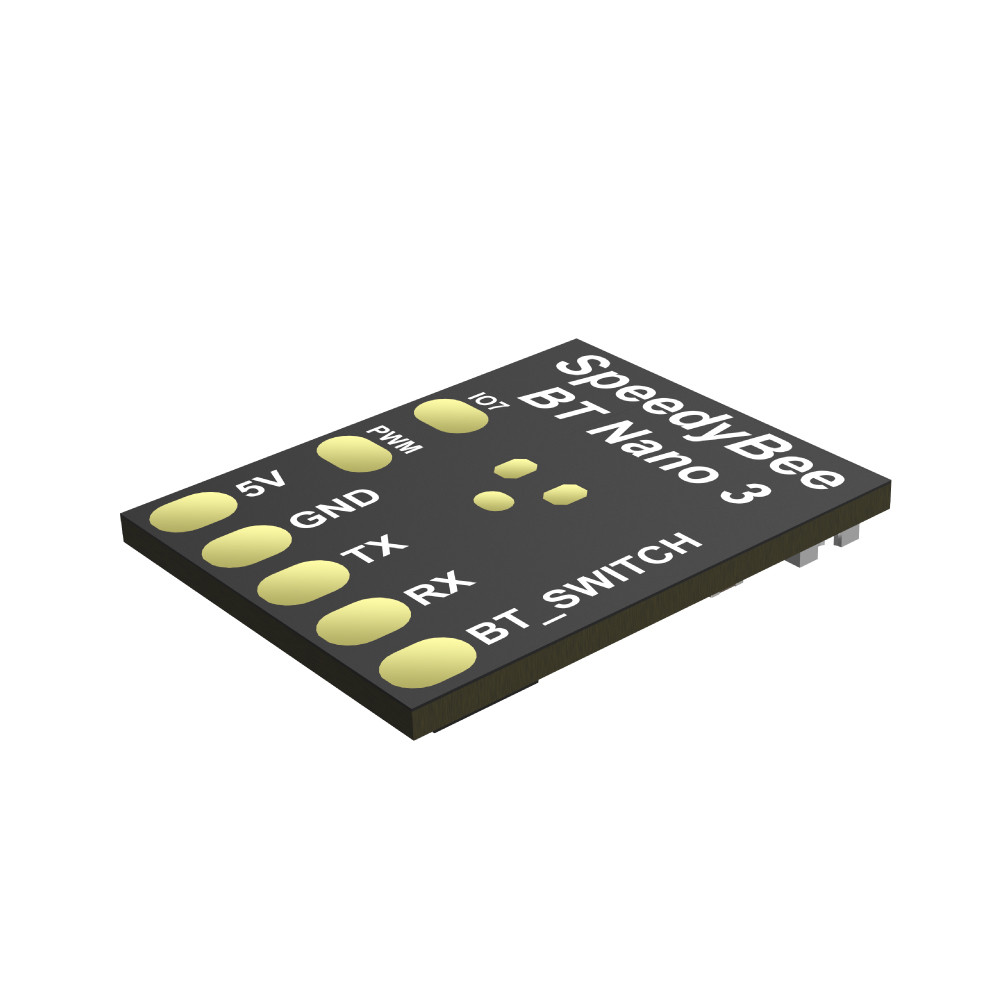

| BT Switch Pad | The Bluetooth function will be disabled when it receives a Low signal.In the BT Switch section of the manual, you can learn about the detailed instructions |

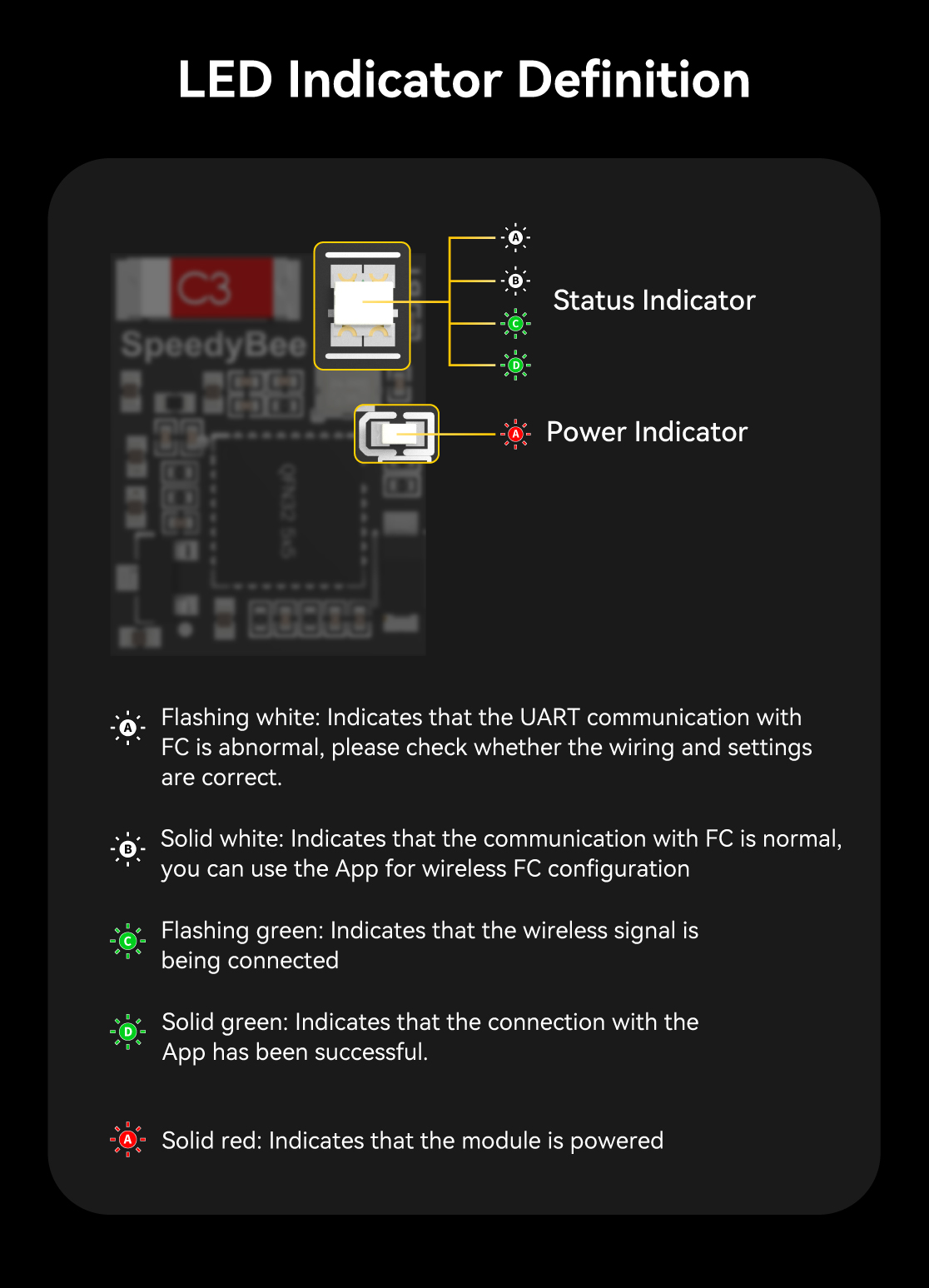

| Power Indicator | Solid Red: Indicates that the module is powered. |
| Working Status Indicator | Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.
Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment Flashing green: Indicates that the wireless signal is being connected Solid Green: Indicates that the connection with the App has been successful |

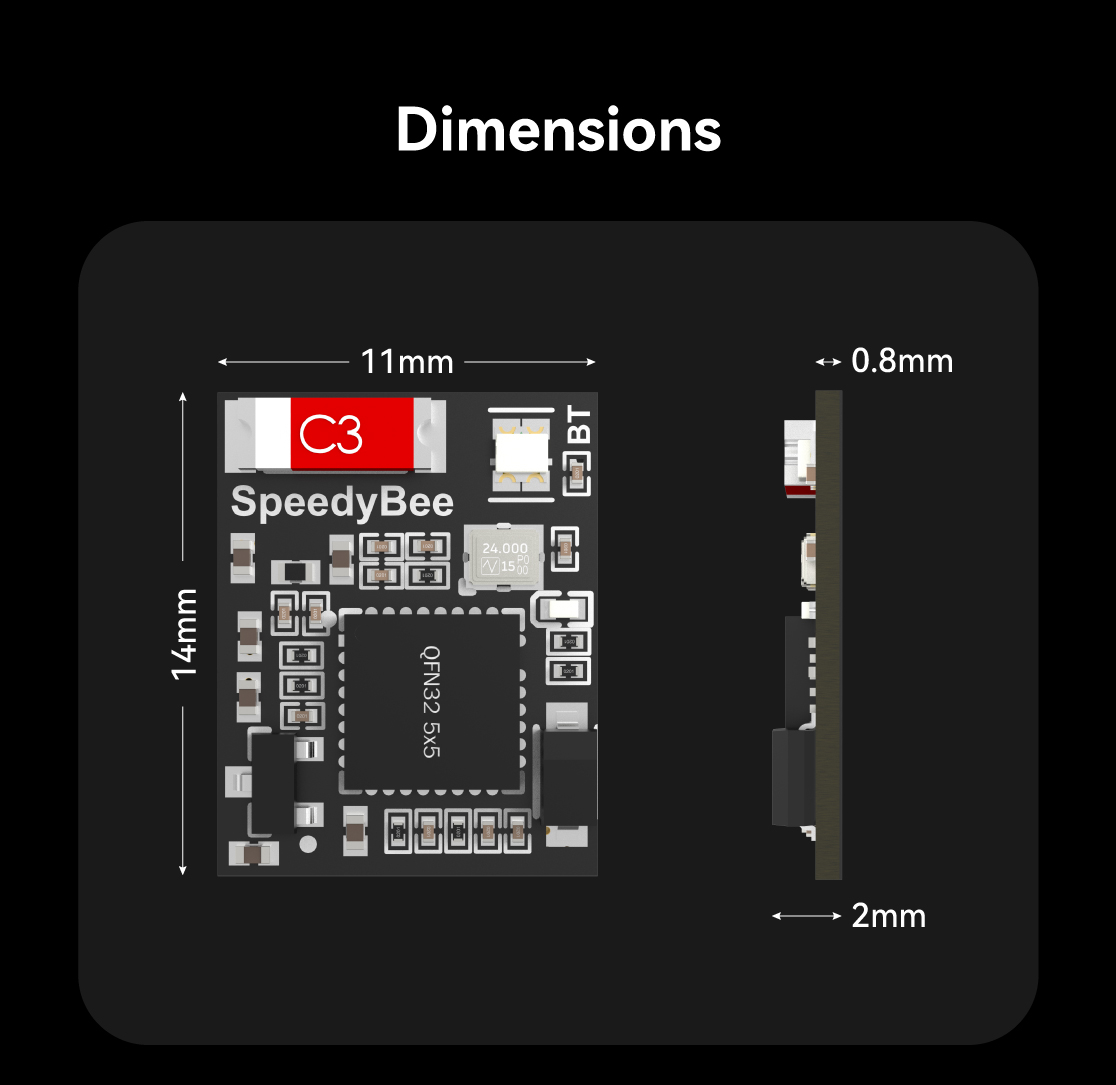

| Size | 14*11*0.8mm |
| Weight | 5g |
