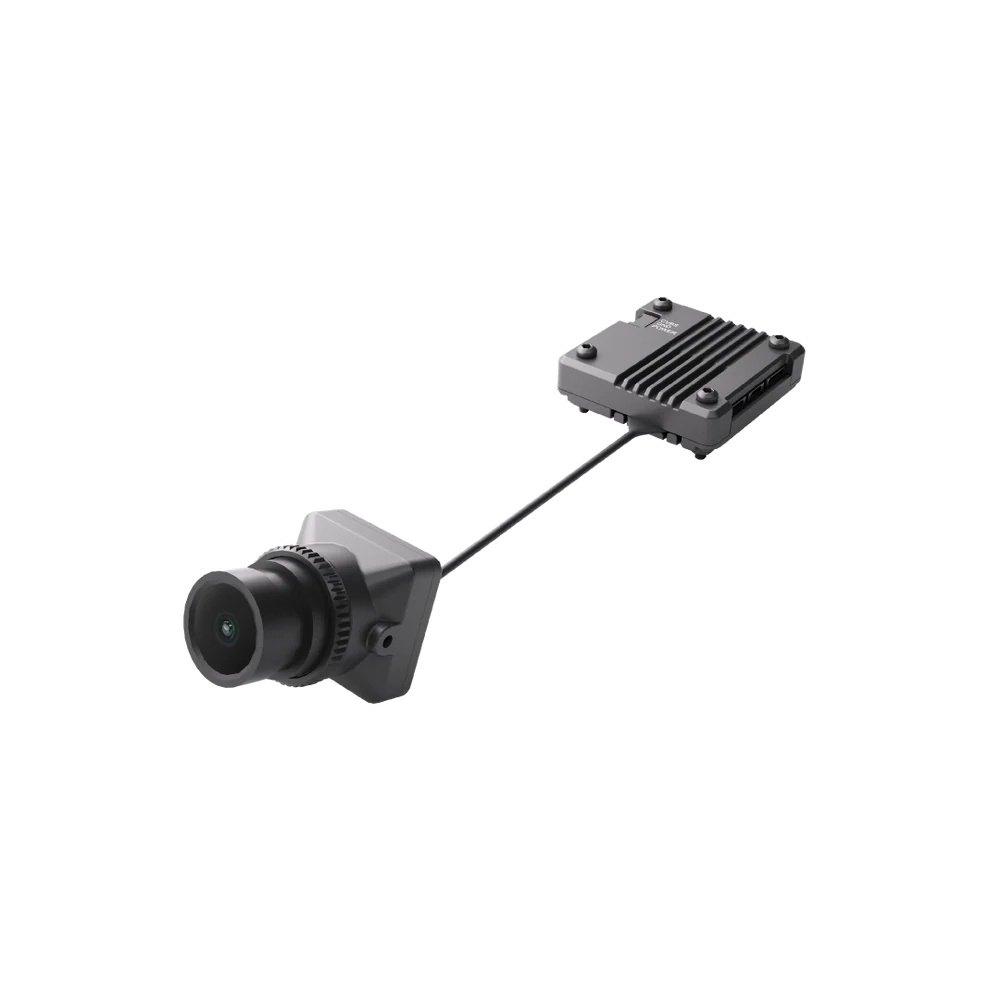

The CaddxFPV Infra V2 Camera is an analog FPV night-vision camera designed to improve visibility in low-light flying conditions. It combines AI image enhancement with a black-and-white sensor to help pilots identify objects and maintain better visual awareness in dark environments.
- AI night vision enhancement: Improves image clarity in low-light conditions.
- 1500TVL resolution: Delivers detailed black-and-white imagery.
- 131.6° field of view: Provides a wide view for FPV navigation.
- Wide dynamic range (WDR): Helps preserve image details in challenging lighting.
- Native 4:3 aspect ratio: Provides an uncropped image format.
- Metal housing: Supports durability and heat dissipation.
CaddxFPV Infra V2 Camera Specifications
- Image sensor: 1/1.8-inch
- Horizontal resolution: 1500TVL
- Lens: 2.8mm, F1.0 aperture
- Field of view: 131.6° diagonal
- Output format: CVBS PAL
- Frame rate: 50fps
- Aspect ratio: 4:3
- Supply voltage: 9–24V
- Typical power consumption: less than 1.2W
- Operating temperature: −20°C to 60°C
Analog FPV System Compatibility
The Infra V2 is an analog camera system, so check compatibility with your flight controller's analog video input and your intended video transmission setup before purchasing. A video transmitter is not included with the camera system. Verify the included cables and accessories against the product listing.
Why Choose the Infra V2?
The CaddxFPV Infra V2 Camera is suited to FPV pilots who need improved visibility for night flying, low-light navigation, or other dark environments. Its wide field of view, AI image enhancement, and compact metal housing make it a useful option for compatible analog FPV builds.

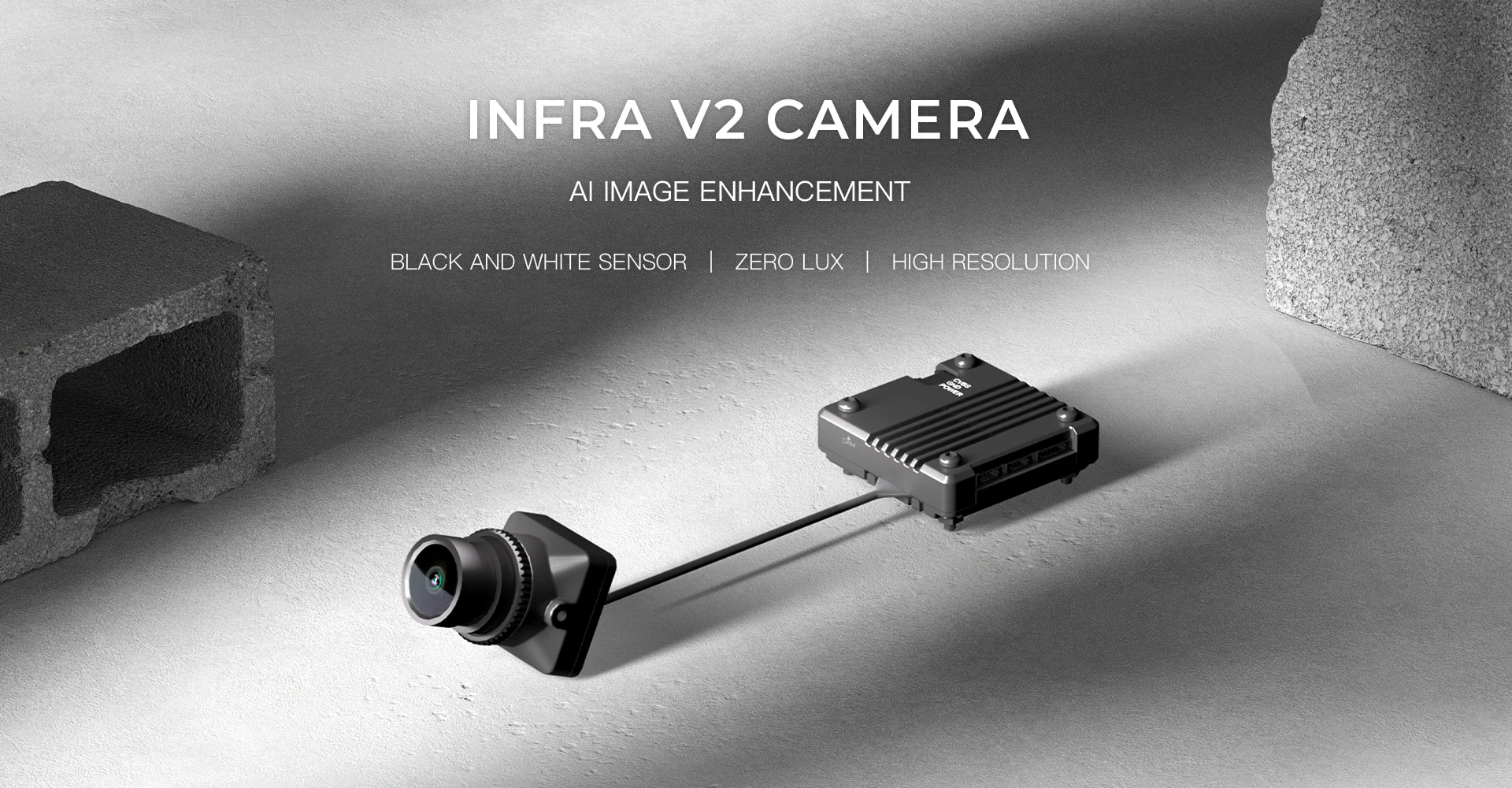

| ●New V2 AI Image Enhancement | ●High Resolution |
| ●Reduced Size and Dimensions | ●Black and White Sensor |

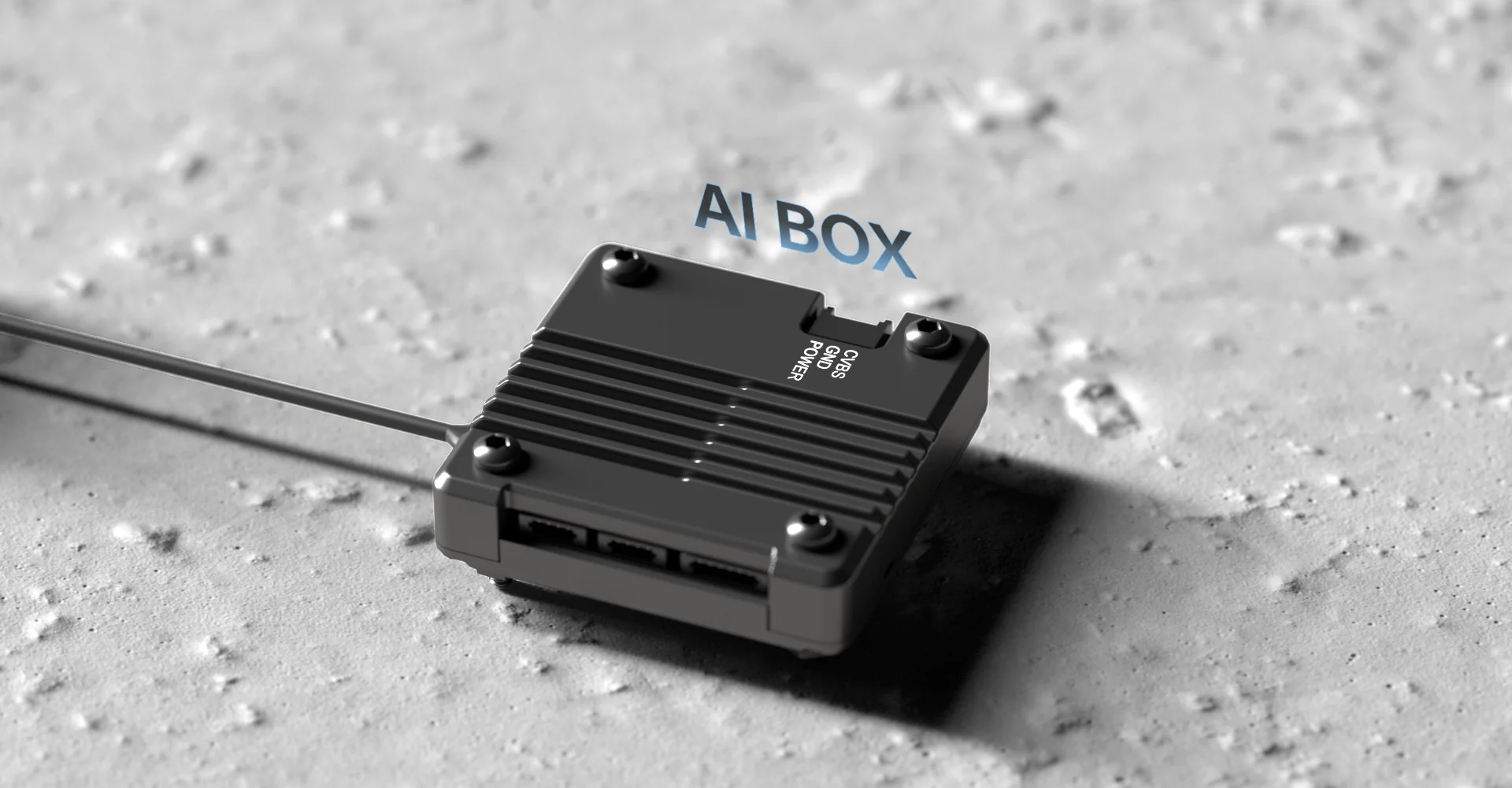

1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.

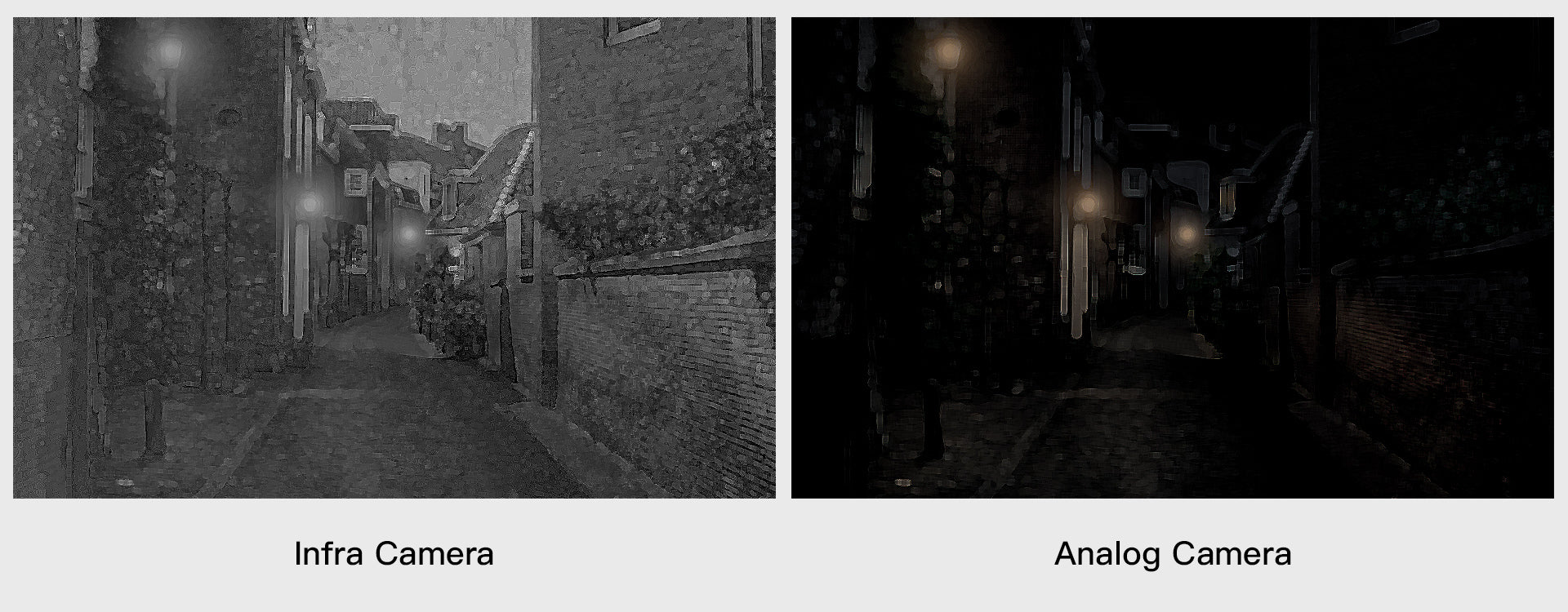

2. Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing overexposure/underexposure in backlit scenes and preserving full image details. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
3. The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.

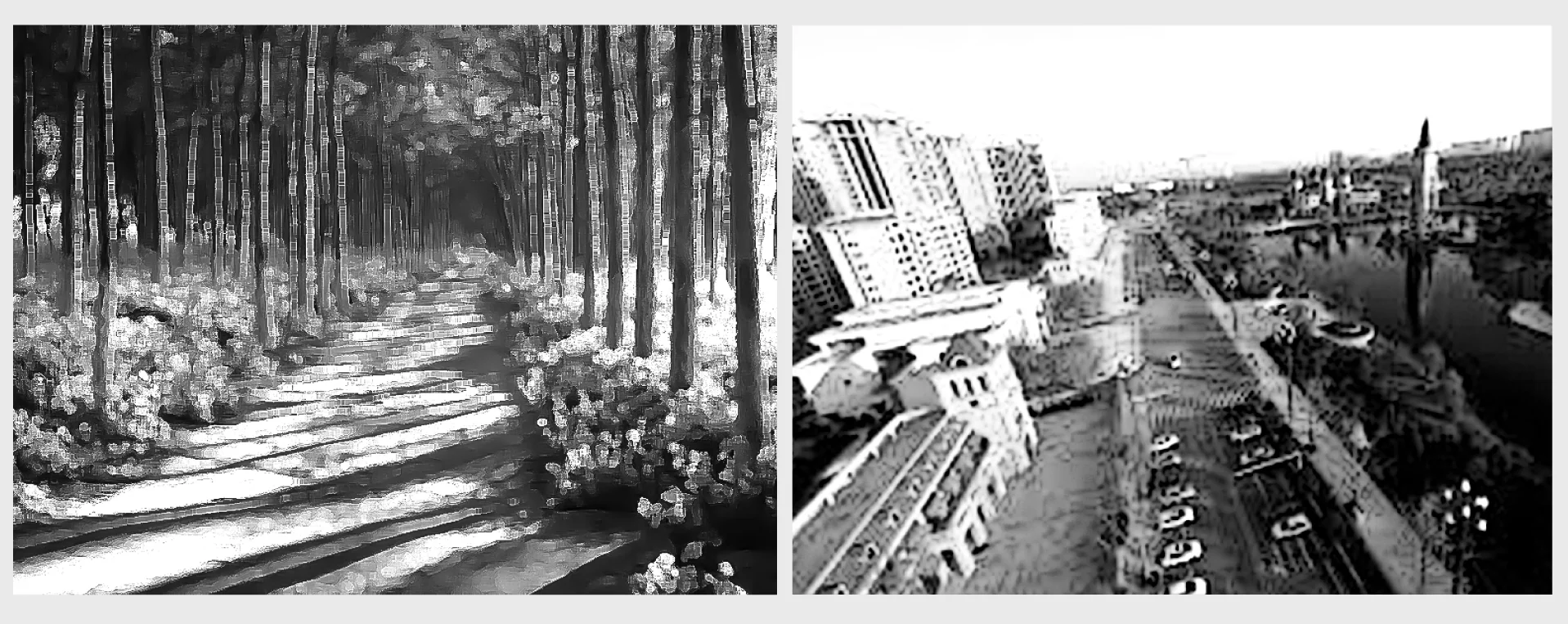

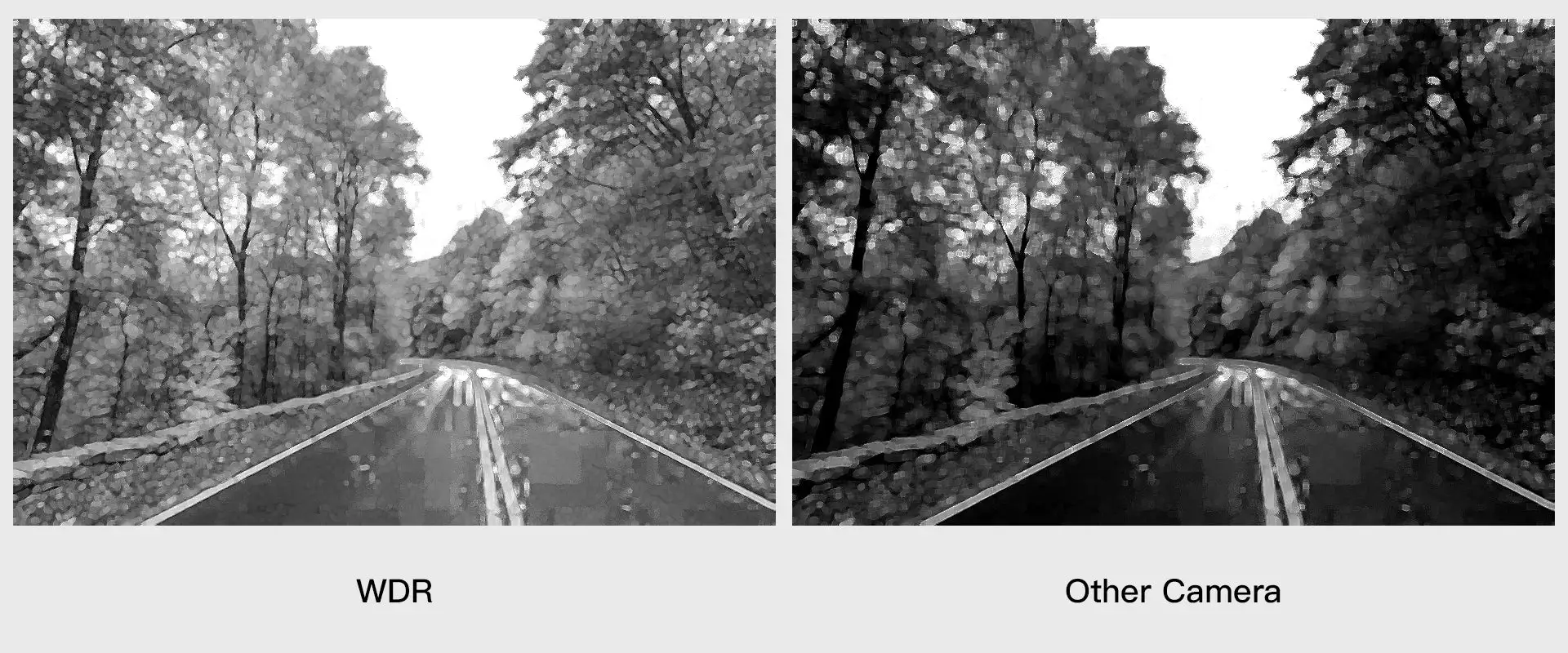

4. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.

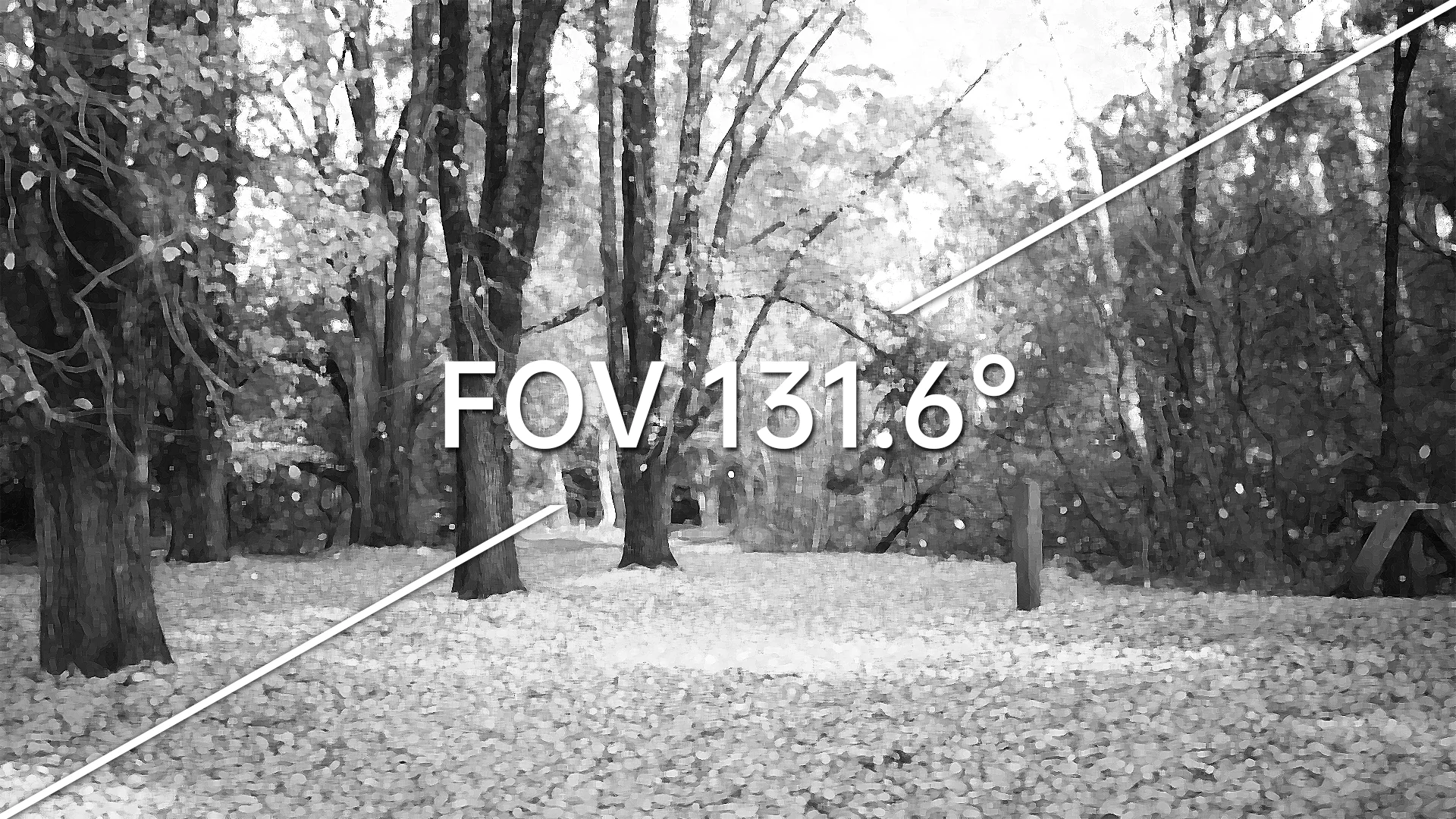

5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.

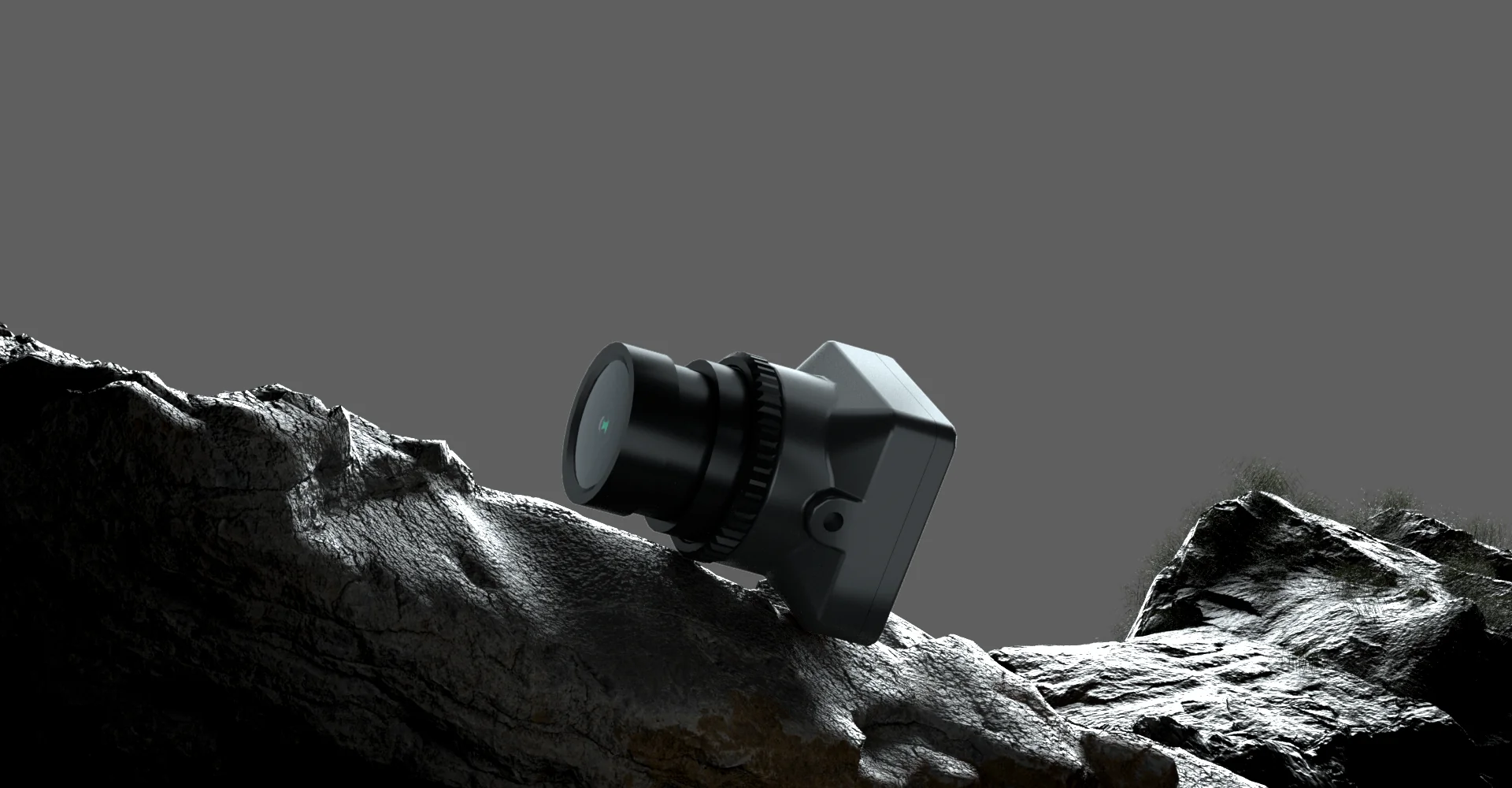

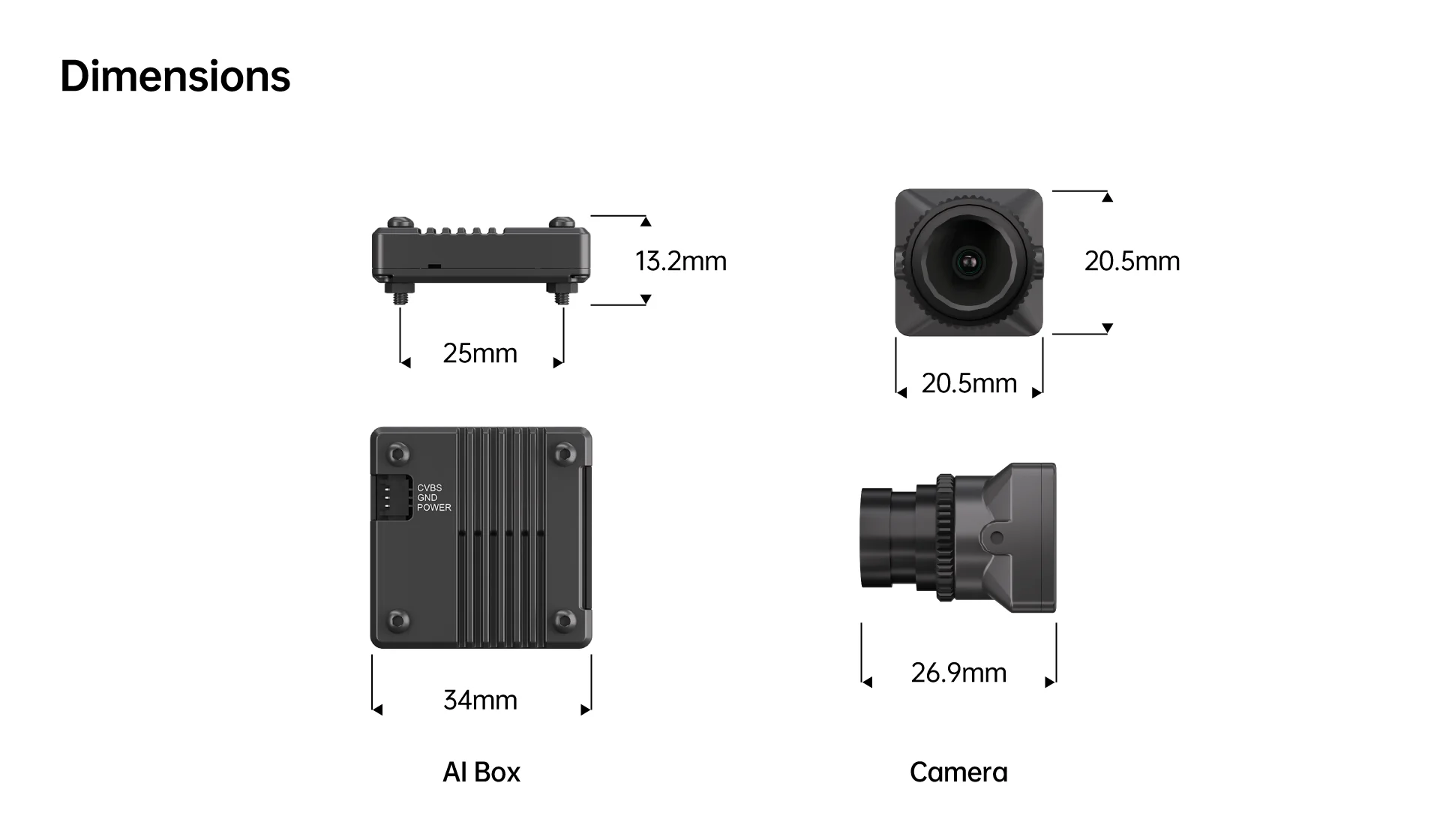

6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.
Before installing the CaddxFPV Infra V2 Camera, check the available mounting space and ensure the camera fits securely in your FPV drone frame. Use compatible mounting hardware and route the camera cable carefully to prevent interference with propellers or other moving components.
The Infra V2 is designed for pilots who need better visibility in dark environments. Its night-vision image enhancement can help make visual details easier to distinguish, depending on the surrounding light and flying conditions. For the best experience, test the camera in a safe area before flying at night and confirm that your video feed remains stable throughout your setup.
Check that your power source supplies a voltage within the camera’s specified 9–24V range. Follow the manufacturer's wiring instructions and verify polarity before connecting the camera. Incorrect wiring or an incompatible power supply may damage the equipment.
Package contents can vary by seller and product bundle. Review the listing carefully to confirm whether the camera, cable, mounting hardware, and other accessories are included. Additional components needed for your analog FPV system may need to be purchased separately.
