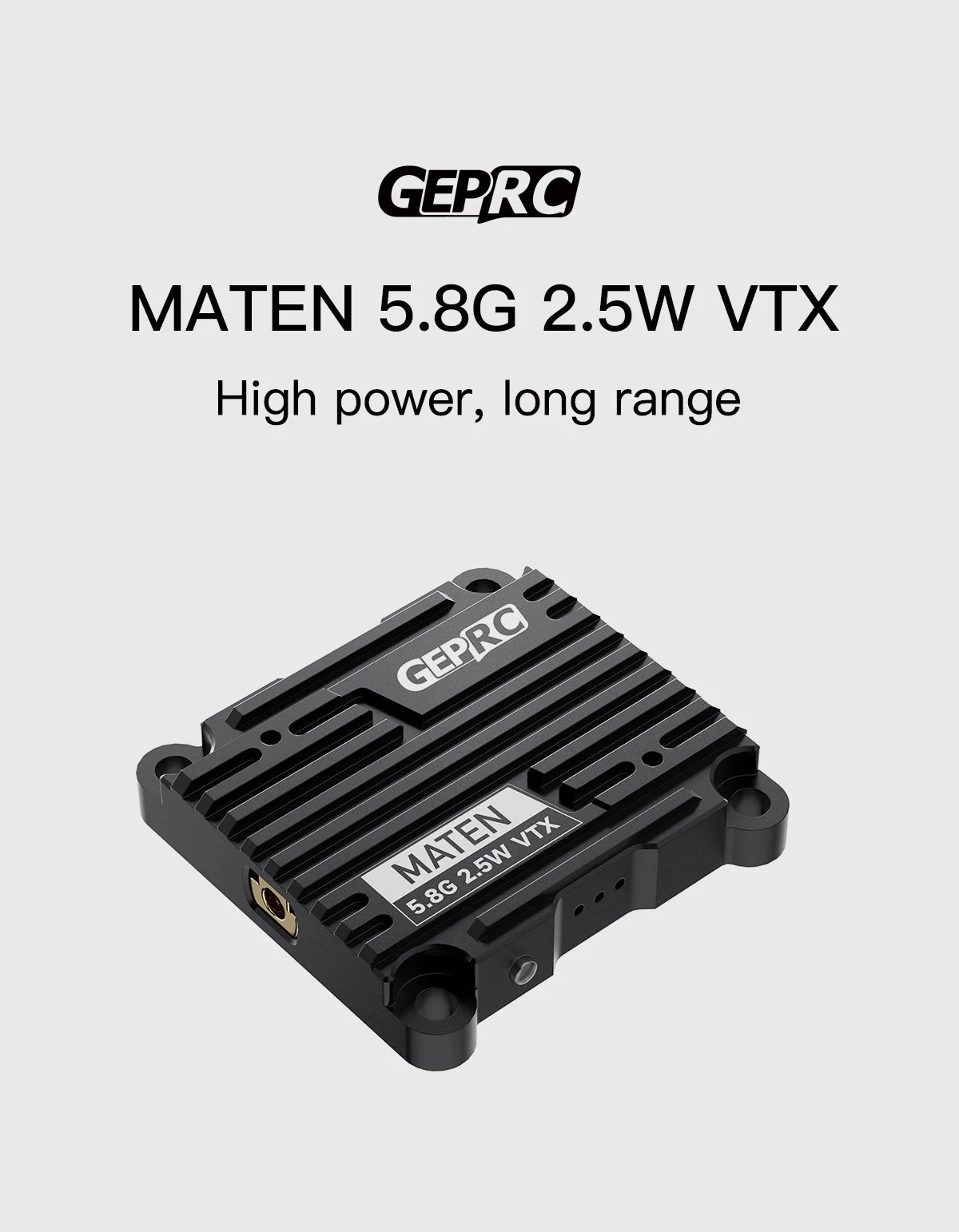

The GEPRC MATEN 5.8G 2.5W VTX is a high-power 5.8GHz analog video transmitter designed for FPV pilots who need strong and stable video transmission

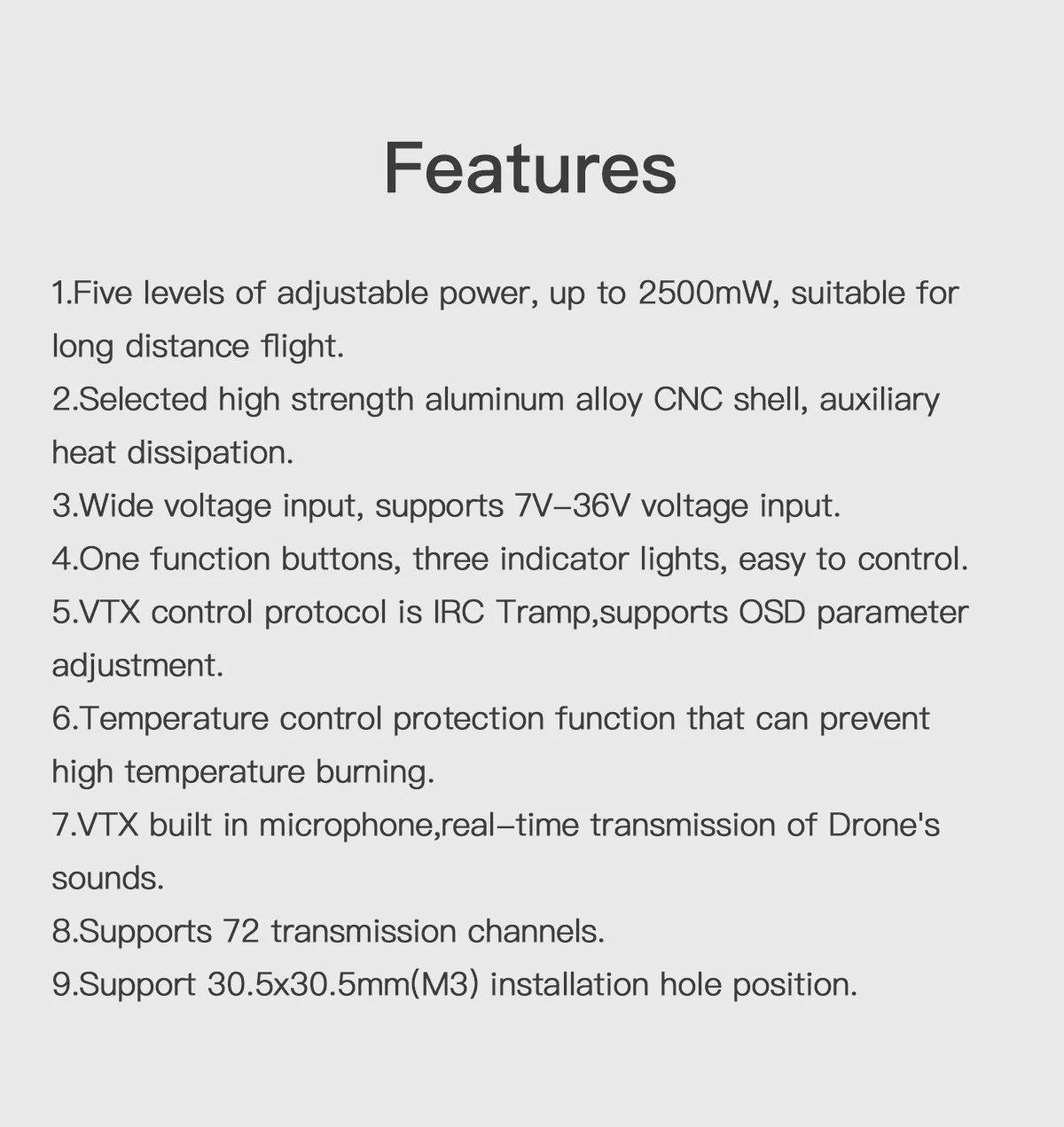

The MATEN 5.8G 2.5W VTX high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW.The transmission signal is very stable and the penetration ability is excellent.

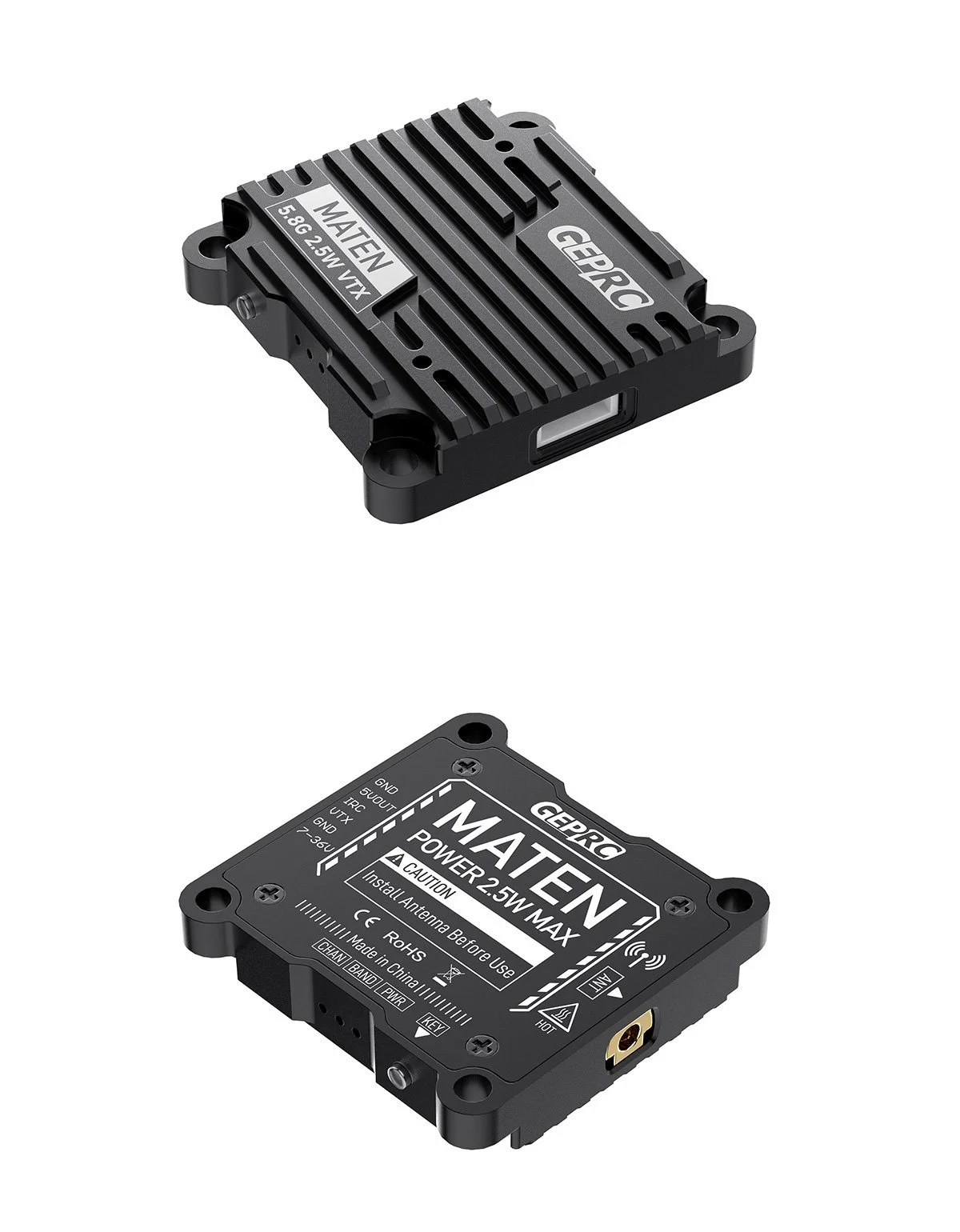

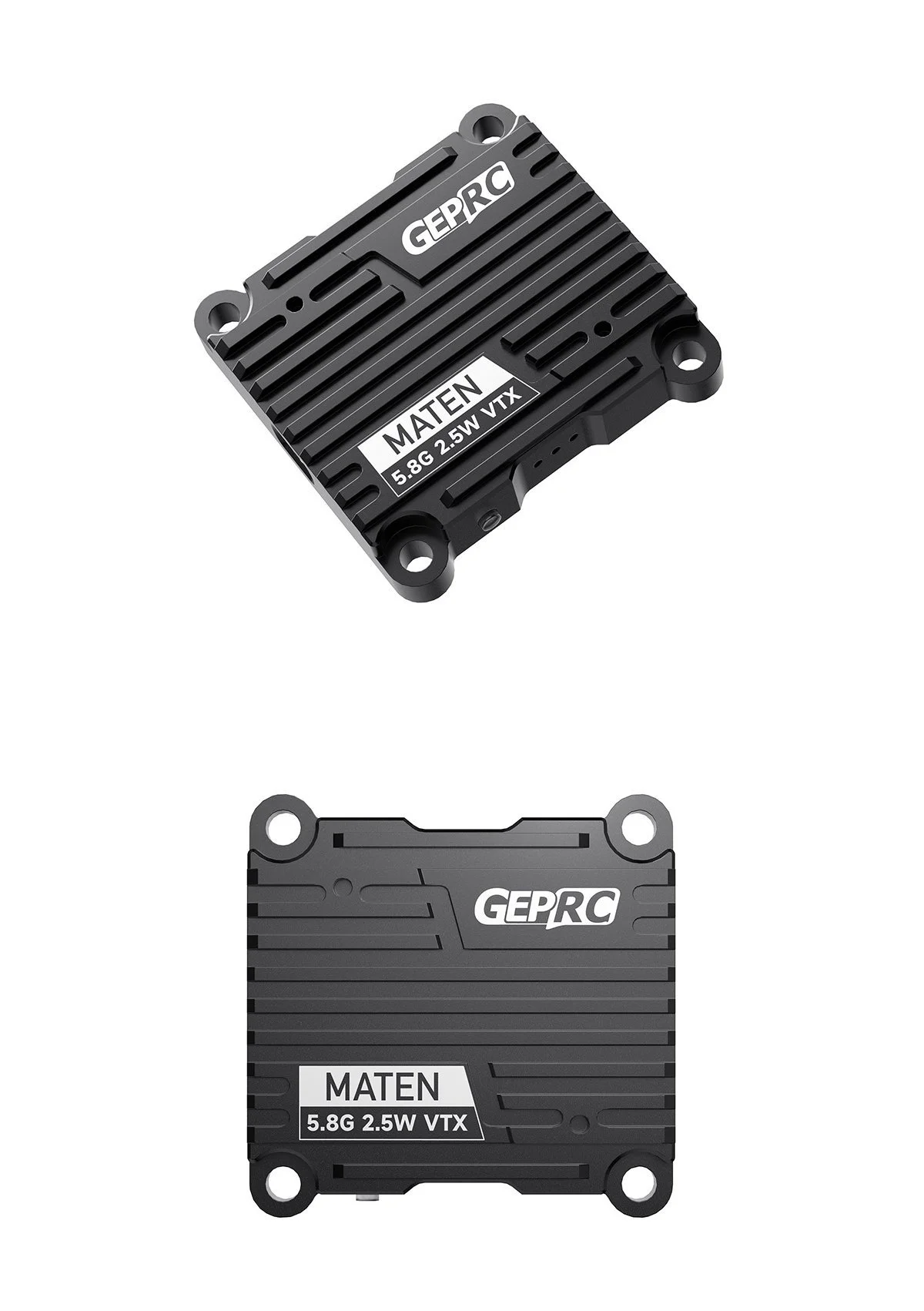

MATEN 5.8G 2.5W VTX uses high-strength aluminum alloy CNC shell to assist heat dissipation.The unique appearance design stronger impact resistance and better heat dissipation performance.
It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters.

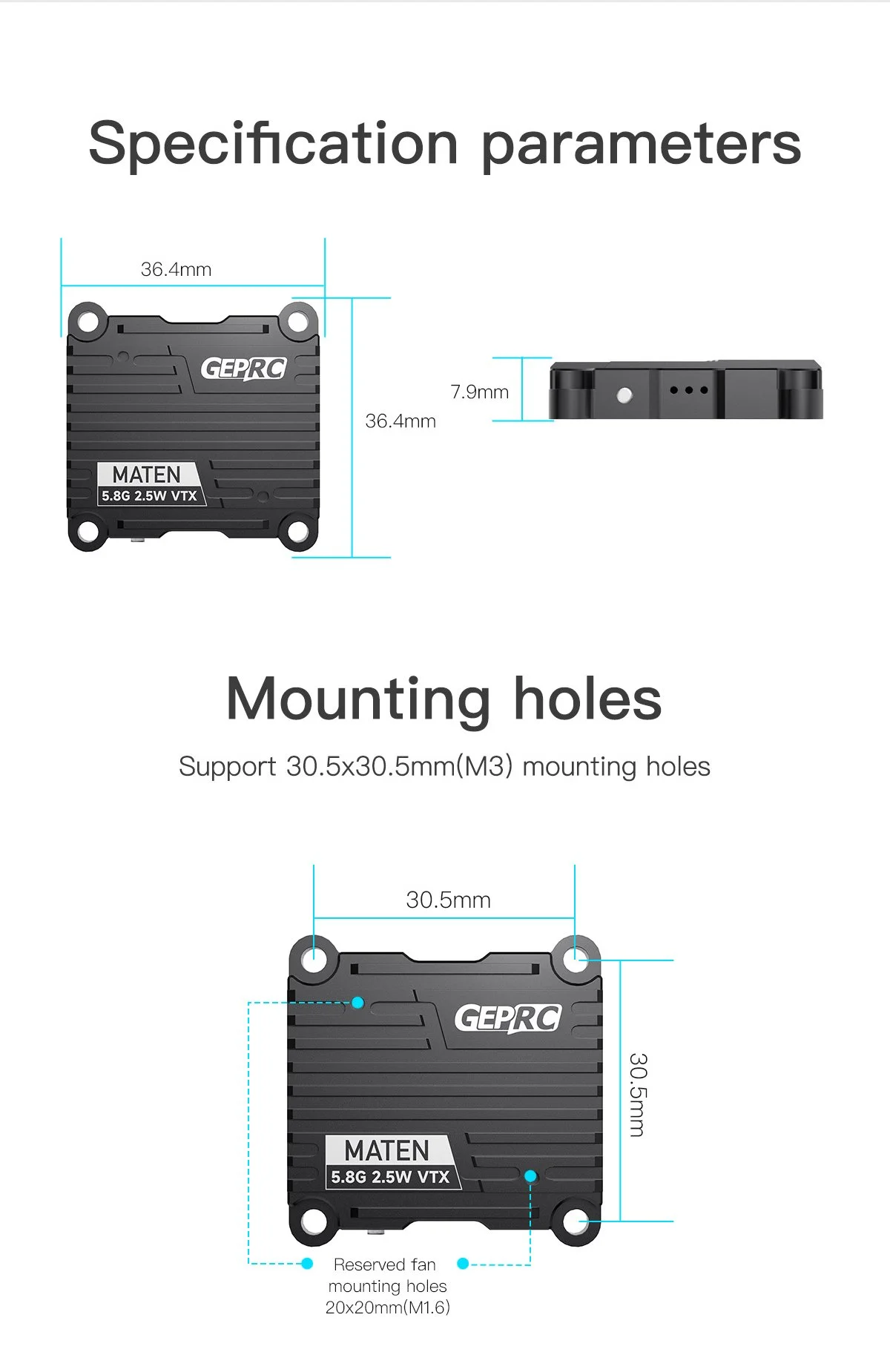

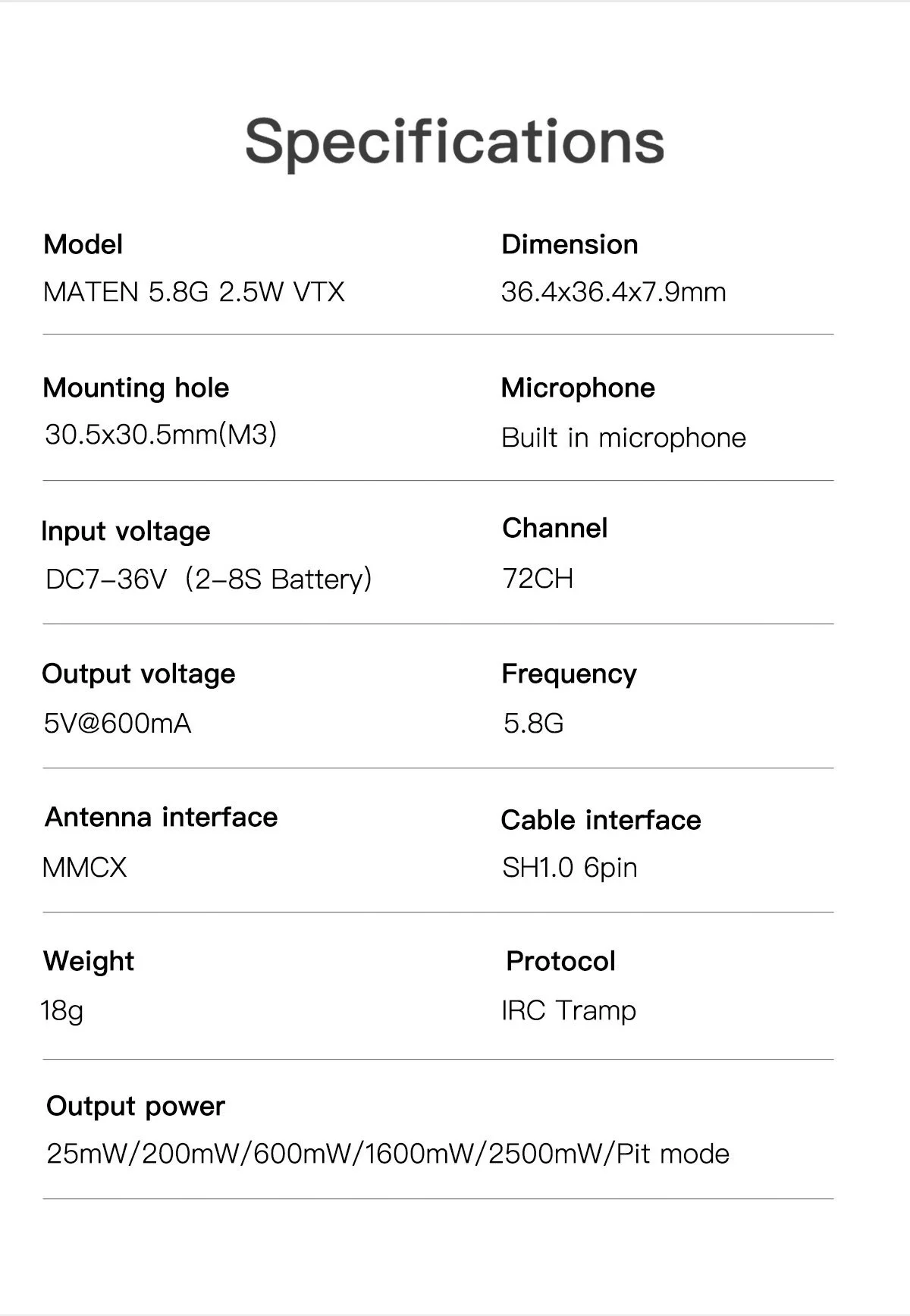

It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning.Support 30.5×30.5mm(M3) installation hole position.
The GEPRC MATEN 5.8G 2.5W VTX offers a maximum transmission power of 2500mW, providing pilots with a high-power option for compatible analog FPV systems. Higher transmission power can help improve signal robustness in suitable conditions, although actual range and video quality depend on antenna placement, receiver performance, interference, terrain and installation.

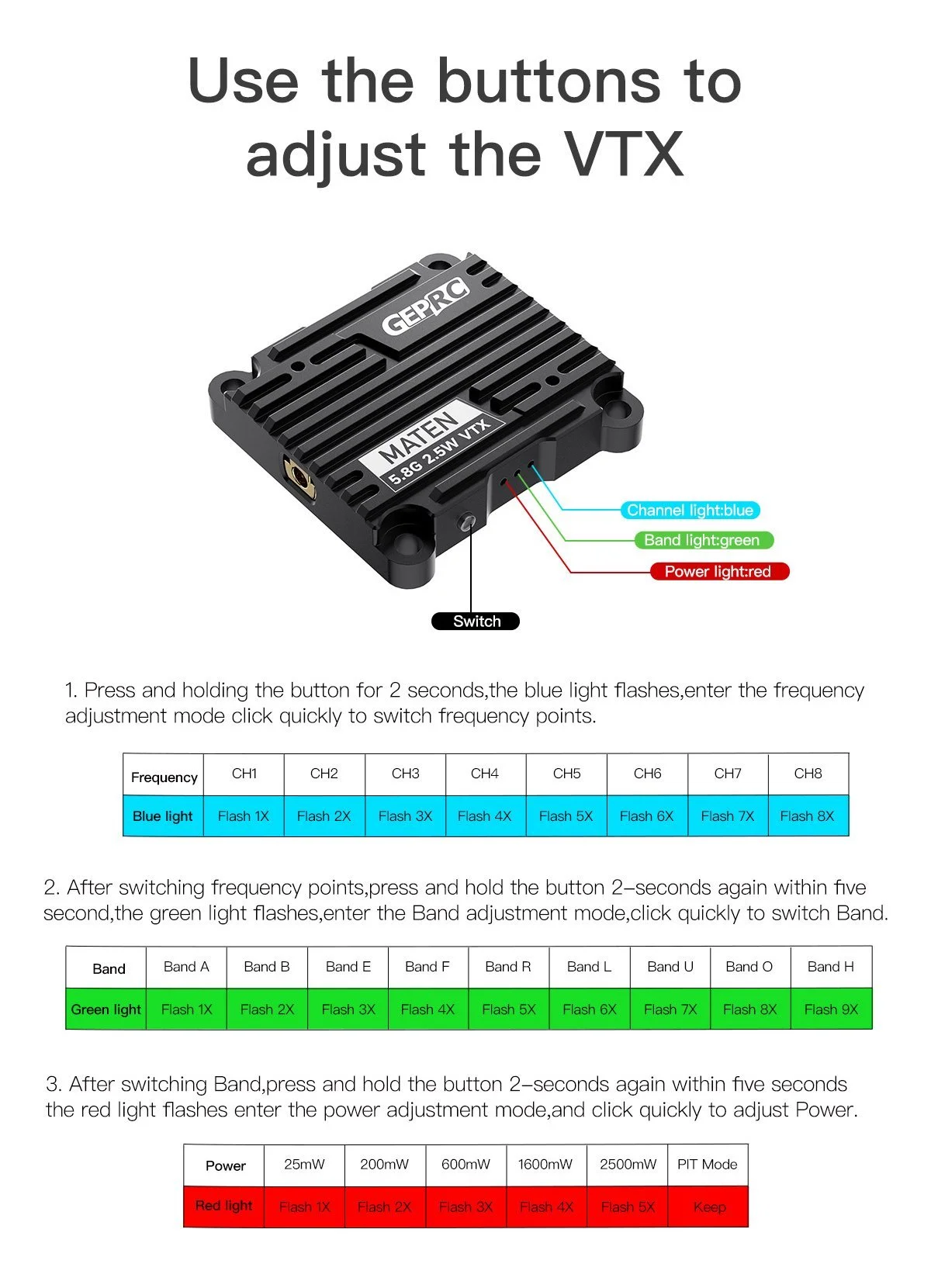

The transmitter provides five adjustable power levels, allowing users to select an appropriate output for different flying environments. Always follow local radio-frequency regulations and the manufacturer's operating instructions when choosing a power setting.

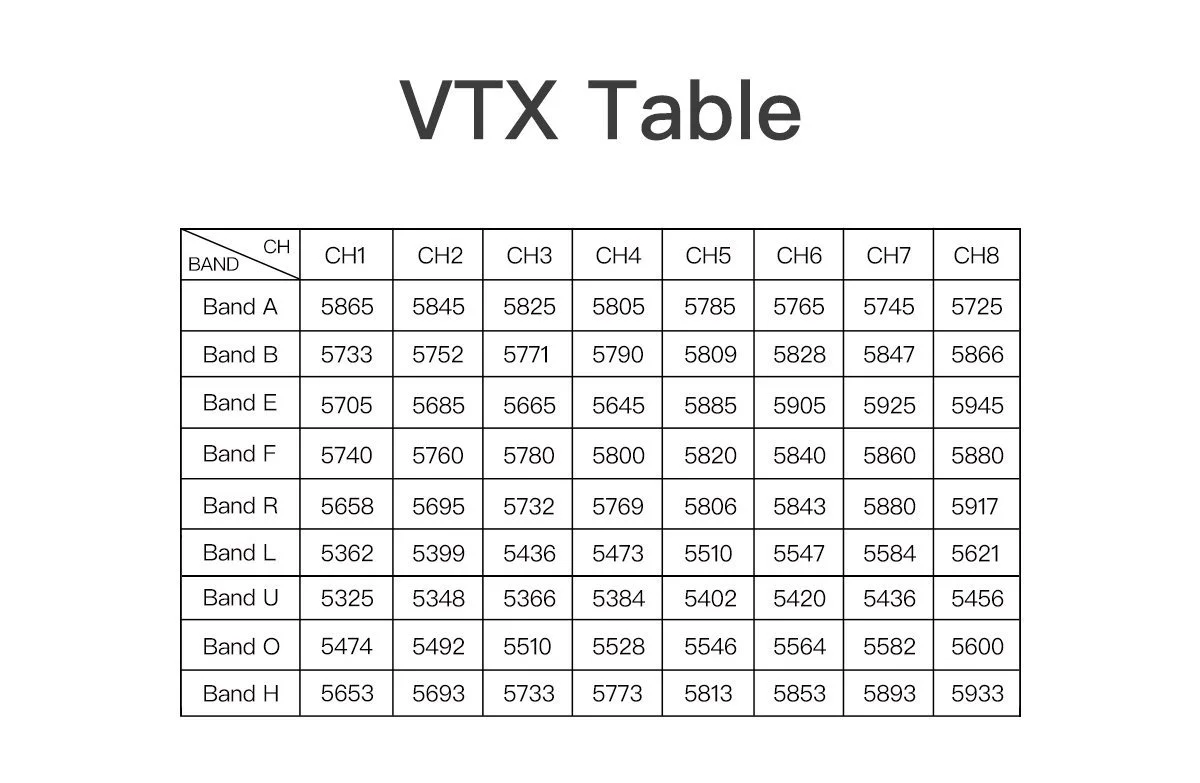

The transmitter supports up to 72 channels, providing flexibility when configuring a compatible 5.8GHz analog FPV system. Selecting an appropriate channel can help pilots coordinate their video link with compatible receivers and reduce interference from other nearby transmitters.
For group flying and FPV racing, frequency planning is particularly important. Pilots should coordinate channels with other flyers and follow event requirements to minimize interference and maintain a reliable video connection.
The GEPRC MATEN 5.8G 2.5W VTX supports the IRC Tramp control protocol. With a compatible flight controller and correct configuration, this protocol allows supported transmitter settings to be adjusted through the flight controller instead of requiring every adjustment to be made directly on the VTX.
This can make configuration more convenient when changing channels or transmission power. Check your flight controller's firmware, wiring and configuration instructions to ensure compatibility before connecting the transmitter.
High-power video transmitters generate heat during operation. The MATEN 5.8G 2.5W VTX uses a CNC aluminum alloy housing designed to assist heat dissipation and support stable operation under suitable conditions.
Good installation practices are important for protecting FPV electronics. Mount the transmitter securely, provide appropriate airflow and follow the manufacturer's recommendations for cooling. Avoid operating the unit outside its specified electrical or thermal limits.
The built-in temperature protection provides an additional protective feature, but it does not replace correct installation and cooling.

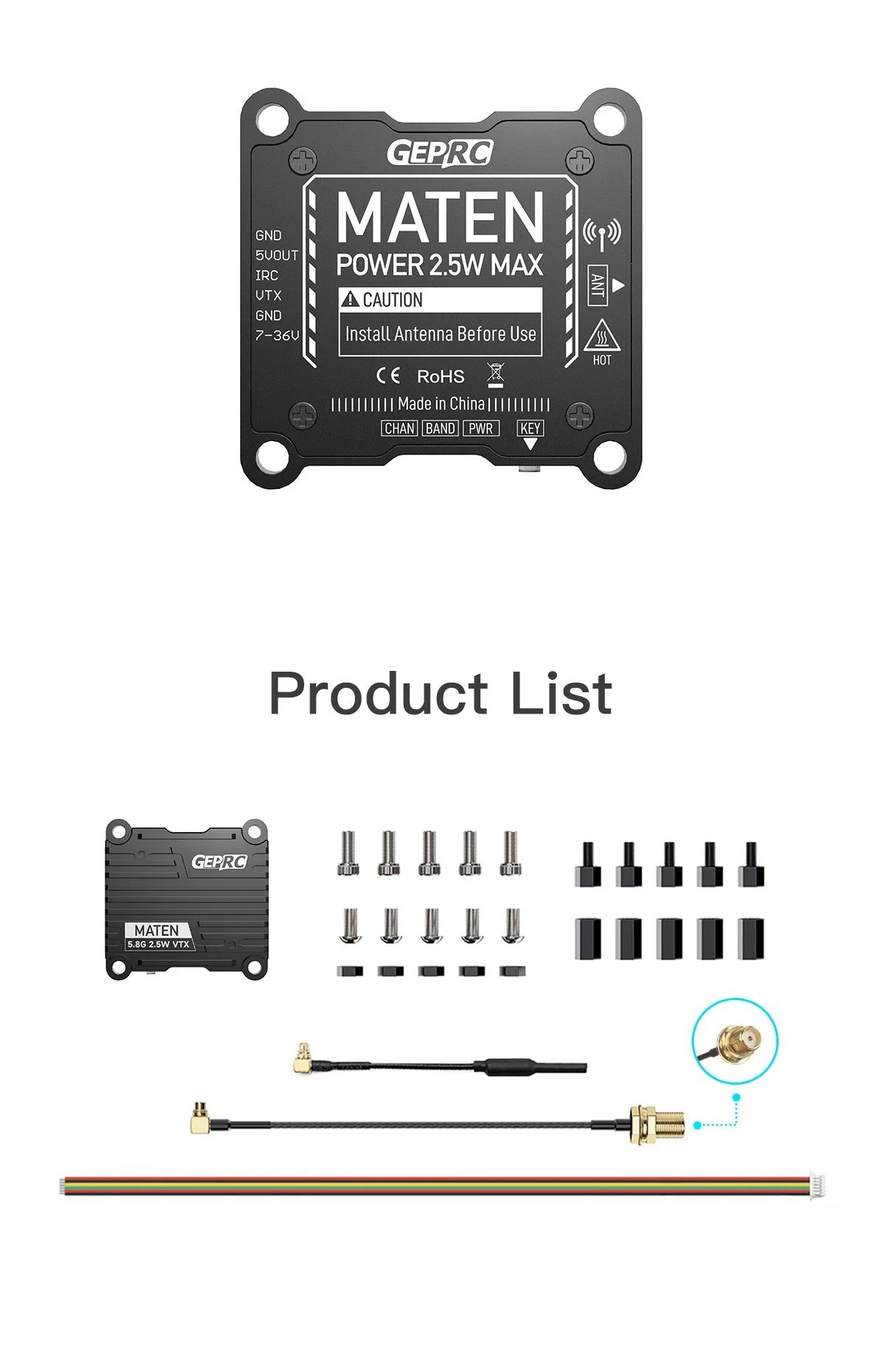

1 x MATEN 5.8G 2.5W VTX
1 x MMCX Copper tube antenna
1 x MMCX to SMA connector
1 x sh1.0 6P Connecting cable
5 x M3*7 screws
5 x M3*8 screws
5 x M3 x 10 hexagon
5 x M3*5 isolation column
5 x M3 nylon nut
1 x product description
