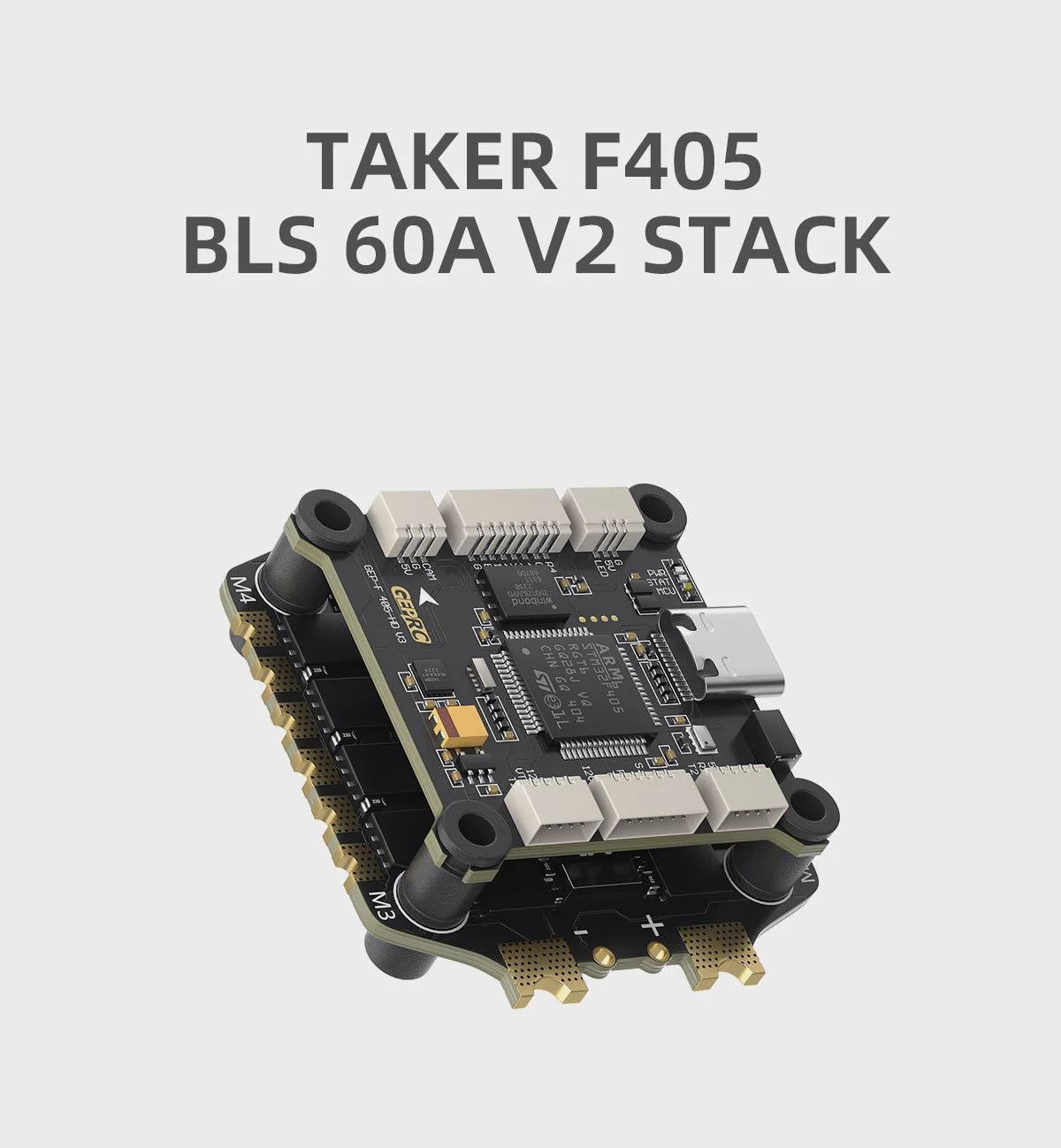

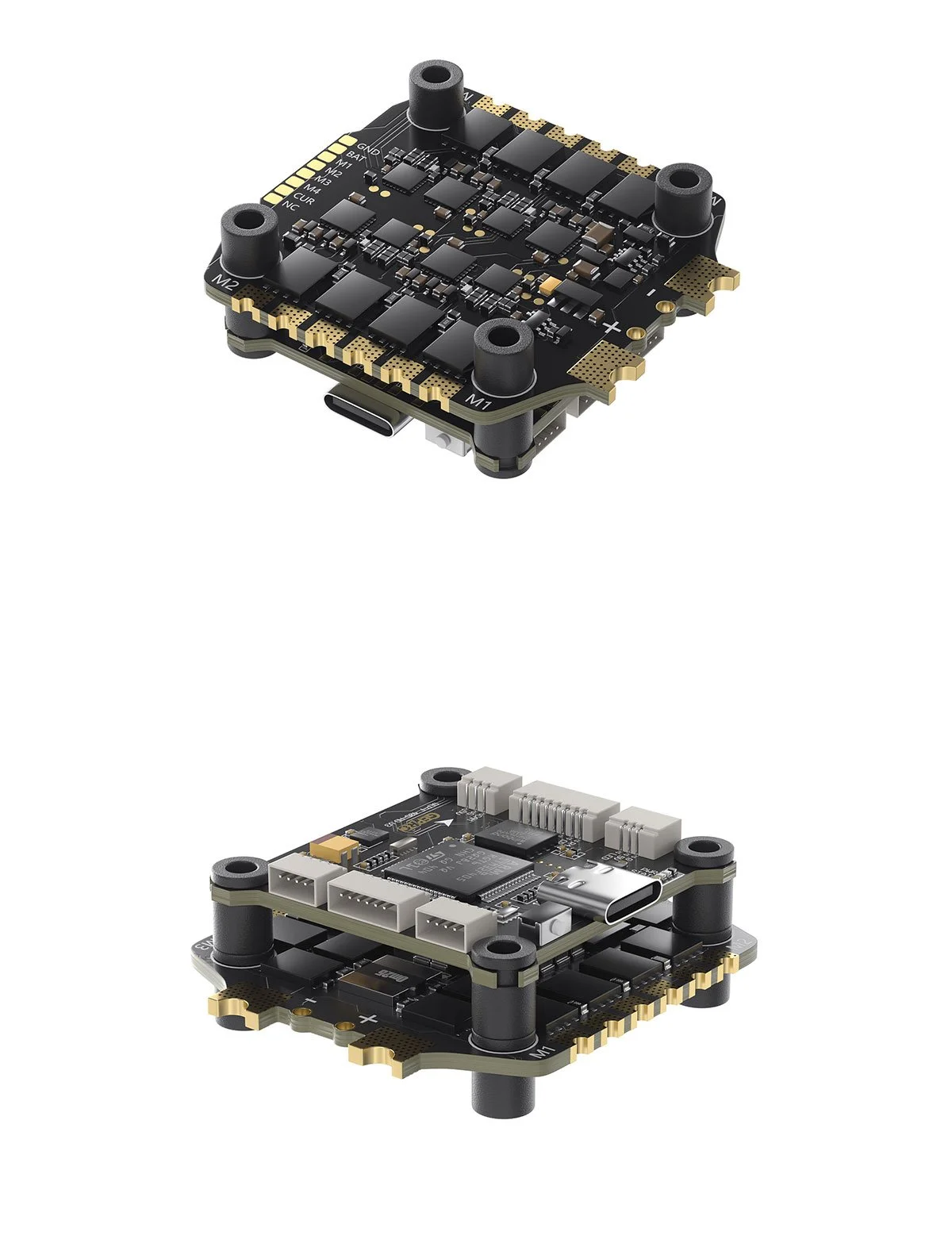

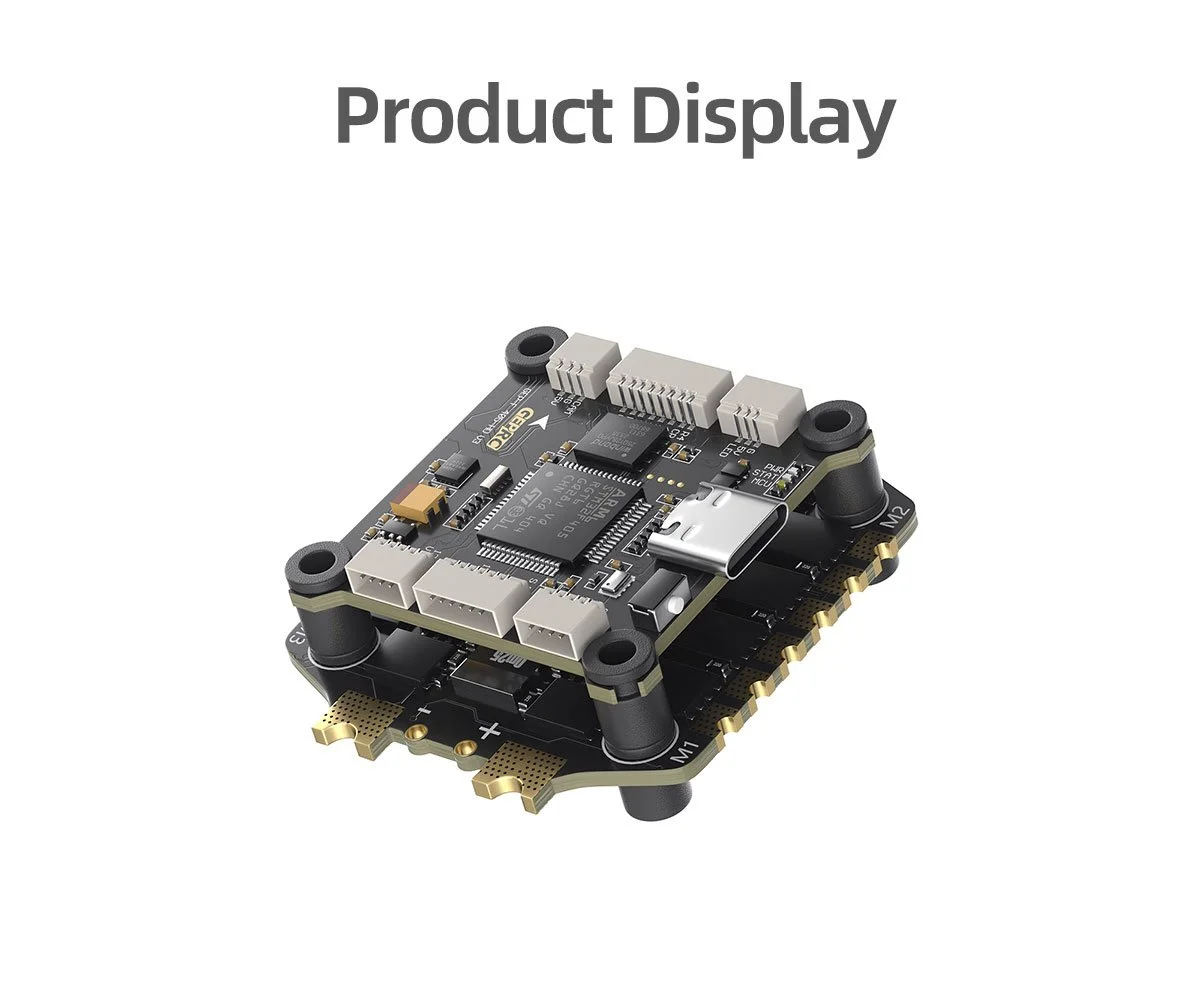

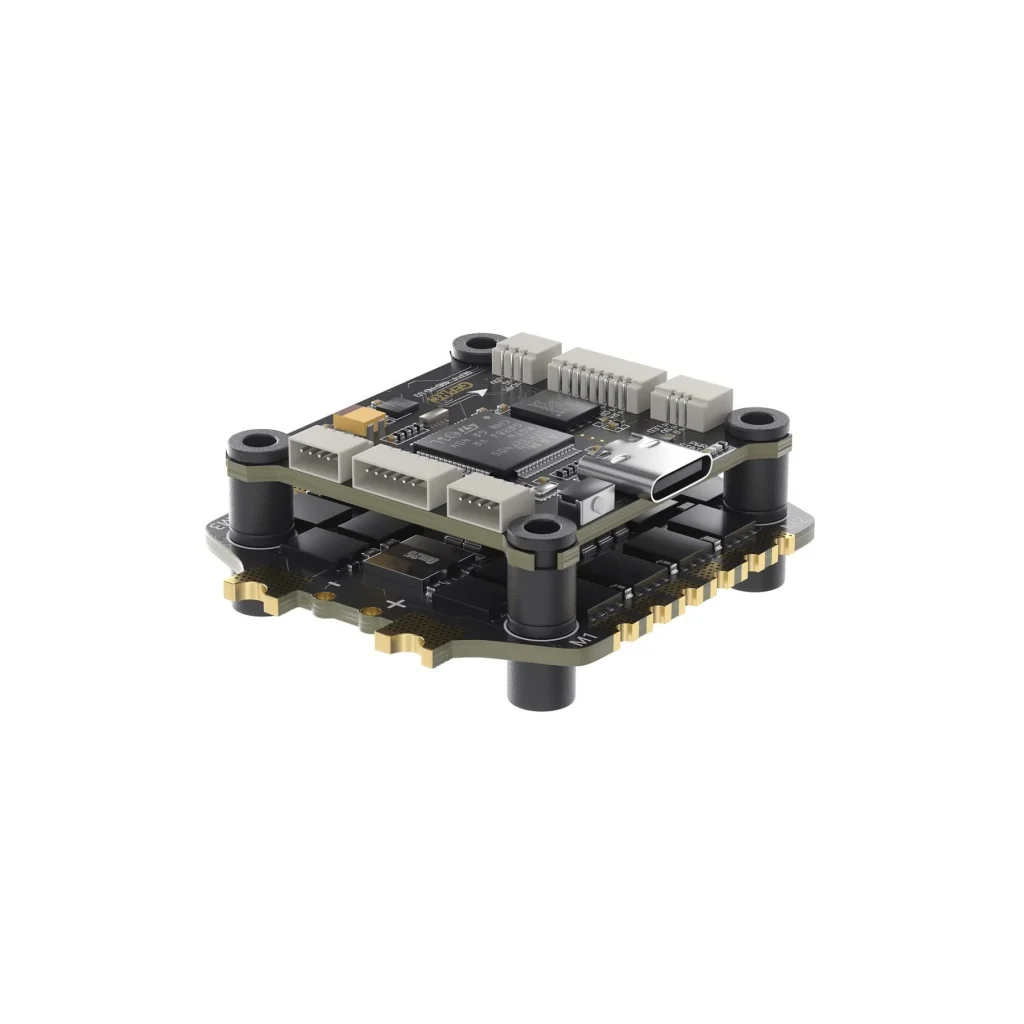

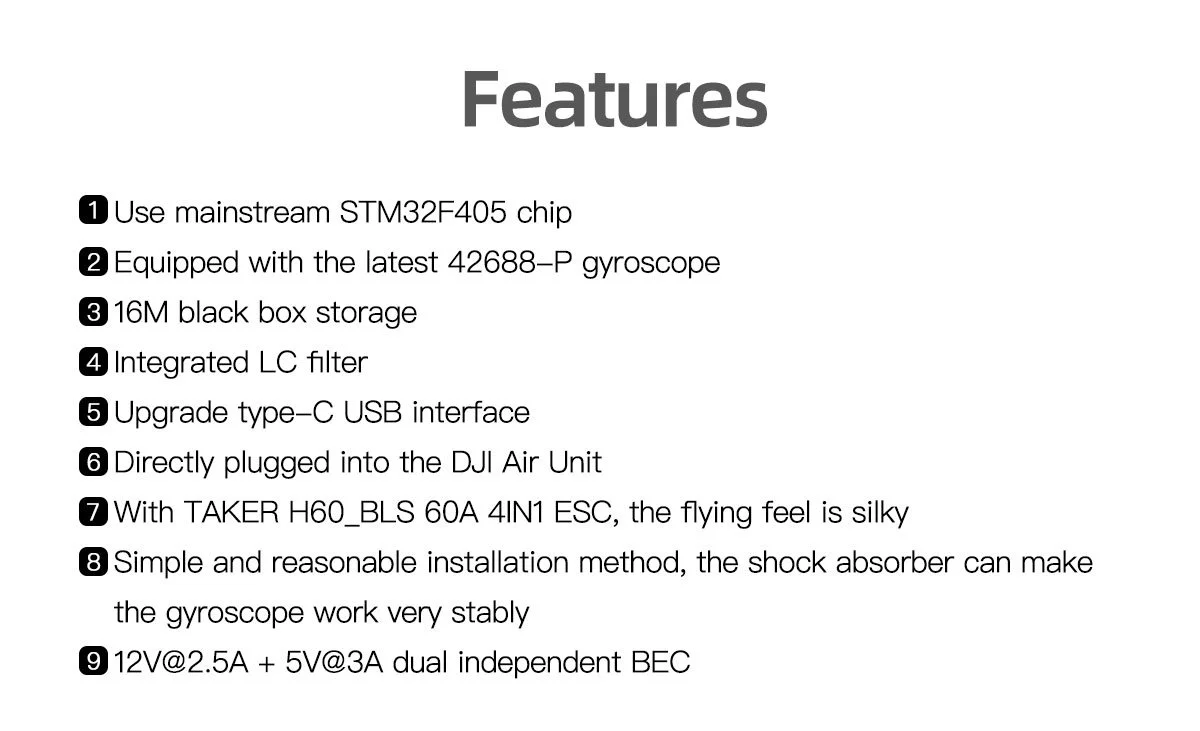

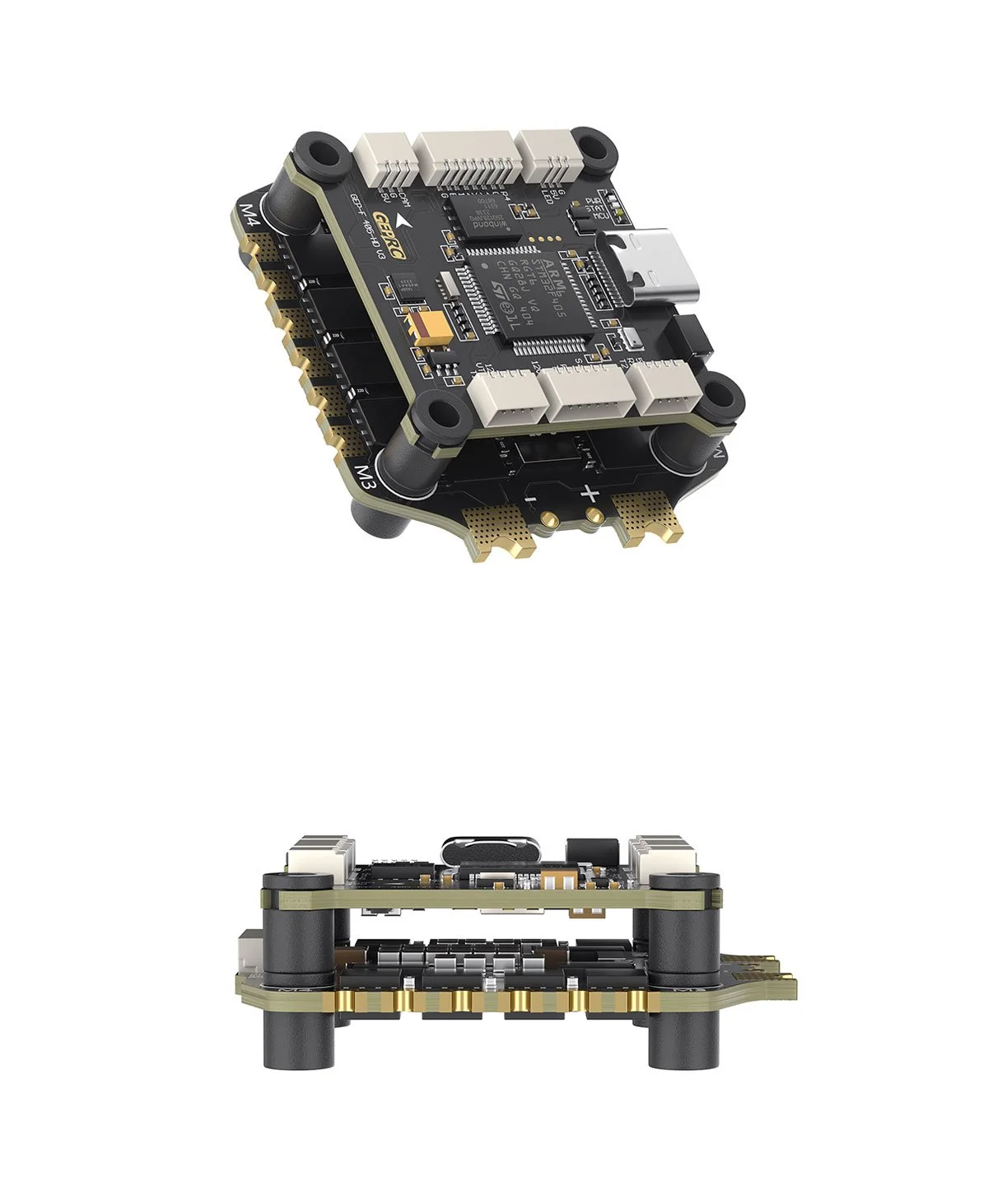

The GEPRC TAKER F405 BLS 60A V2 Stack is designed for FPV drone builders looking for a flight controller and electronic speed controller combination. It features an STM32F405 processor, a 42688-P gyroscope, onboard black box storage, and an integrated LC filter. The stack also supports a USB Type-C interface and offers a direct connection option for the DJI Air Unit.
A flight controller processes sensor information and pilot commands to help stabilise and control an FPV drone. The electronic speed controller regulates motor operation based on commands from the flight controller.
The GEPRC TAKER F405 BLS 60A V2 Stack combines these components into a compact setup for compatible FPV builds. Its 60A 4-in-1 ESC is designed to control four brushless motors. Always verify current requirements, battery voltage compatibility, and motor specifications before installation.
The onboard 16MB black box storage can help record flight data for troubleshooting and tuning. This can be useful when reviewing flight behaviour or diagnosing configuration issues.
The integrated LC filter is intended to help reduce electrical noise in compatible setups. Actual results depend on the overall power system, wiring, and connected equipment.
The USB Type-C interface provides a convenient way to connect compatible equipment for configuration and firmware-related tasks. The stack also supports a direct DJI Air Unit connection, helping simplify wiring in compatible digital FPV builds.
Before connecting an Air Unit or other peripherals, check the official wiring diagram and confirm the correct connector pinout. Never assume that similarly shaped connectors have the same wiring.
Before installing the GEPRC TAKER F405 BLS 60A V2 Stack, check that the frame has enough space for the stack and that the mounting pattern matches your build. Confirm compatibility with your motors, battery, receiver, video system, and firmware.
Secure all connections, insulate exposed solder joints, and inspect the wiring for shorts before applying power. Remove the propellers during setup and testing. Verify motor direction, receiver operation, failsafe settings, and ESC configuration before flight.
This stack brings several useful FPV components and features together, including an F405 flight controller, 60A 4-in-1 ESC, black box storage, and USB Type-C connectivity. It can be considered for compatible freestyle and other FPV drone builds where its specifications meet the pilot's requirements.
Check the manufacturer's documentation for the exact hardware revision, supported firmware, installation instructions, and package contents before ordering.

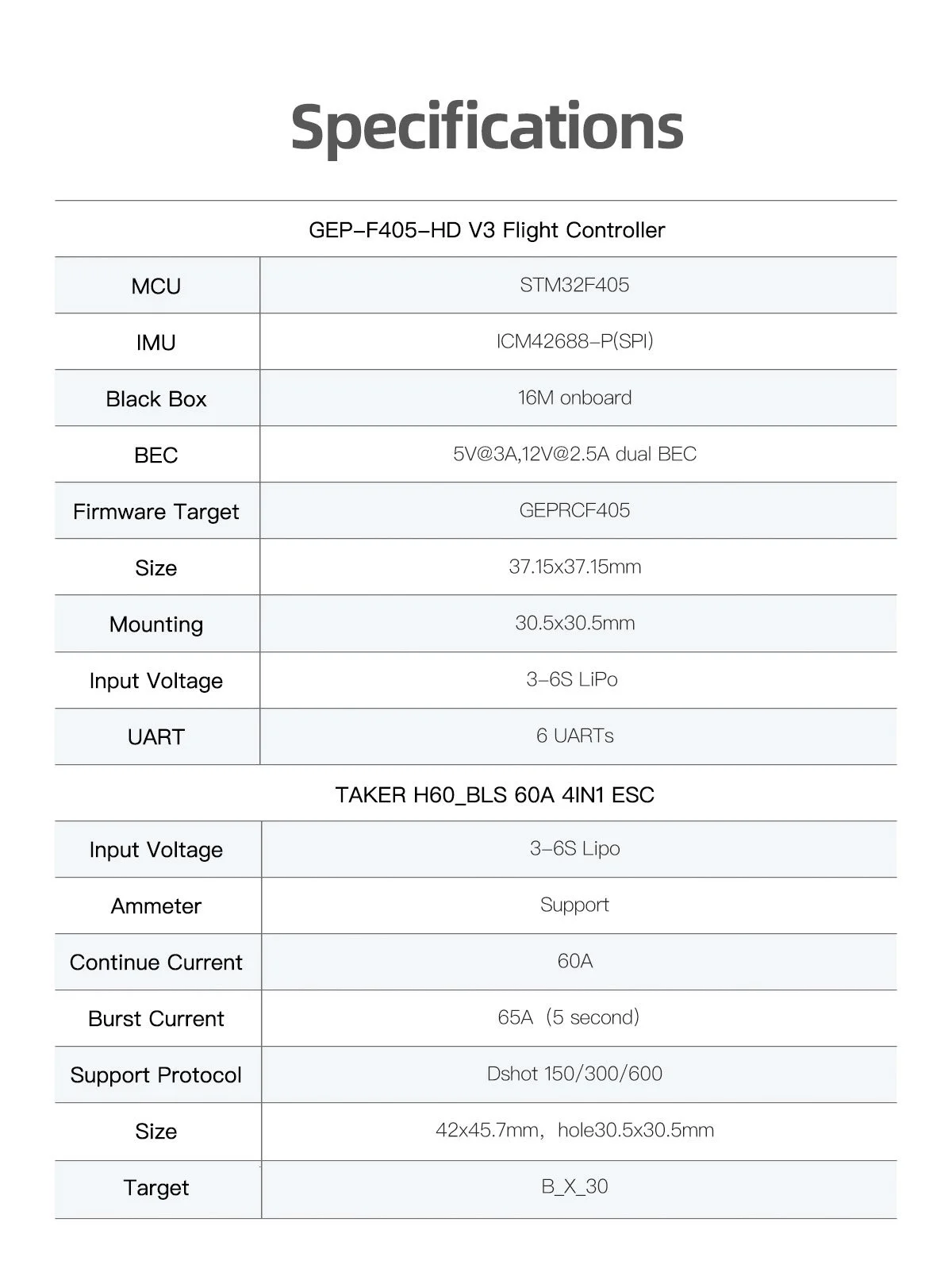

FC model: GEP-F405-HD V3 Flight Controller
ESC Model: TAKER H60_BLS 60A 4IN1 ESC

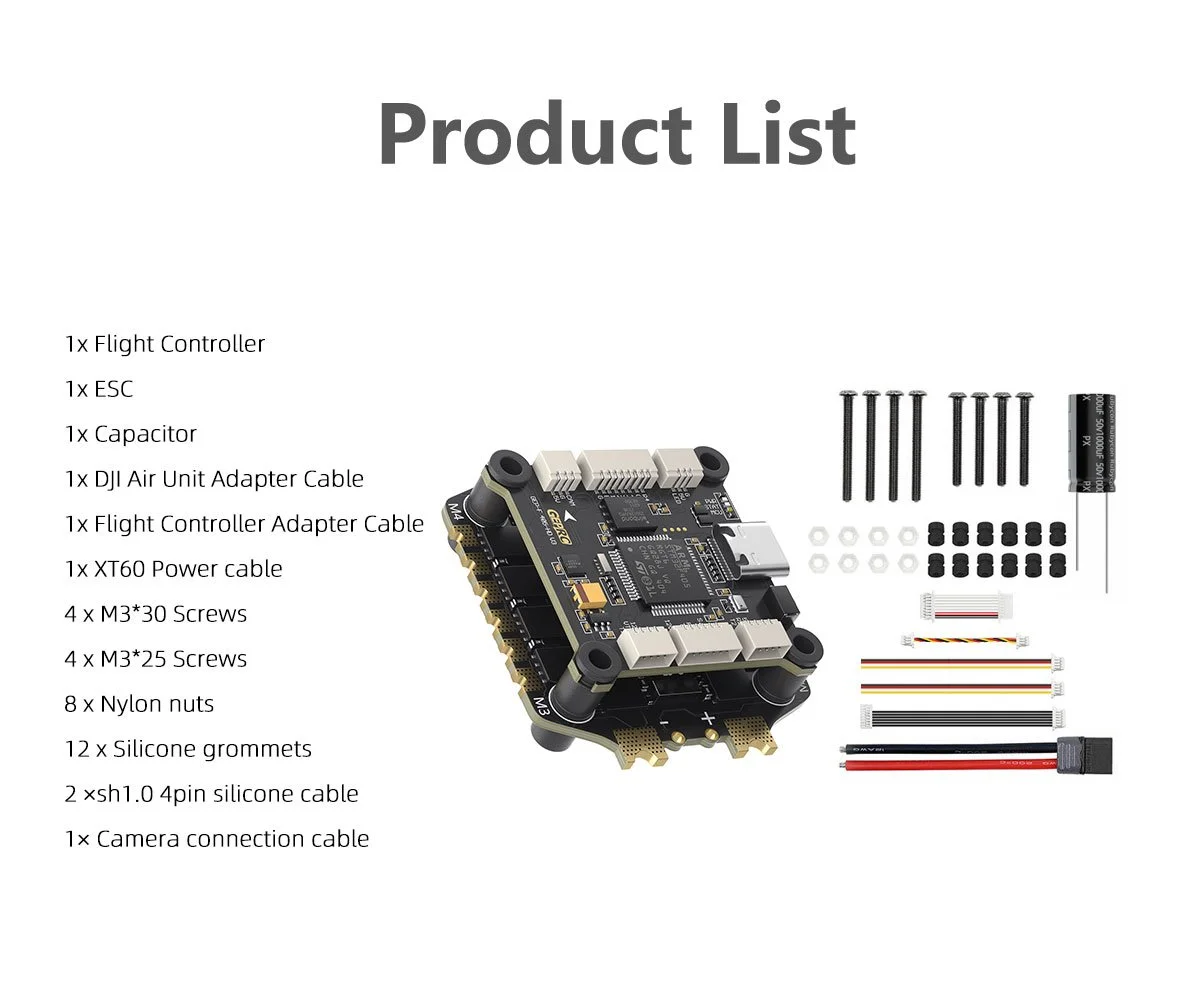

1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
