Battery

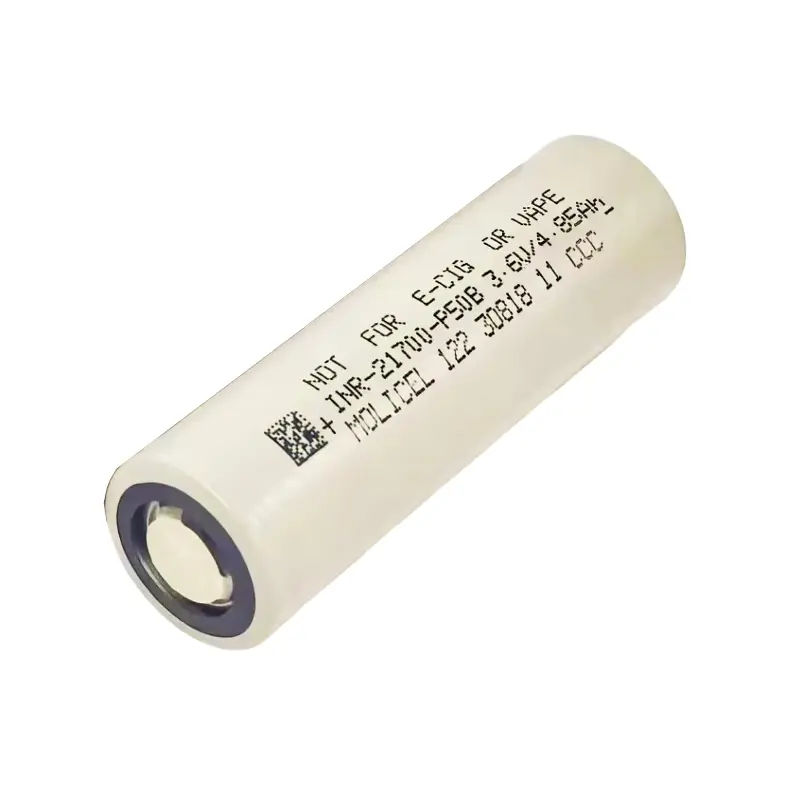

The Molicel P50B 21700 5000mAh Battery is a high-performance lithium-ion cell designed for applications that require a combination of high capacity, strong discharge capability and reliable power delivery. With a nominal voltage of 3.6V and a capacity of 5000mAh, the P50B is suitable for demanding battery packs used in drones, e-mobility systems, power tools and other high-power applications.
The 21700 cylindrical format provides a practical balance between capacity and size, making the cell suitable for applications where both energy storage and current delivery are important.
The Molicel P50B 21700 5000mAh Battery provides a 5000mAh capacity, giving battery-pack designers a high-capacity cell for applications where longer operating time is important.
The 21700 format offers greater capacity potential than many traditional 18650 cells while maintaining a compact cylindrical form factor. This makes the P50B a useful option for battery packs where space, capacity and power output all need to be considered.
One of the key characteristics of the P50B is its high current capability. The cell is designed for high-power applications that require substantial current delivery.
With a discharge capability of up to 60A, the cell can be used in appropriately designed battery packs for demanding electrical systems. The actual continuous and peak current capability depends on the application, operating temperature, pack configuration and manufacturer's specifications.
For high-current applications, proper battery-pack design, electrical protection and thermal management are essential.
The Molicel P50B 21700 5000mAh Battery offers a combination of high capacity and high power in the 21700 format. Its energy density makes it suitable for applications where designers want to maximize available energy without using unnecessarily large battery packs.
This can be particularly useful for electric mobility, drones and portable power applications where battery weight and available energy are important considerations.
Low internal resistance helps a battery cell deliver power efficiently while reducing voltage drop and heat generation during operation. The P50B is designed for applications where strong power delivery and efficiency are important.
For battery-pack builders, matching cells correctly and using appropriate nickel, busbars, connectors and protection systems is important to achieve reliable performance.
The Molicel P50B 21700 5000mAh Battery can be used to build battery packs for a range of high-performance applications. Depending on the required voltage and capacity, multiple cells can be connected in series and parallel configurations.
Possible applications include:
Always design the battery pack according to the electrical requirements of the application.
The high capacity and strong current capability of the P50B make it an attractive option for appropriately designed drone battery packs. For high-power multirotor applications, battery selection can directly affect flight time, acceleration and overall system performance.
When building a drone battery using Molicel P50B 21700 5000mAh Battery cells, the required series and parallel configuration should be selected according to the motor, ESC, flight controller and power-system requirements.
Lithium-ion cells must be handled carefully. Individual cells should not be short-circuited, physically damaged, overcharged or discharged beyond their specified limits.
For battery-pack construction, use suitable battery-management and protection systems where required. Cells should also be properly matched, insulated and secured to prevent movement or accidental contact.
Only use appropriate chargers and charging settings for the completed battery configuration.
| Specification | Details |
|---|---|
| Brand | Molicel |
| Model | P50B |
| Cell Format | 21700 |
| Chemistry | Lithium-Ion |
| Nominal Voltage | 3.6V |
| Capacity | 5000mAh |
| Maximum Discharge | Up to 60A |
| Application | High-power battery packs |
| Cell Type | Cylindrical |
| Energy | Approximately 18Wh |
The Molicel P50B 21700 5000mAh Battery is designed for users who need a high-capacity lithium-ion cell without sacrificing power delivery. Its 21700 format, 5000mAh capacity and high-current capability make it suitable for demanding battery-pack applications.
For drone builders, e-mobility projects, robotics and other high-power systems, the P50B provides a strong combination of capacity, power and compact cylindrical packaging.
Before purchasing or assembling a battery pack, always verify the required voltage, current, capacity, physical dimensions and protection requirements for your specific application.
1 x Molicel A Grade INR-21700-P50B 3.6V 5000mAh 12C Li-ion Battery
