The SEQURE BLUESON A1 6S 65A Brushless Controller is designed for FPV drone pilots who need responsive motor control, reliable current handling and smooth throttle performance.
(1) High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
(2) Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
(3) Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
(4) With 20*20mm installation hole spacing, it is tailor-made for racing drones and easy to install.
(5) ESC reserves a large area of solder pad to effectively reduce the difficulty of soldering.
The SEQURE BLUESON A1 6S 65A Brushless Controller is designed for FPV drone pilots who need responsive motor control, reliable current handling and smooth throttle performance. Featuring AM32 brushless ESC firmware and a 32-bit processor, this controller is built for demanding FPV applications, including freestyle, racing and custom drone builds.
Its high-quality copper-thickness PCB is designed to support current flow and improve heat dissipation. Combined with high-performance MOSFETs, the controller helps deliver responsive motor operation and dependable performance when configured correctly for a compatible FPV system.
The SEQURE BLUESON A1 uses AM32 brushless ESC firmware, which provides configurable motor-control settings for compatible FPV applications. The 32-bit processor supports fast processing of motor-control instructions, helping deliver responsive operation when the ESC is correctly configured.
AM32 compatibility also gives users access to supported firmware settings and tuning options. Always verify the firmware version and configuration supported by your particular controller before updating or changing settings.
The controller uses a high-quality copper-thickness printed circuit board designed to support current carrying capacity and heat dissipation. Effective thermal management is important in FPV drone electronics because motor loads and demanding flight conditions can increase operating temperatures.
High-performance MOSFET components help manage power switching during motor operation. Correct installation, suitable airflow and appropriate power-system configuration remain important for reliable operation.
The SEQURE BLUESON A1 6S-65A model is intended for compatible 6S FPV drone power systems and carries a 65A current rating. Before installing it, check the manufacturer's specifications for continuous and burst current ratings, supported battery voltage and cooling requirements.
The ESC should be matched with suitable motors, propellers, batteries and wiring. Avoid exceeding the specified current or voltage limits, as doing so can damage the controller and other connected electronics.
The product specifications describe support for dynamic PWM refresh rates in the 8KHz–128KHz range. The available settings can depend on the firmware, hardware revision and configuration. Selecting compatible settings helps users tune motor response for their particular drone and flying style.
For best results, follow the manufacturer's configuration guidance and test the motor setup safely before flight.
The SEQURE BLUESON A1 6S 65A Brushless Controller may be suitable for compatible FPV freestyle, racing and custom drone builds. Its AM32 firmware and configurable motor-control options make it relevant to pilots who want to tune their power system to their setup.
Confirm the mounting dimensions, wiring layout, firmware support and electrical requirements before purchasing or installing the controller.
The SEQURE BLUESON A1 combines AM32 firmware, a 32-bit processor, a high-current PCB design and a 65A model rating in a controller intended for FPV drone applications. Its design focuses on motor-control responsiveness and power handling, while appropriate configuration and cooling help support reliable operation.
If you are upgrading an FPV drone or assembling a custom build, verify compatibility with your flight controller, motors and battery before ordering.
| Model | Blueson A1 |
| Processor
|
AT32F421 |
| Firmware Version
|
AM32 or BLHeli_32 |
| PWM Frequency
|
8KHz-128KHz |
| Working Voltage
|
2-6S / 2-8S Lipo / LiHV |
| Continuous Current
|
6S 65A / 8S 70A |
| Peak Current
|
6S 120A / 8S 150A |
| Support Protocol
|
Dshot600/300/150,Oneshot,Multishot,PWM |
| Telemetry Return
|
YES |
| Galvanometer
|
YES |
| BEC | NO |
| Mounting Hole Spacing
|
20*20mm, Φ4mm/M3 |
| Product Size
|
42.5*36*7mm(L*W*H) |
| Product Weight
|
19g |

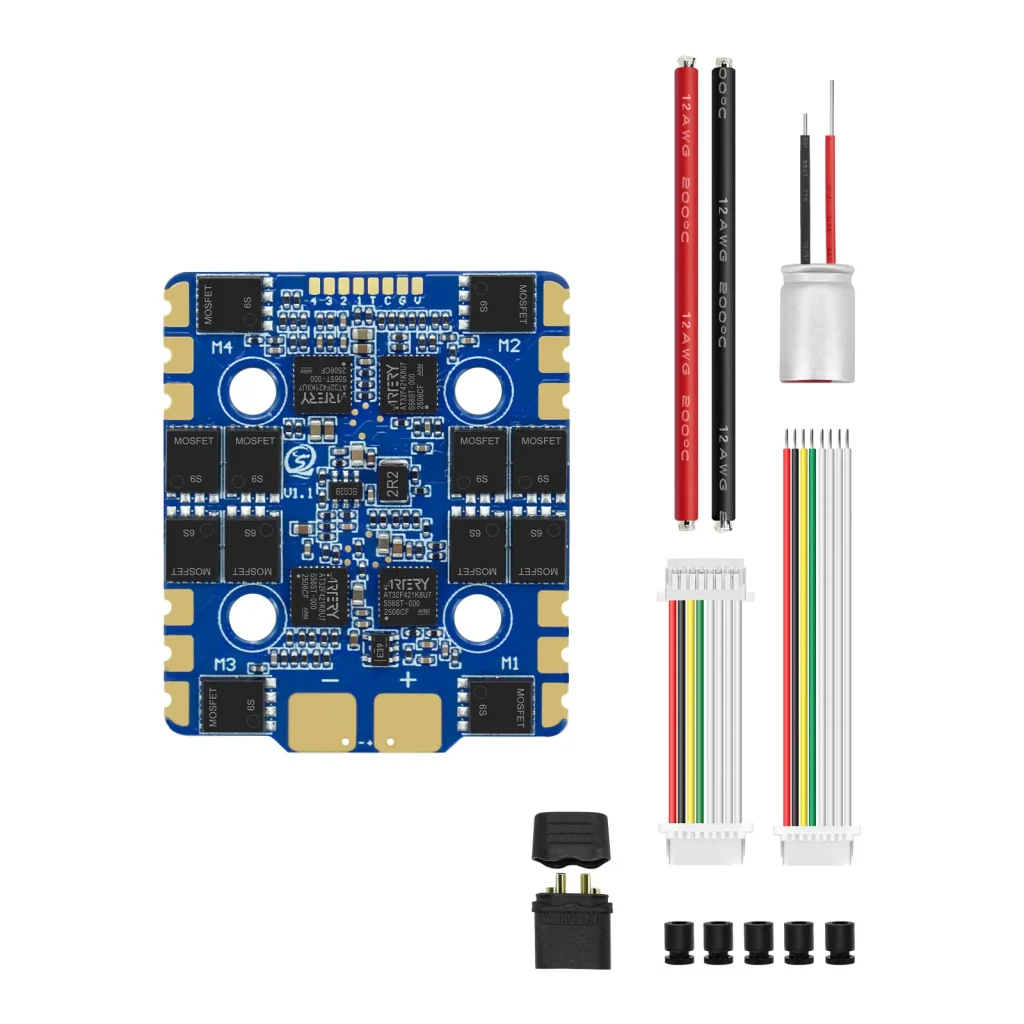

SEQURE Blueson A1 4IN1 ESC × 1
30AWG 40mm reverse double plug SH1.0-8P cable × 1
30AWG 60mm single plug SH1.0-8P cable × 1
12AWG 100mm power cable (black/red)×2
XT60H-M black male connector×1
35V 680UF solid capacitor×1
M3*8mm shock absorbing washer (black) × 5
(1) Product Size:42.5*36*7mm
Net Weight Of Product:19g
(2) Package Size: 90*60*35.5mm
Packing Weight: 63g
(3) Package Size (Including Outer Carton)：155*105*40mm
Packing Weight (Including Outer Carton)：105g
