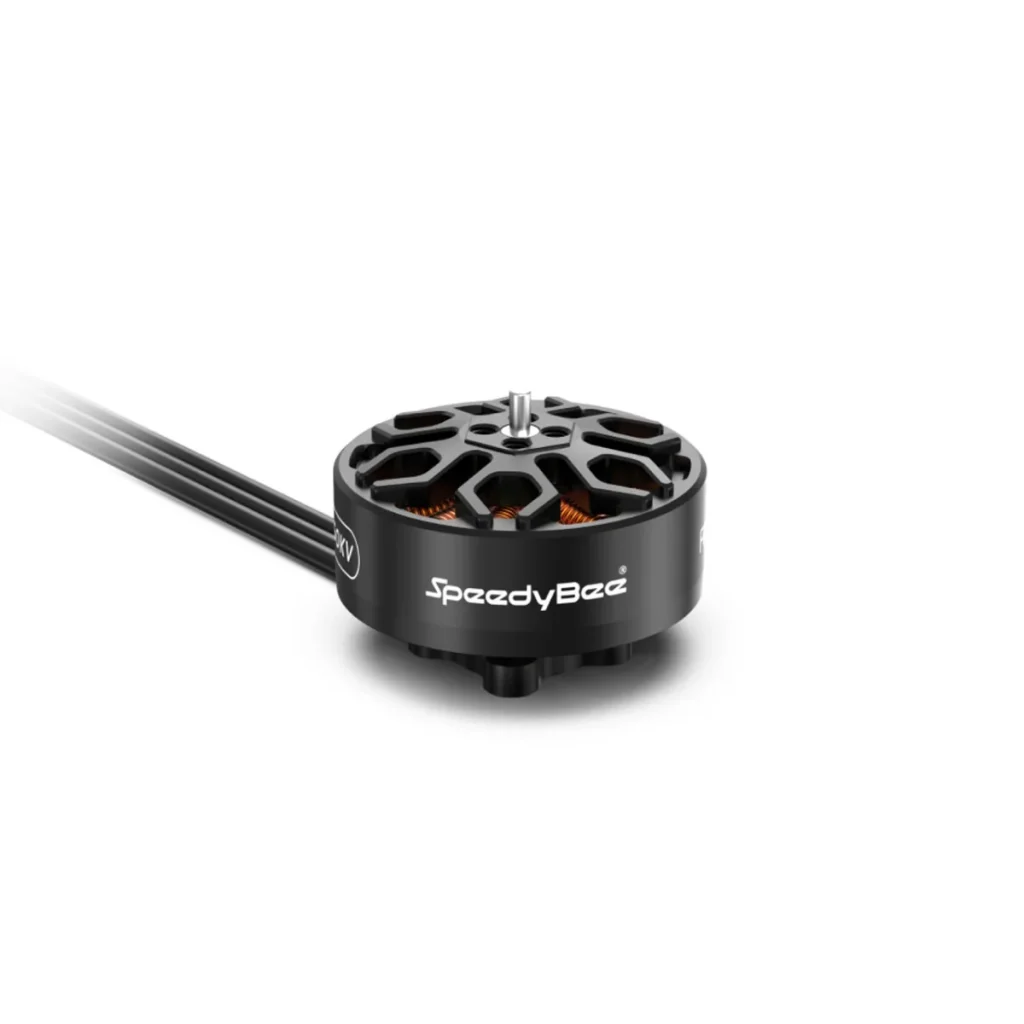

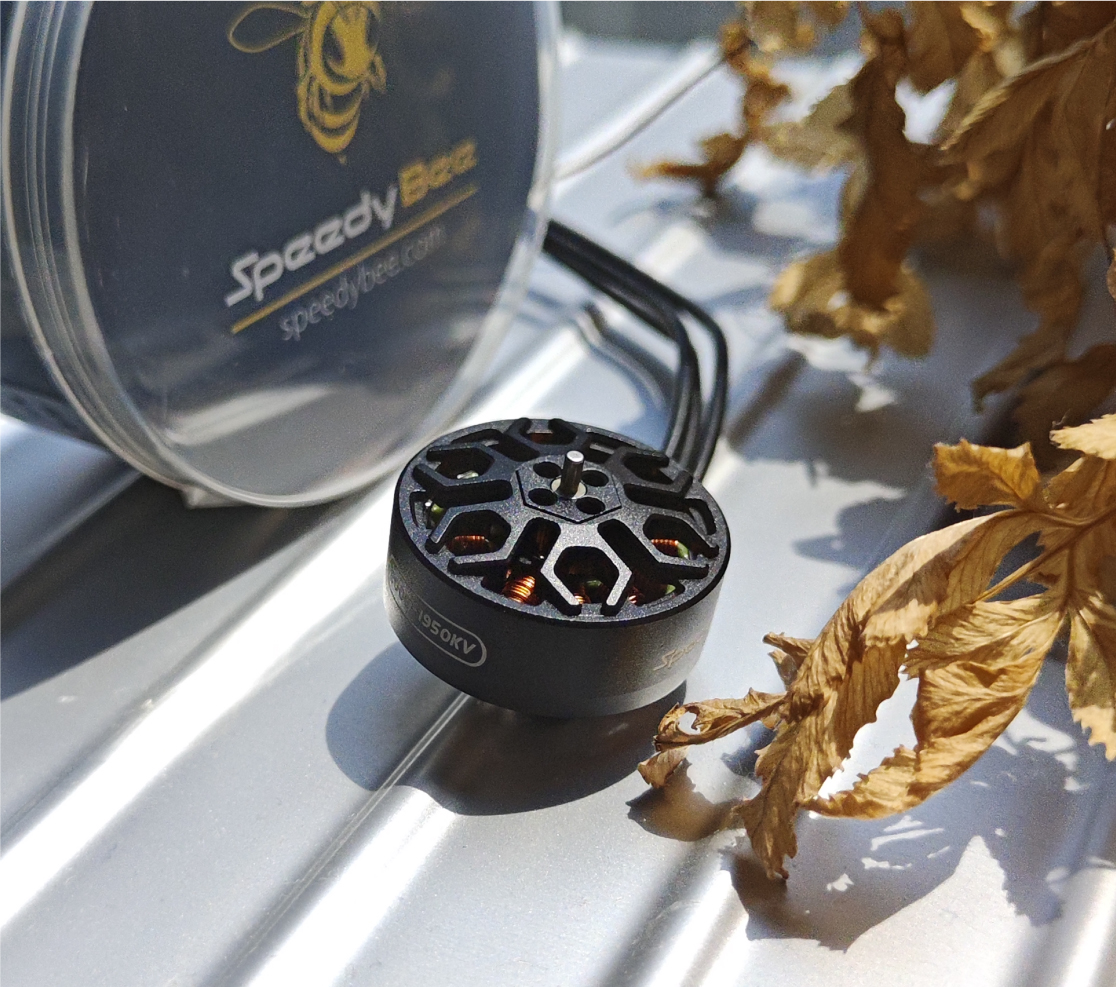

SpeedyBee 2006 1950KV Motor
The SpeedyBee 2006 1950KV Motor is a high-performance brushless motor designed for the SpeedyBee Bee35 3.5-inch FPV drone and other compatible 6S FPV builds. It provides the power, responsiveness and efficiency required for smooth freestyle flying, fast manoeuvres and reliable everyday FPV performance.
The SpeedyBee 2006 1950KV Motor is built specifically around the requirements of compact 3.5-inch FPV drones. Its 2006 stator size provides a useful balance between power output, efficiency and motor weight. With a 1950KV rating, this motor is optimized for 6S LiPo setups and provides strong RPM performance while maintaining suitable control for a smaller FPV platform.

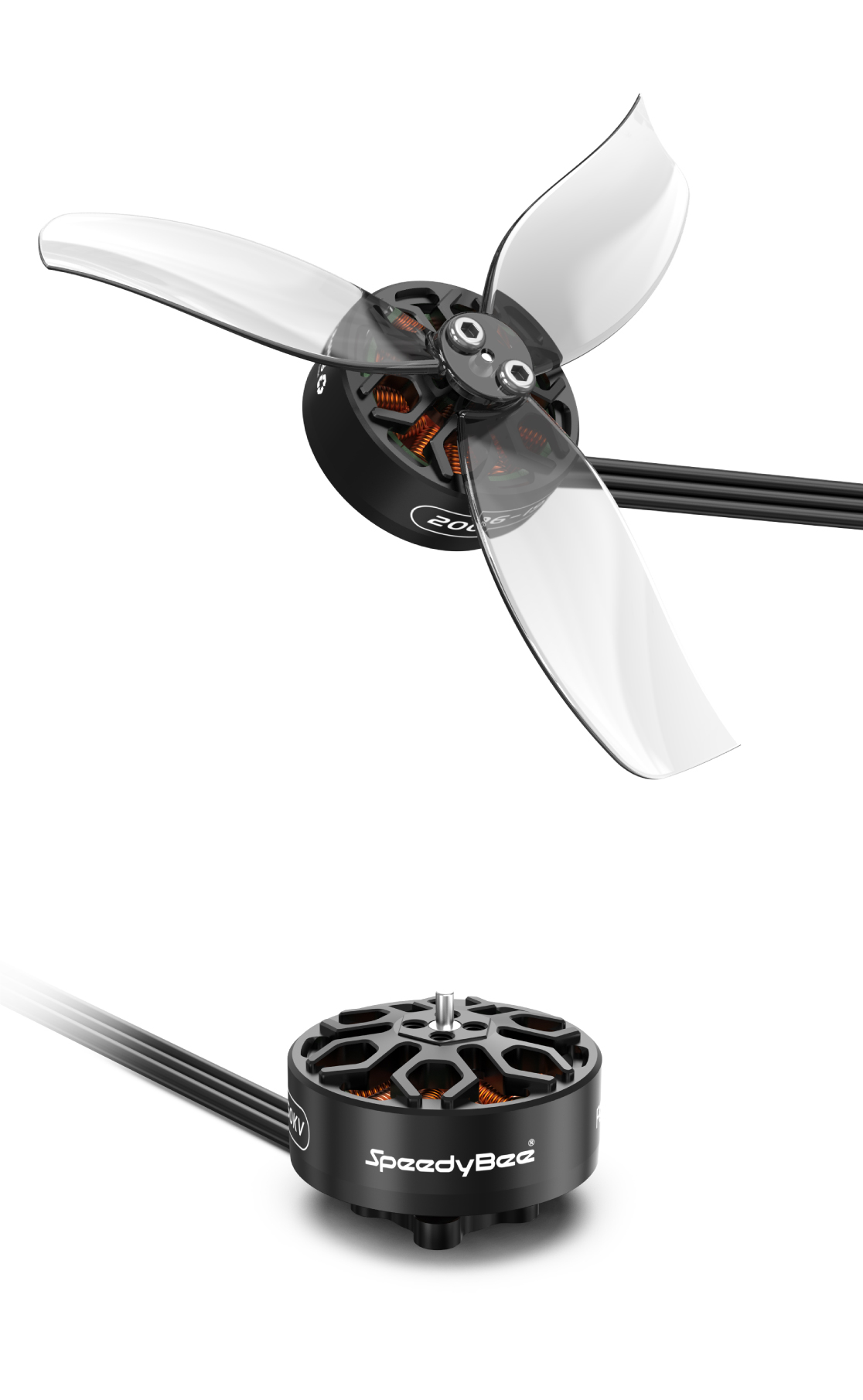

The motor uses a 12N14P configuration and features a 1.5mm shaft diameter. This compact shaft design makes it suitable for compatible 3.5-inch propeller setups. The motor includes 20# silicone wire with a 150mm length, giving builders sufficient wire for practical installation and connection to an ESC.

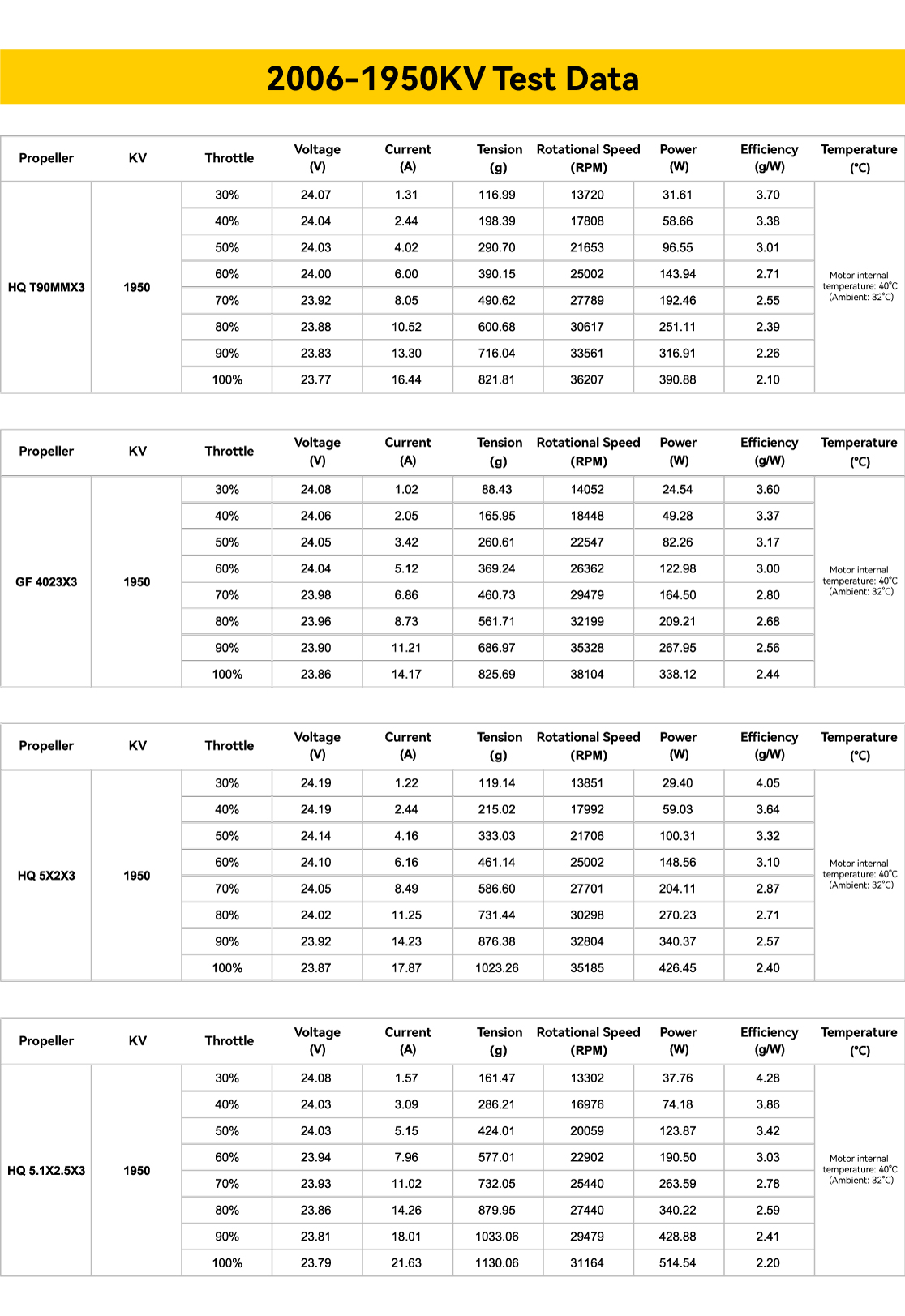

The SpeedyBee 2006 1950KV Motor is designed for 6S operation, making it a suitable propulsion option for high-voltage FPV builds. The motor can deliver a maximum power output of approximately 514.54W and a maximum current of approximately 21.63A under the specified test conditions.
A 1950KV motor is well suited to pilots looking for a combination of acceleration, control and efficient power delivery. When correctly matched with the appropriate propeller, battery and ESC, it can provide responsive handling for freestyle and cinematic flying.
Weight is especially important when building a compact FPV drone. The SpeedyBee 2006 1950KV Motor weighs approximately 23g including its wires. Its compact construction helps maintain a practical power-to-weight balance for 3.5-inch drone builds.
The 2006 motor format is also useful for pilots who want a smaller drone without sacrificing the responsive feel expected from a performance FPV setup. Proper motor and propeller selection can help achieve smooth throttle response and stable flight characteristics.

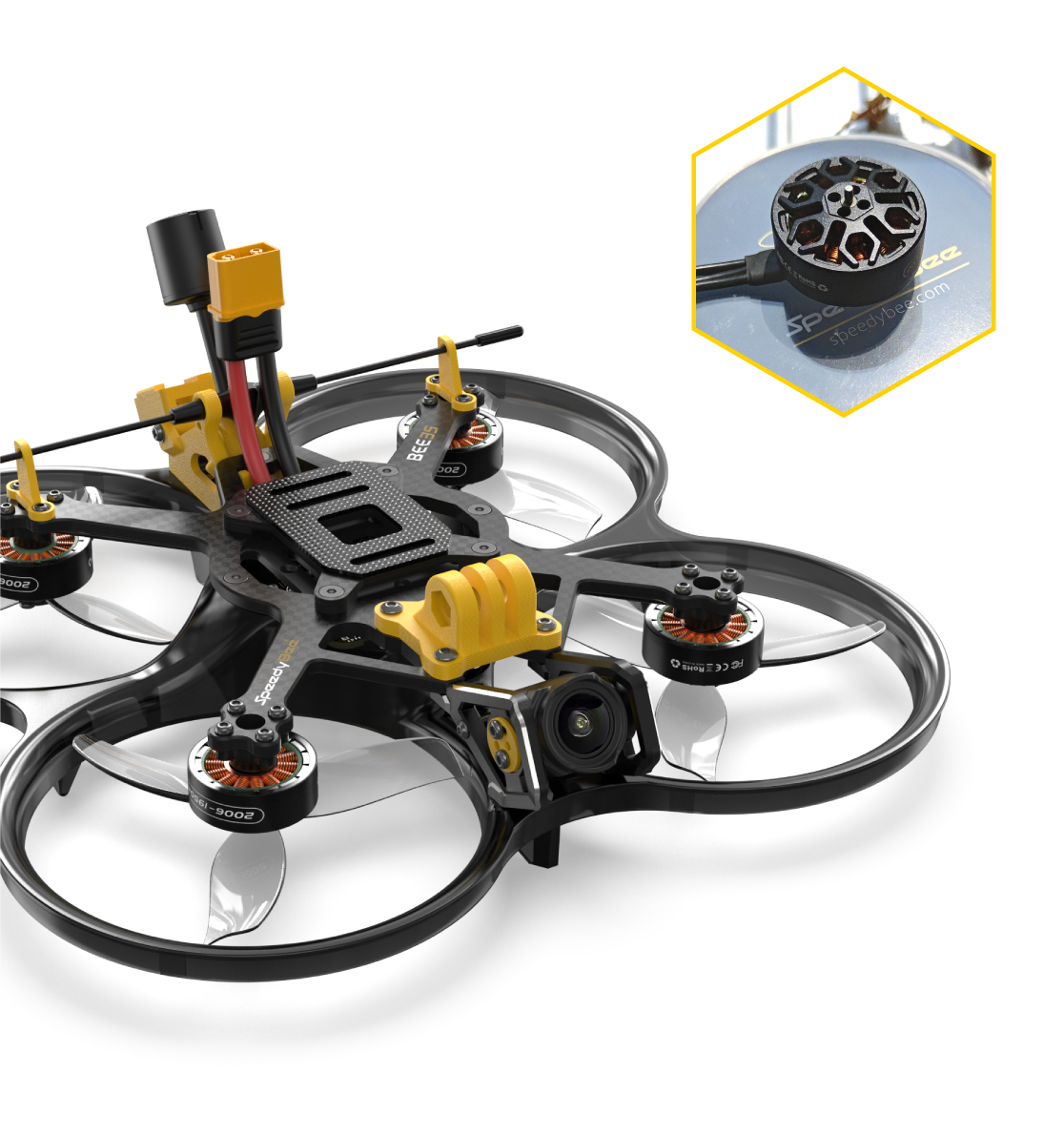

The SpeedyBee 2006 1950KV Motor is specifically associated with the SpeedyBee Bee35 3.5-inch FPV platform. The Bee35 is designed around compact 3.5-inch propulsion, making this motor a natural choice for replacement motors, repairs and new builds using compatible components.

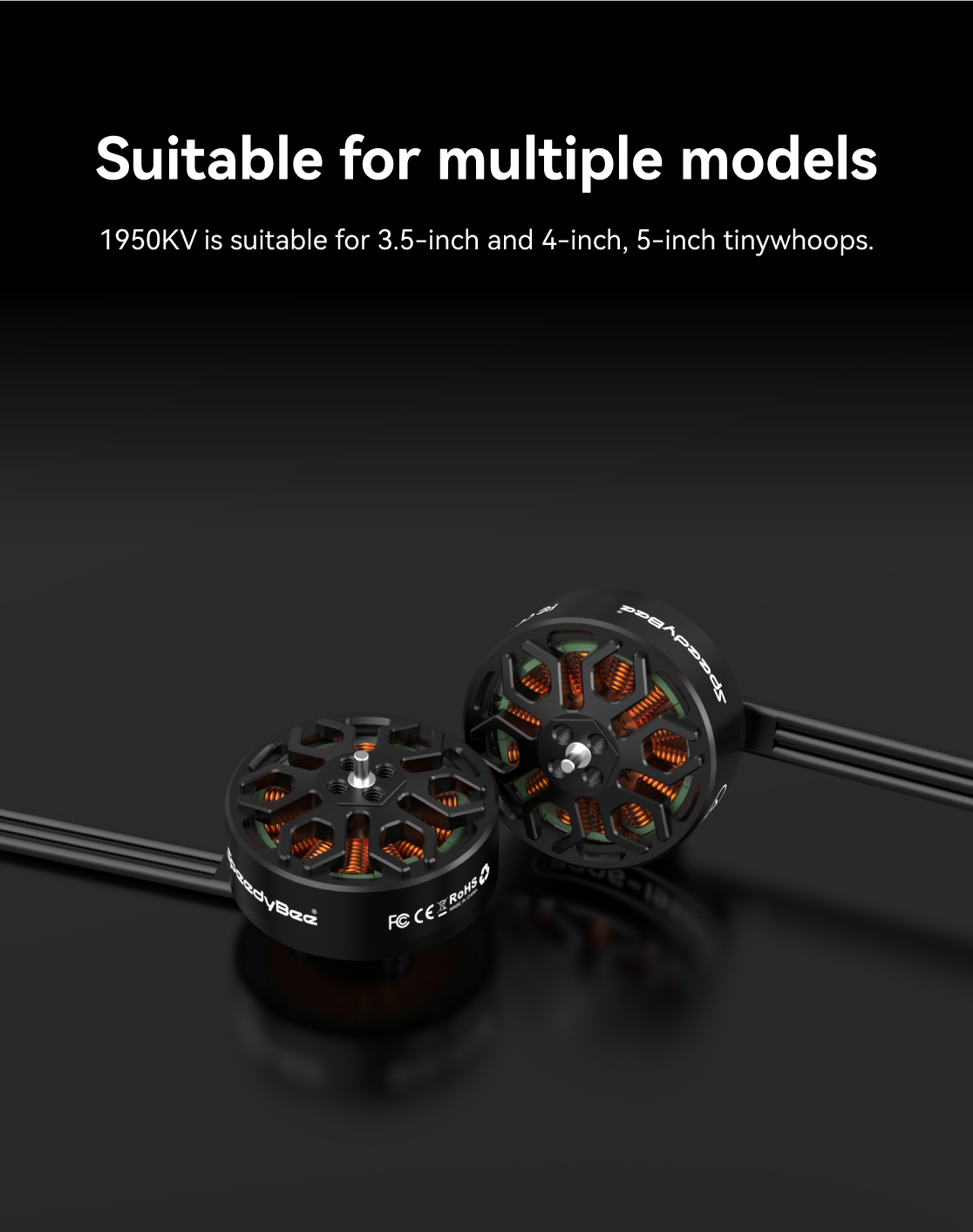

It can also be considered for other compatible FPV drones where the motor size, KV rating, shaft diameter, voltage requirements and mounting specifications match the build.
Choosing the correct motor is important for achieving consistent FPV performance. The SpeedyBee 2006 1950KV Motor combines a compact 2006 stator with a 1950KV specification and 6S operating capability. This makes it suitable for pilots building or maintaining performance-oriented 3.5-inch FPV drones.
Before installation, always confirm motor mounting dimensions, propeller compatibility, shaft requirements, ESC specifications and battery voltage for your particular drone. Correct component matching helps ensure safe and reliable operation.
For pilots using a Bee35 or another compatible 3.5-inch FPV drone, the SpeedyBee 2006 1950KV Motor offers a compact and capable propulsion solution. Its 1950KV rating, 6S compatibility and lightweight design make it suitable for performance-focused FPV applications where responsive control and efficient power delivery are important.
| Model | SpeedyBee 2006-1950KV Motor |
| KV Value | 1950 |
| Stator Poles | 12N14P |
| Shaft Diameter | 1.5mm |
| Silicone Wire | 20# 150mm |
| Motor Weight (including wires) | 23.00g |
| Phase Resistance (including wires) | 133.27 mΩ |
| Operating Voltage | 6S |
| (1 OV) No-load Current (10V) | 0.49A |
| Maximum Power | 514.54 W |
| Maximum Current | 21.63 A |
