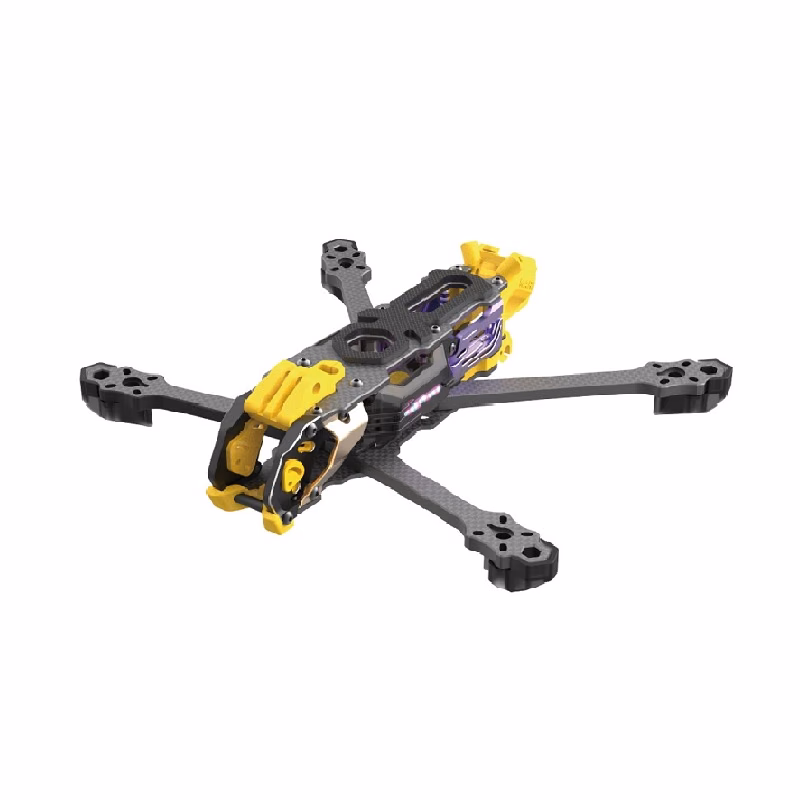

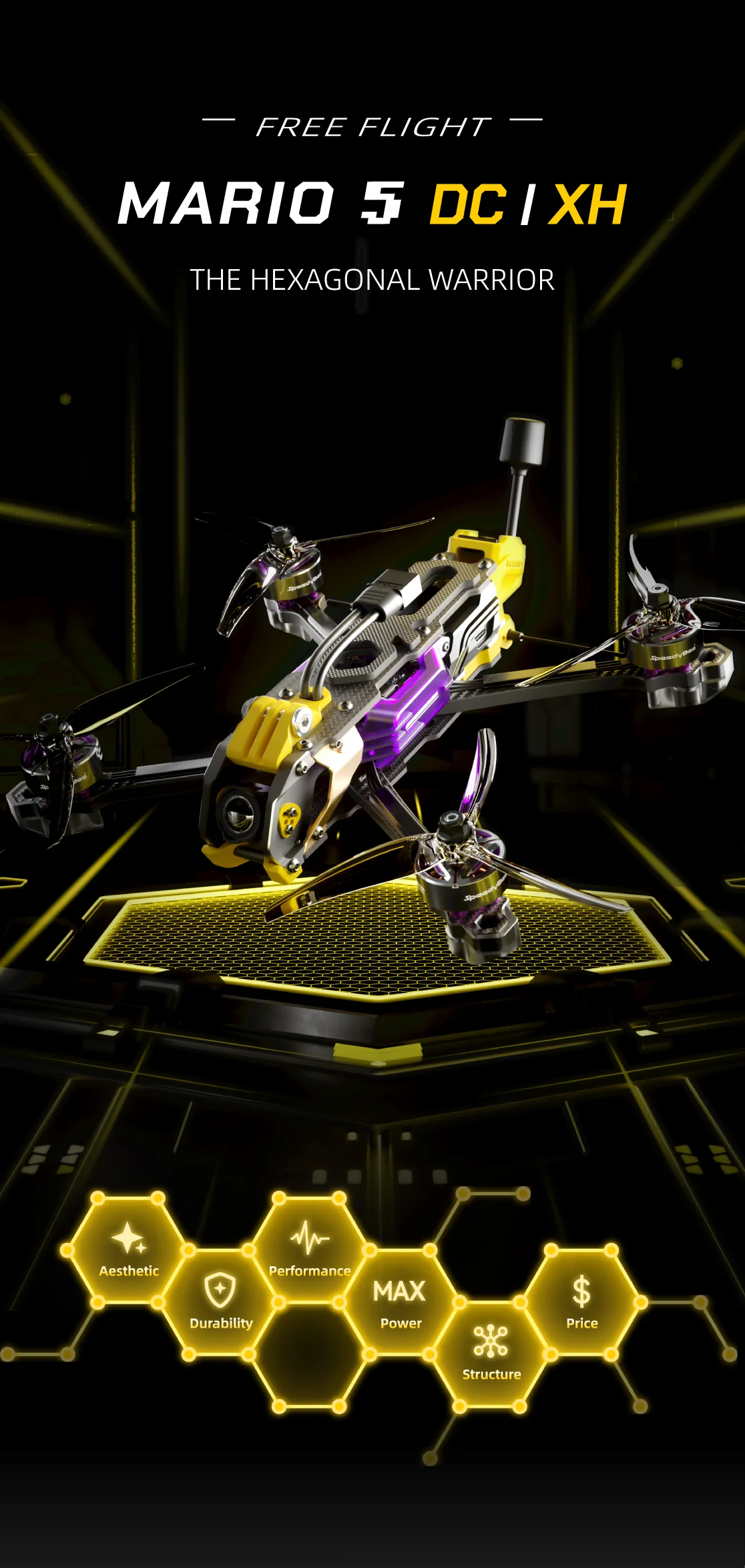

The SpeedyBee Mario 5 DC O4 PRO Version is an FPV drone frame designed for pilots building DJI O4 digital video systems. It combines a protective camera head with a carbon plate arm structure to support a practical, organized drone build. Its layout provides space for compatible electronics and allows pilots to configure the quadcopter for their preferred flying style.

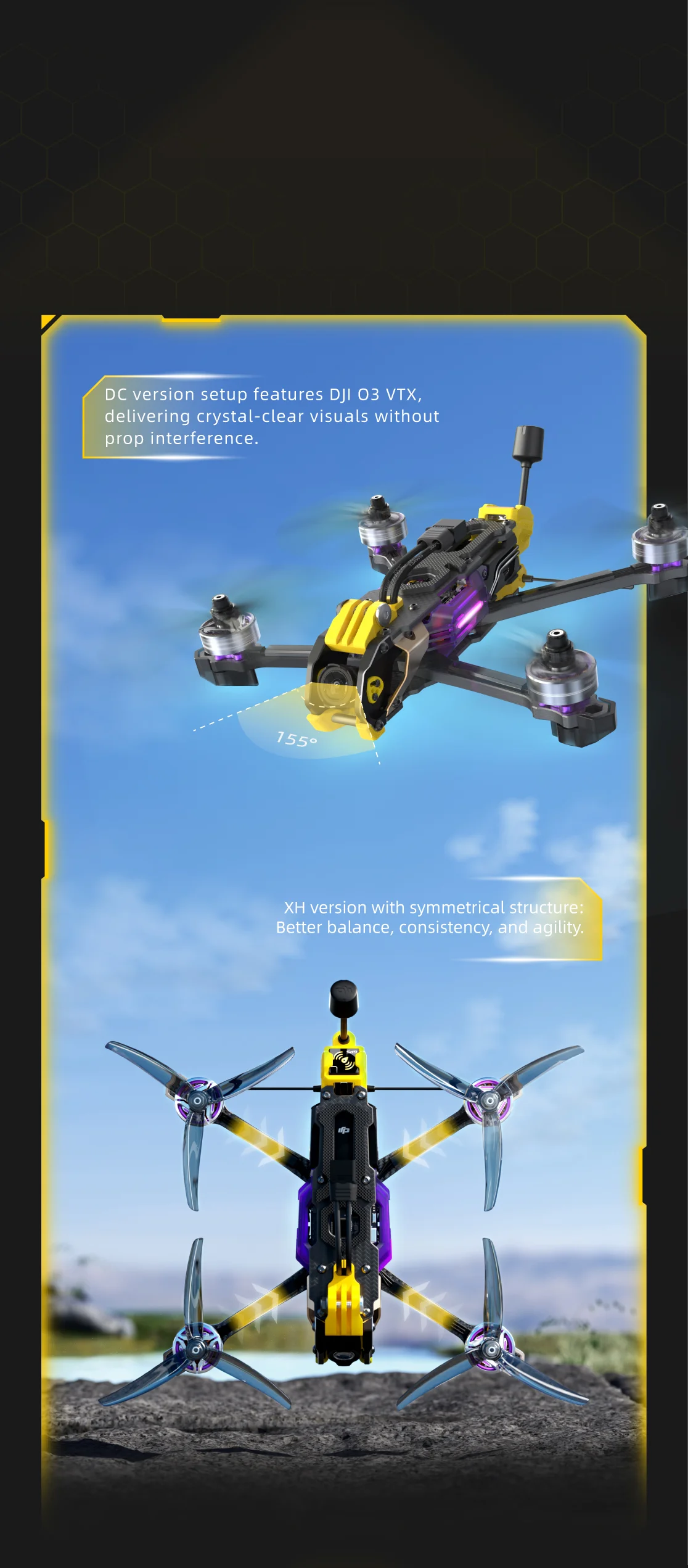

The SpeedyBee Mario 5 DC O4 PRO Version is engineered for performance and versatility, featuring a high-strength aviation aluminum alloy head that not only protects the lens but also optimizes the DJI O3 VTX ultra-wide-angle view, minimizing the "jello effect" for a consistently steady image. Its unique carbon plate arm support structure significantly enhances body stability and reduces twisting, while also providing space for capacitor installation. The frame offers a power dual-input method for easy center of gravity adjustment, along with integrated sockets and antennas for a clean build. A dedicated receiver installation space at the rear simplifies frequency binding. Furthermore, the SpeedyBee Mario 5 DC O4 PRO Version encourages personalization with diverse open-source 3D models and includes protective armor that shields the FC and enhances DJI O3 heat dissipation, ensuring optimal cooling
Features:

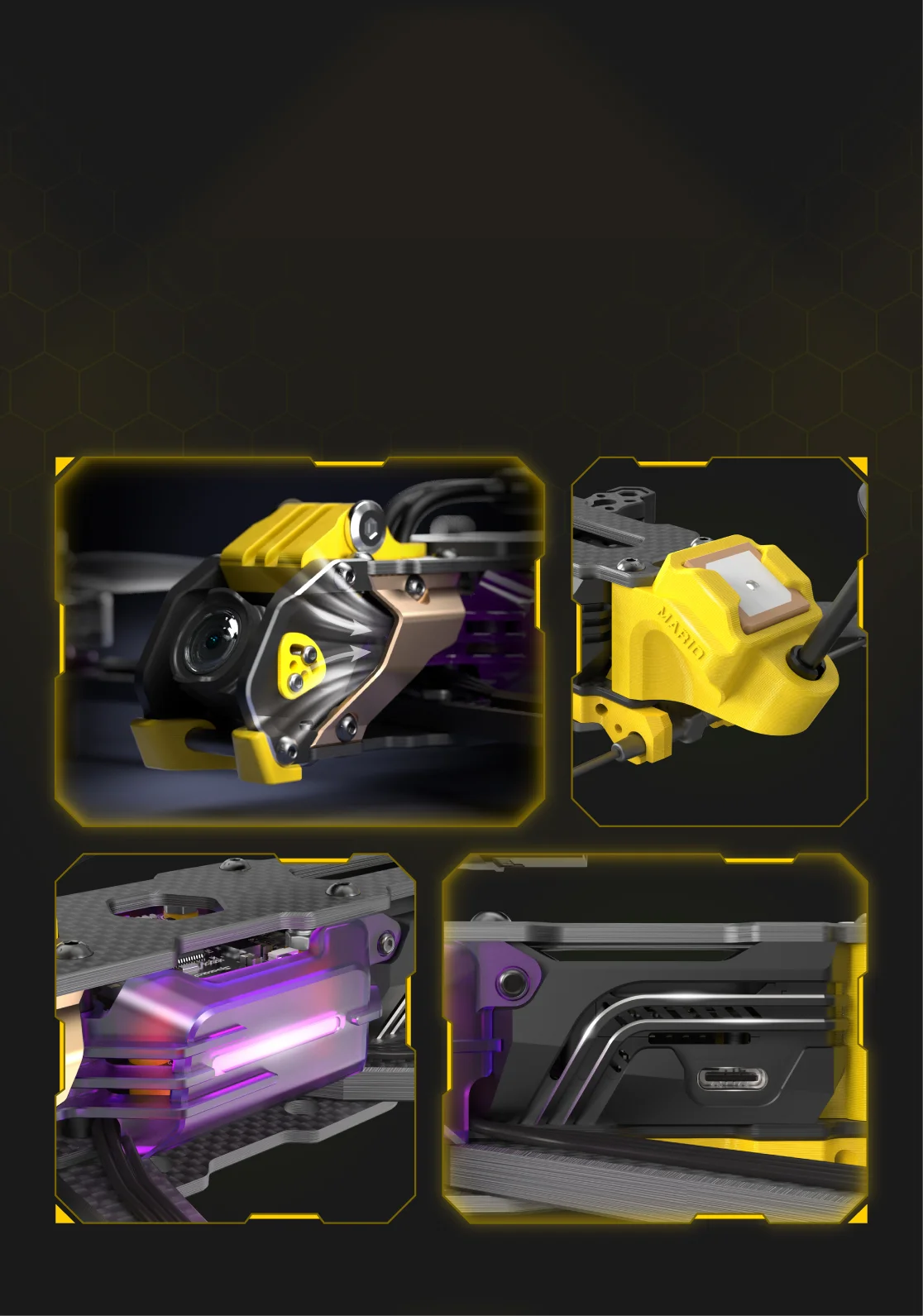

High-Strength Alloy Head: Protects the lens, Optimizes DJI O3 VTX ultra-wide-angle view, Minimizes "jello effect."

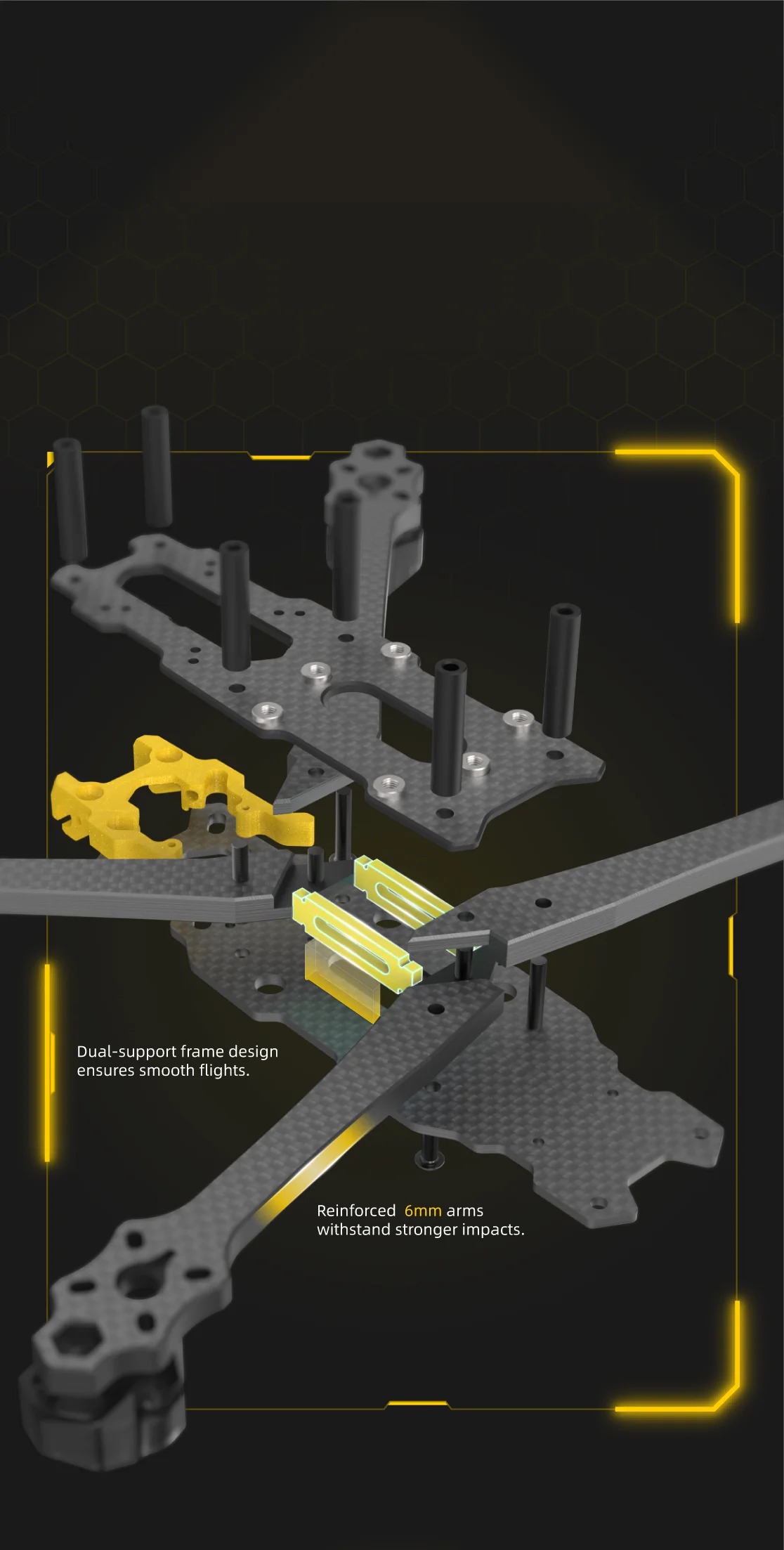

Unique Carbon Plate Arm Support: Enhances body stability, Minimizes twisting, Accommodates capacitor installation.
Power Dual-Input Method: Selectable dual main power input, Easy center of gravity adjustment, Integrated socket and antenna.

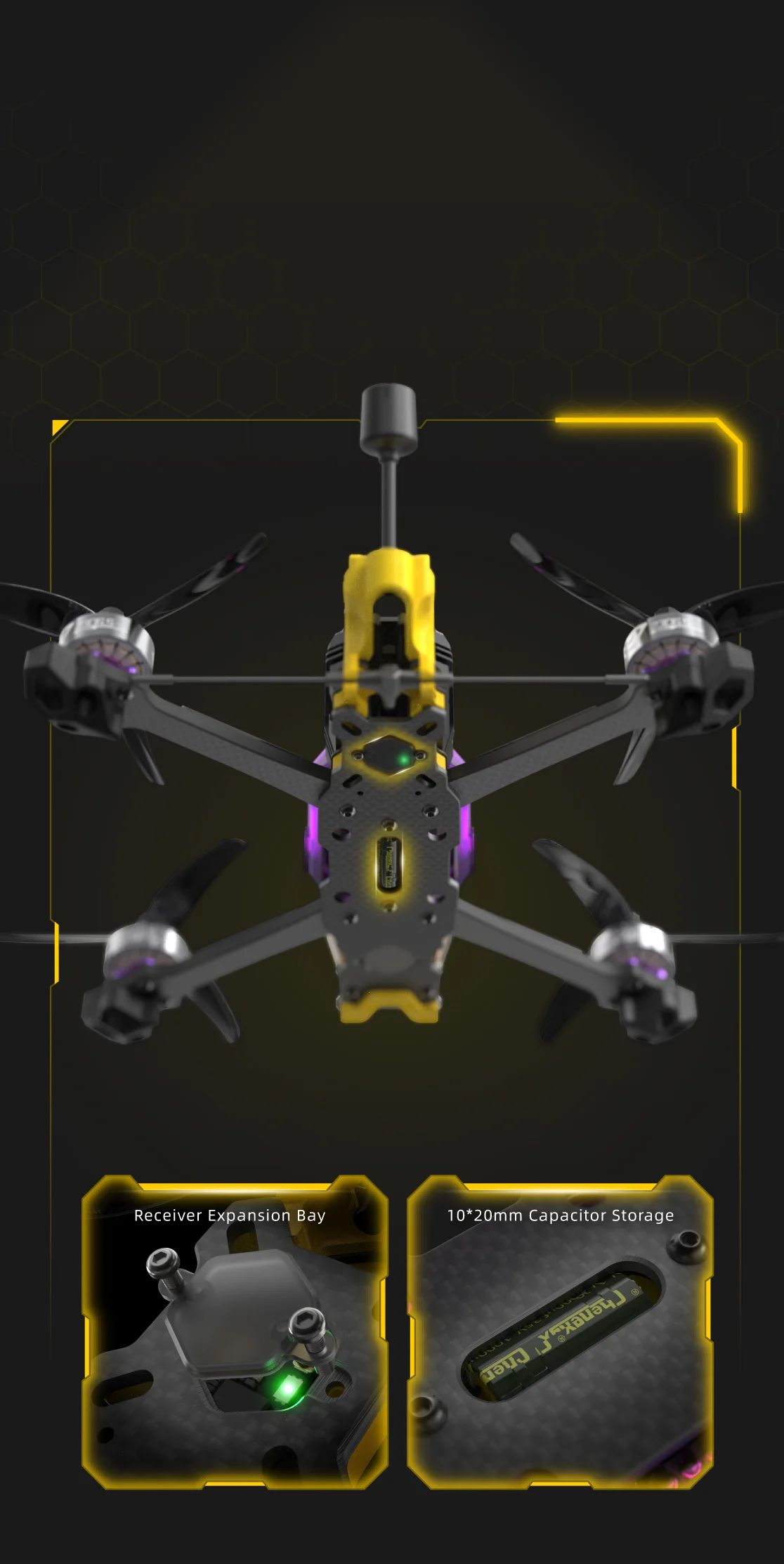

Receiver Installation Space: Dedicated rear bottom area, Easy frequency binding.
Diverse Open-Source 3D Models: Customizable with various 3D models.

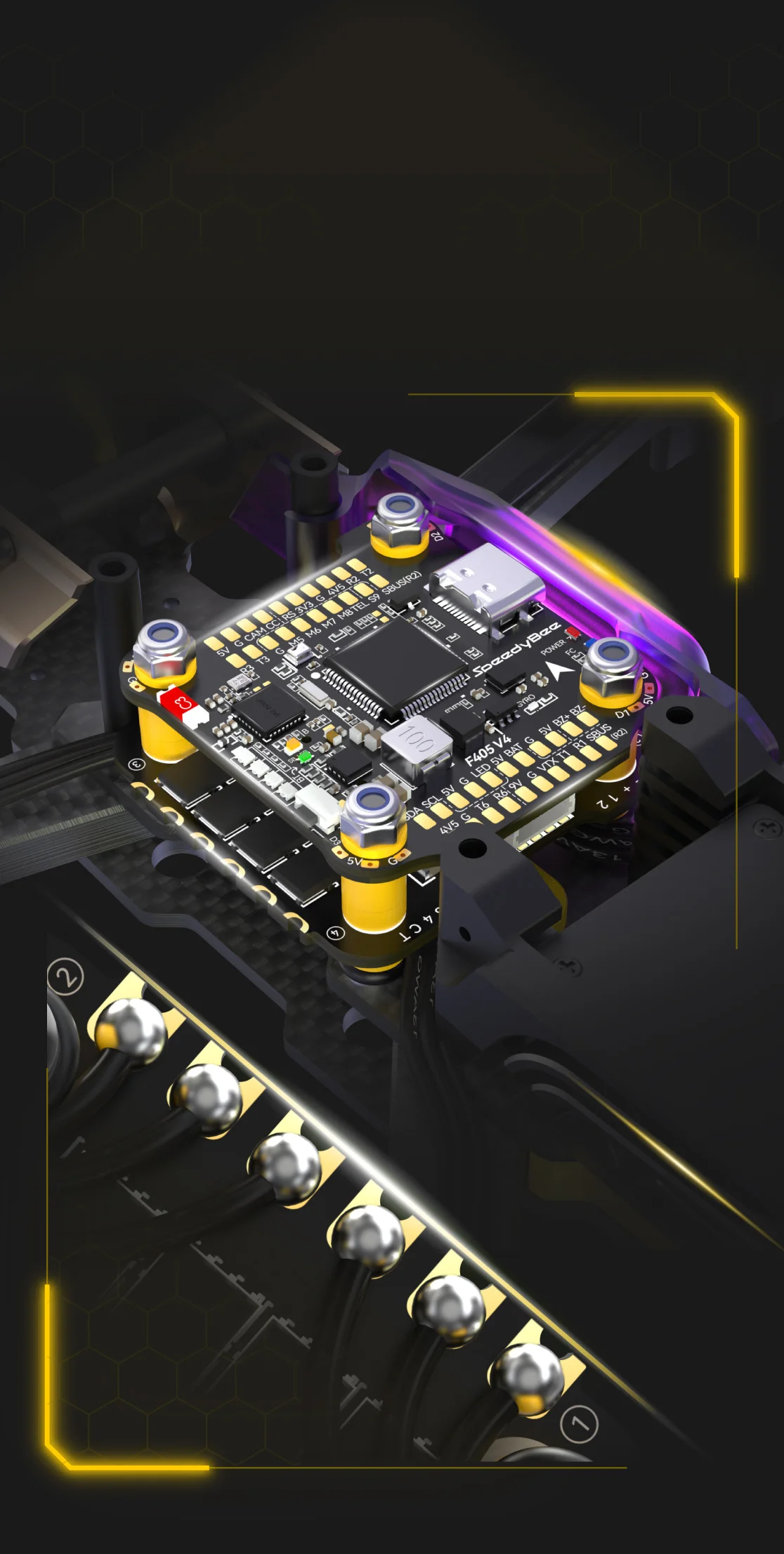

Frame Protection Armor: Protects the FC (Flight Controller), Enhances DJI O3 heat dissipation, Recessed Gopro Mount, lowers the center of gravity.
Package Includes:
1 x SpeedyBee Mario 5 DC O4 PRO Version
| Item Type: | Accessory |
| Model No. / Name: | Drone Frame |
| Material: | Aluminium Metal Alloy |
| Thickness of Arms | 6mm |
| Thickness (mm): | Top Plate Thickness:2.5mm(T300 3K), Middle Plate Thickness:2.0mm(T300 3K), Bottom Plate Thickness:2.5mm(T300 3K) |
| Additional Specs.: | Battery Anti-Slip Pad: Silicone 3mm, Motor Spring Hole Position: Φ8mm, Compatible Propeller Size : Max 5.1 Inch, Motor Mounting Hole Distance : 16-19mm, FC Mounting Hole:30.5×30.5(M3), Internal Mounting Height : 23-31mm, Receiver Installation Space :25*13*6mm, Suitable Capacitor Size : Φ10mm*20mm, GPS Installation Size : 18*18*7 |
| VTX Mounting Holes | 20×20(M2) |
| Shipping Weight | 0.302 kg |
| Shipping Dimensions | 21 × 18 × 05 cm |
