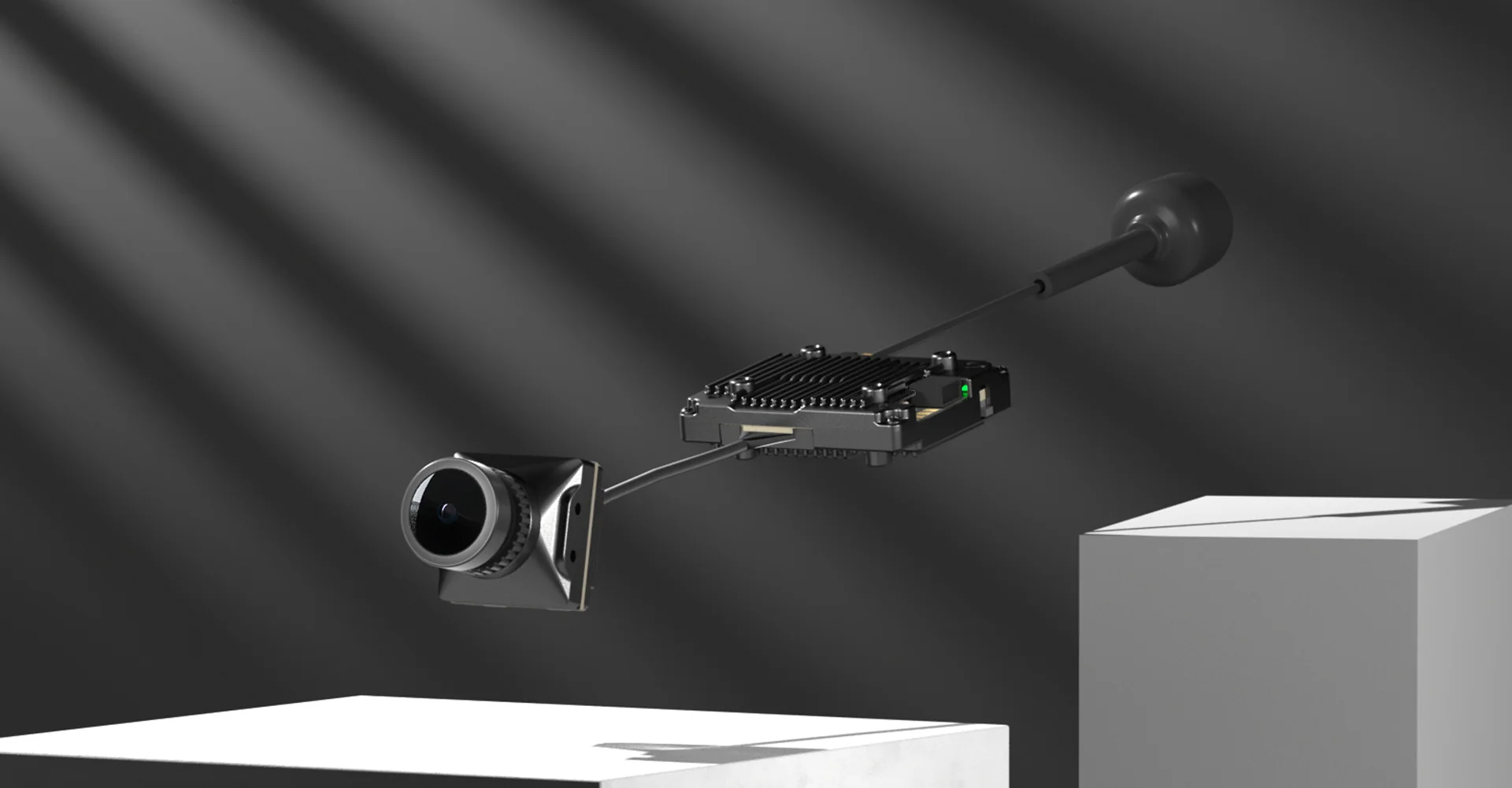

The Walksnail Avatar HD Pro Kit is a high-performance digital HD FPV system designed for pilots who want clear video, low latency and reliable digital transmission. The system combines the Avatar HD Pro Camera with the Avatar V2 Pro video transmitter to deliver up to 1080P/60FPS video and a responsive FPV experience.
Featuring a 1/1.8-inch Sony Starvis II image sensor, 160° field of view, F1.6 aperture and low-light capability, the camera is designed to provide detailed video across a wide range of flying conditions. The VTX also supports a wide 6V–25.2V input range and is compatible with popular flight-controller systems including Betaflight, INAV, ArduPilot, Fettec and KISS. CADDXFPV
The Walksnail Avatar HD Pro Kit provides high-definition digital FPV video with support for 1080P/60FPS. The camera also supports 720P/120FPS and 720P/60FPS modes, giving pilots flexibility when choosing between image quality and frame rate.
The 1/1.8-inch Sony Starvis II sensor is designed to deliver detailed images while maintaining strong performance in challenging lighting conditions. This makes the system suitable for freestyle, cinematic and general FPV flying. CADDXFPV

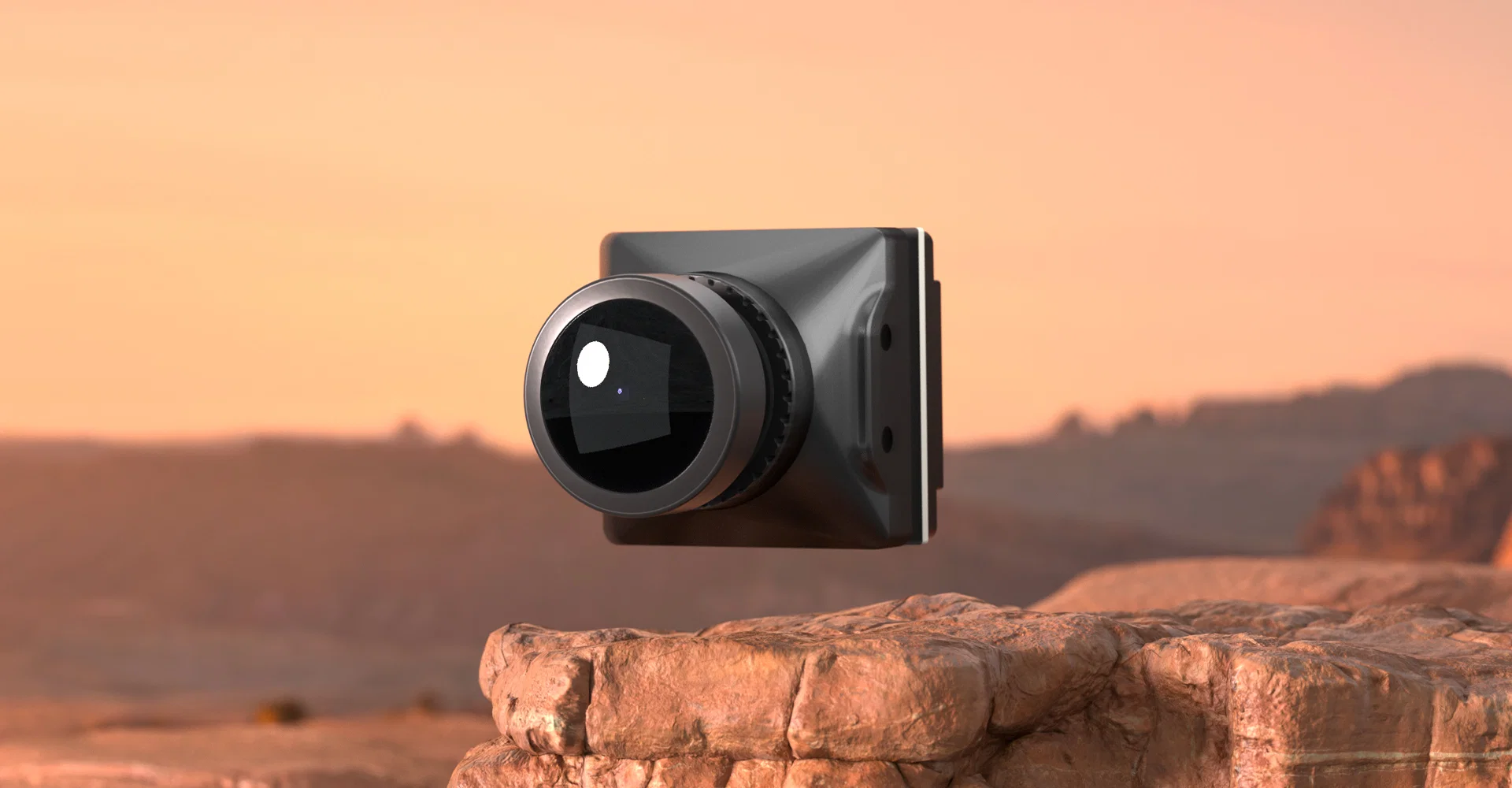

The Avatar HD Pro Camera uses a Sony Starvis II sensor and an F1.6 aperture to improve performance in low-light environments. The camera has a minimum illumination specification of 0.00001 lux, making it particularly suitable for pilots who want usable FPV video in darker conditions. CADDXFPV
The wide 160° field of view also gives pilots a broad perspective during flight, helping provide greater awareness of the surrounding environment.
Fast video response is important for FPV flying, especially when performing high-speed manoeuvres or navigating obstacles. The Walksnail Avatar HD Pro Kit offers an average latency of approximately 22ms, providing a responsive digital FPV experience. CADDXFPV
This makes the system suitable for pilots who want the benefits of digital HD video without sacrificing responsiveness.
The system includes an integrated gyro that can record motion information for Gyroflow stabilization. This allows compatible footage to be processed for smoother video and reduced unwanted movement.
Gyroflow support is particularly useful for cinematic FPV pilots who want to capture smoother footage while maintaining the freedom of flying a lightweight FPV drone.
The Walksnail Avatar HD Pro Kit includes built-in storage for recording HD FPV footage. The current official single-antenna version lists 8GB storage, while the dual-antenna version uses 32GB storage. CADDXFPV
Built-in storage provides a convenient way to record flight footage without requiring a separate external storage solution.

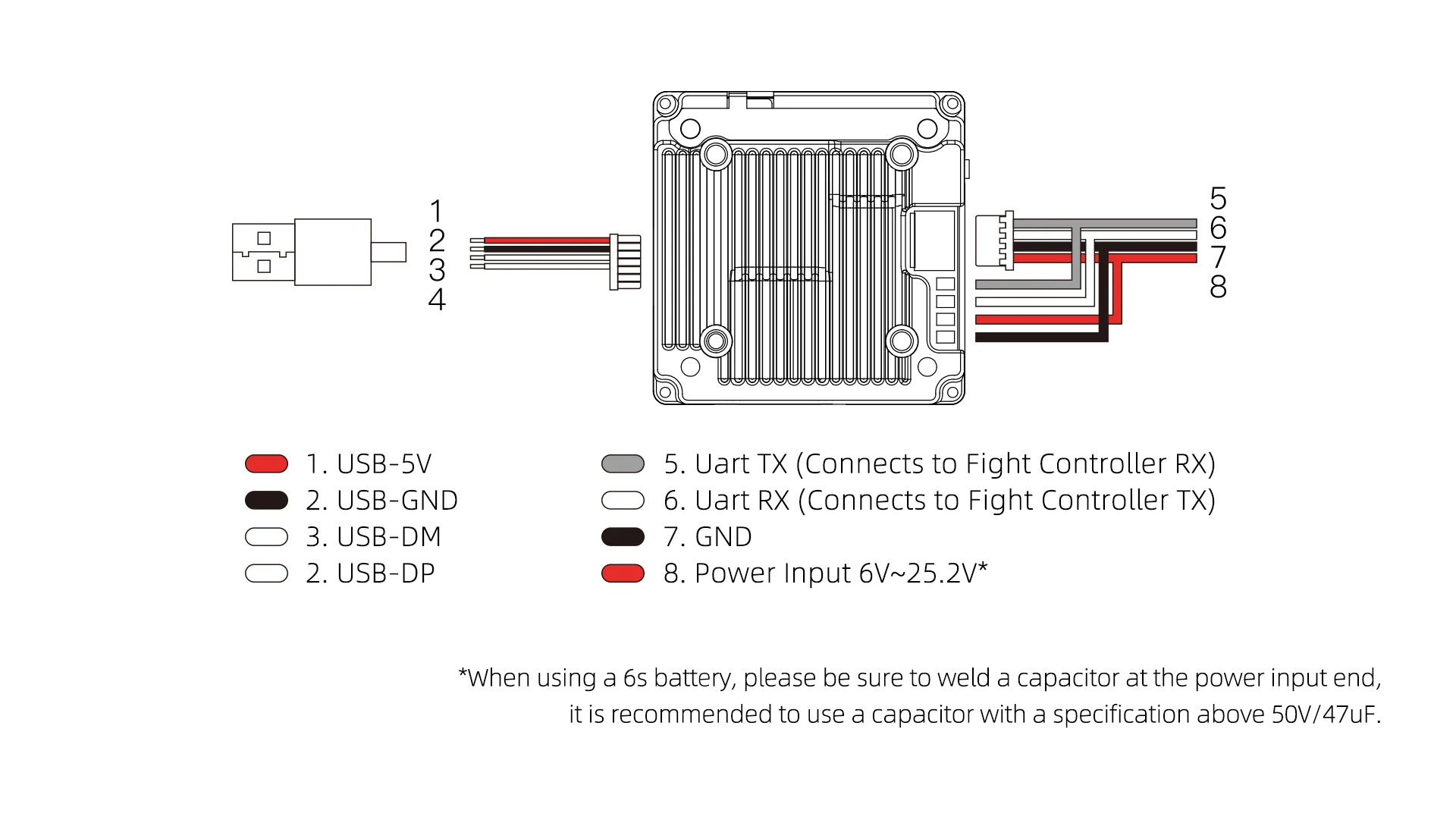

The Avatar VTX supports a 6V–25.2V input range, making it suitable for a variety of FPV drone power configurations, including compatible 6S setups. Always verify your drone's power system and wiring before connecting the VTX. CADDXFPV

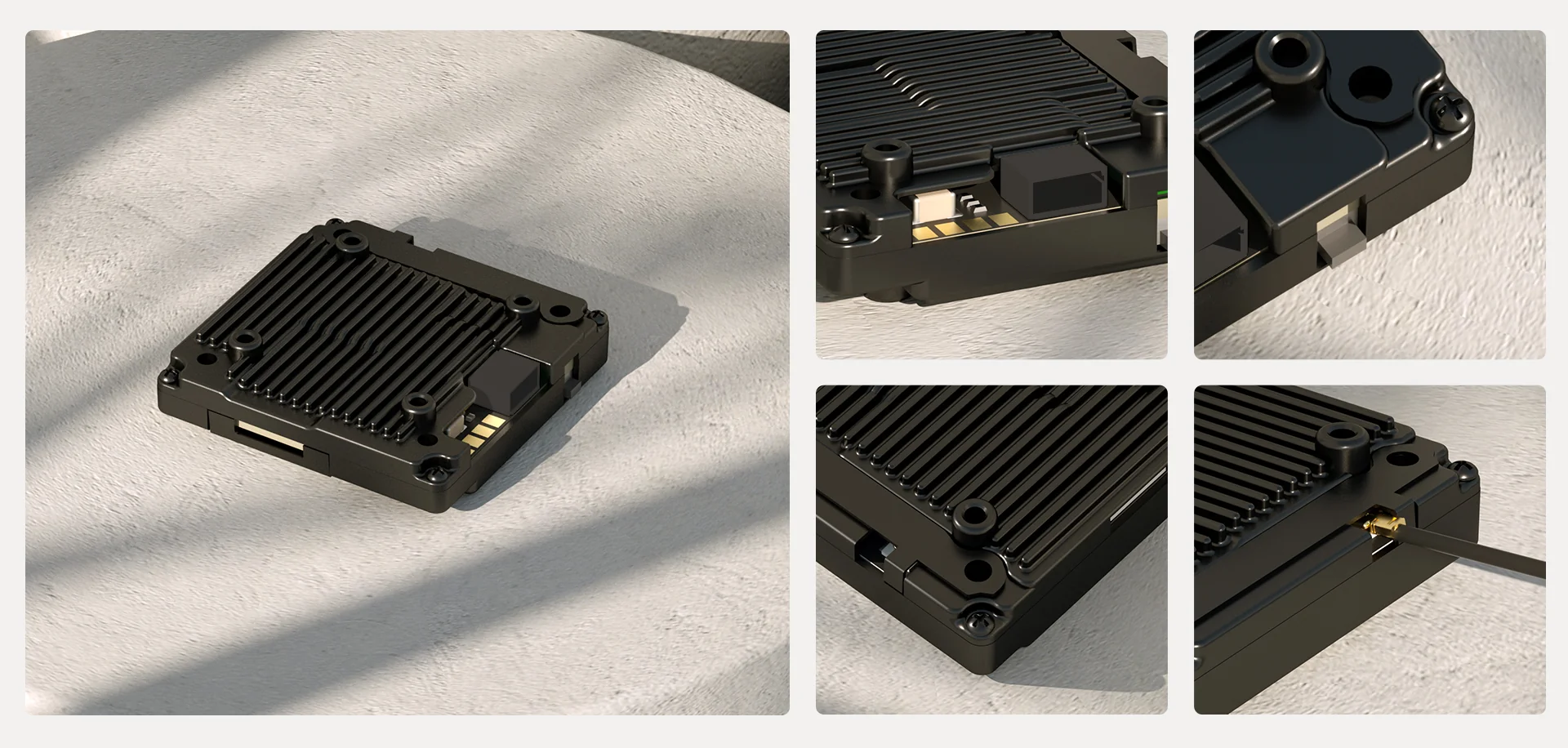

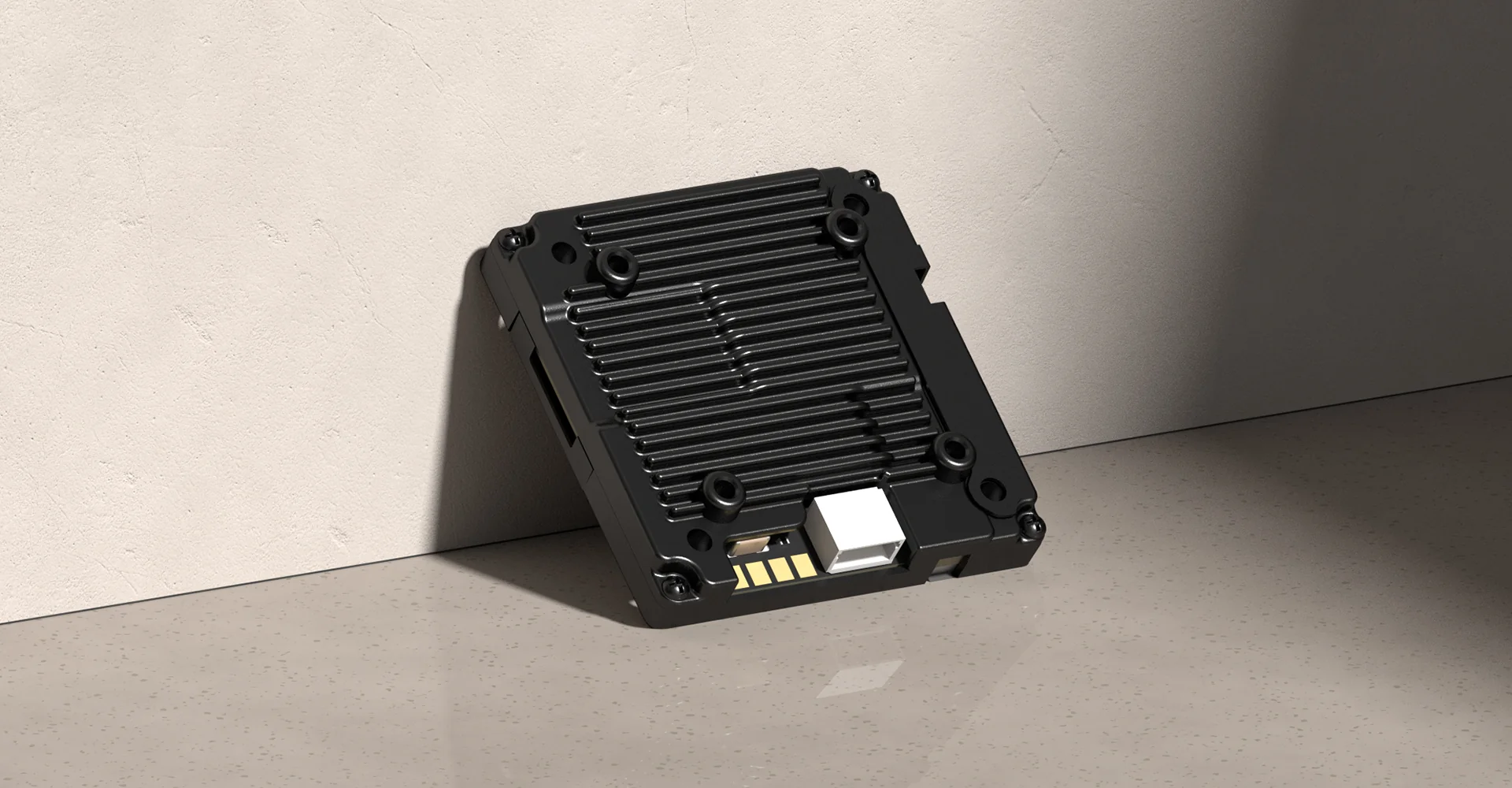

The VTX has a compact 33.5 × 33.5 × 10.5mm design and supports 20 × 20mm and 25.5 × 25.5mm mounting patterns. CADDXFPV
The system supports several popular flight-controller platforms, including Betaflight, INAV, Fettec, ArduPilot and KISS. This makes the Walksnail Avatar HD Pro Kit suitable for a wide range of FPV drone builds and flight-control setups. CADDXFPV

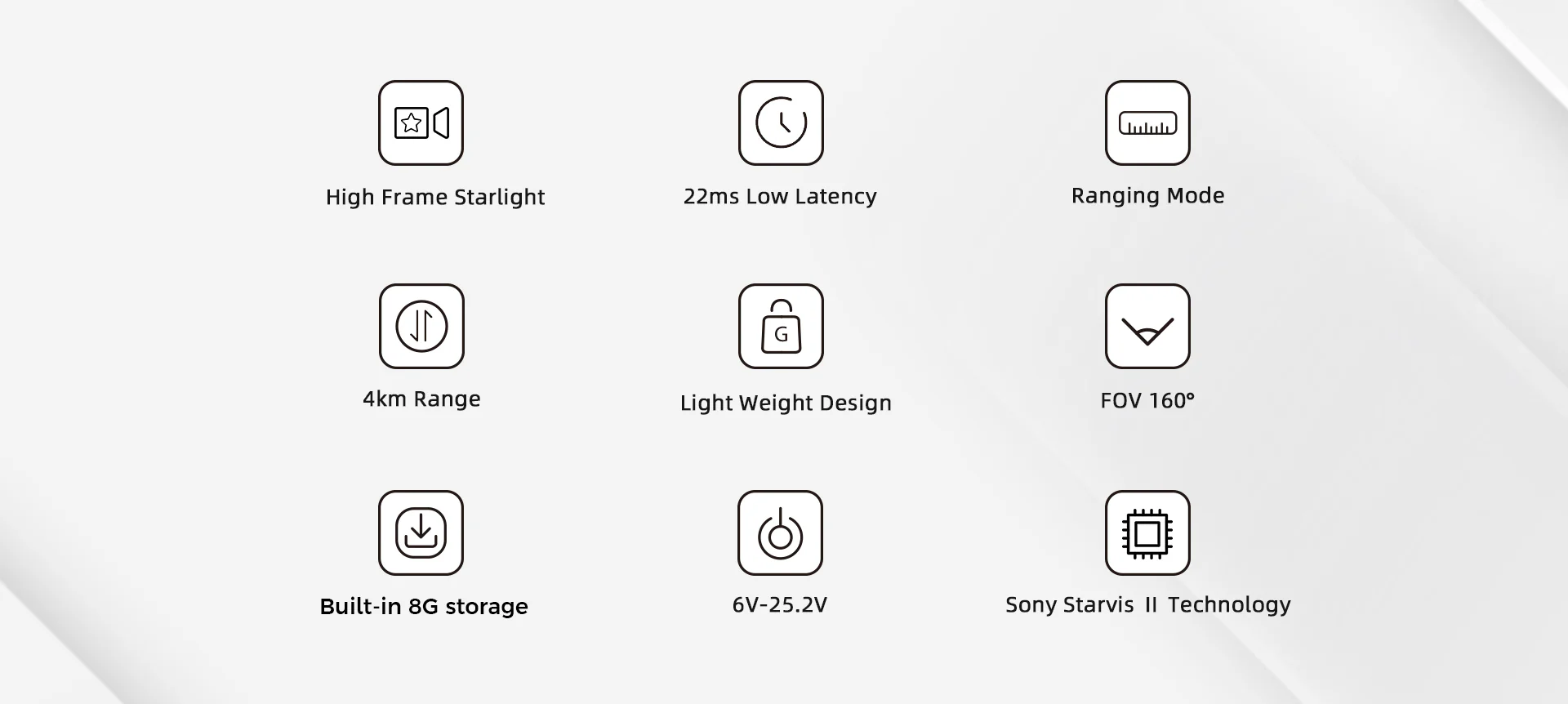

| Specification | Details |
|---|---|
| Product | Walksnail Avatar HD Pro Kit |
| Camera | Avatar HD Pro Camera |
| Sensor | 1/1.8-inch Sony Starvis II |
| Video | 1080P/60FPS |
| High Frame Rate | 720P/120FPS |
| FOV | 160° |
| Aperture | F1.6 |
| Latency | Approx. 22ms |
| VTX Input | 6V–25.2V |
| Frequency | 5.725–5.850GHz |
| Storage | 8GB |
| Stabilization | Gyroflow support |
| Camera Weight | 9.5g |
| VTX Weight | 17.6g |

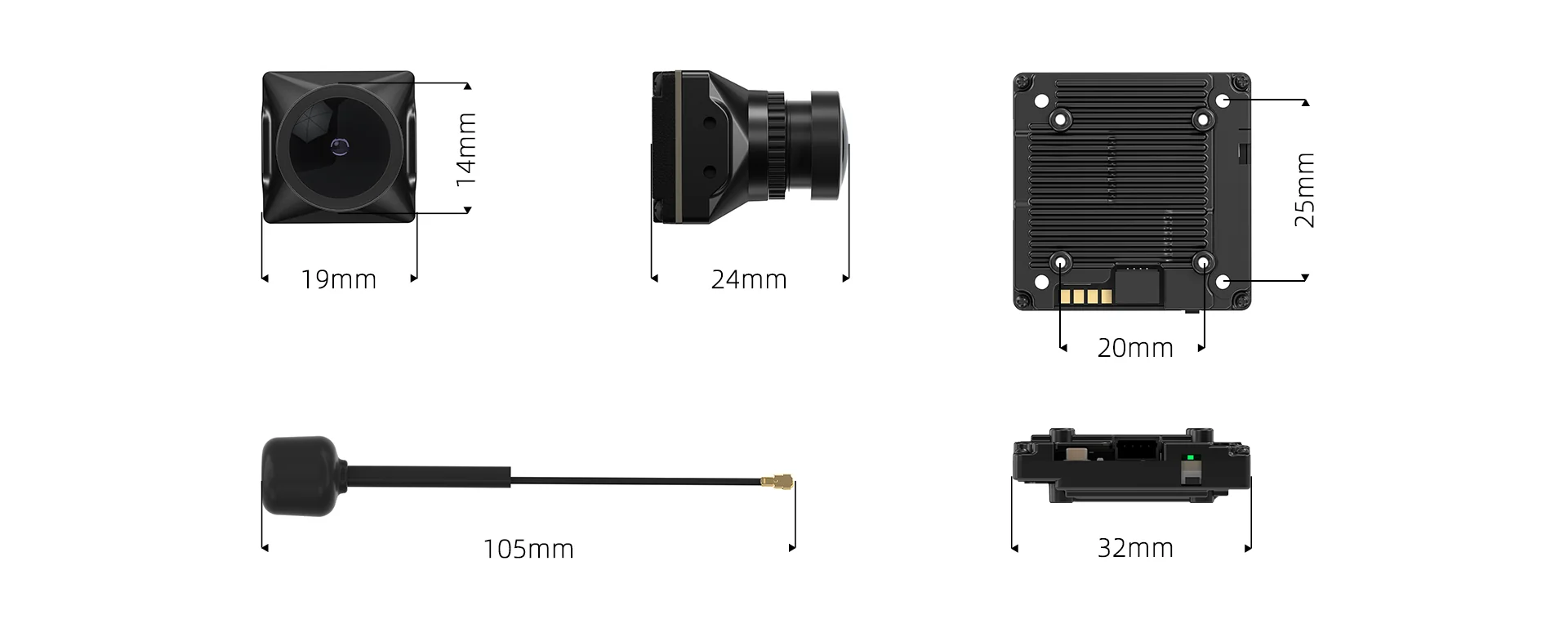

| Camera Size | 19 × 19 × 24mm |
| VTX Size | 33.5 × 33.5 × 10.5mm |
| FC Support | Betaflight, INAV, Fettec, ArduPilot, KISS |
Specifications are based on the current official CaddxFPV product information. CADDXFPV
The Walksnail Avatar HD Pro Kit is a strong choice for pilots upgrading from analog FPV to digital HD video. Its combination of 1080P video, low latency, Starvis II low-light performance, wide FOV and Gyroflow support makes it suitable for racing, freestyle, cinematic and general FPV applications.
For installation, verify the VTX voltage, mounting pattern, antenna connections and flight-controller compatibility before powering the system.
I recommend using the single-antenna version details above because your product title is simply “Walksnail Avatar HD Pro Kit.” The official site also has a separate dual-antenna version with different storage and VTX weight.
The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS. Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.
The camera ( 8G VTX KIT) supports Gyroflow, take you smooth and stable video quality.

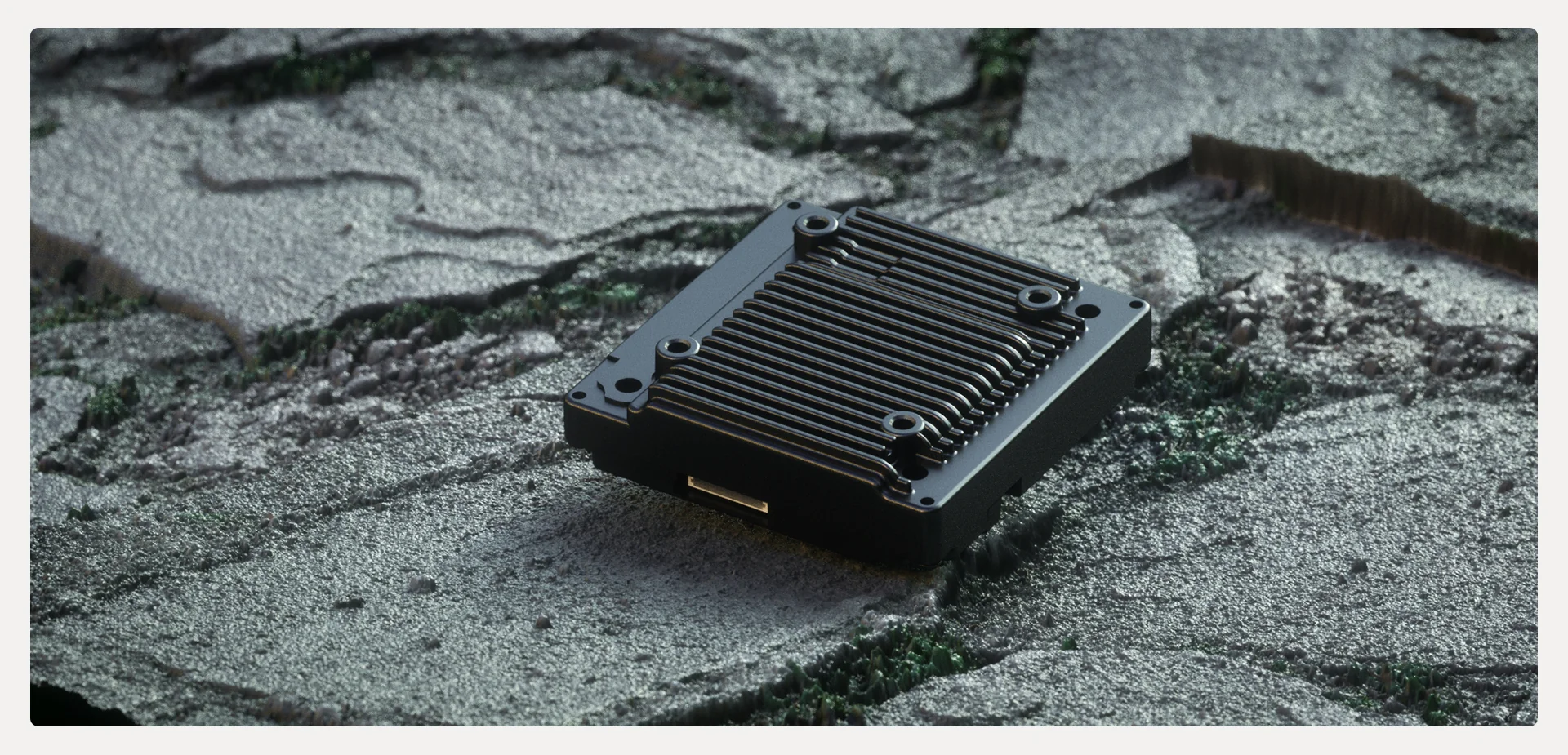

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

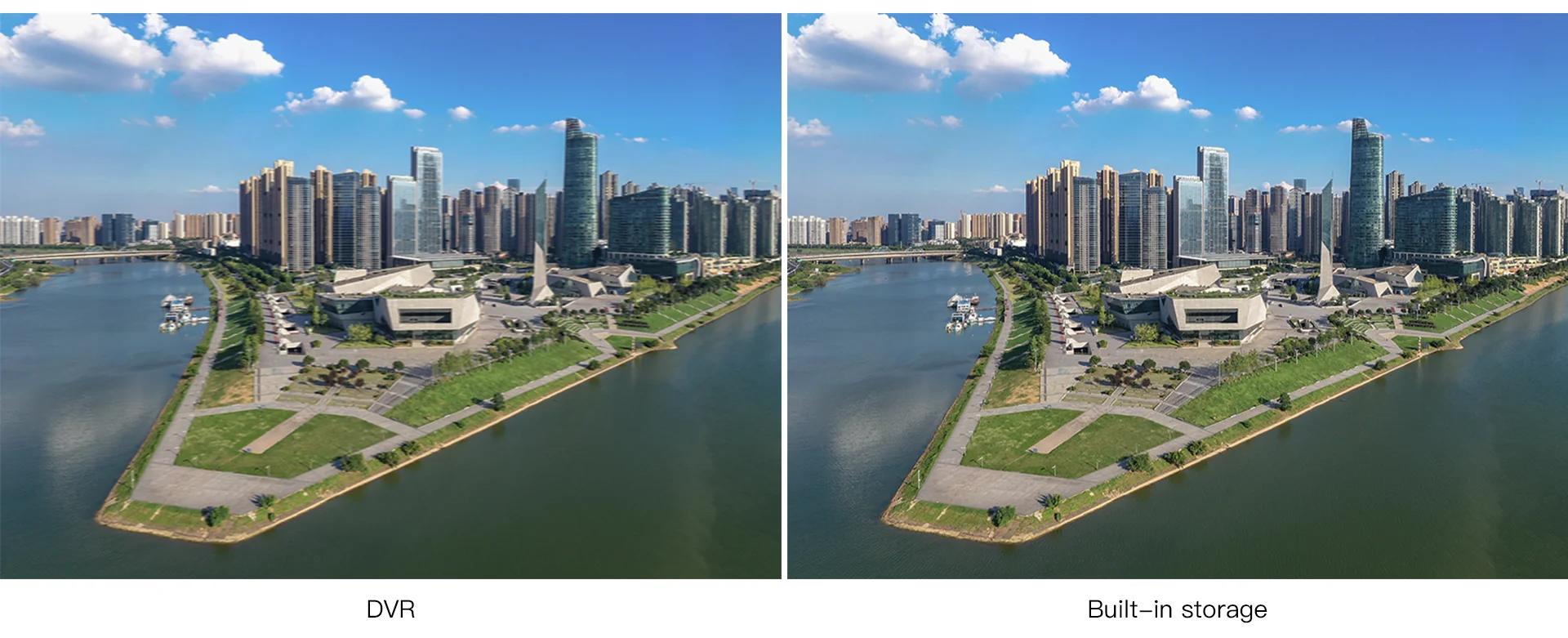

The Avatar VTX comes with 8g built-in storage it can record 1080p or 720p HD flight videos without interference.
It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.
The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.
