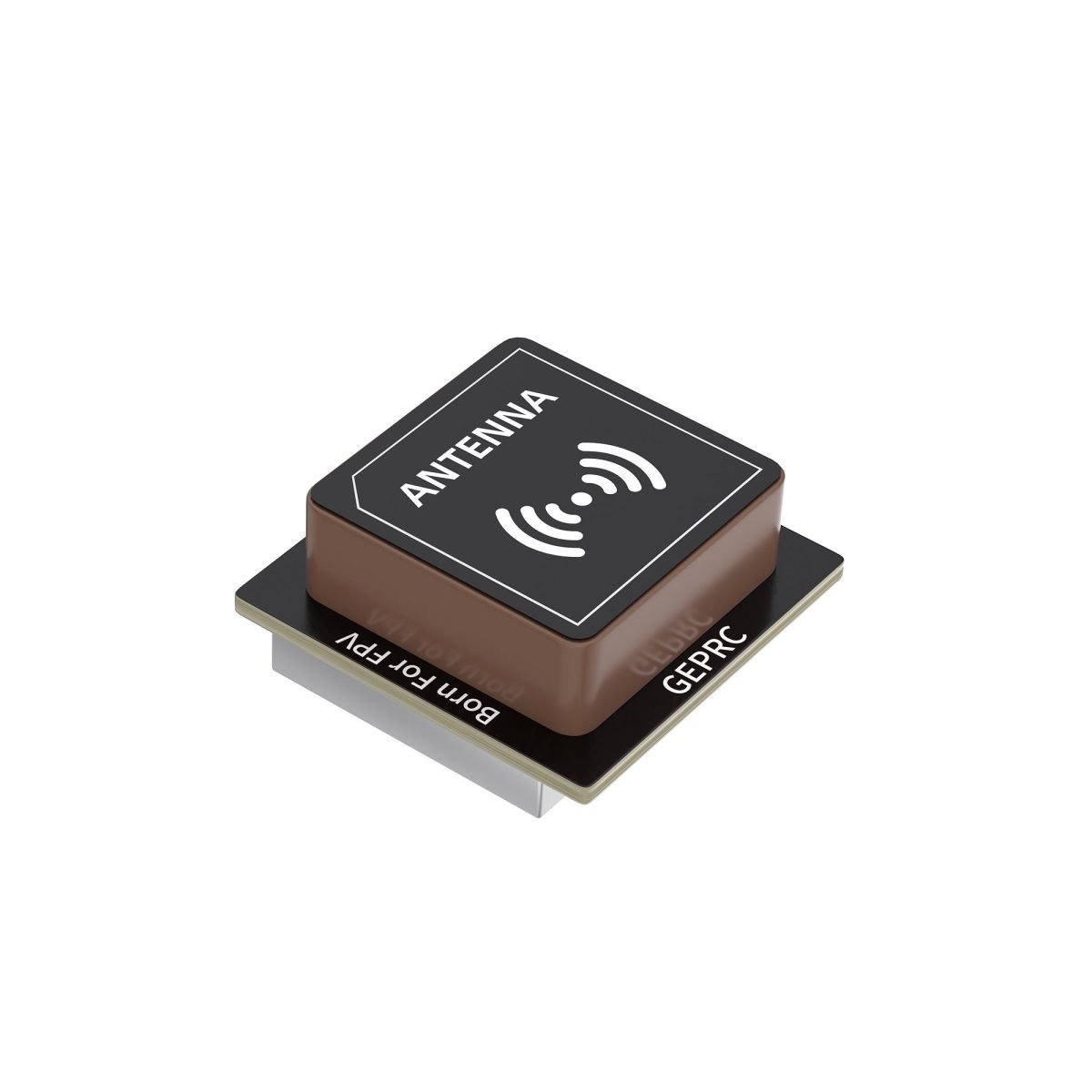

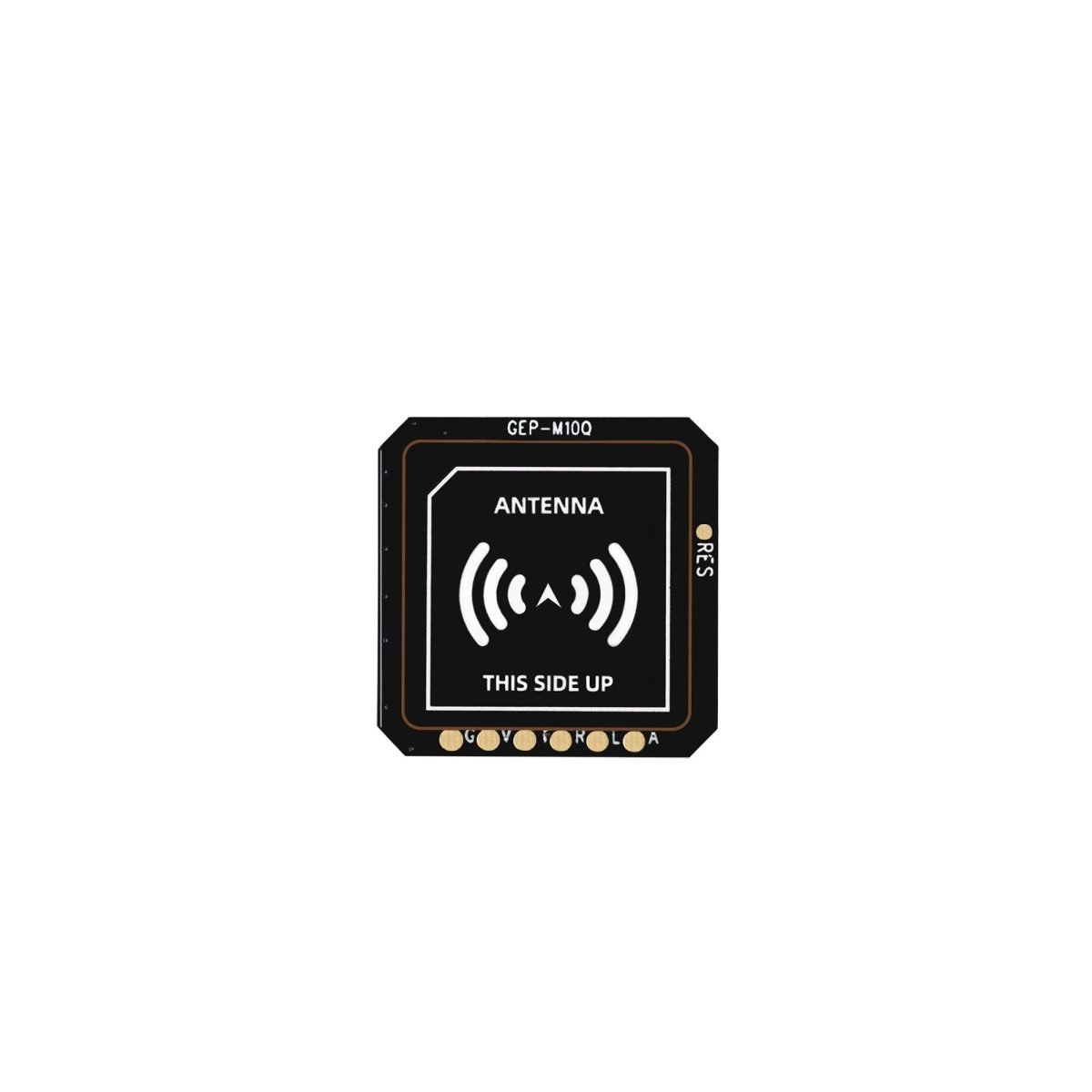

GEP-M10 Series GPS Module

Description

Available at Multirotors, the GEPRC GEP-M10 GPS Series represents the latest generation of high-performance GPS modules, featuring a comprehensive upgrade based on the advanced u-blox M10050 (M10) chipset. Designed for FPV drones, multirotors, fixed-wing aircraft, and other RC platforms, the GEP-M10 delivers fast satellite acquisition, accurate positioning, and reliable navigation performance.

Powered by the u-blox M10 solution, the module supports multi-constellation positioning, including GPS, BDS (BeiDou), Galileo, QZSS, and SBAS, enabling simultaneous tracking of up to 32 satellites. This enhanced satellite coverage improves positioning accuracy, signal stability, and overall navigation reliability, even in challenging environments.

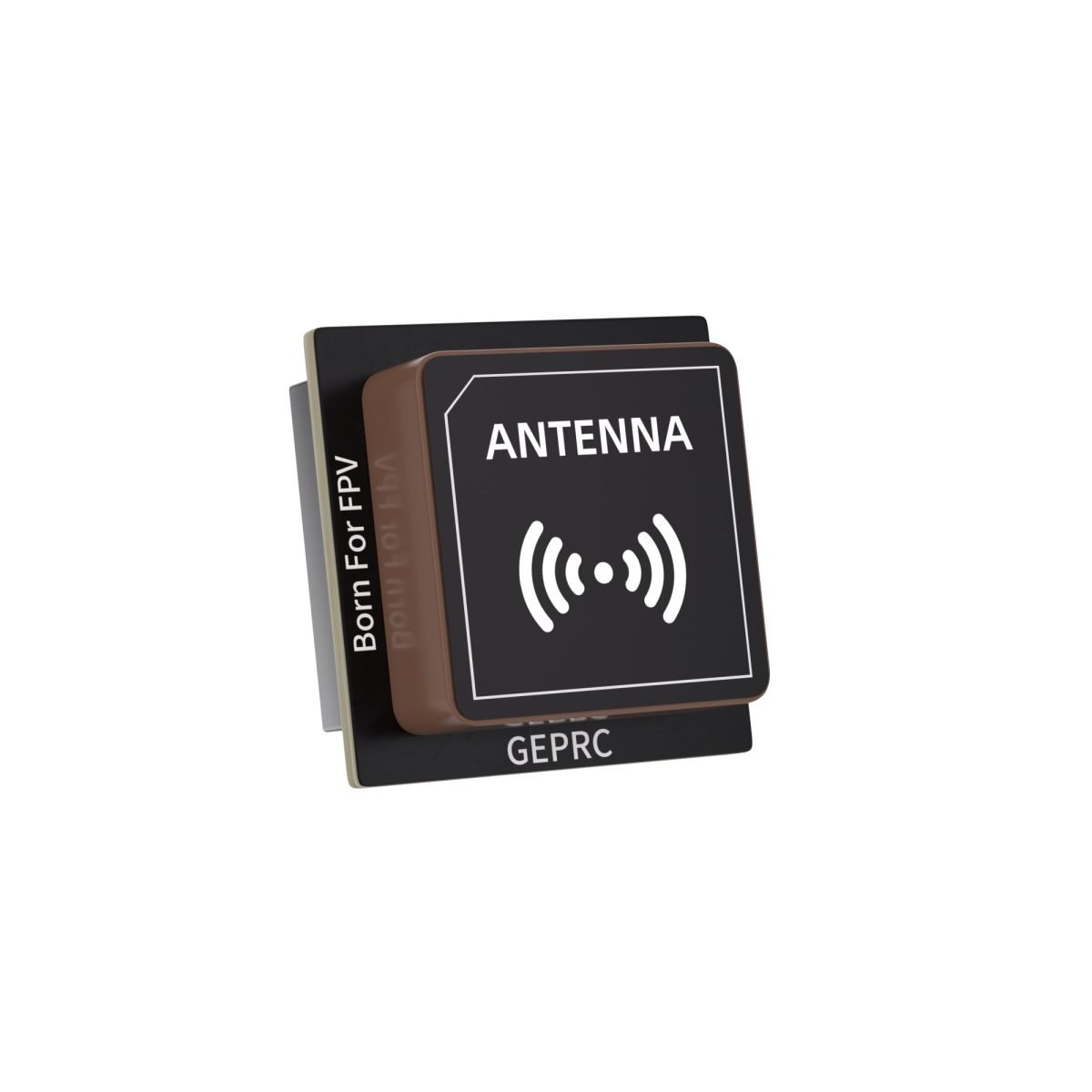

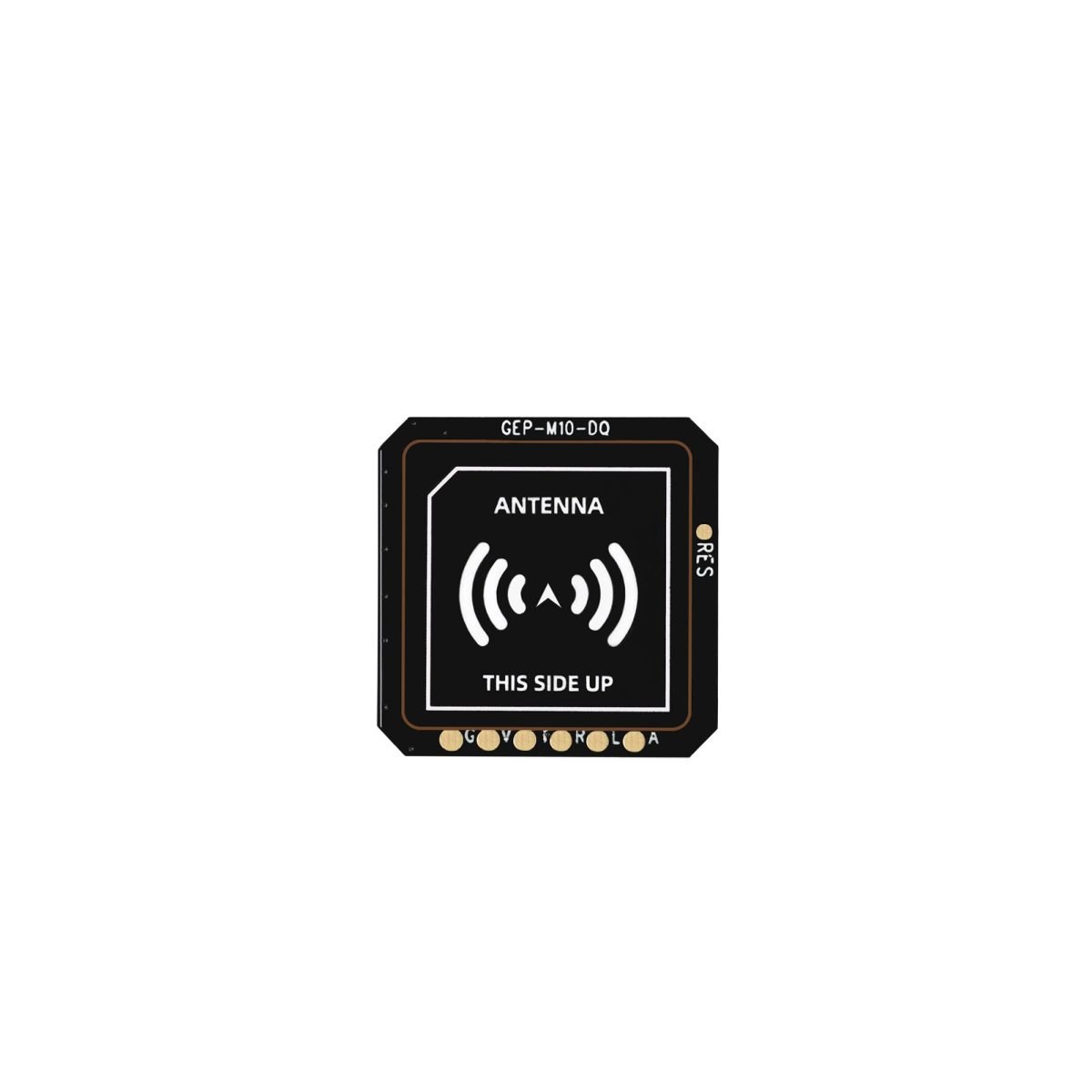

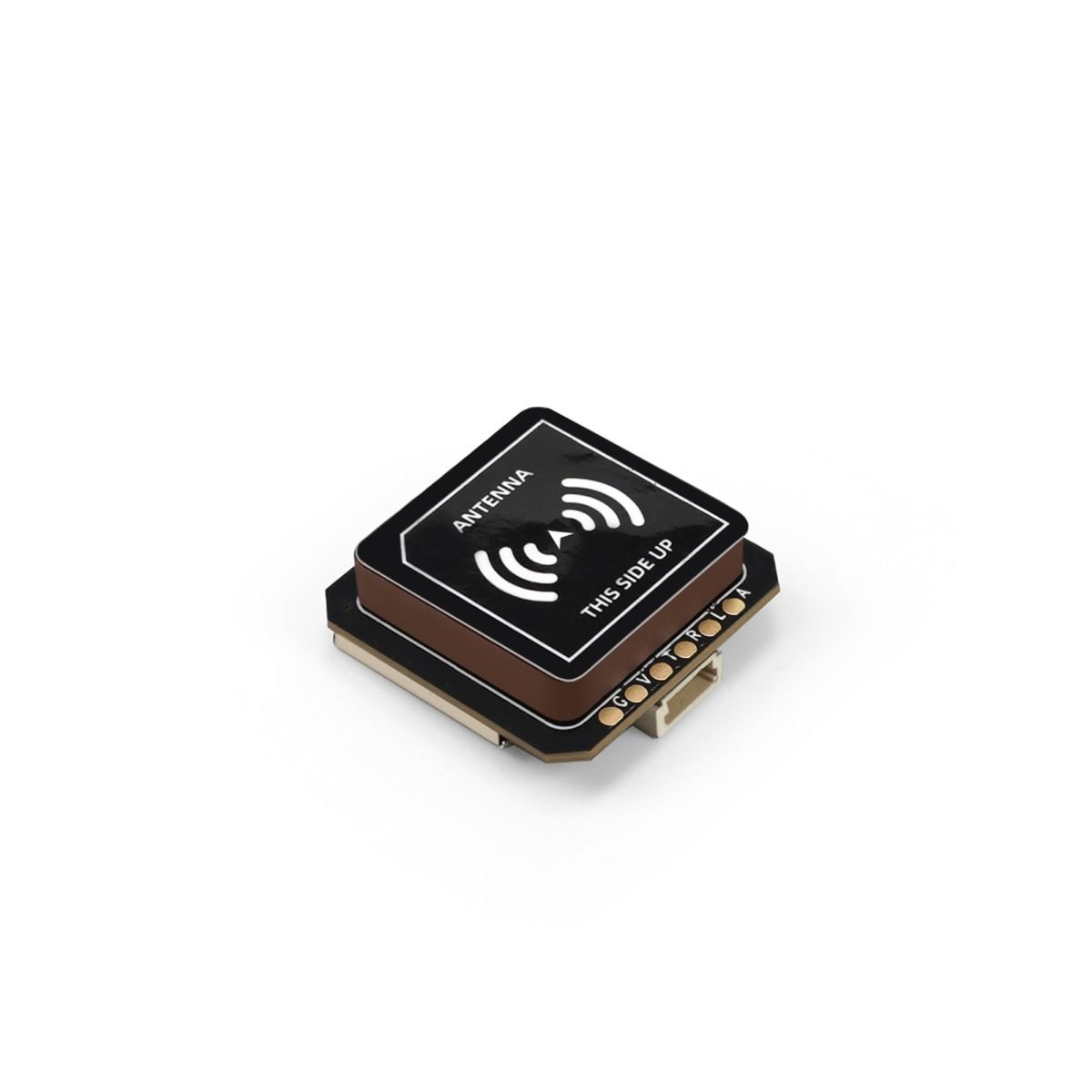

The GEP-M10 series is available with 12×12mm and 18×18mm ceramic antenna options, providing excellent signal reception and faster satellite lock times. The integrated Flash memory and built-in Farad capacitor allow the module to retain configuration settings and support rapid hot starts, reducing the time required to establish a GPS fix after power-up.

For advanced flight applications, selected versions include an optional QMC5883L or IST8310 magnetometer along with a DPS310 barometer. These sensors provide accurate heading information and highly sensitive altitude data, enhancing navigation performance for GPS-assisted flight modes, return-to-home functions, and autonomous operations.

Designed to meet the demands of modern FPV pilots and RC enthusiasts, the GEP-M10 GPS module combines precise positioning, fast satellite acquisition, and versatile compatibility in a compact and lightweight package.

Specifications

• GPS chip: u-blox M10050
• Input voltage: 3.3V-5V
• Receiving frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
• Operating mode: GPS+BDS+LALILEO+QZSS+SBAS joint positioning
• Channel: 72ch
• Navigation satellites: Up to 32 pieces
• Output protocol: UART(ublox), I2C(Baro,Mag)
  (Noted: Ublox output, you need to create the corresponding program yourself)
• Baud rate: 115200bps
• Output Frequency: 10Hz
• Speed Accuracy: 0.05 m/s
• Horizontal positioning accuracy: 2D ACC1.5m(Weather)
• Timing accuracy: 30 ns
• Receiver sensitivity: Trace-162dBm，Capture-160dBm
• Dynamic characteristics: Max Height: 50000m, Max Speed: 500m/s
• Maximum acceleration: 4G
• Mag: QMC5883L,IST8310
• Baro：DPS310

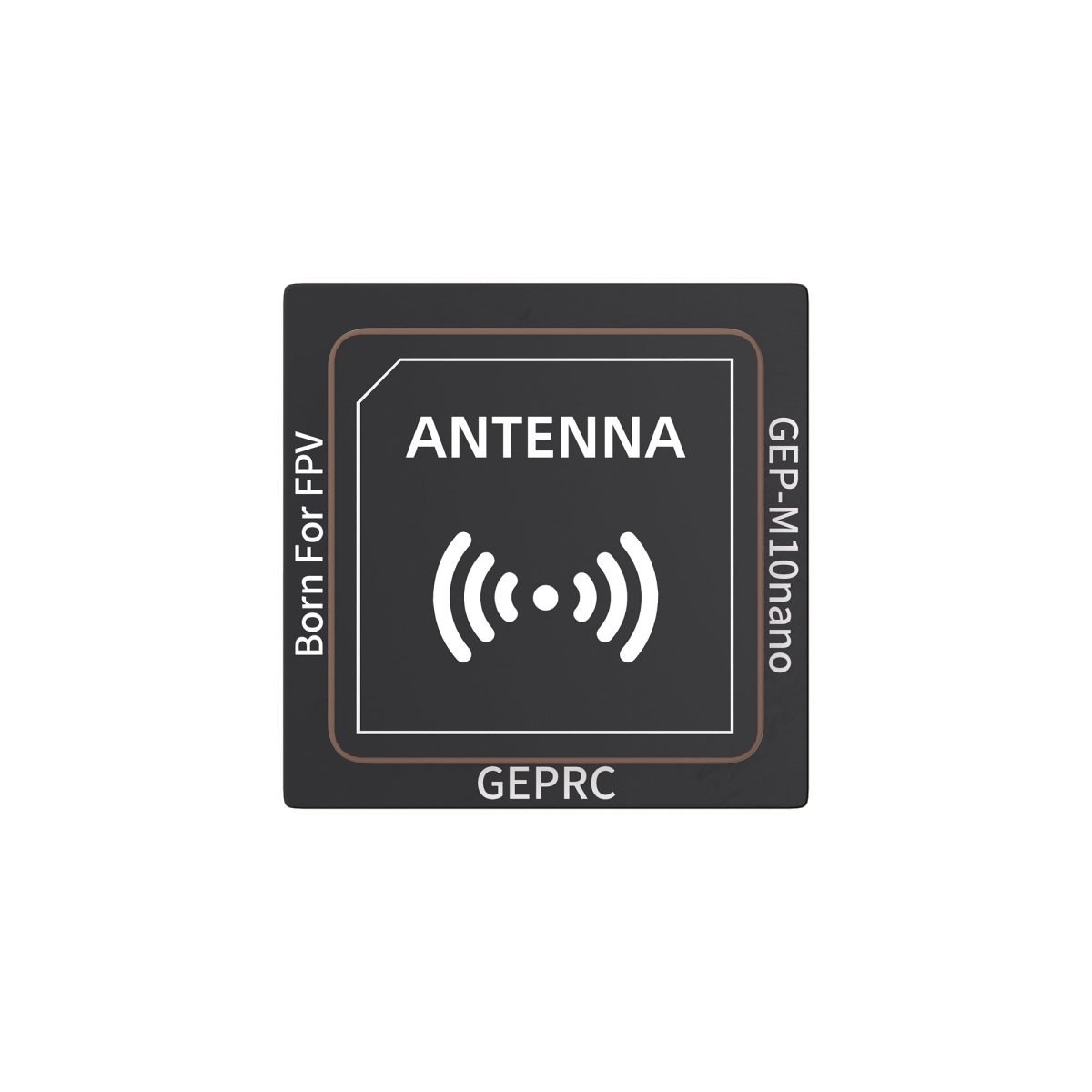

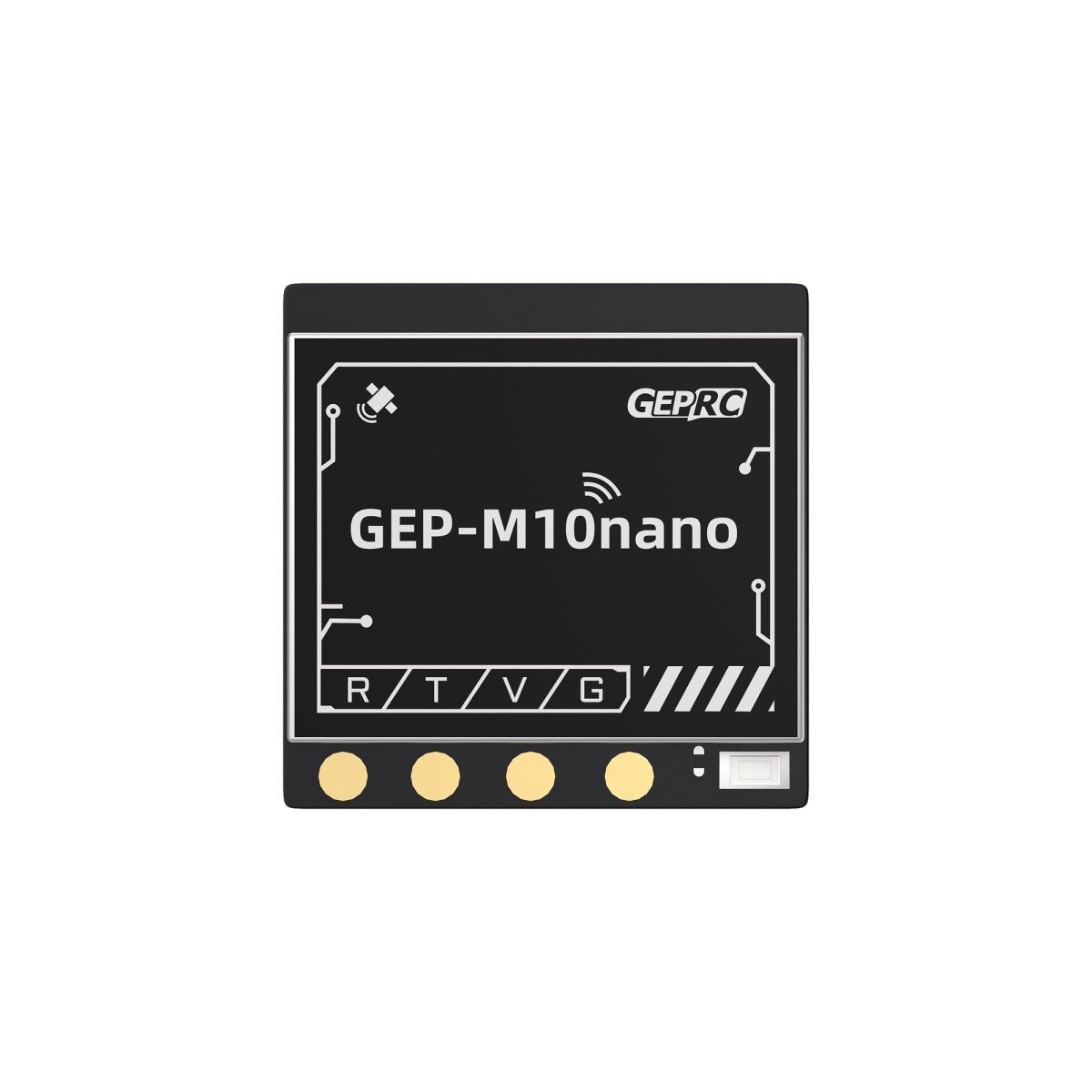

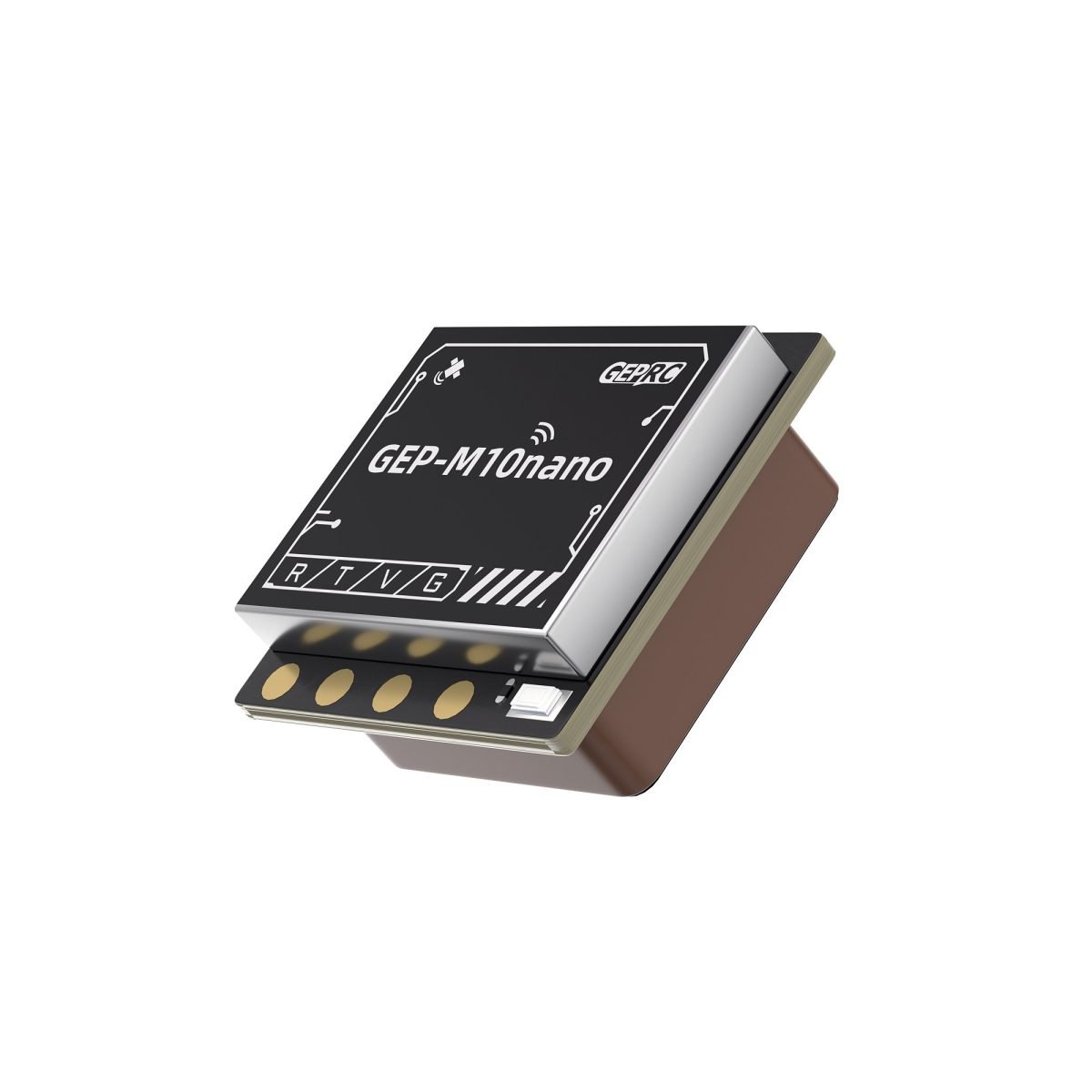

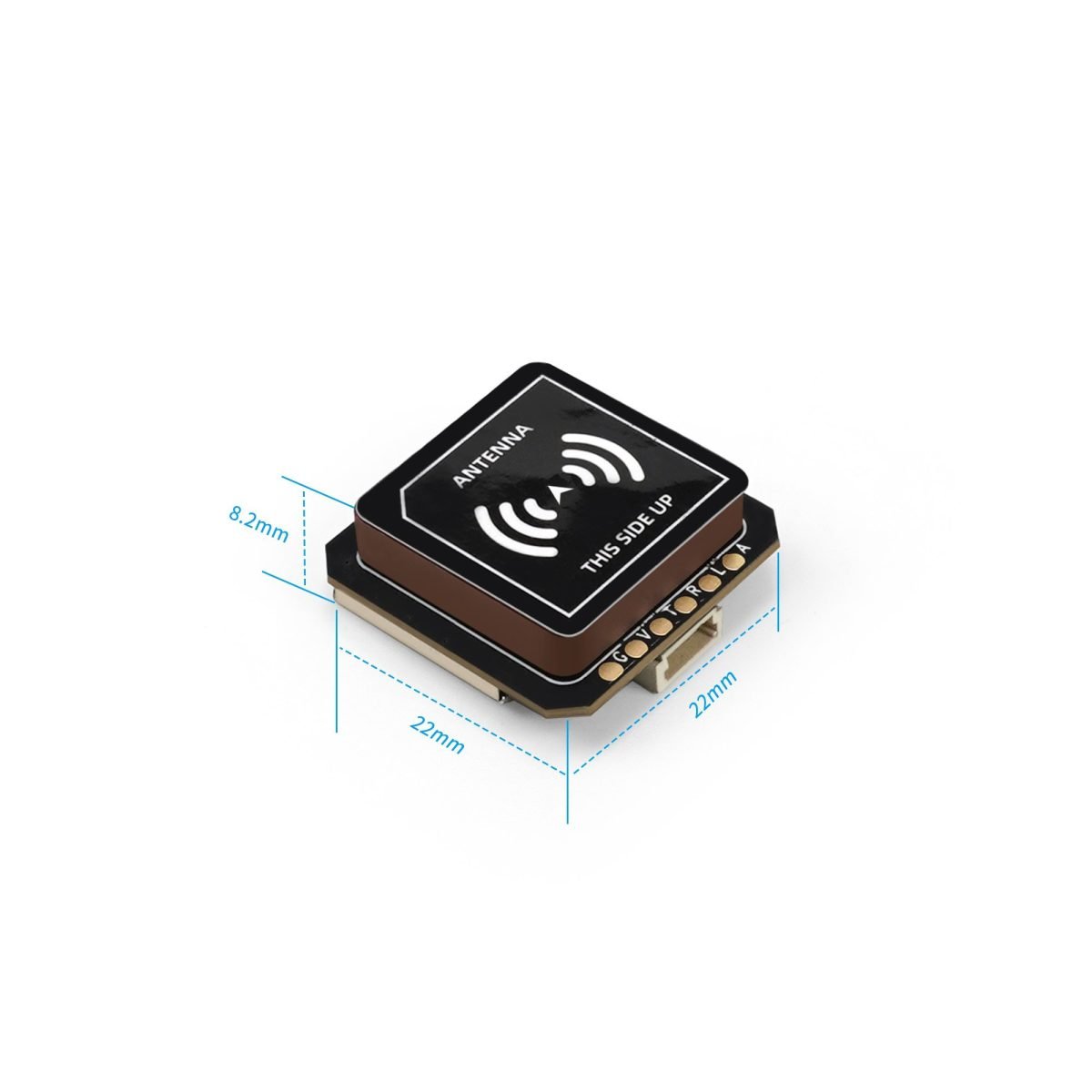

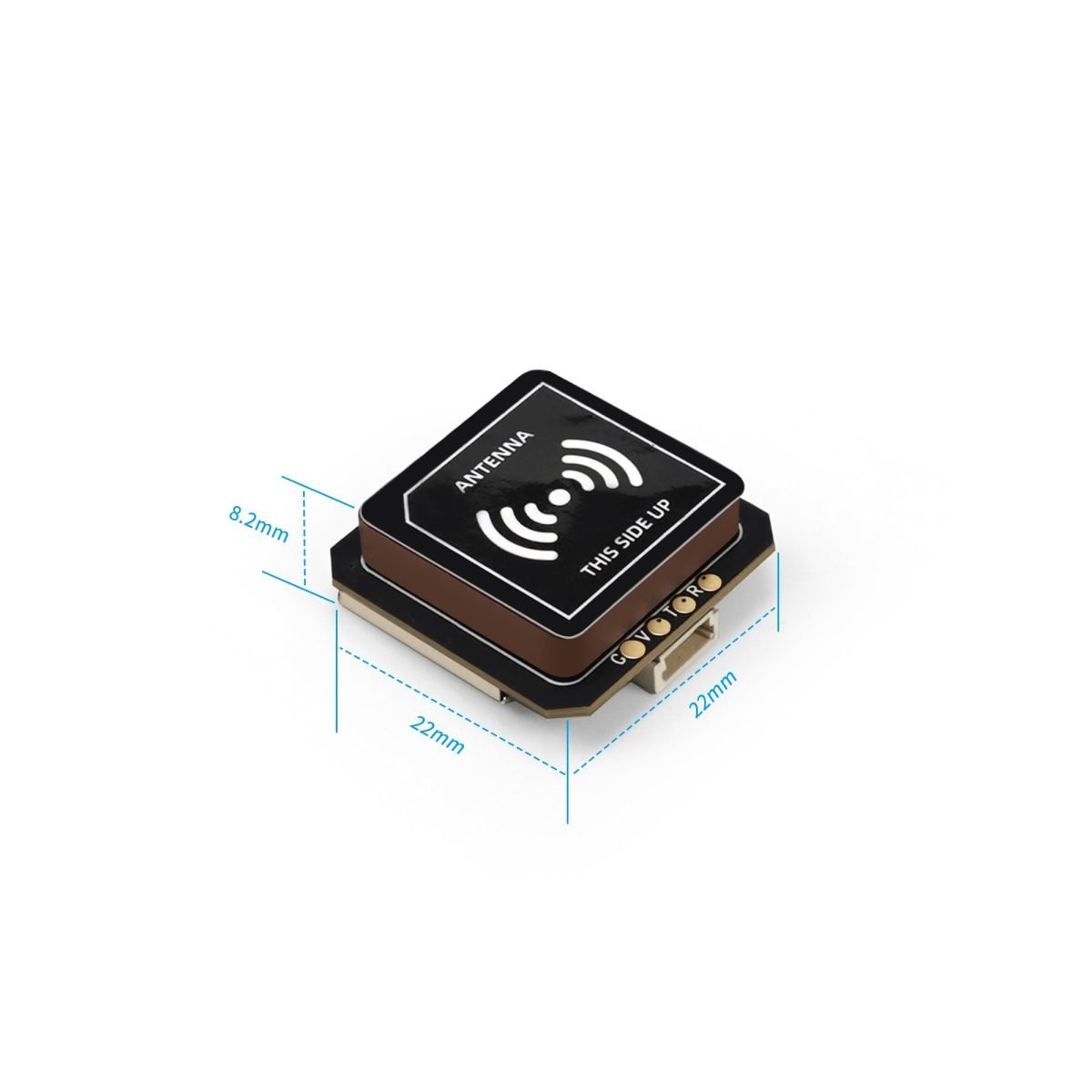

• Size: 15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)
• Antenna size: 12x12mm(GEP-M10nano),18x18mm(GEP-M10)

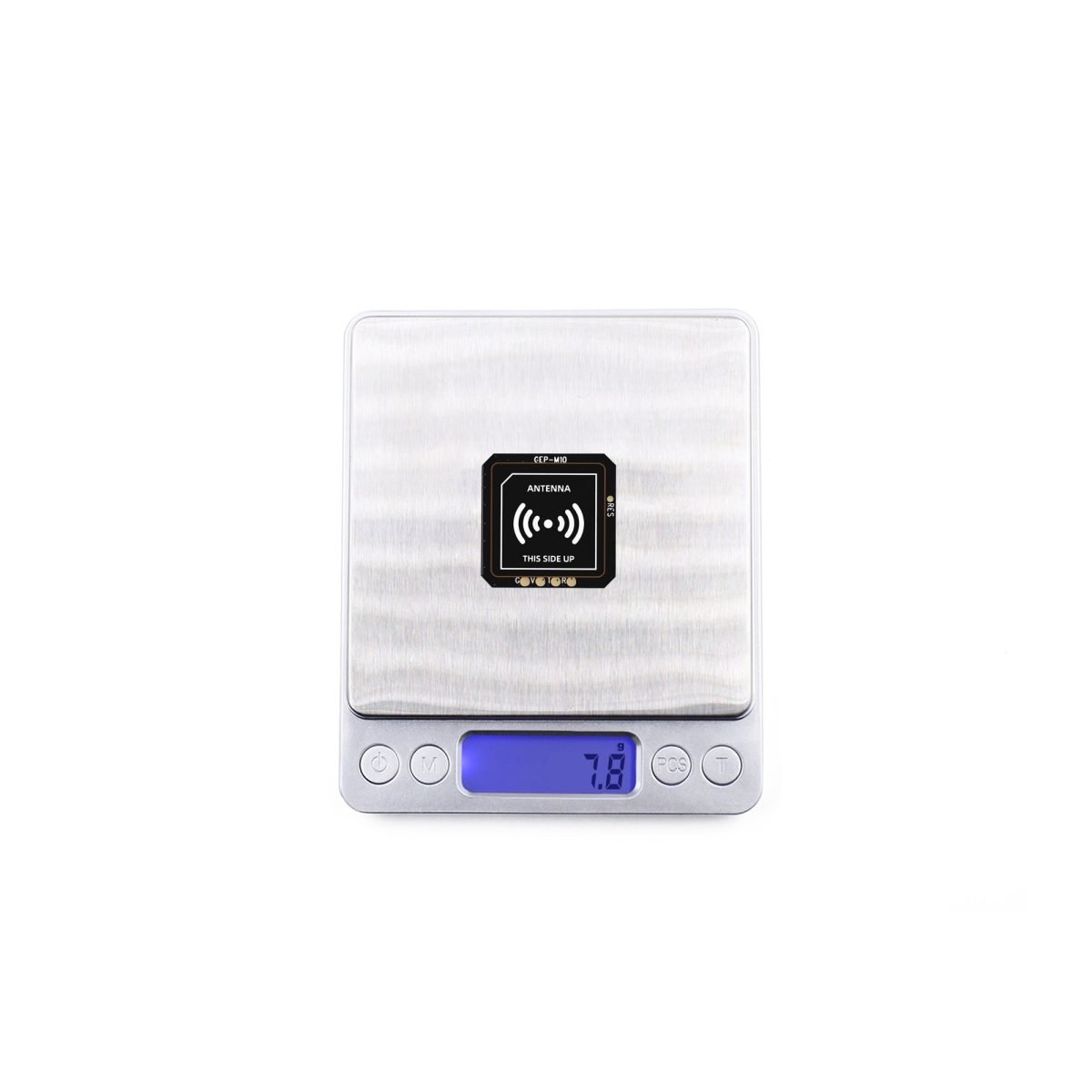

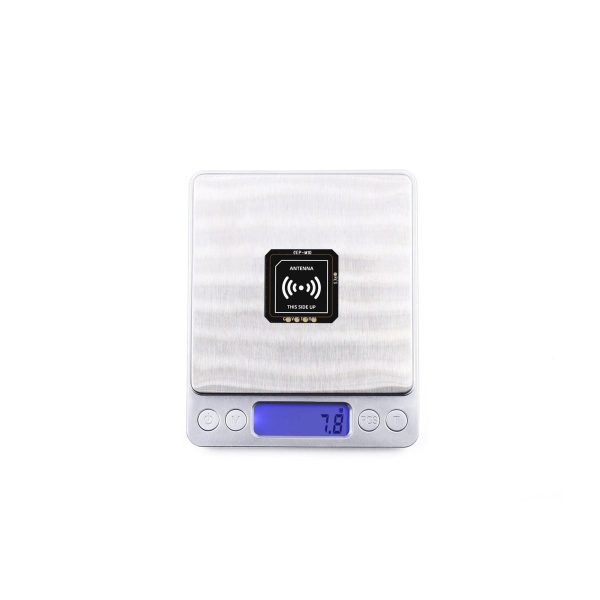

• Weight: 4.1g(GEP-M10nano),7.8g(GEP-M10)

Features

1. u-blox M10050 chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 12x12mm or 18x18mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer + barometer, more collocation scheme

Includes

1 x GPS module

1 x terminal wire

1 x GPS module instruction manual

1 x GEPRC sticker

1 x heat shrink tubing
