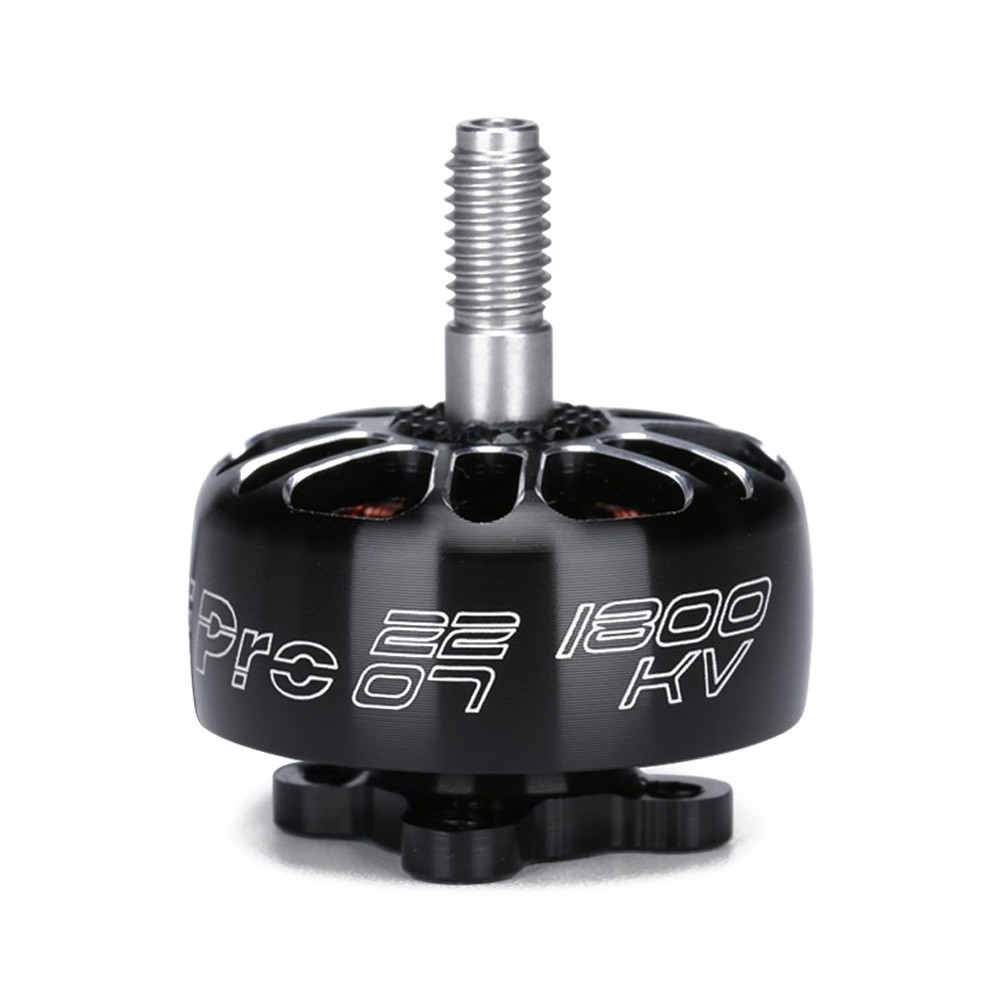

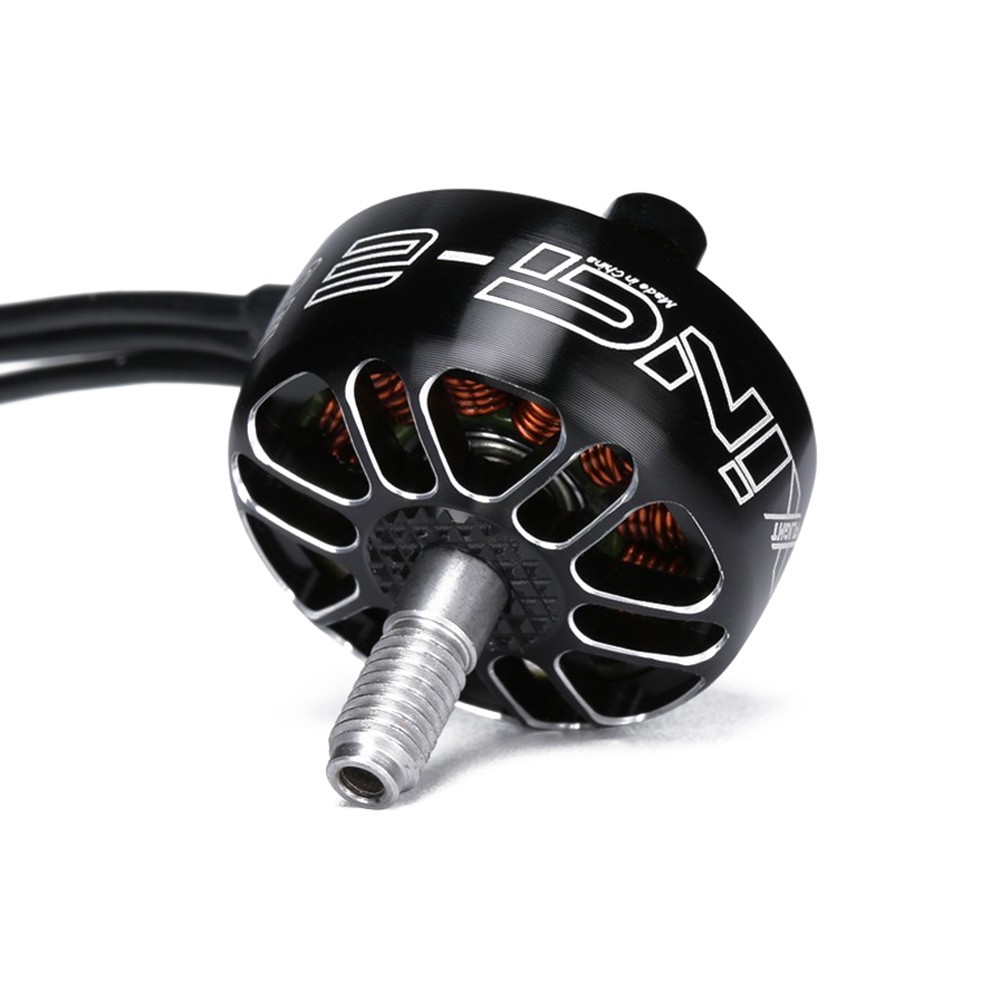

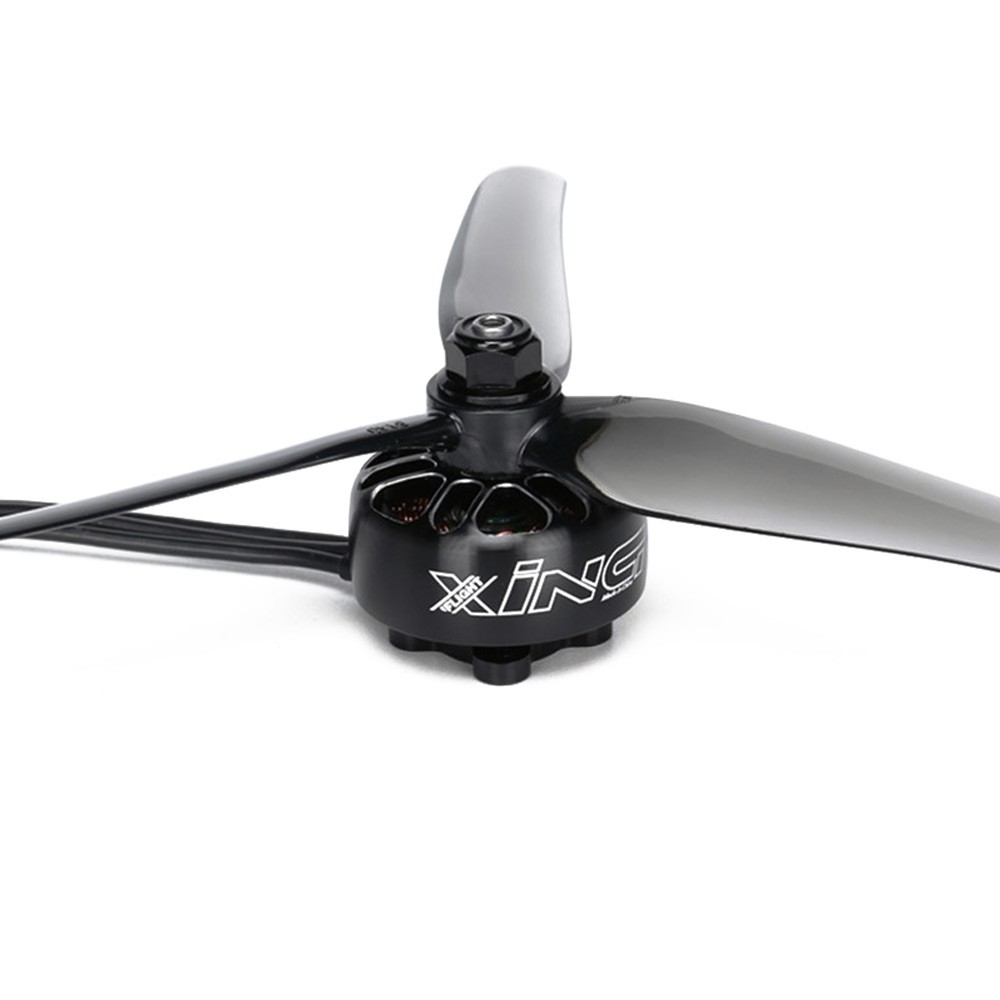

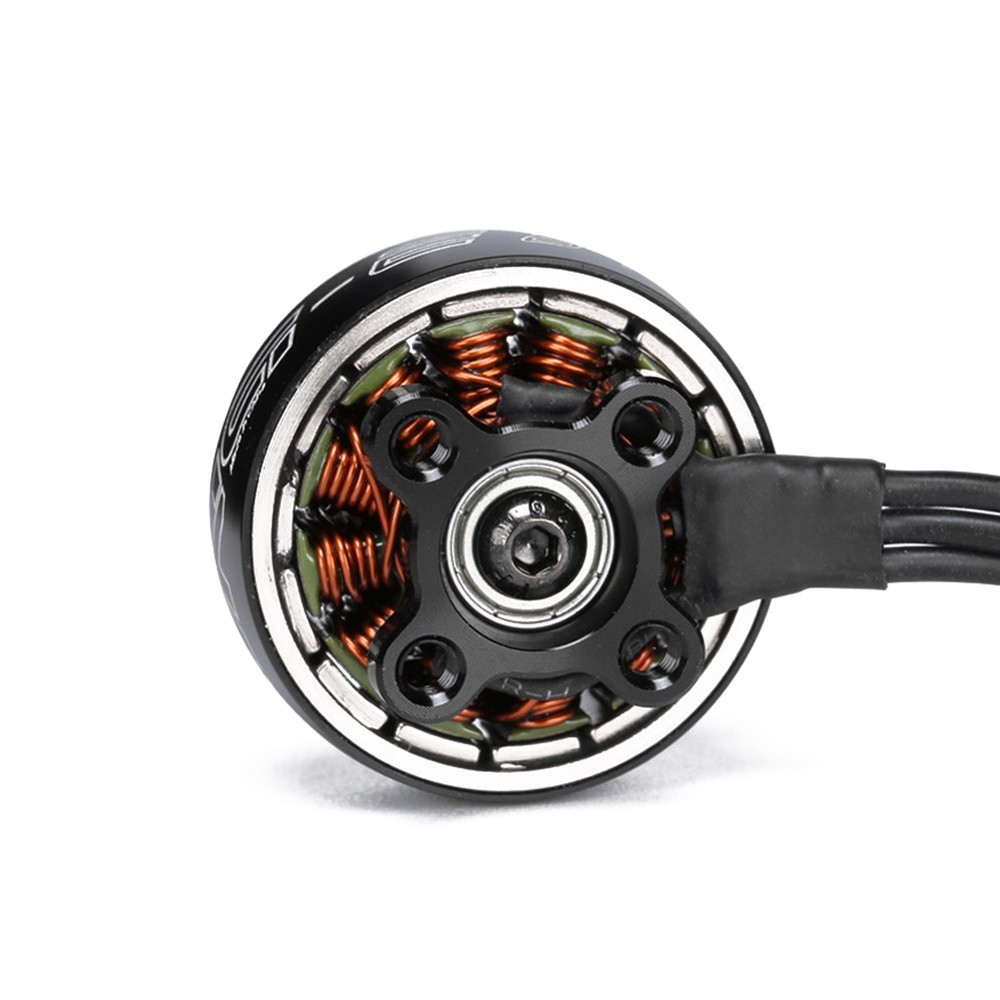

iFlight XING-E Pro 2207 2-6S FPV NextGen Motor

XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

This 2207 sized motor features a High-strength 5mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

High-strength 5mm Steel shaft

N52H High-temperature magnets, NSK bearings

16x16mm hole pattern

Single strand copper winding

Hex bolt shaft set screw

Model: XING-E Pro 2207 Motor

KV: 1800KV / 2450KV / 2750KV

Weight(included wire): 33.8g

Dimension: φ28.5*19.7mm

Interphase Resistance: 81.5mΩ / 46.8mΩ / 41mΩ

Peak Current: 35.22A / 42.63A / 50.03A

Max Watt: 845.3W / 682.1W / 800.5W

Shaft Diameter: 5mm

Shaft Protruding Length: 13.5mm

Configuration: 12N14P

Mounting Holes: 16*16 φ3mm

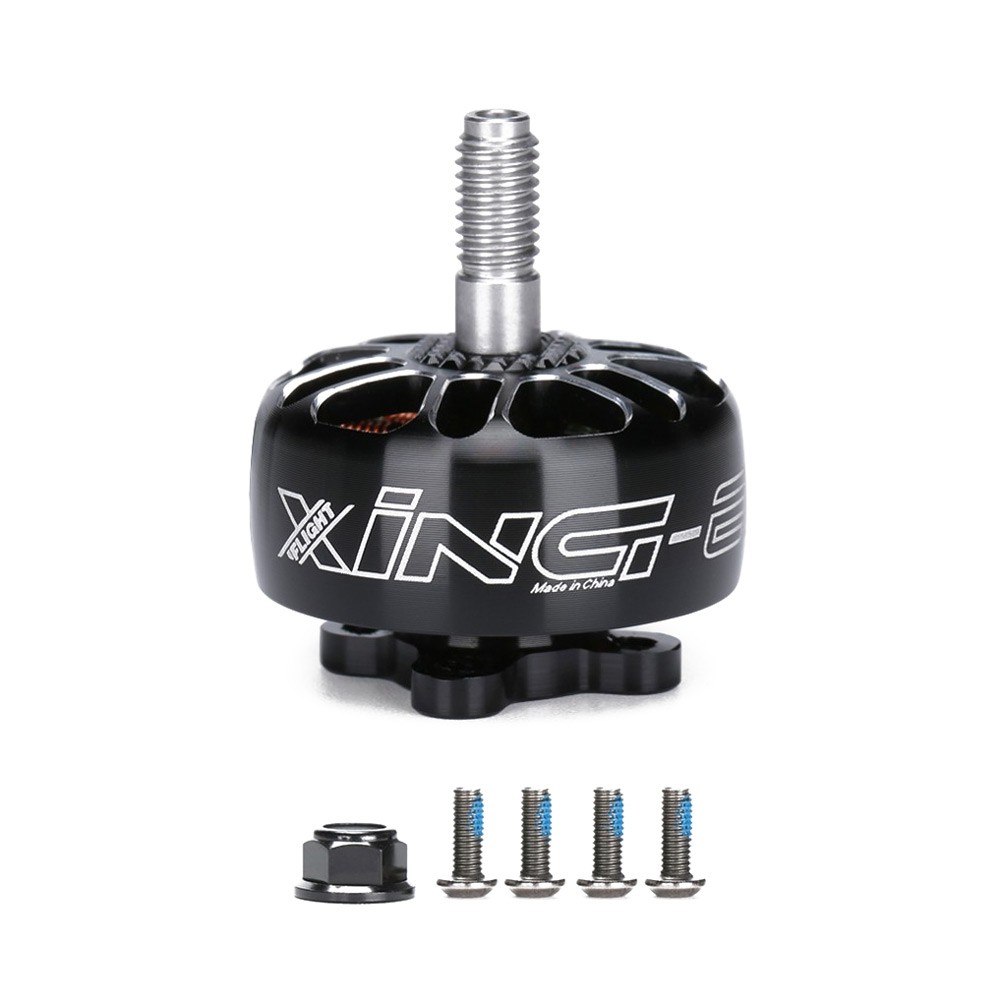

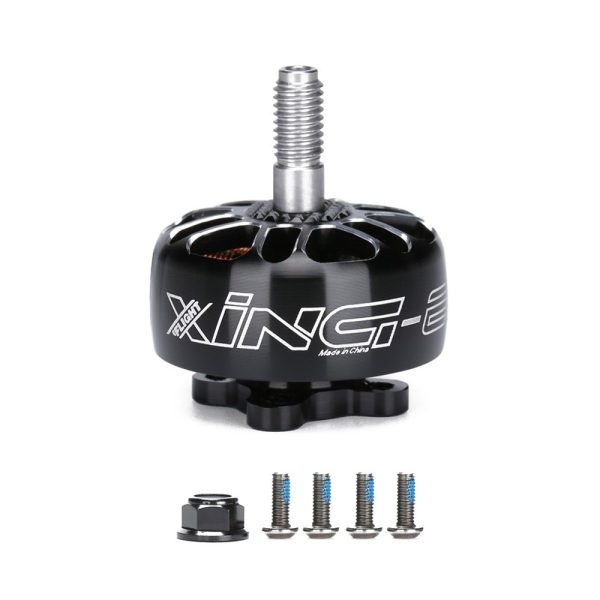

1 x XING-E Pro 2207 motor
