MicoAir F405 V2 Flight Controller Support Ardupilot INAV

Description

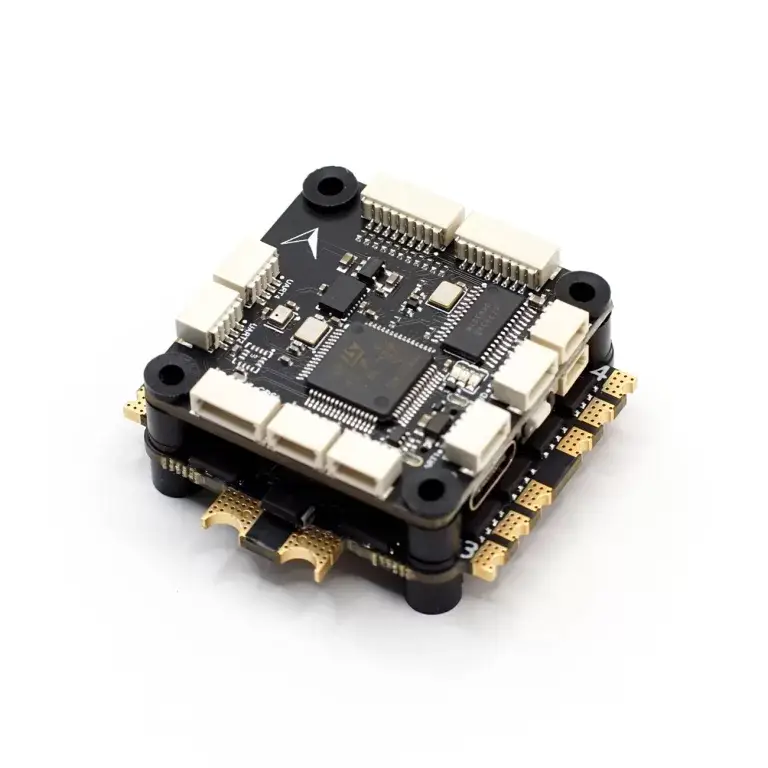

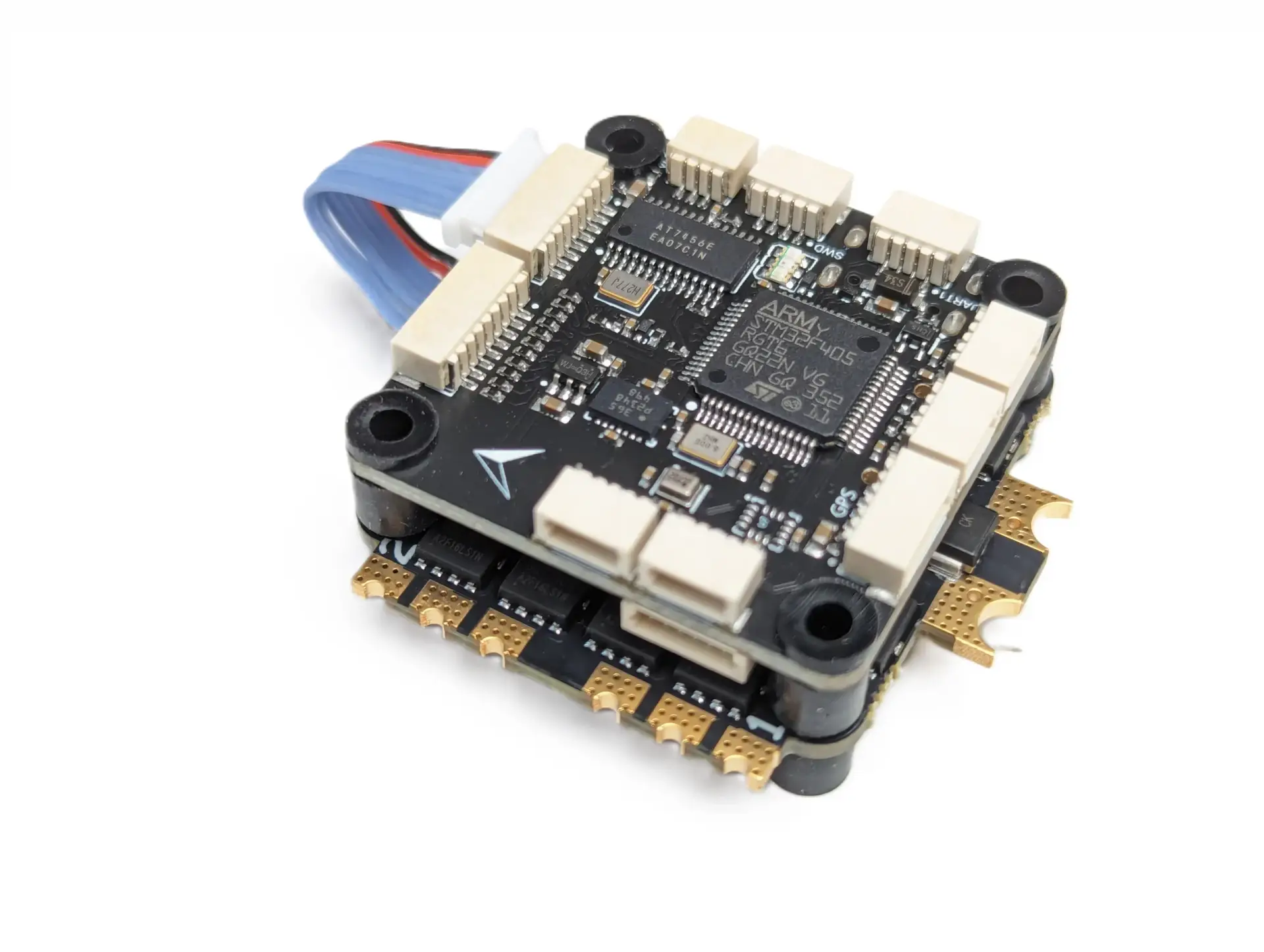

Build a reliable, high-performance FPV drone with the MicoAir F405 V2 Flight Controller & ESC Stack, available at Multirotors. Combining the advanced MicoAir F405 V2 Flight Controller with a high-efficiency ESC, this stack is designed for freestyle, long-range, cinematic, mapping, and autonomous UAV applications. With support for both ArduPilot and INAV firmware, it offers exceptional flexibility for FPV pilots, drone developers, and professional UAV builders.

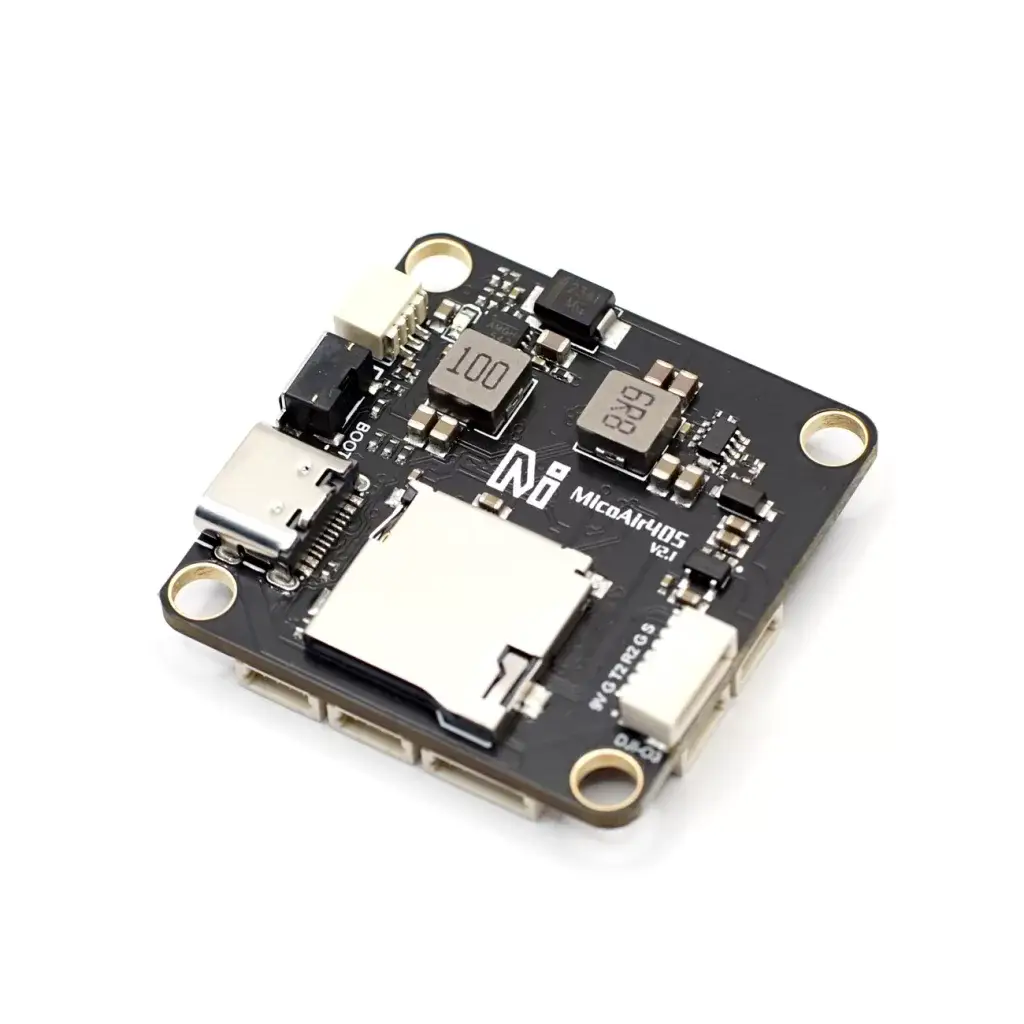

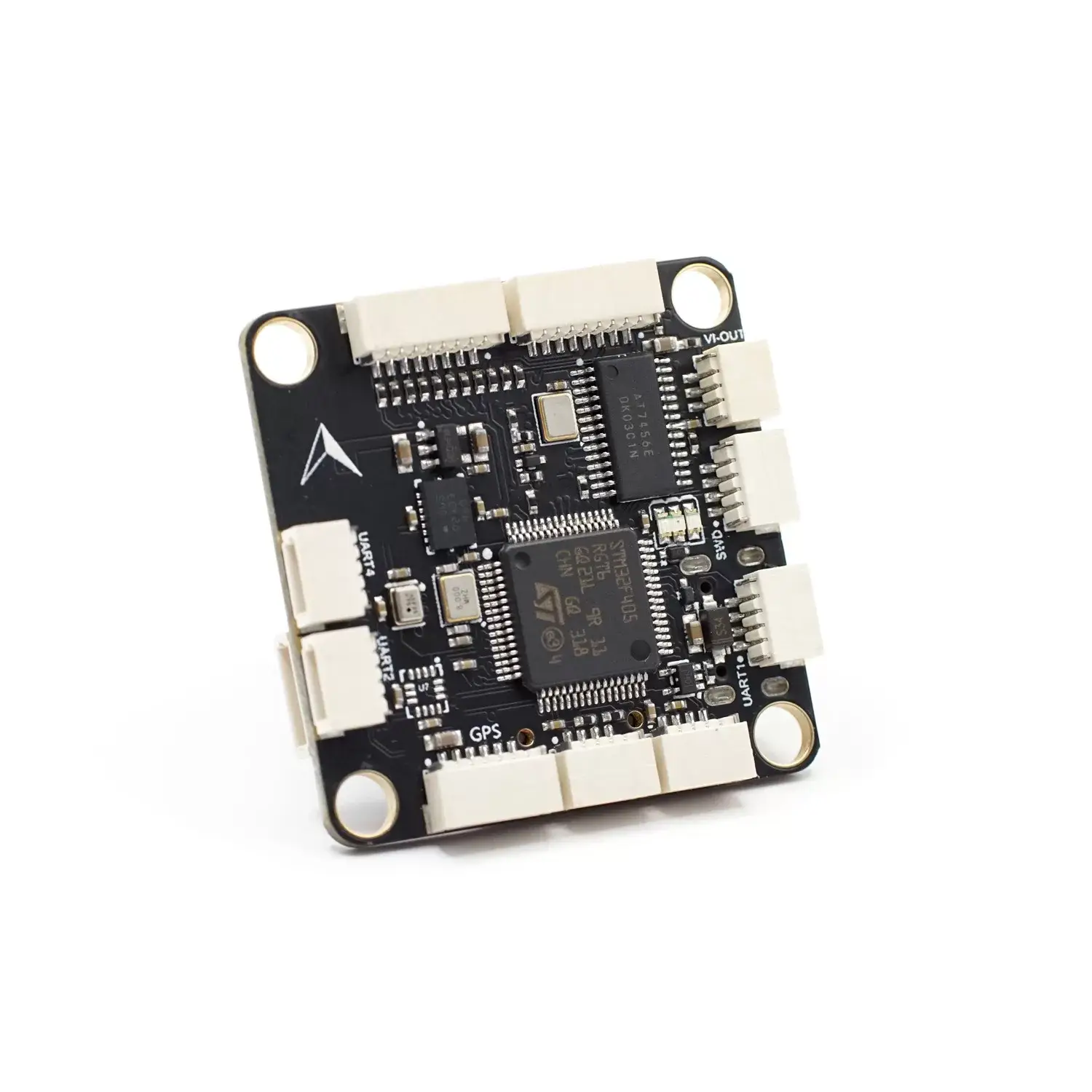

Powered by the STM32F405 processor, the flight controller is the first to integrate the highly regarded Bosch BMI088 6-axis IMU while supporting INAV. Renowned for its outstanding vibration resistance, temperature stability, and measurement accuracy, the BMI088 delivers smoother flight characteristics, improved positioning, and enhanced flight reliability even in demanding environments.

Compatible with both Mission Planner and INAV Configurator, the F405 V2 makes firmware installation, updates, and tuning simple, giving pilots access to advanced navigation features, autonomous flight modes, and highly customizable flight control settings.

Paired with an ESC running BlueJay 48K firmware, the stack minimizes electrical noise and improves motor efficiency, resulting in more stable flight performance, cleaner sensor data, and enhanced GPS Position Hold accuracy.

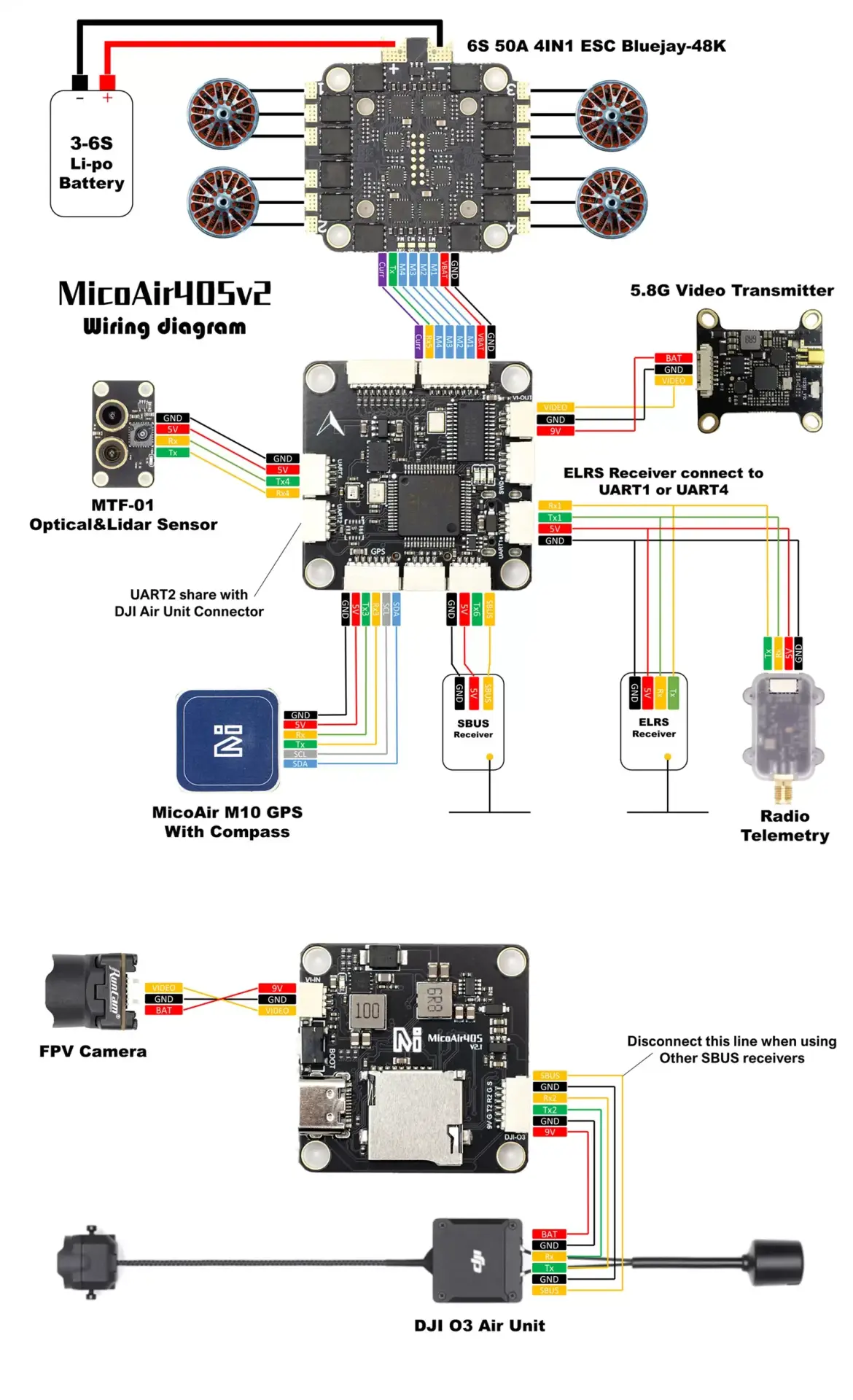

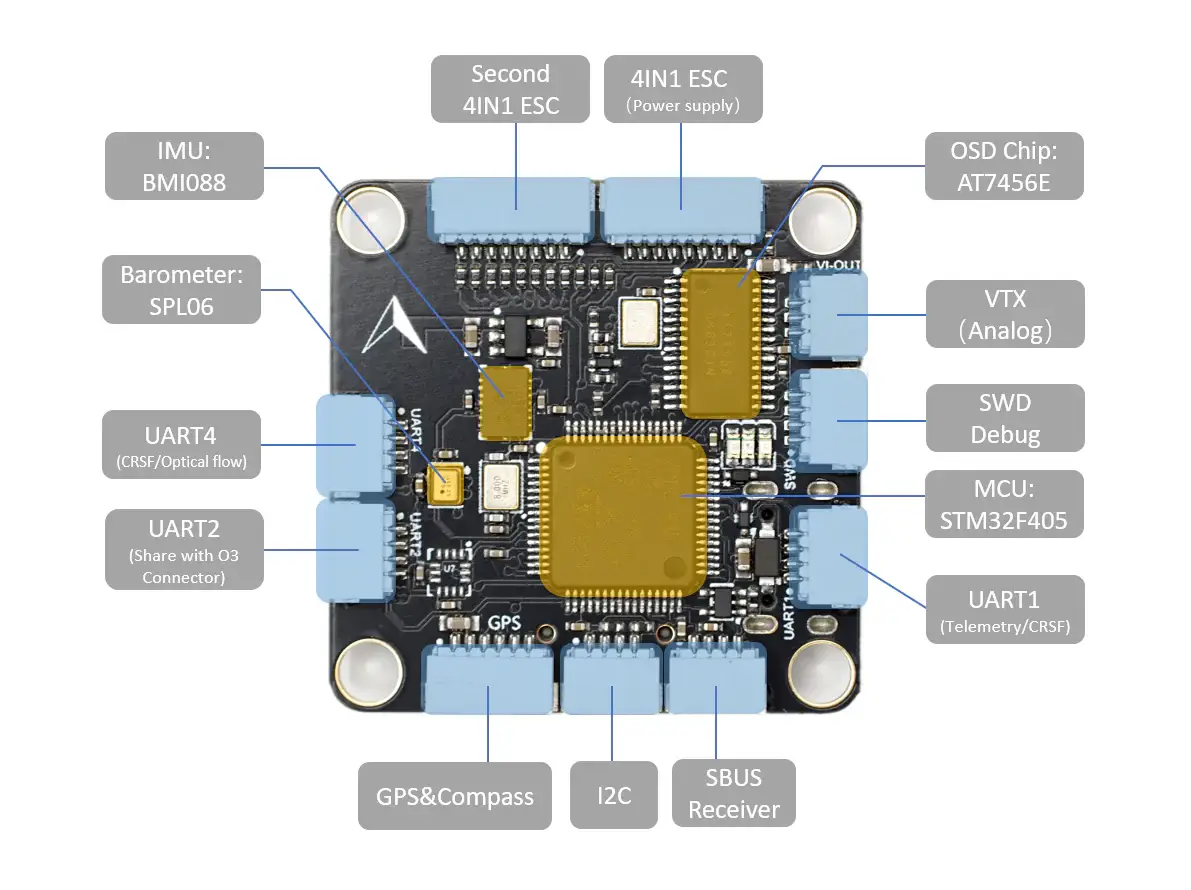

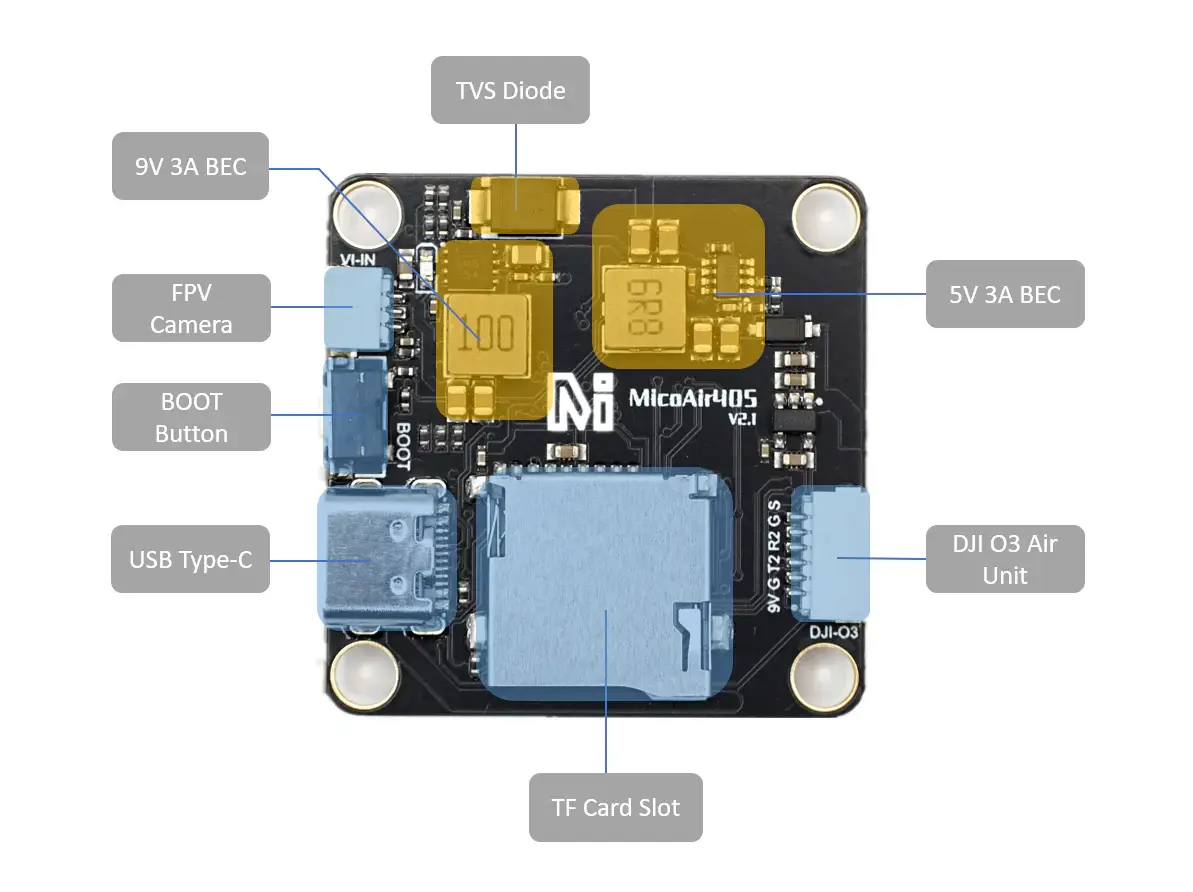

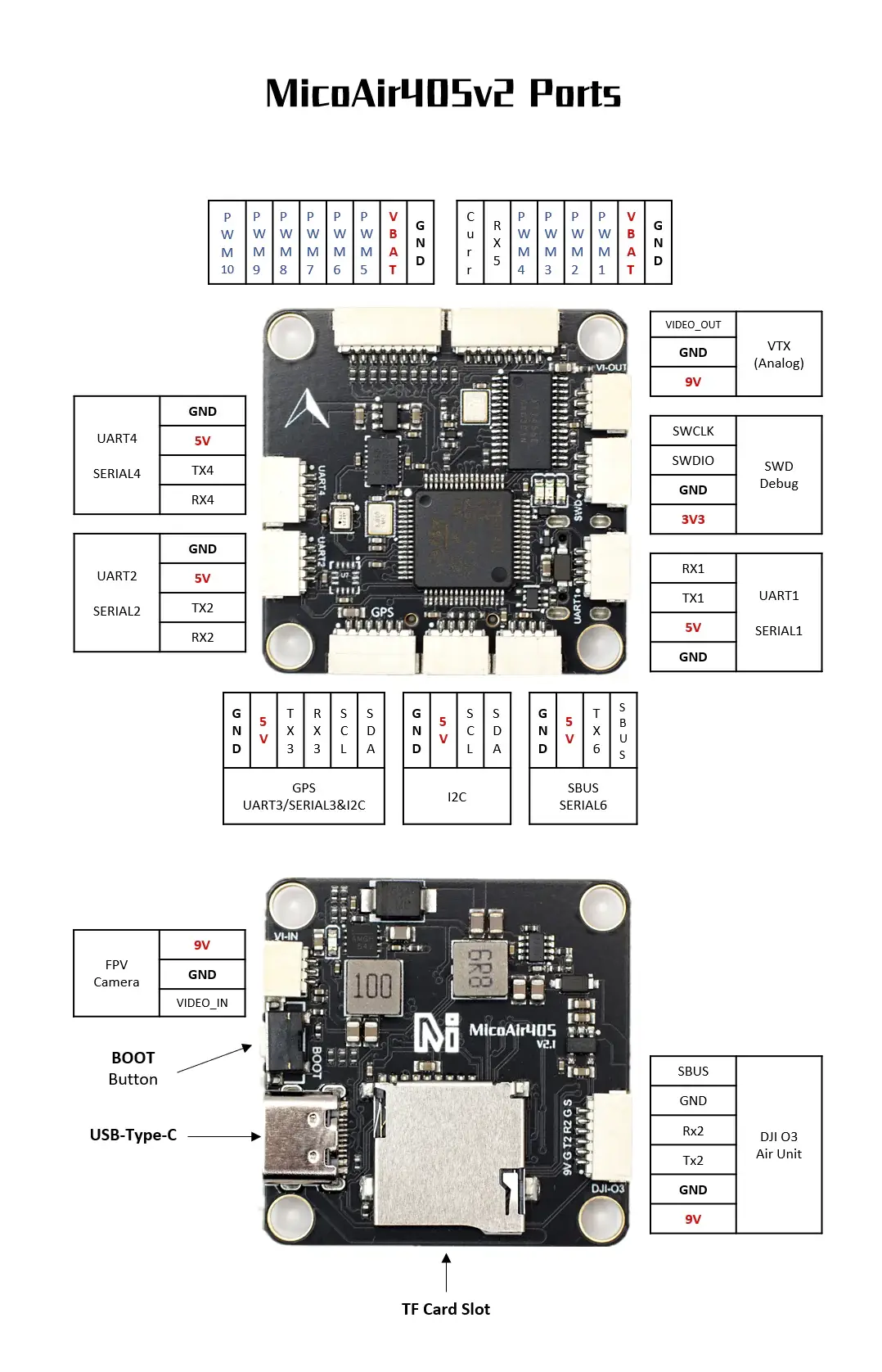

Installation is quick and hassle-free thanks to the plug-and-play design. The flight controller features 6 UARTs, 10 PWM outputs, I2C, SWD, and a USB Type-C interface, while socket-based connections reduce soldering and simplify wiring for faster, cleaner builds.

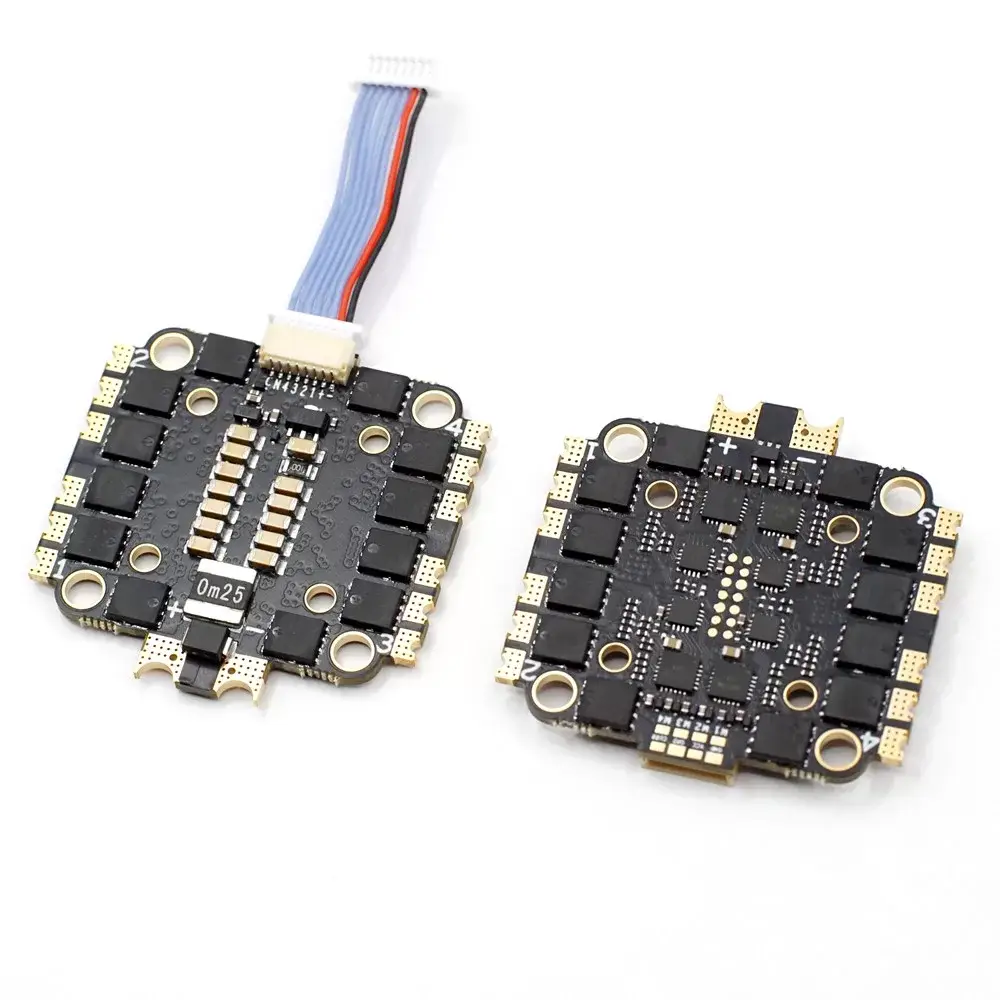

The included ESC is built with premium 40V 165A MOSFETs featuring an ultra-low 1.1mΩ RDS(ON). This advanced power system reduces heat generation, increases efficiency, improves current handling, and provides reliable performance during continuous high-load flights.

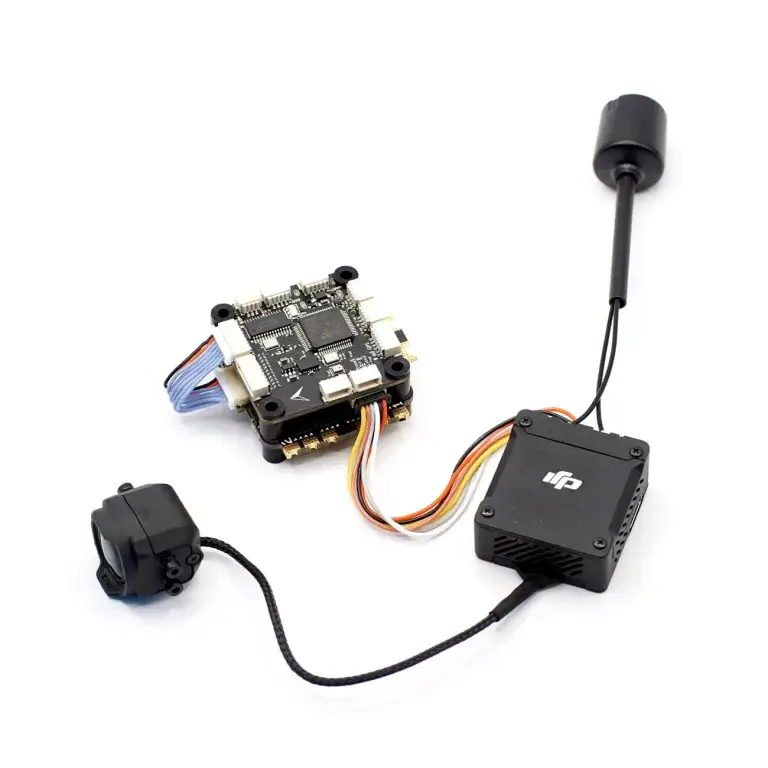

Designed for modern HD FPV systems, the integrated AT7456E OSD supports seamless integration with the DJI O3 Air Unit, providing a clean and stable power supply for improved HD video quality and enhanced Electronic Image Stabilization (EIS) performance.

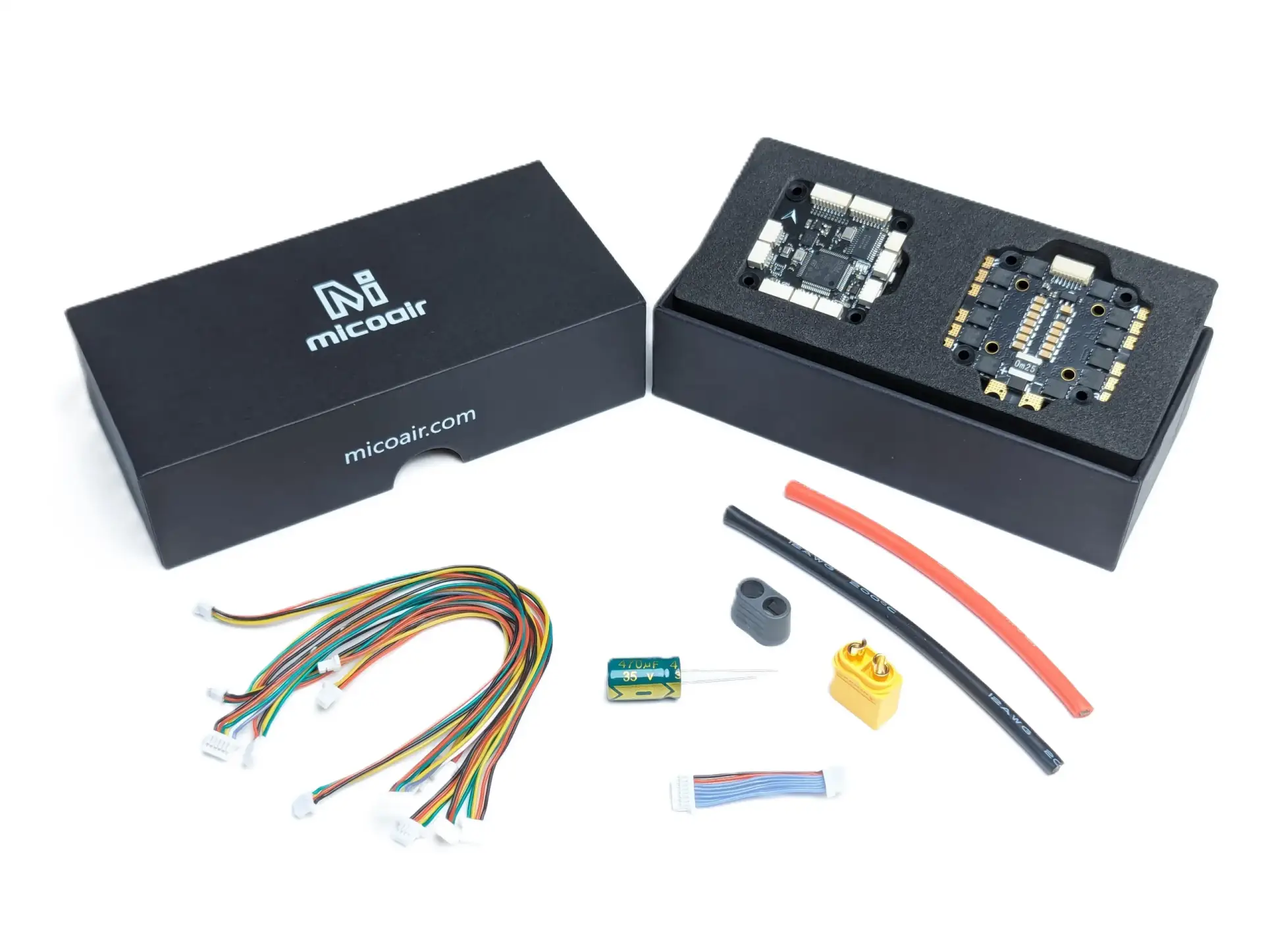

Purchasing the complete MicoAir F405 V2 Flight Controller & ESC Stack ensures perfect hardware compatibility, simplified installation, and better overall value compared to purchasing individual components separately.

With its compact layout and versatile mounting options, this stack is an excellent choice for pilots building high-performance FPV drones and autonomous UAV platforms.

Key Features

• High-performance STM32F405 processor
• Premium Bosch BMI088 6-axis IMU with superior vibration resistance
• Compatible with ArduPilot and INAV firmware
• Integrated SPL06 high-precision barometer
• Built-in AT7456E OSD chip
• Dual BEC outputs:
  • 5V / 3A
  • 9V / 2.5A
• Excellent temperature stability for consistent flight performance
• Ideal for FPV drones, fixed-wing aircraft, VTOL platforms, UAVs, and robotics projects

Applications

• Long-Range FPV Drones
• Fixed-Wing Aircraft
• VTOL Platforms
• Autonomous UAVs
• Mapping & Survey Drones
• Robotics Projects

Why Buy from Multirotors?

• 100% Genuine Products
• Fast Shipping Across India
• Secure Payment Options
• Dedicated Customer Support
• Carefully Selected Components for FPV Pilots and Drone Builders

At Multirotors, we are committed to providing high-quality drone components and reliable support to help you build, upgrade, and fly with confidence.

Specifications
