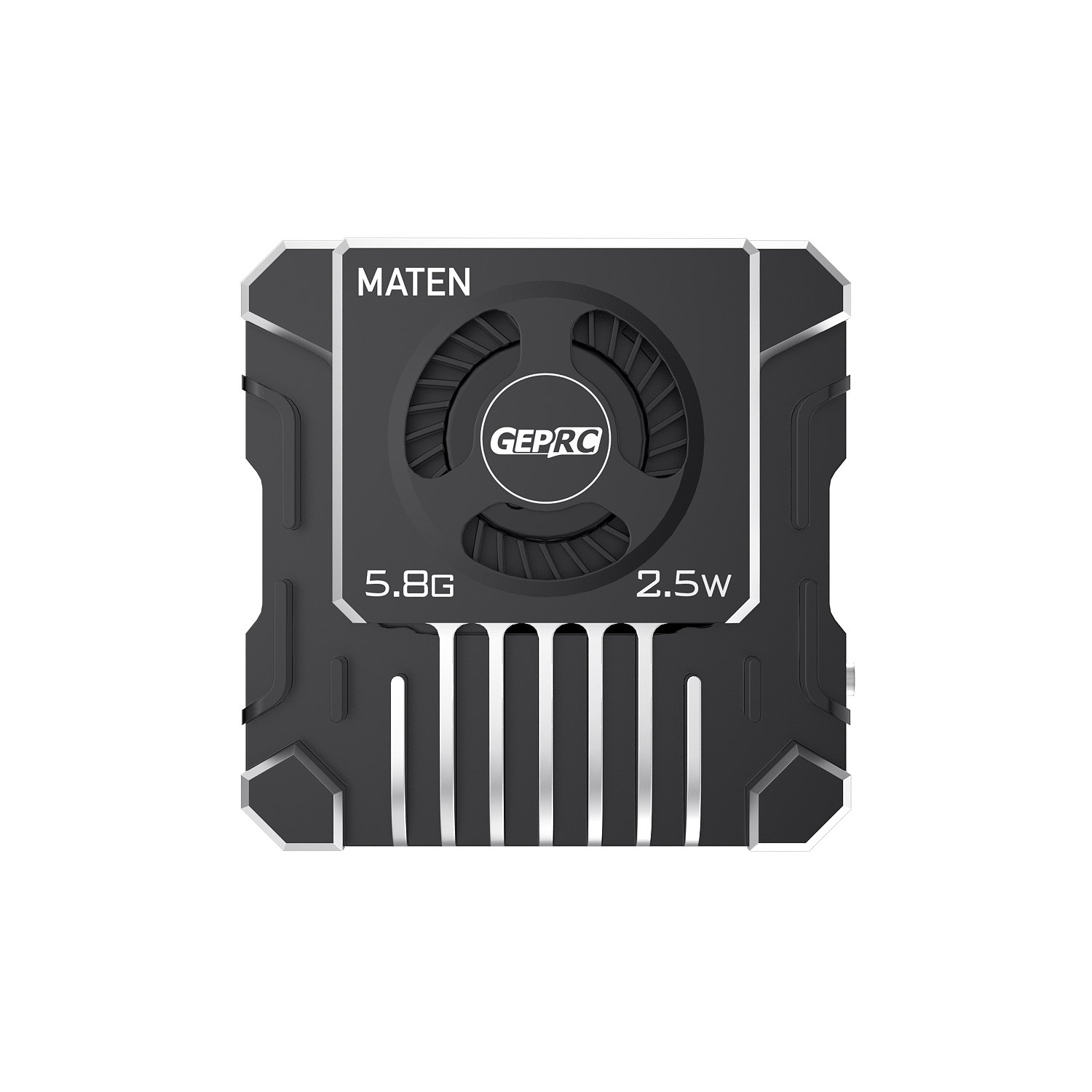

GEPRC MATEN 5.8G 2.5W VTX PRO

Description

Upgrade your FPV drone with the GEPRC MATEN 5.8G 2.5W VTX PRO, available at Multirotors. Engineered for pilots who demand exceptional video transmission, long-range performance, and reliable operation, this high-power 5.8GHz FPV Video Transmitter (VTX) is ideal for freestyle, long-range, cinematic, and racing drone builds.

Designed by the GEPRC engineering team, the MATEN 5.8G VTX PRO delivers up to 2500mW of adjustable transmission power with five selectable power levels, allowing pilots to optimize signal strength for different flying environments. Whether you’re flying through dense obstacles or exploring long-distance routes, this VTX provides stable video transmission, excellent signal penetration, and dependable performance.

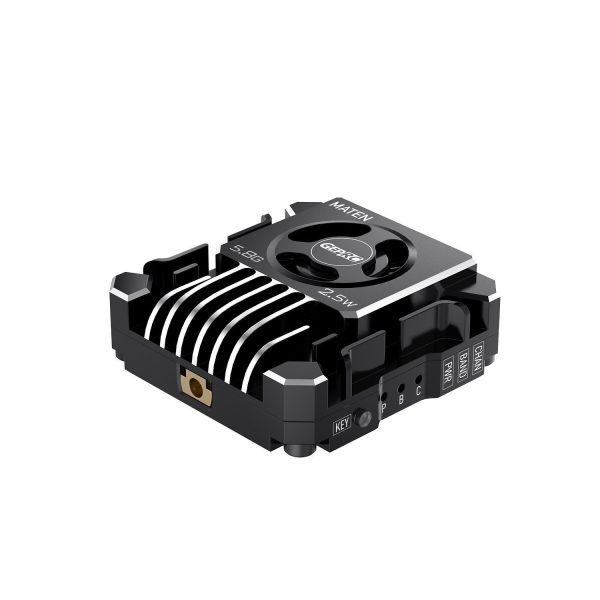

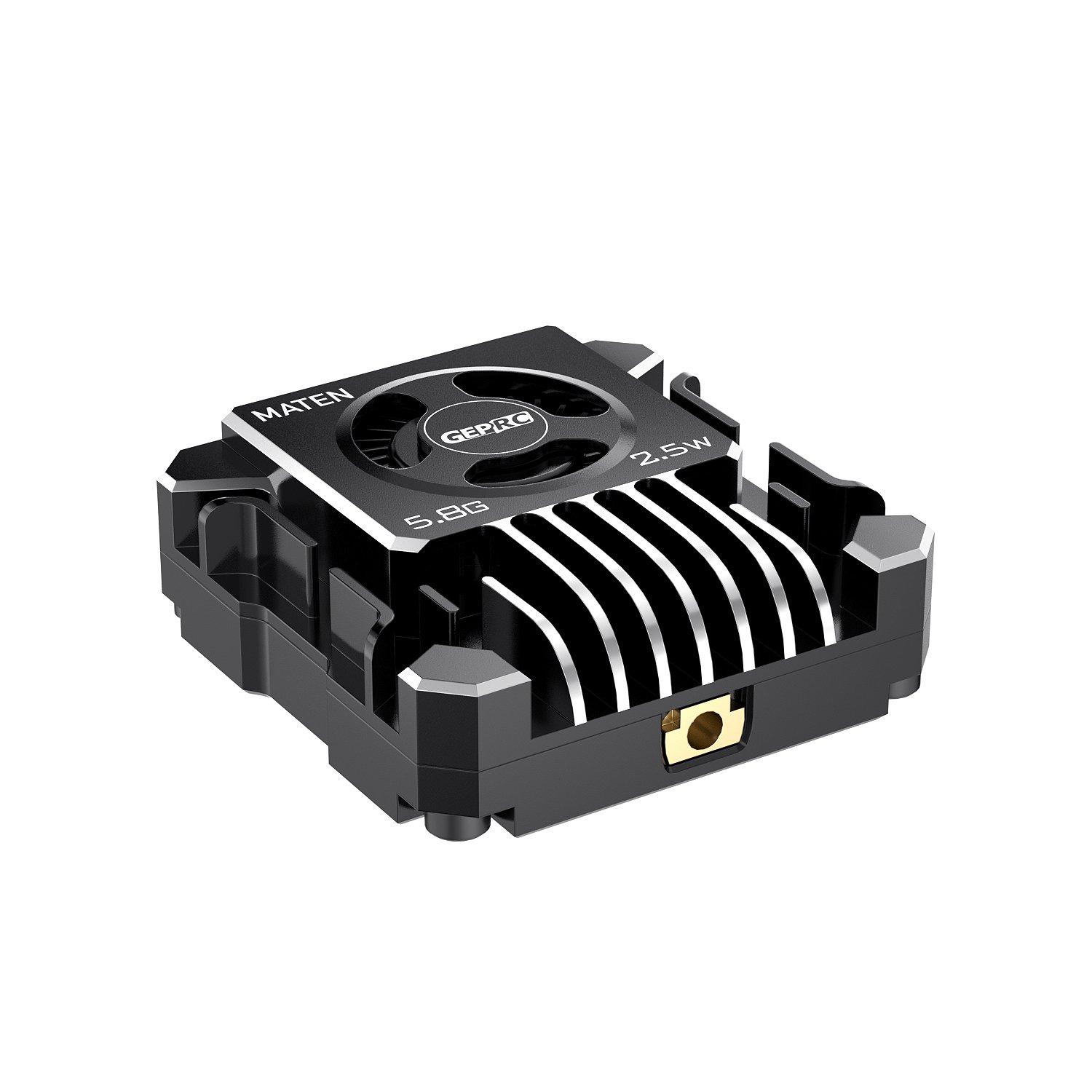

The VTX features a precision-machined CNC aluminum alloy housing that acts as an efficient heatsink, improving durability while effectively dissipating heat. An integrated cooling fan further enhances thermal performance, helping maintain stable operation during extended high-power flights.

Supporting the IRC Tramp protocol, the MATEN VTX PRO allows pilots to adjust channels, output power, and other settings directly through their flight controller’s OSD, eliminating the need for physical button adjustments. The built-in microphone also enables real-time audio transmission, creating a more immersive FPV flying experience.

With a wide 7V–36V input voltage range, built-in temperature protection, and support for 80 transmission channels, this VTX is compatible with a broad range of FPV drone builds. It also supports direct frequency configuration through compatible configurators, offering greater flexibility during setup.

The dual mounting pattern (20×20mm and 30.5×30.5mm) ensures easy installation on most modern FPV racing, freestyle, cinematic, and long-range drone frames.

Feature

1.  Five levels of adjustable power, up to 2500mW, suitable for long range flight.
2. The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation.
3. The built-in micro turbofan dissipates heat actively.
4. Wide voltage input supports 7V-36V voltage input.

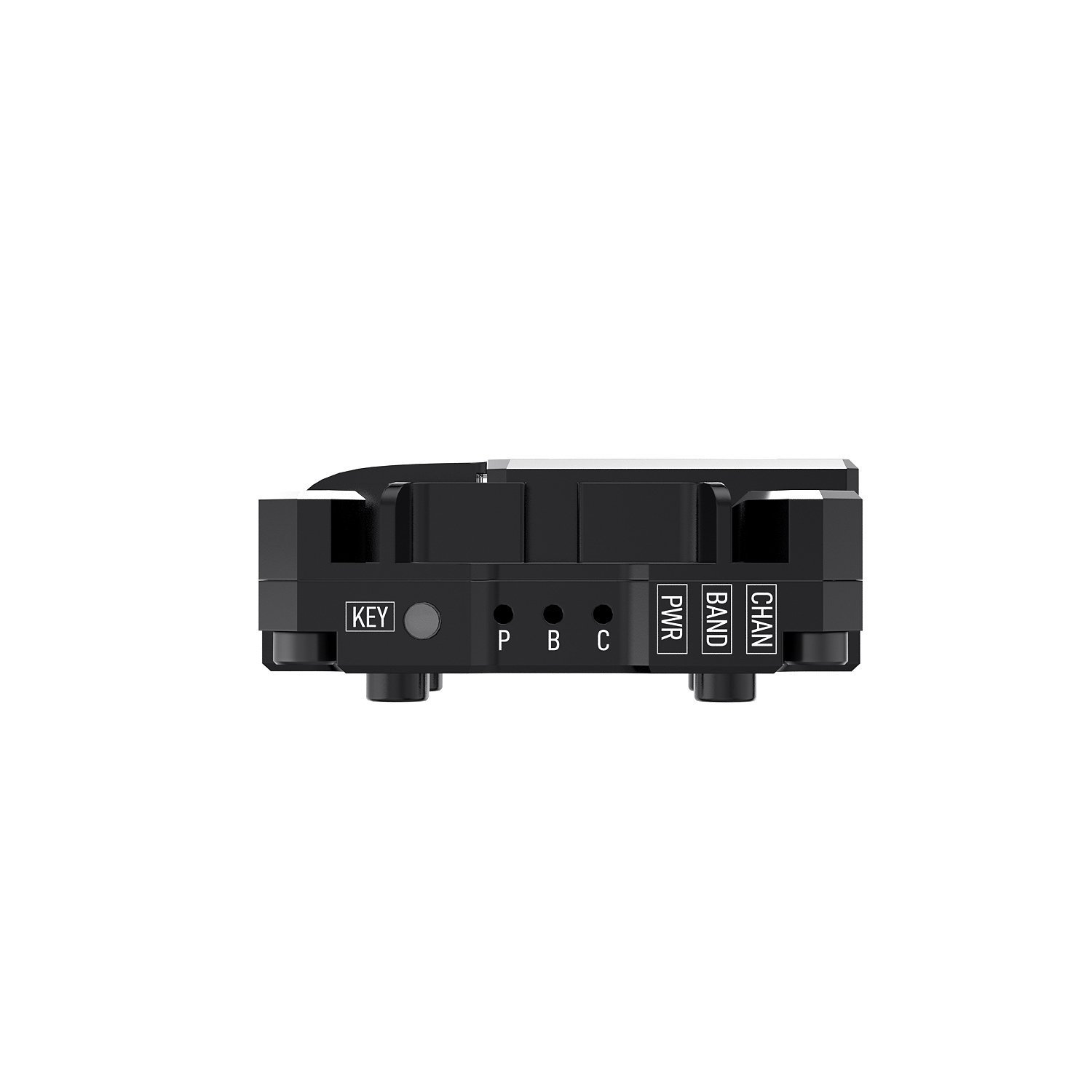

5. One function adjustment buttons, three indicator lights, easy to operate.
6. VTX control protocol IRC Tramp supports OSD parameter adjustment.
7. Temperature control protection function prevent overheat.
8. VTX built in microphone, real-time transmission of sounds.
9. Supports 80 transmission channels.
10. Supports enter frequency directly in the configurator.

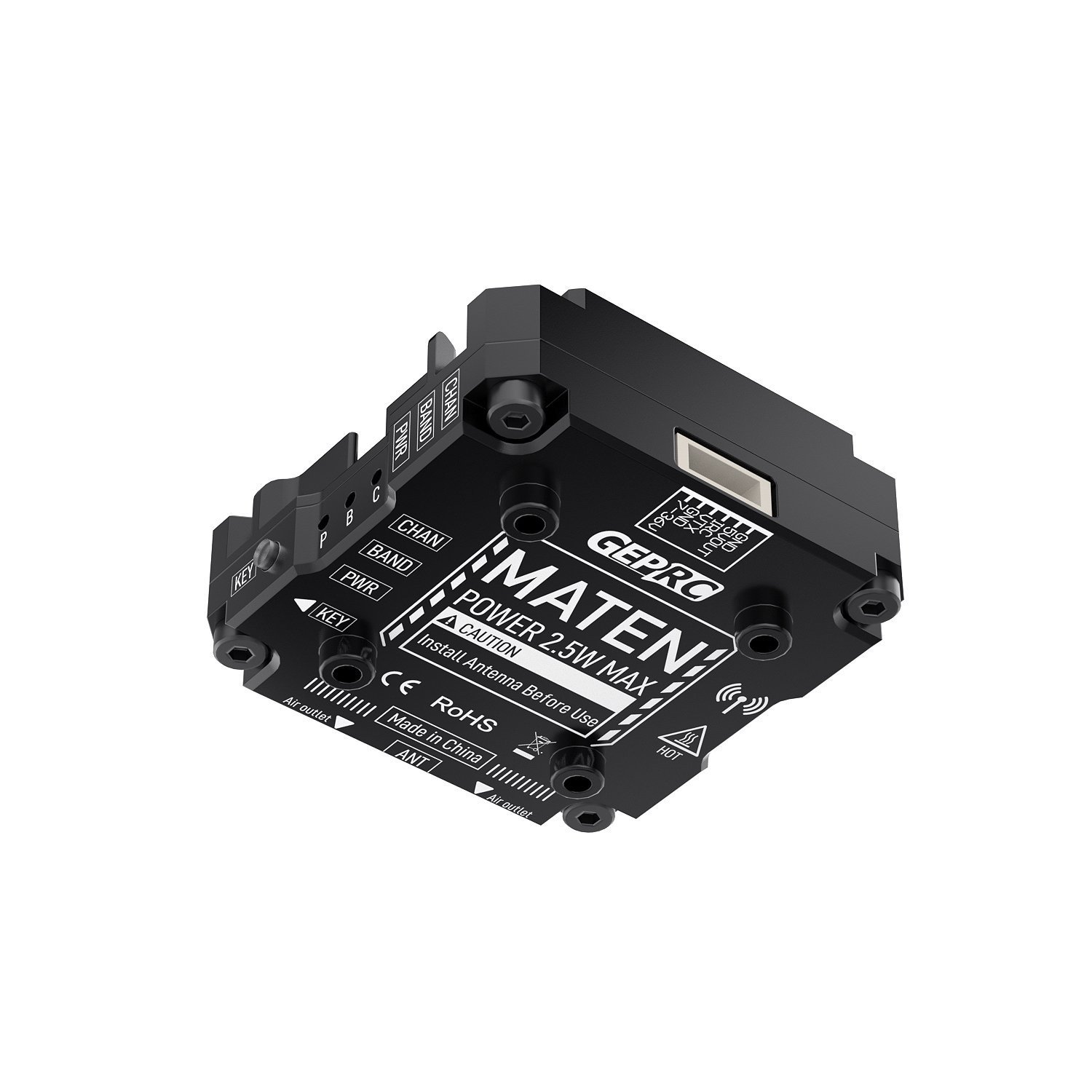

11. Support 20x20mm(M2) and 30.5×30.5mm(M2) two different mounting hole sizes.

Specifications

• Model: GEPRC MATEN 5.8G 2.5W VTX PRO
• Size: 36.3×36.3×15.1mm
• Mounting hole: 20x20mm(M2),30.5×30.5mm(M2)
• Output power: 25mW/200mW/600mW/1600mW/2500mW/Pit mode
• Frequency: 4884-6184MHz
• Channel: 80CH
• Input voltage: DC7-36V（2-8S Battery）
• Output voltage: 5V@600mA
• Protocol: IRC Tramp
• Antenna interface: MMCX
• Cable interface: SH1.0 6pin
• Video format: PAL/NTSC
• Microphone: Built in microphone
• Weight: 20g

Notes

1. Installing antenna before use.
2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Includes

1 x MATEN 5.8G 2.5W VTX PRO

1 x MMCX Copper tube antenna

1 x MMCX to SMA connector(75mm)

1 x Connecting cable(sh1.0 6pin 150mm)

6 x M2*5 screw

4 x M2*12 screw
