Description

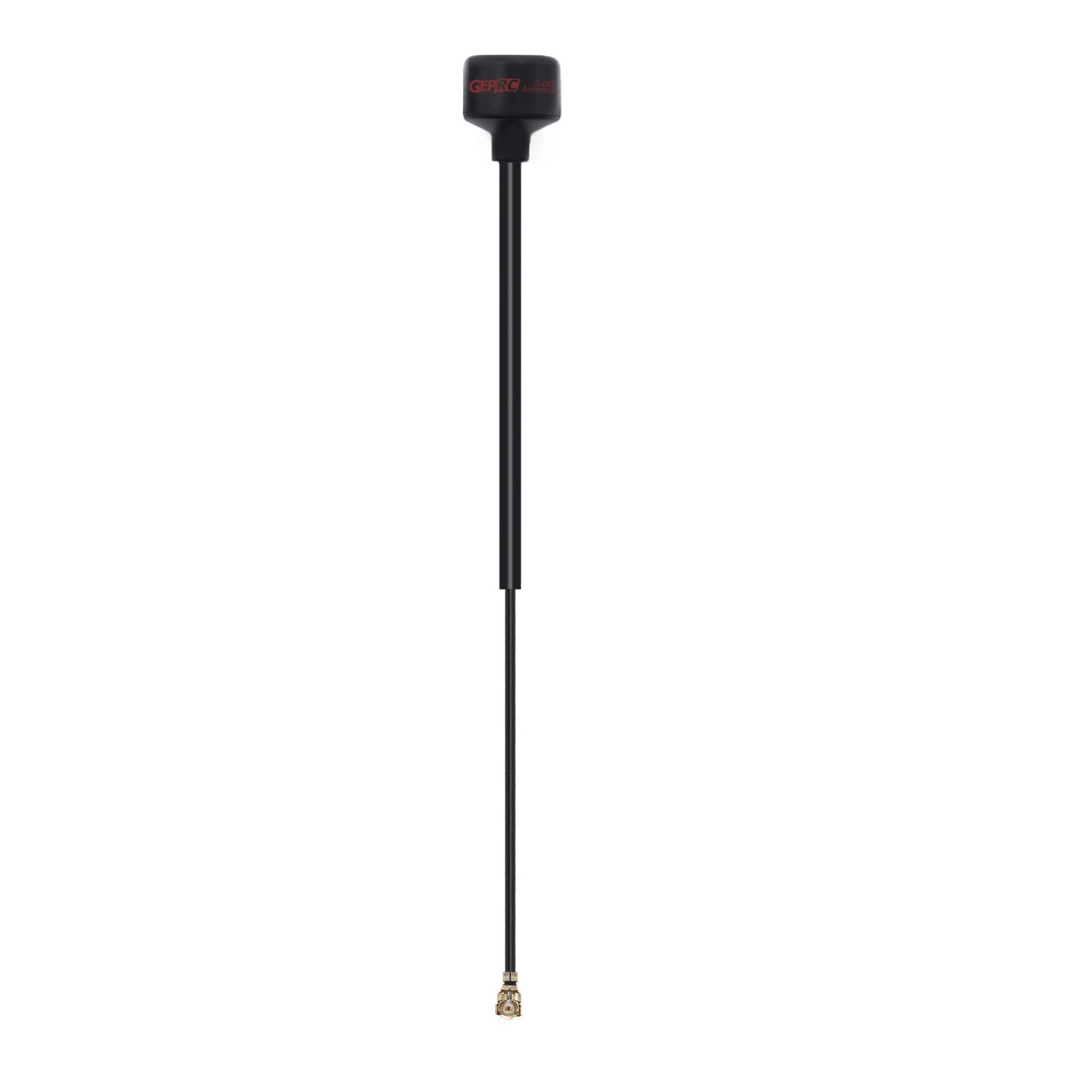

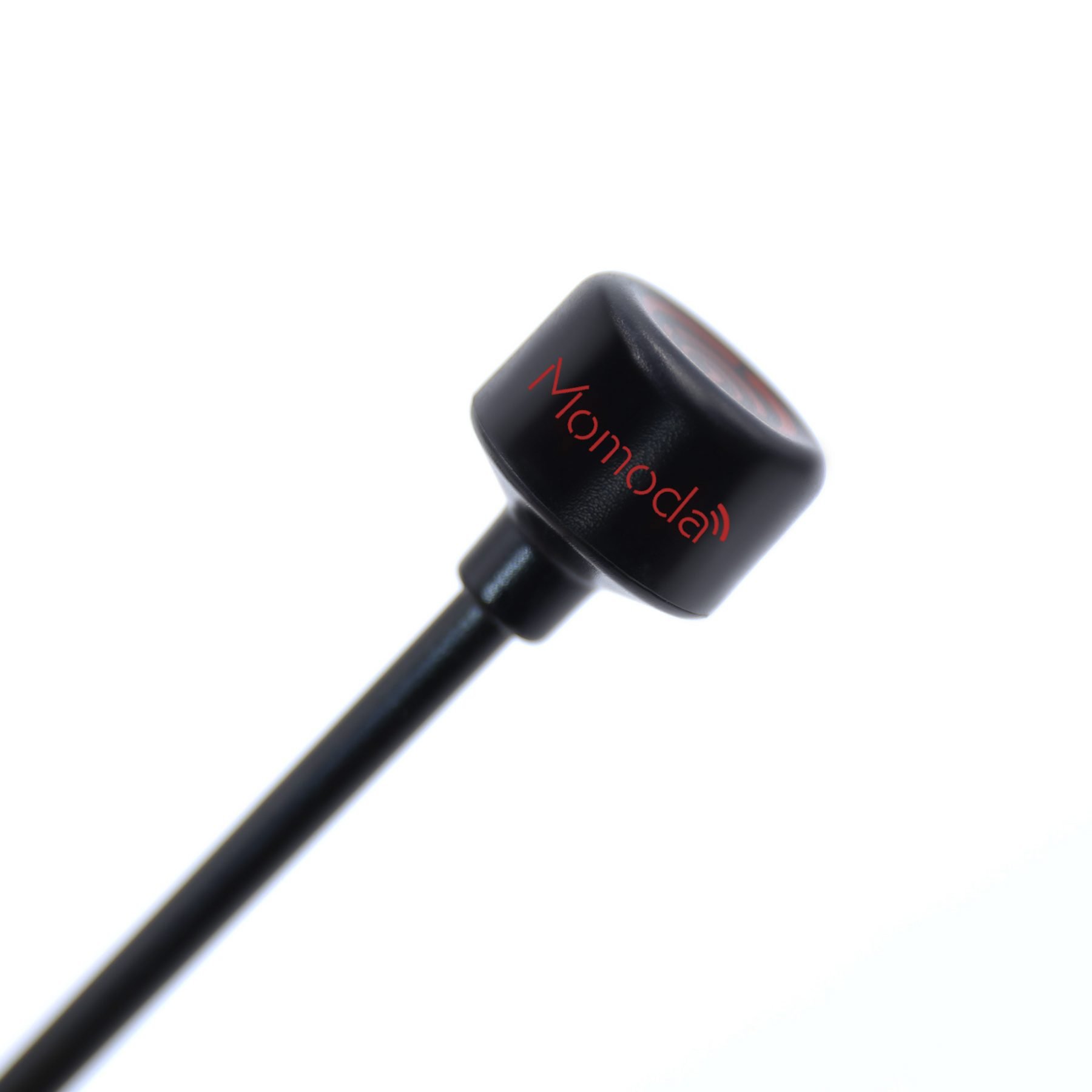

The GEPRC Momoda 5.8G Antenna is a high-performance FPV antenna specifically designed for quadcopters, delivering reliable signal strength and stable video transmission. Optimized for the 5.8GHz frequency band, it offers excellent gain performance in a lightweight and compact design, making it ideal for FPV racing, freestyle, cinematic, and long-range drone applications.
Operating across a 5600–5950MHz frequency range, the Momoda antenna is available in both RHCP (Right-Hand Circular Polarization) and LHCP (Left-Hand Circular Polarization) variants, allowing pilots to minimize interference during multi-pilot flights and competitions. It is also offered with multiple connector options to ensure compatibility with a wide range of FPV video transmitters and goggles.
Every GEPRC Momoda antenna undergoes rigorous factory testing to ensure consistent quality, dependable performance, and superior durability, giving pilots a clear and stable FPV experience even in challenging environments.
Features:
- Very compact and light-weight design, high quality ABS case for good protection and nice appearance

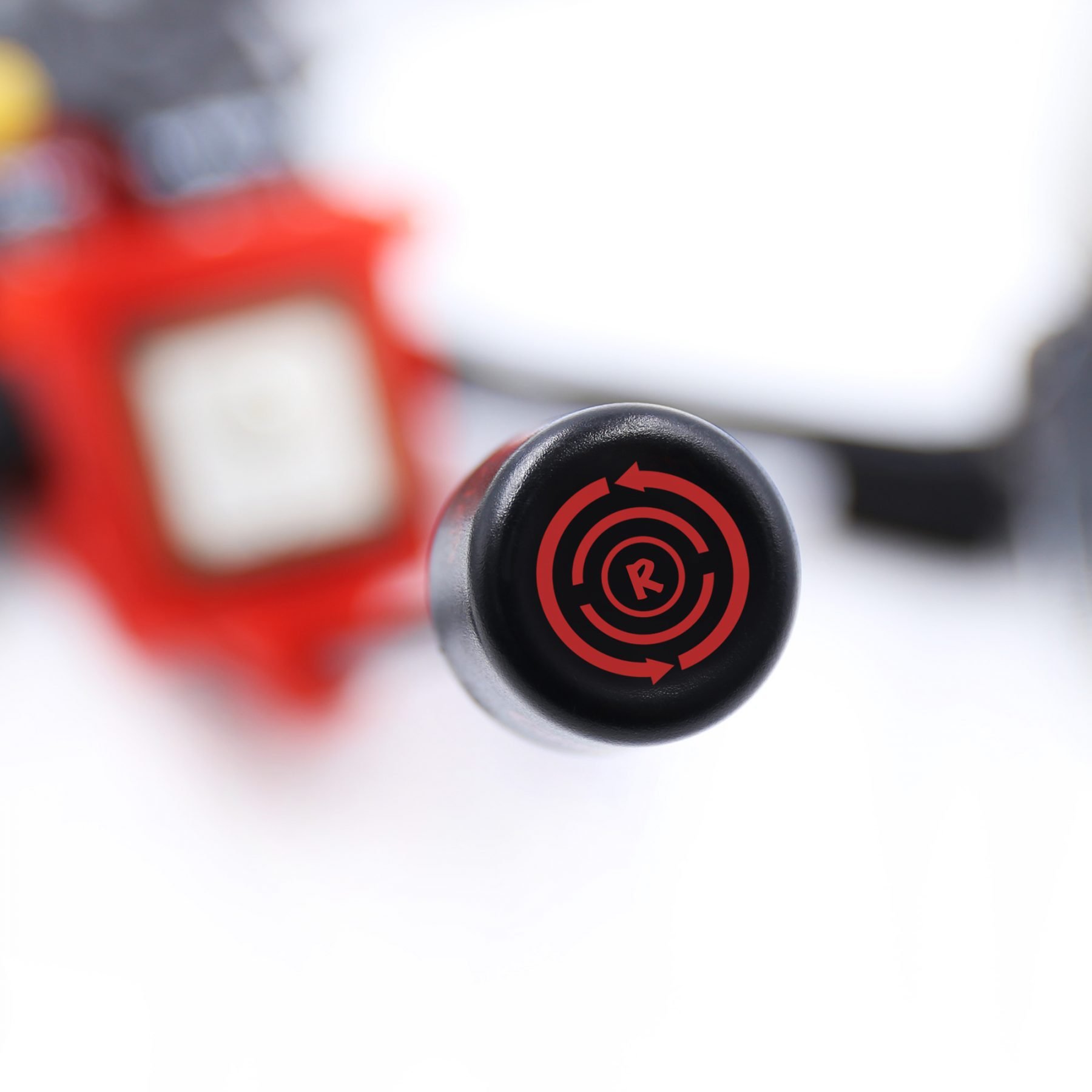

- Options of LHCP and RHCP
- Manufactured and tested to highest standards
- Easy to install, multiple interfaces and length options
Specifications:
- Frequency range: 5600-5950MHz
- Polarization:LHCP/RHCP
- Gain:2.5DBi
- SWR:≤1.5
- Input Impedance: 50Ω
- Radiation Efficiency:98%
- Connector:UFL/MMCX

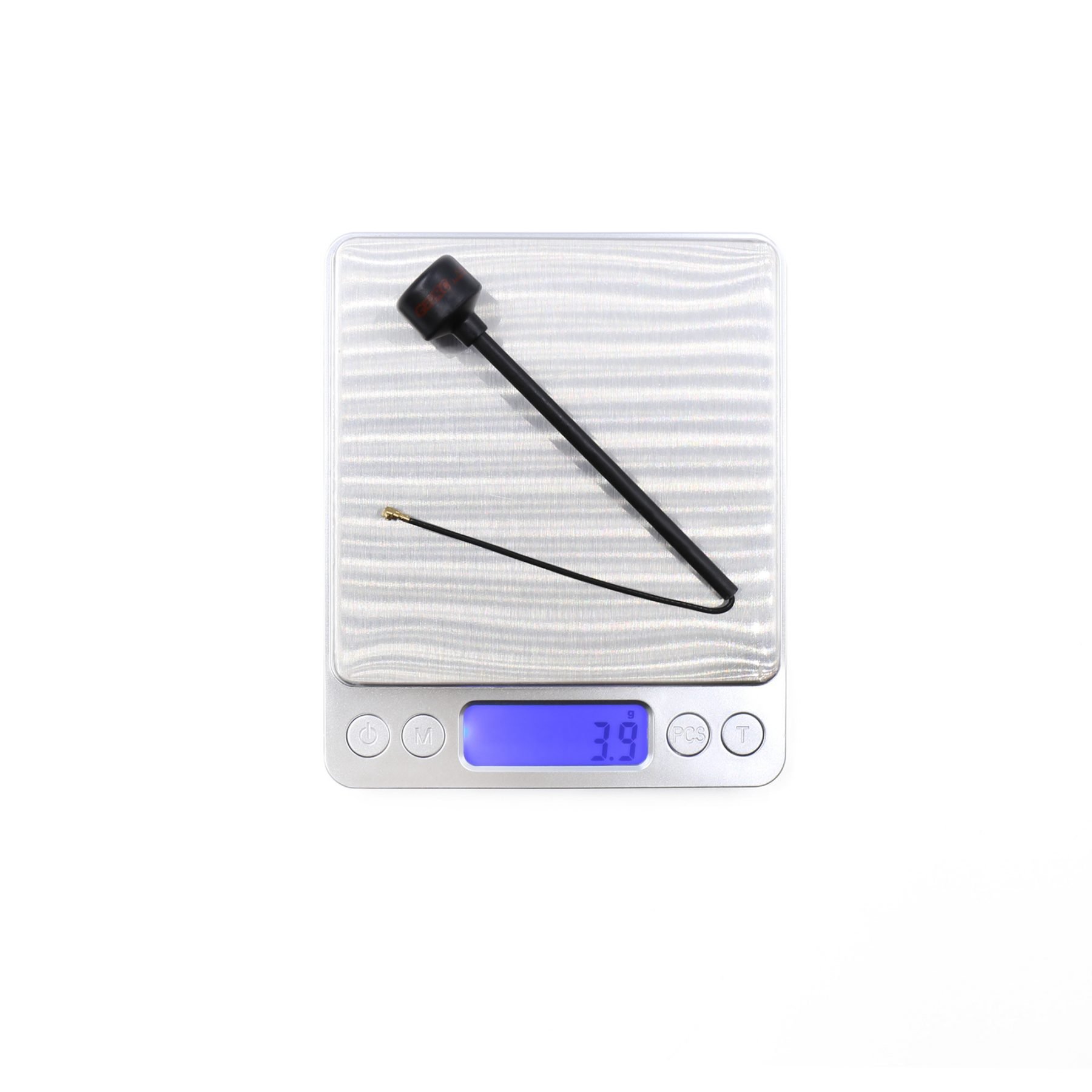

- Weight : 3.9-4.4g

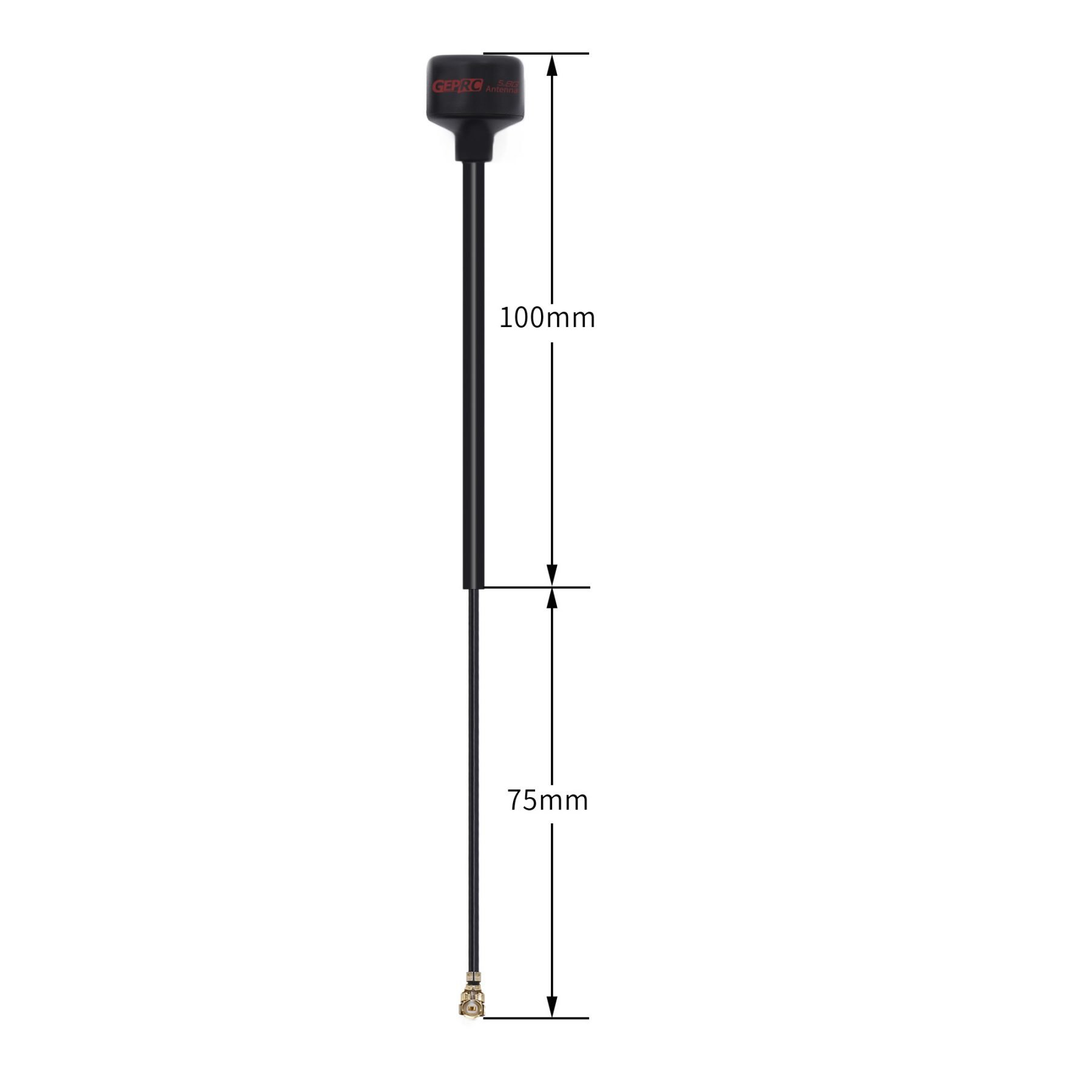

- Height:175mm/195mm
- Radome material: ABS
- Radome color:Black/Red
