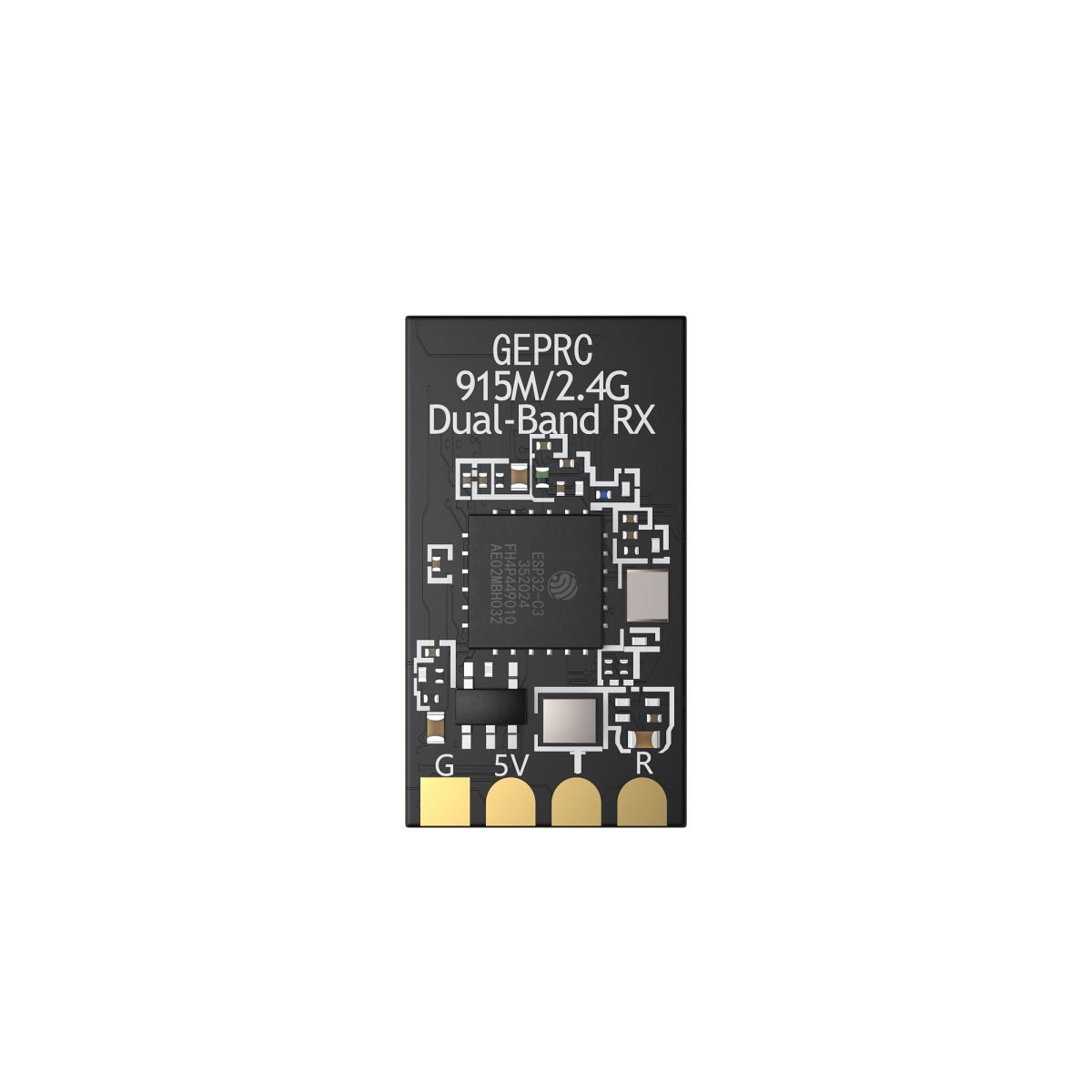

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver
₹2,270.00
Guarantee safe & secure checkout
Description
Upgrade your FPV drone with the GEPRC ELRS Nano 915MHz / 2.4GHz Dual-Band Receiver, available at Multirotors. Built on the latest ExpressLRS (ELRS) open-source platform, this compact receiver delivers exceptional range, ultra-low latency, and outstanding reliability for freestyle, racing, long-range FPV, and professional UAV applications.
Powered by dual Semtech LR1121 third-generation RF chips, the receiver supports both 915MHz and 2.4GHz frequency bands, giving pilots the flexibility to choose the most suitable band for their flying environment. When used with compatible dual-band antennas, it can easily switch between frequencies, ensuring stable communication and excellent signal performance.
Designed for seamless integration, the GEPRC ELRS Nano Receiver is fully compatible with existing 915MHz and 2.4GHz ExpressLRS transmitters, making it an ideal upgrade for pilots already using the ELRS ecosystem.
To maintain consistent performance in varying weather conditions, the receiver incorporates a TCXO (Temperature-Compensated Crystal Oscillator), providing superior frequency stability and dependable signal reception. With telemetry output of up to 100mW, it delivers reliable telemetry communication for monitoring flight data during demanding missions.
Firmware updates are quick and convenient thanks to the integrated Wi-Fi antenna, allowing wireless updates without removing the receiver from your aircraft. The compact design and SH1.0 connector make installation simple, clean, and suitable for a wide variety of FPV drone builds.
Whether you’re building a long-range explorer, freestyle quad, racing drone, or cinematic FPV platform, the GEPRC ELRS Nano Dual-Band Receiver provides the performance and flexibility trusted by modern FPV pilots.
Feature
- Advanced ExpressLRS 915M/2.4G dual-frequency system
- Based on Semtech’s third-generation LR1121 RF chip
- Compact at 11.1×20.4×5.2mm and weighing just 0.95g
- Supports 915M, 2.4G operating mode
- Features a temperature-compensated crystal oscillator (TCXO) for stable performance in varying temperatures
- TLM up to 100mW
- Refresh rate up to 1000Hz
- Supports WiFi firmware updates
- Includes an SH1.0 connector for easy installation
Specifications
- Model: GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver
- Dimension: 11.1×20.4×5.2mm
- Weight: 0.95g (only receiver)
- Chips: ESP32-C3, LR1121
- Crystal Oscillator: TCXO
- Frequency Bands: 915MHz(FCC),868MHz(EU),2.4GHz(ISM)
- Refresh Rate: 25Hz-1000Hz
- Operating Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW
- Firmware: GEPRC 900/2400 Single Dual-Band RX
Includes
1 x ELRS Nano 915M/2.4G Dual-Band Receiver
1 x 915M/2.4G dual-band T-antennas
1 x Heat shrink tube
1 x 4-pin silicone connect cable
1 x User manual
