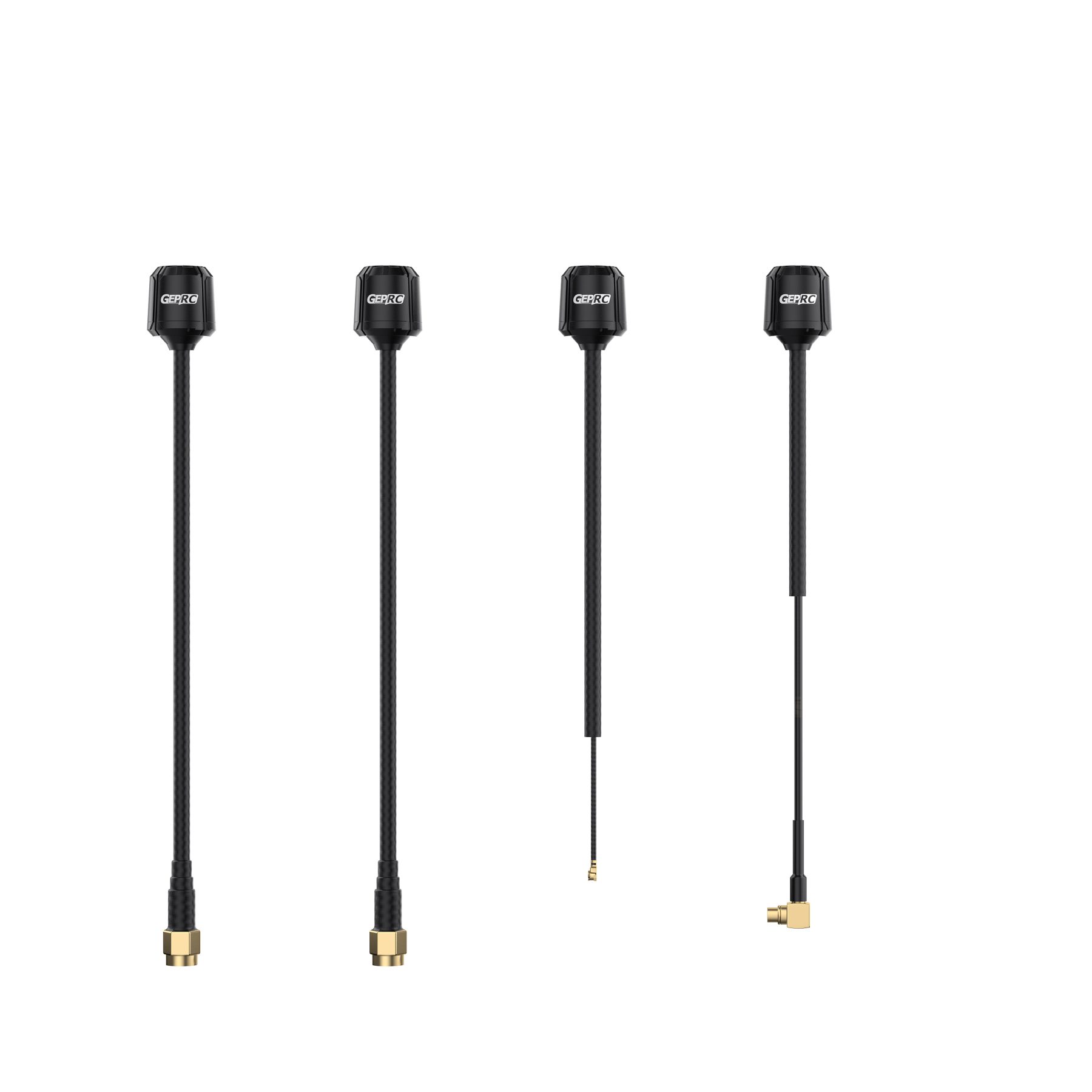

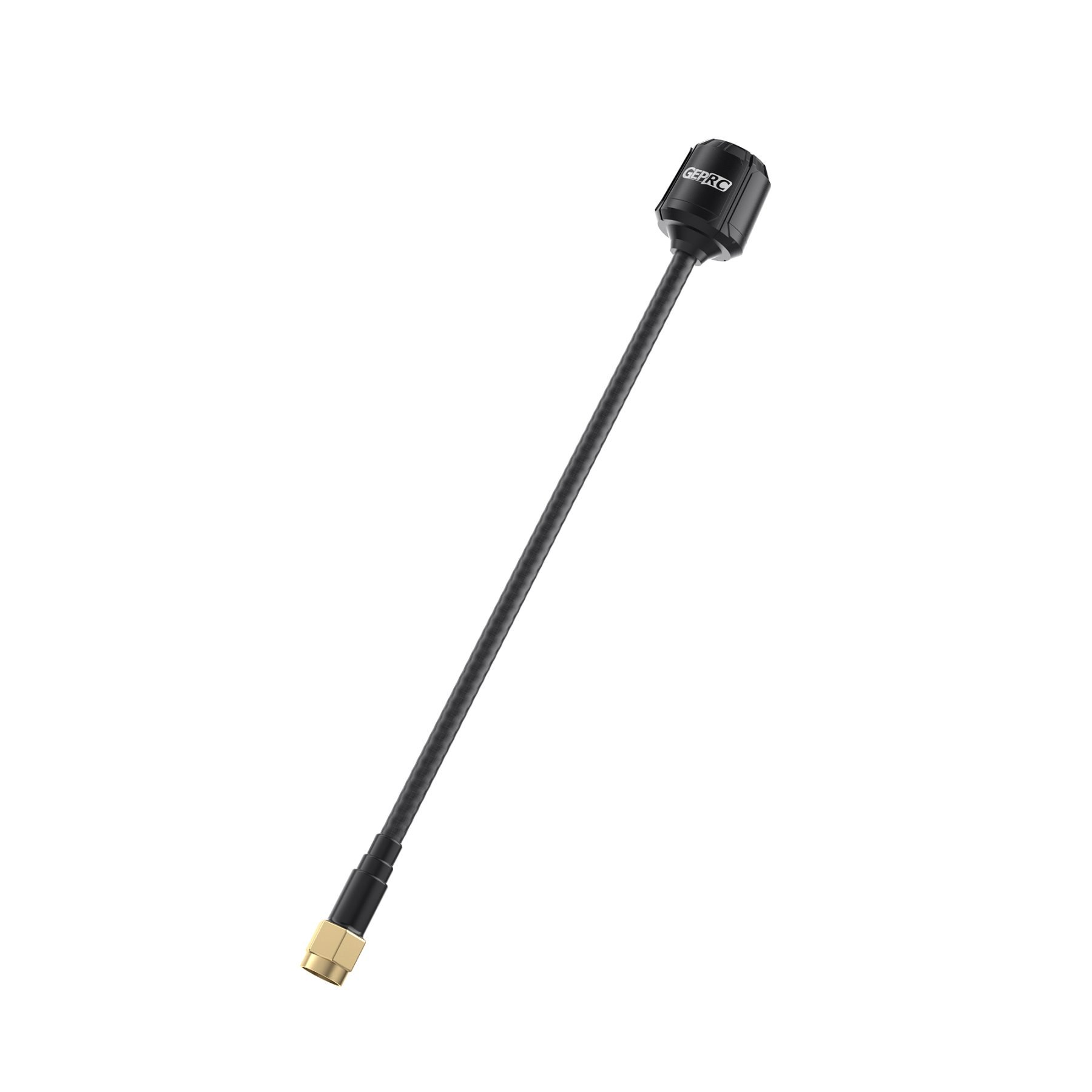

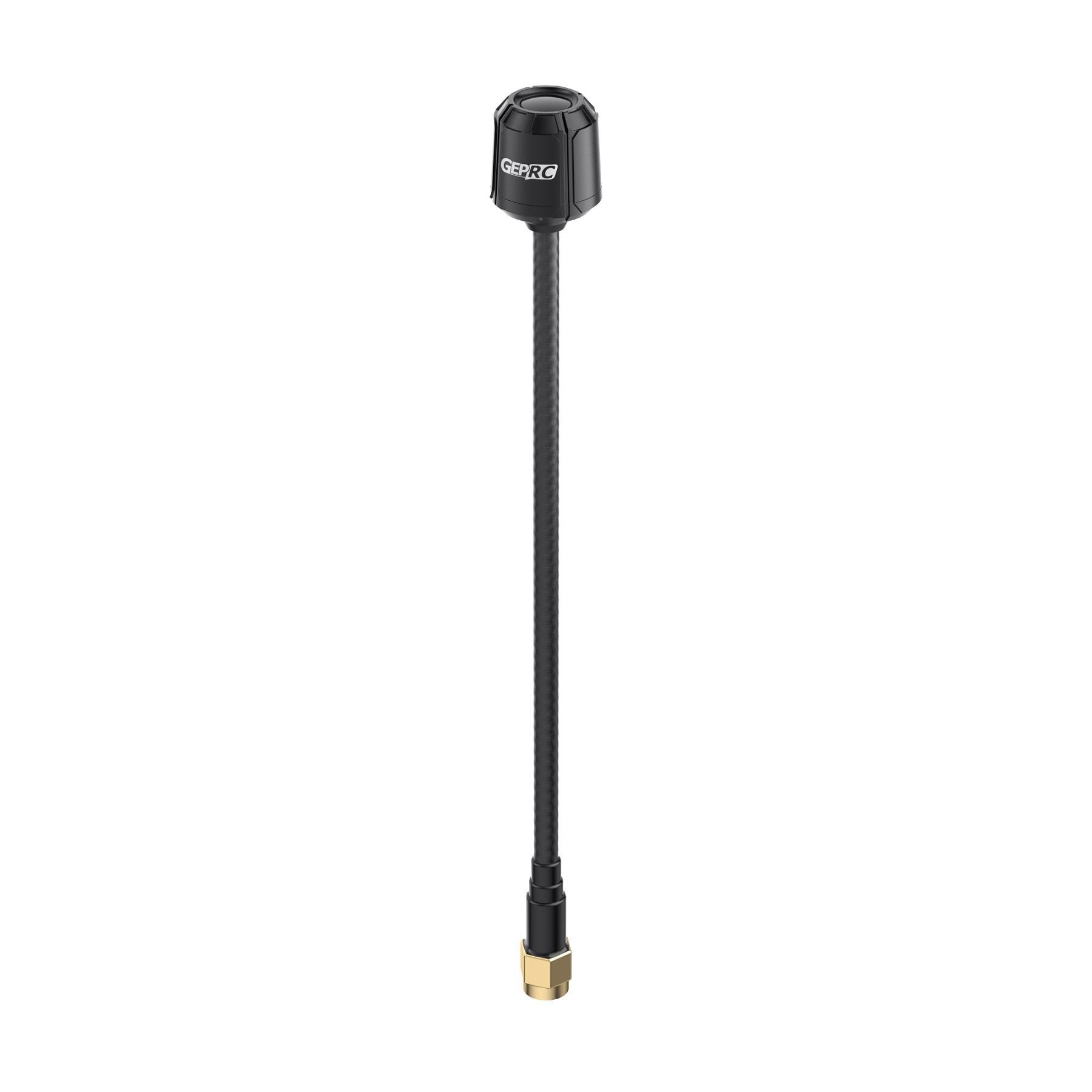

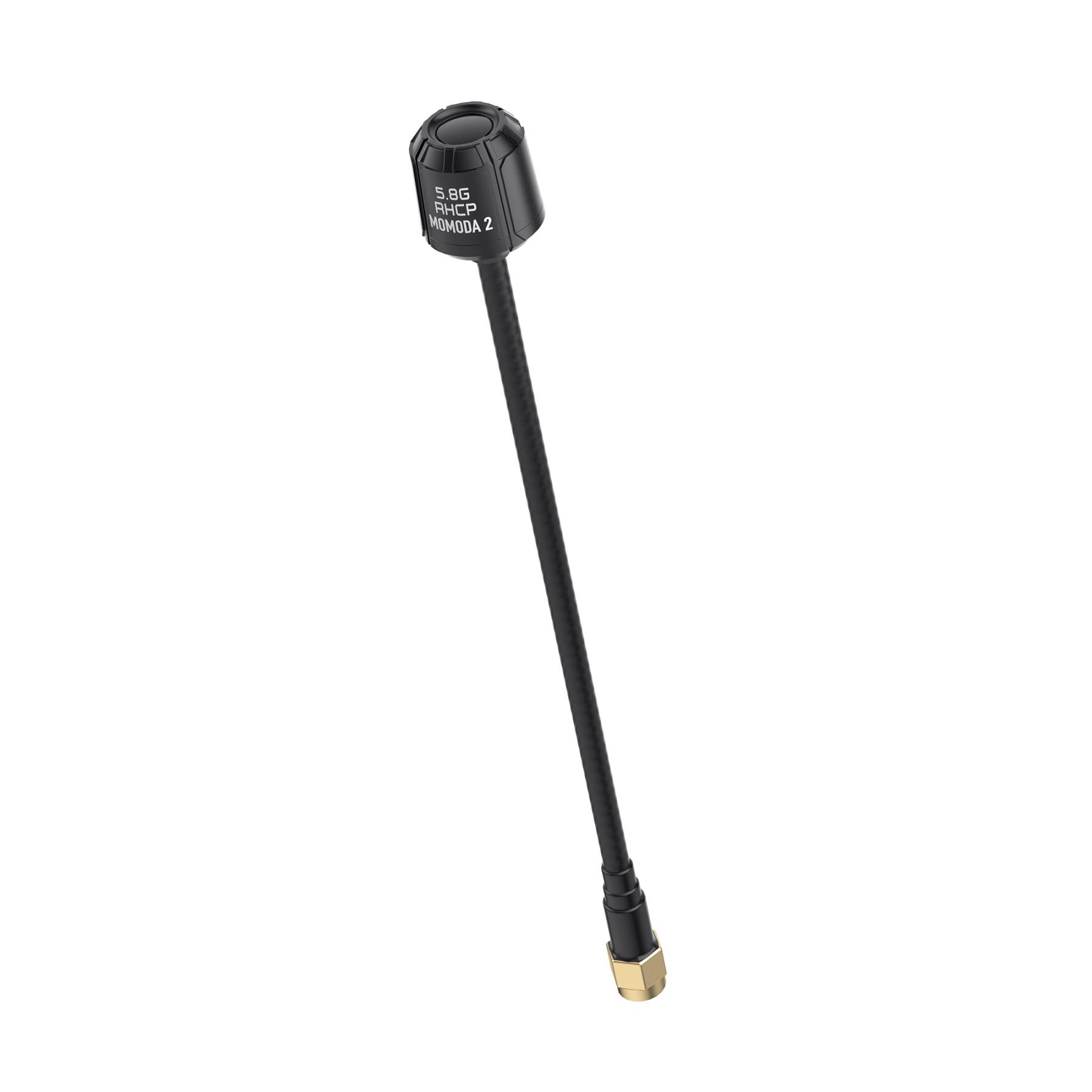

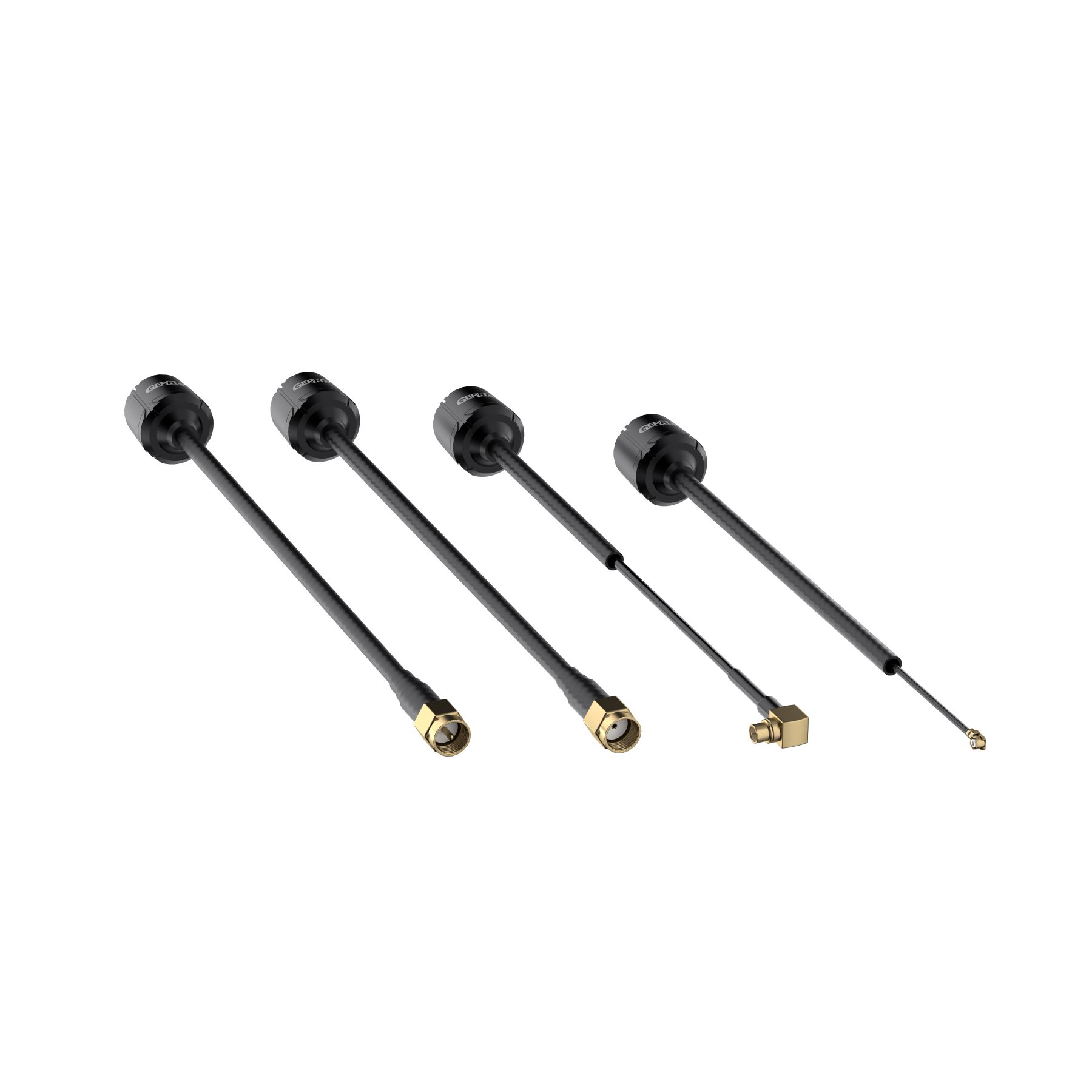

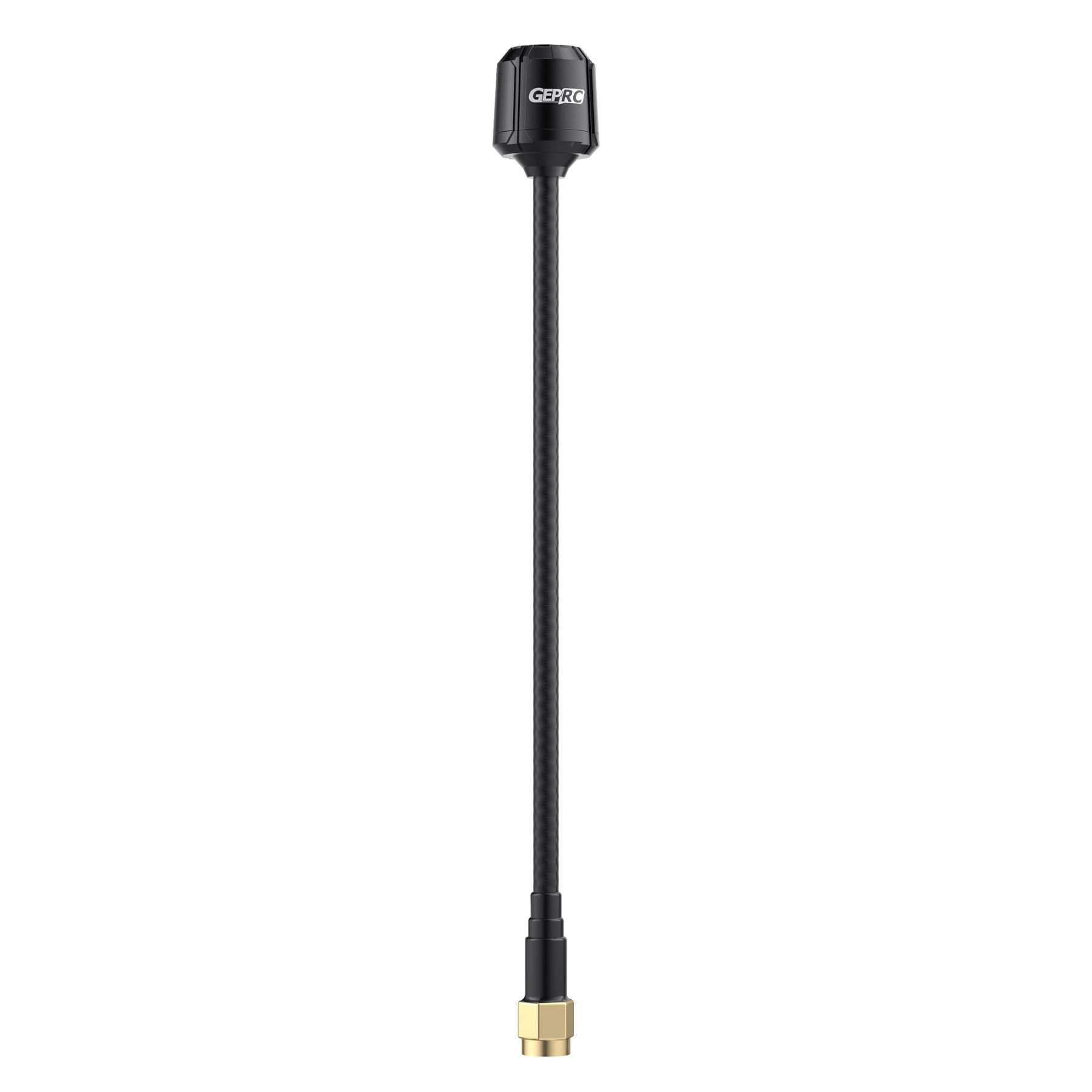

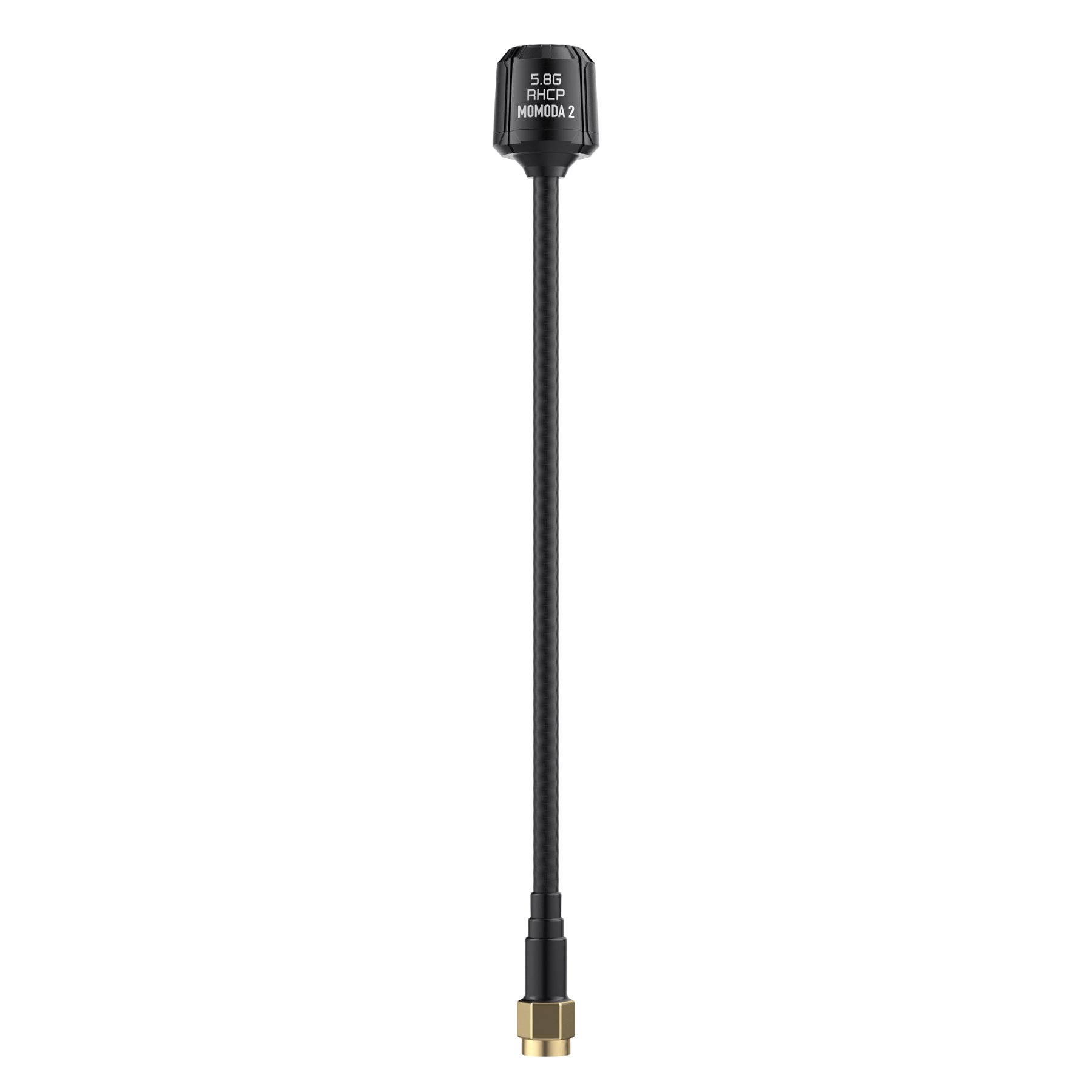

GEPRC Momoda2 5.8G antenna DUAL RHCP SMA 170mm

Description

The GEPRC Momoda2 5.8G Antenna is engineered with the latest RF technology in the FPV industry, featuring an advanced PCB + FPC hybrid design that delivers superior signal consistency and minimizes transmission power loss. Designed for reliable performance in demanding flying conditions, it provides a stable, high-quality video link for freestyle, racing, and long-range FPV applications.

Available in both RHCP (Right-Hand Circular Polarization) and LHCP (Left-Hand Circular Polarization) variants, the Momoda2 operates within the 5.8GHz frequency band, ensuring excellent compatibility with a wide range of FPV video transmitters and goggles. Its lightweight, durable construction makes it an ideal choice for pilots seeking enhanced signal reliability and consistent video performance.

Features

1.  The ingenious exterior design integrates a sleek metallic style, appealing to the eye.
2.  The advanced radio frequency structure effectively minimizes transmission loss.
3.  The connectors come in various lengths and styles to accommodate diverse application needs.
4.  Every antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.

Specifications

• Model： GEPRC Momoda2 5.8G antenna
• Center Frequency： 5.65G
• Bandwidth：5.3GHz～6GHz
• Polarization: LHCP/RHCP
• Gain: 2.45dbi
• Axial Ratio：≤3
• SWR: ≤1.43
• Radiation Efficiency: 85%
• Cross Polarization Suppression: -25dB
• Length：120mm-170mm
• Antenna Design: FPC+PCB
• Antenna Weight: 3.8g-11.6g
• Enclosure Material: ABS
• Connector Types: SMA / RP-SMA / AngleMMCX / UFL

Includes

1*Momoda 5.8G antenna
