SpeedyBee Master3X Modular Frame 3-3.6 Inch FPV Racing Drone Freestyle Frame
₹4,299.00
Out of stock
Guarantee safe & secure checkout
Description

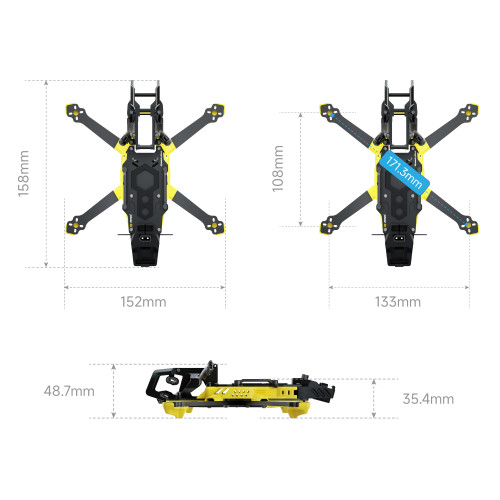

| Wheelbase | 171mm |
| Carbon plate thickness | Top plate: 2.0mm, Middle plate: 2.0mm, Bottom plate: 2.0mm, Arm: 4.0mm |
| Camera installation pitch | 19/20mm |
| Stack installation height | 11mm |
| Stack mounting holes | 25.5*25.5mm |
| Compatible VTX | Injection molded head (03 AirUnit, Link, TX800, TX ULTRA;
Except for 03, other modules require additional 3D printed parts) 03 Aluminum alloy head (03 AirUnit, Link, TX800, TX ULTRA; Except for 03, other modules require additional 3D printed parts) 04 Pro Aluminum alloy head (04Pro) |
| Propeller size | 3-3.6 inches |
| Motor mounting holes | 9-12mm |
| Weight | 87+2g (Without head) |
| Recommended motor | 1507/1804/2004/2006/2105.5 |
| Recommended KV | 4S 3000KV-3600KV. 6S 2200-2750KV |
| Max supported battery size | 67mm (L)×31mm (W) ×40mm (H) |
| Recommended battery | 4S LiPo / LiHv750mAh-1100mAh 6S 650-850 mAh |
| GPS supported size | 18.1*18.1mm (Other sizes require replacement of printed parts) |
Quick Comparison
| SpeedyBee Master3X Modular Frame 3-3.6 Inch FPV Racing Drone Freestyle Frame remove | Master 5 V2 Frame remove | BetaFPV Pavo 20 Whoop Frame remove | SpeedyBee Mario 5 XH Advance remove | FlyfishRC Volador VD4 04 Pro Deadcat FPV T700 Frame Kit remove | Mark4 10inch v2 Long Range FPV Drone Frame Kit remove | |
|---|---|---|---|---|---|---|
| Name | SpeedyBee Master3X Modular Frame 3-3.6 Inch FPV Racing Drone Freestyle Frame remove | Master 5 V2 Frame remove | BetaFPV Pavo 20 Whoop Frame remove | SpeedyBee Mario 5 XH Advance remove | FlyfishRC Volador VD4 04 Pro Deadcat FPV T700 Frame Kit remove | Mark4 10inch v2 Long Range FPV Drone Frame Kit remove |
| Image |  |  |  |  |  |  |
| SKU | ||||||
| Rating | ||||||
| Price | ₹4,299.00 | ₹6,600.00 | ₹2,200.00 | ₹4,299.00 | ₹6,899.00 | ₹2,999.00 |
| Stock | Out of stock | Out of stock | Out of stock | |||
| Weight | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A |
| Additional information | ||||||
| Description | Designed to handle both cinematic and freestyle flying, Master 5 V2 with great Deadcat geometry, places the flight controller closer to the center of gravity than other DC frames
The innovative anti-vibration stack structure dampens the effect from motor noise on the gyro, offering a stabilized running environment.Averaging 1.5 screws per arm, the quick release structure makes assembly and disassembly easily
Honeycomb-shaped aluminum alloy CNC drone head ensures better strength and look, with H-FOV 130° section, drone head gets larger field of view.Furthermore, the incorporated DJI O3 Air Unit also supports ND filters and changeable side plate mounting
TPU side plate inside CNC part helps dampen the vibration on camera, and it can be modified by pilots on their own to get it compatible with more mounting holes, and get rid of vignetting for clear images
Under the VTX, there is a honeycomb-shaped aluminum alloy heat sink improving the operation stability of FPV and high-power analog VTX | |||||
| Add to cart |
