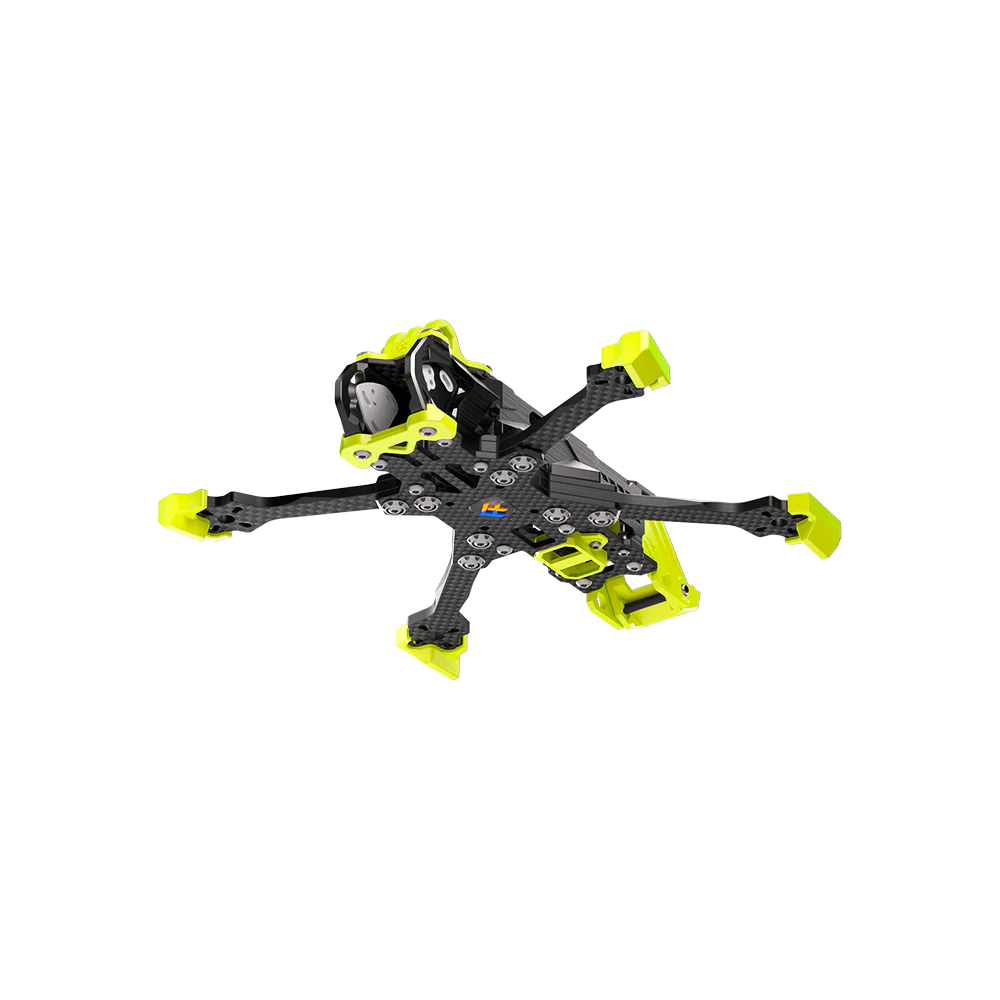

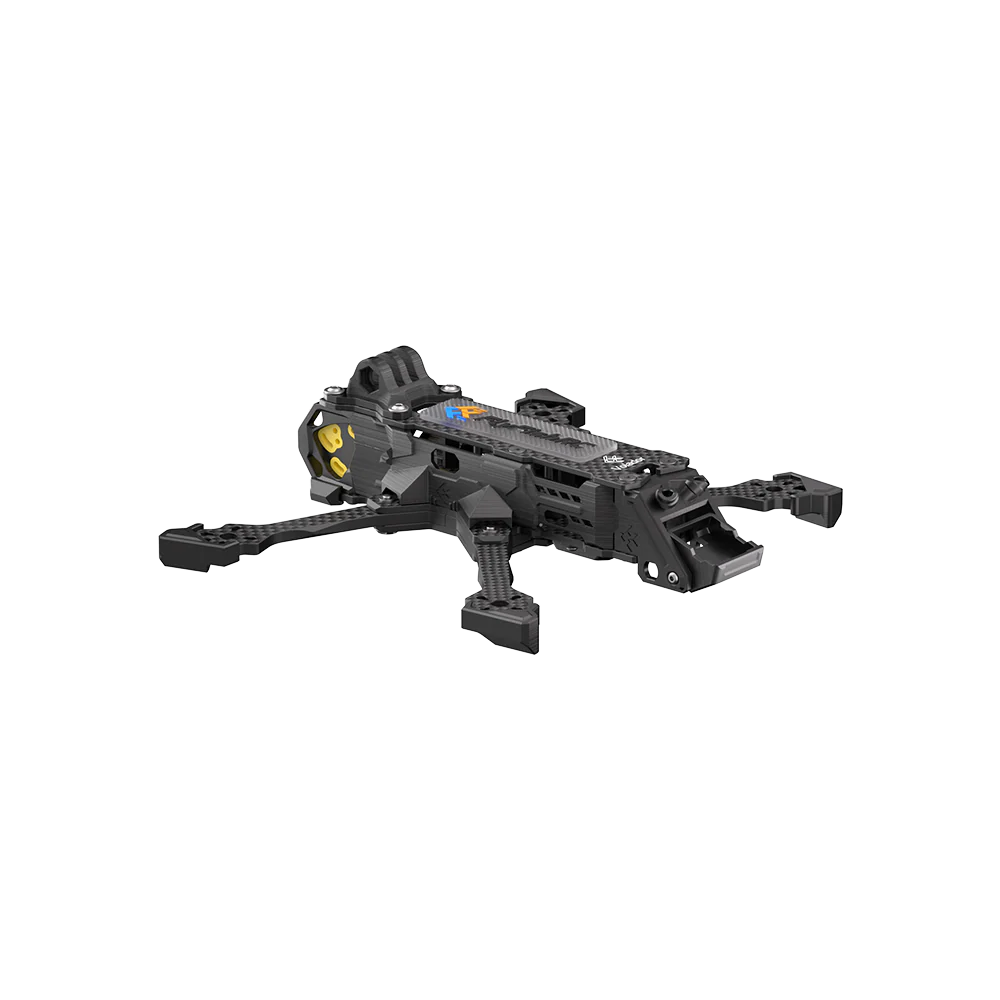

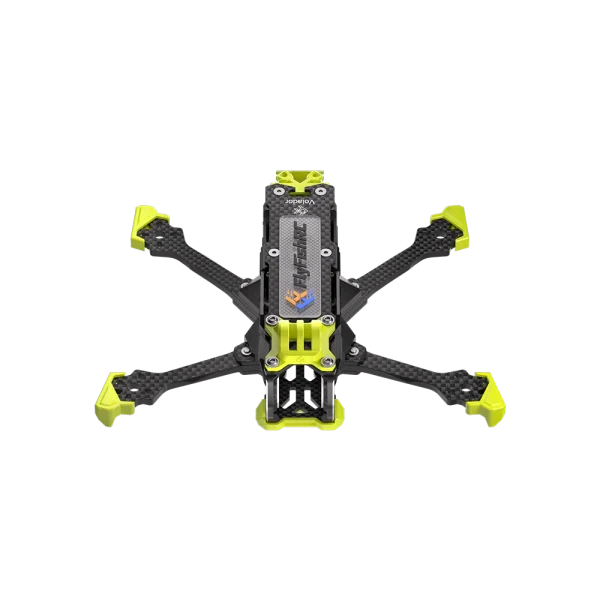

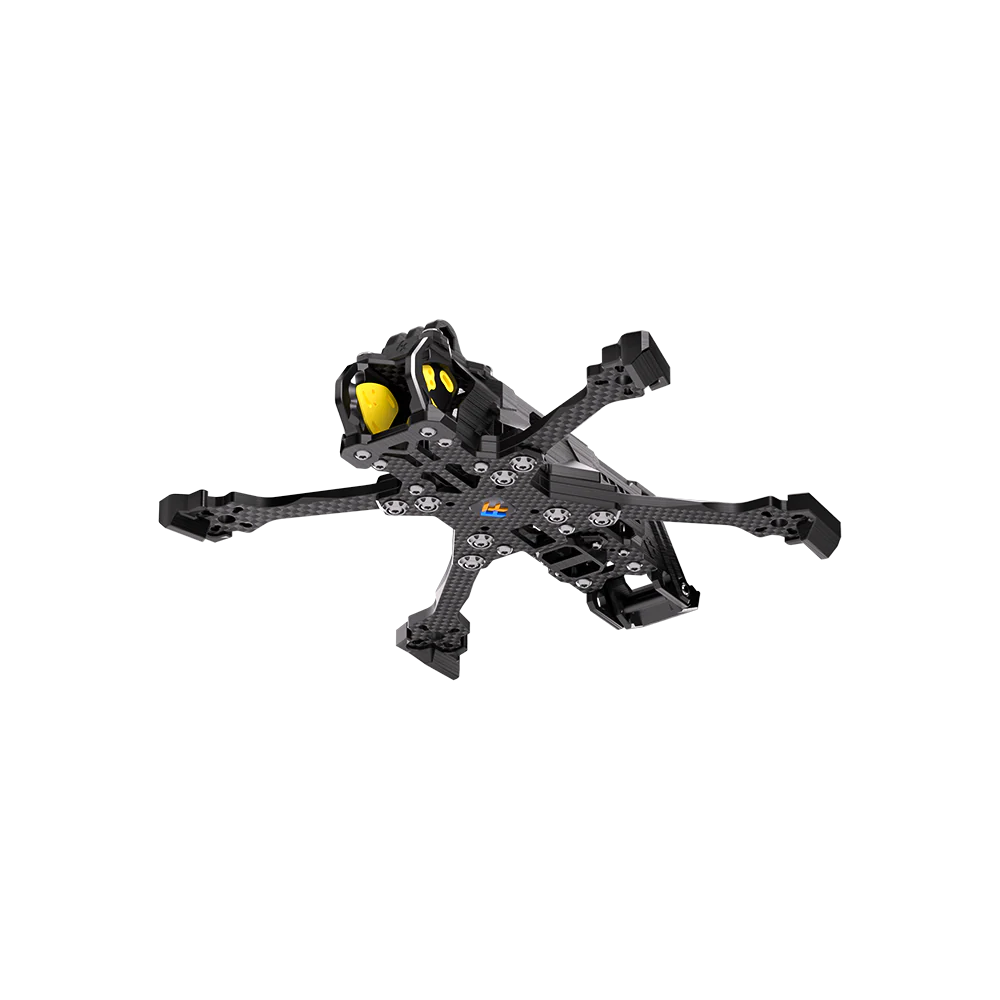

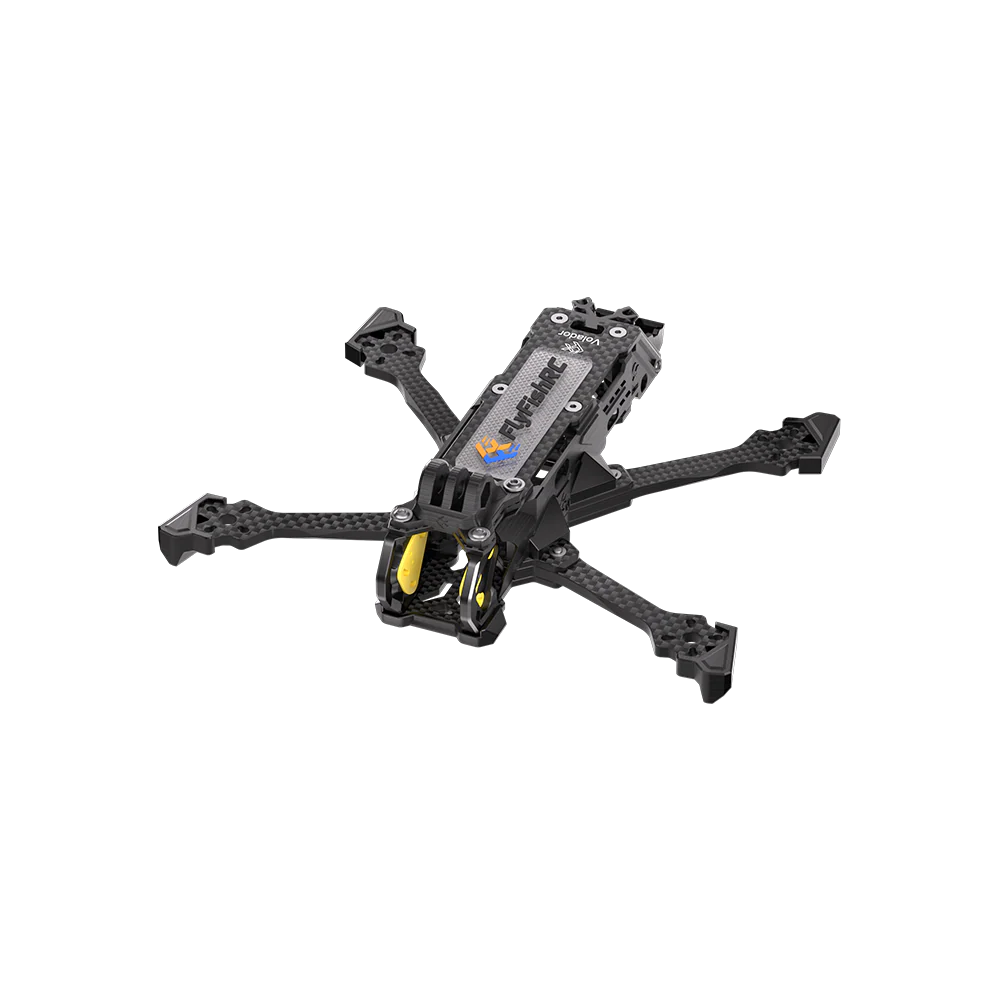

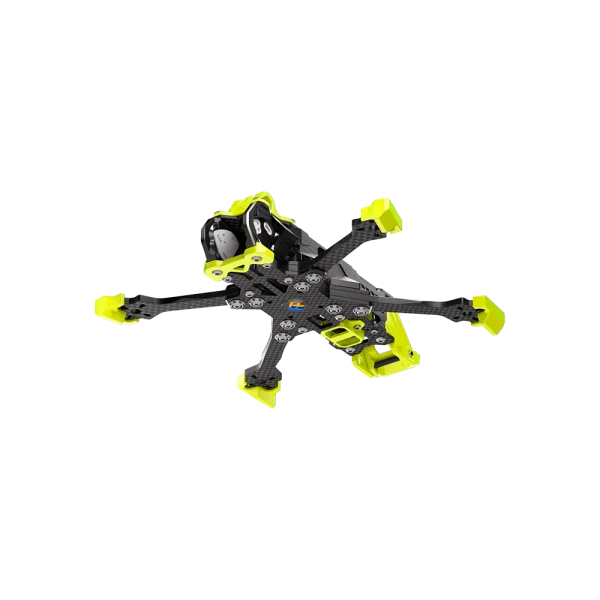

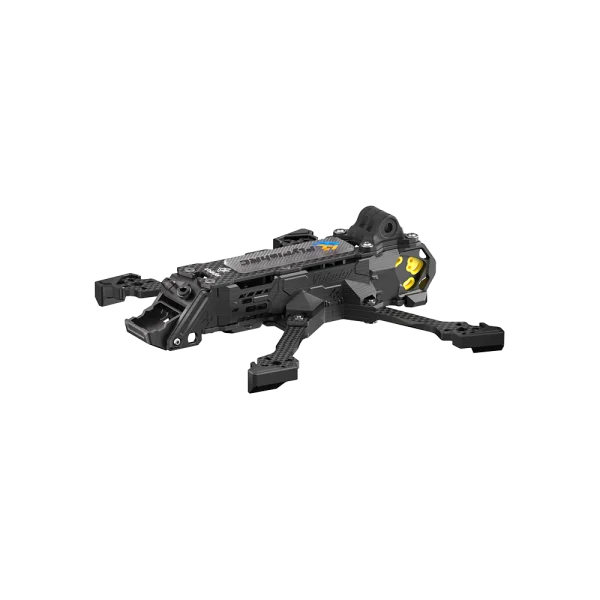

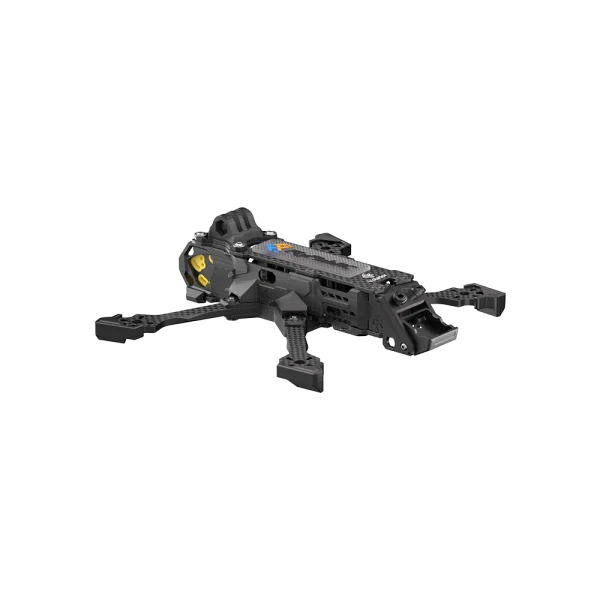

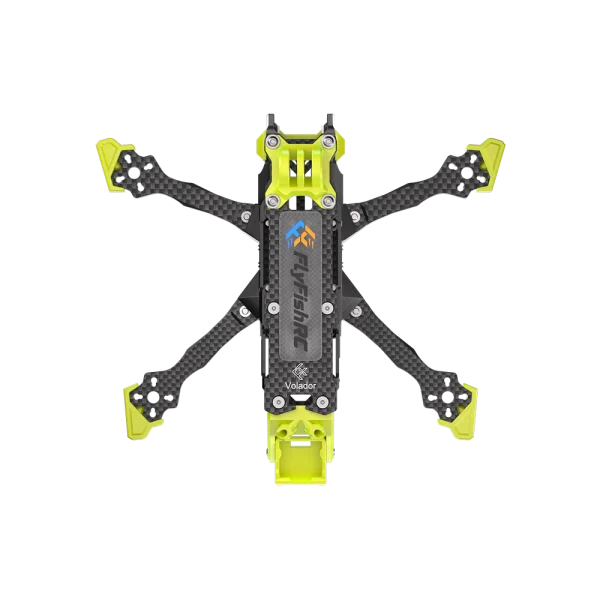

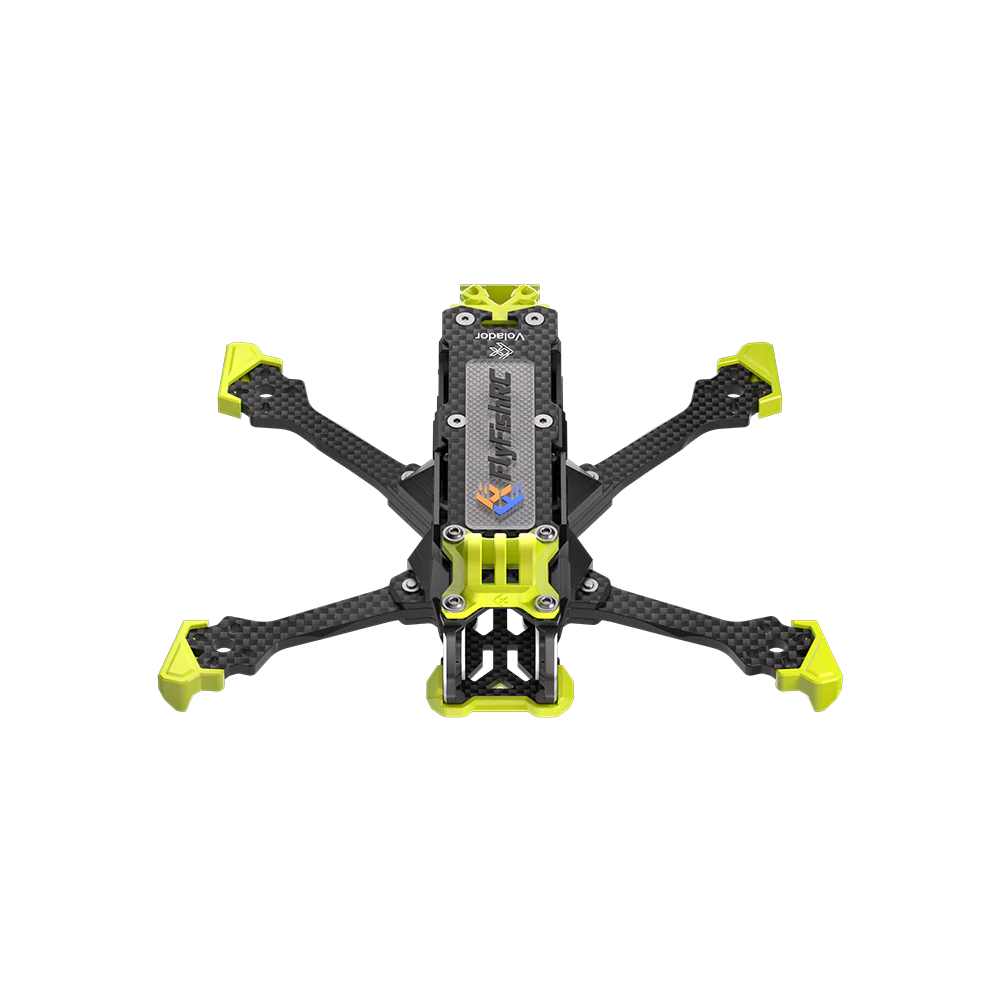

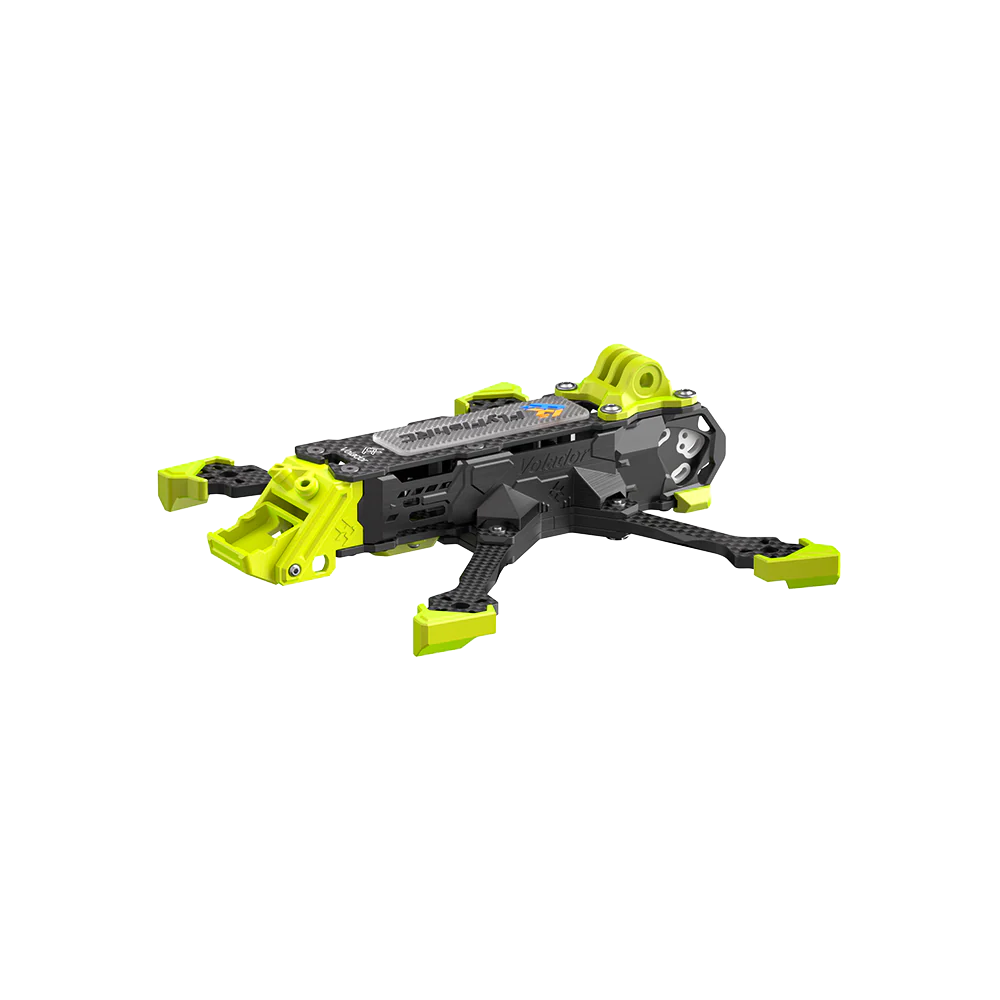

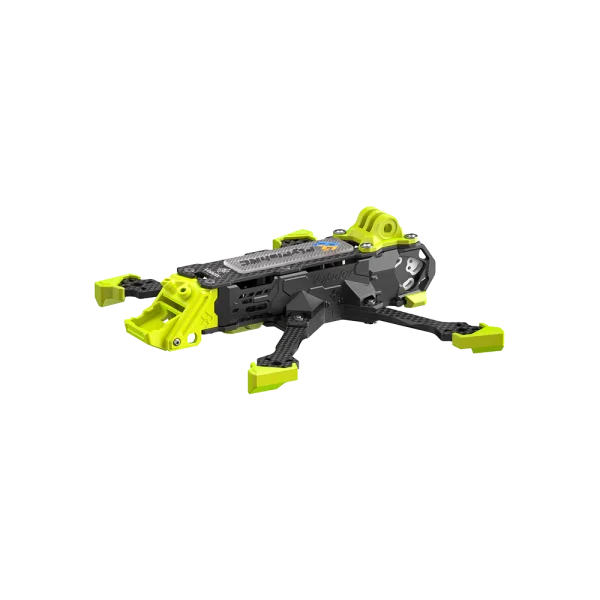

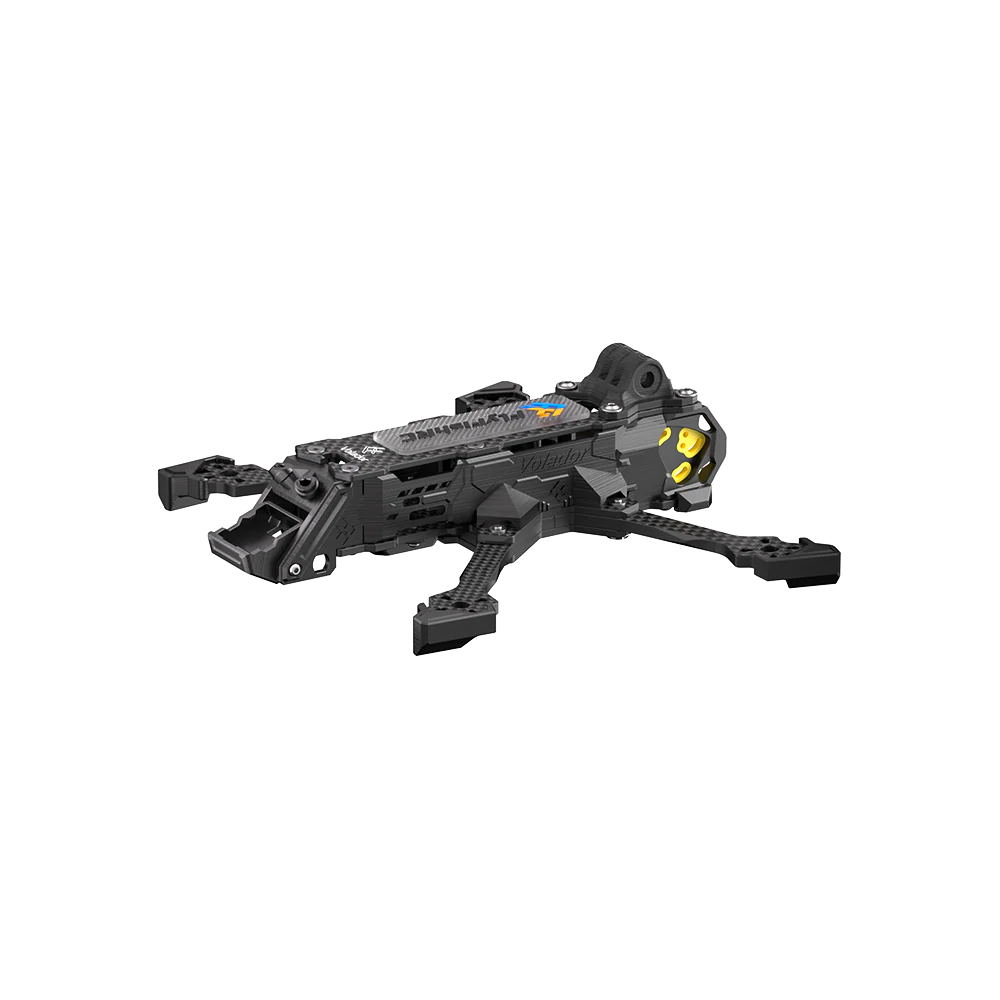

FlyfishRC Volador VD4 04 Pro Deadcat FPV T700 Frame Kit

Description

Description

Available at Multirotors, the FlyFishRC Volador VD4 is a lightweight and high-performance 4-inch FPV frame designed for pilots who demand a clean flying experience, exceptional durability, and smooth HD footage. Weighing just 127g, the VD4 utilizes a Deadcat (DC) layout that keeps propellers out of the camera’s field of view, making it an excellent choice for cinematic and freestyle FPV applications.

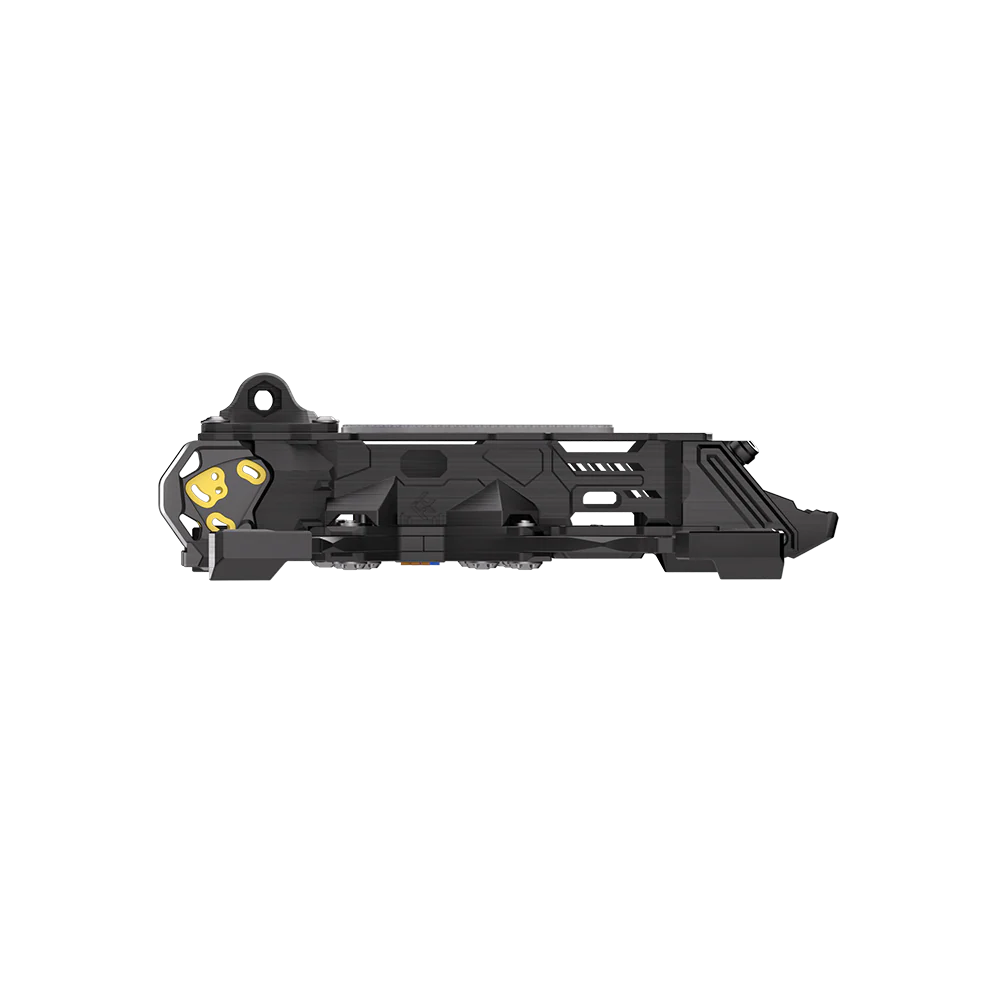

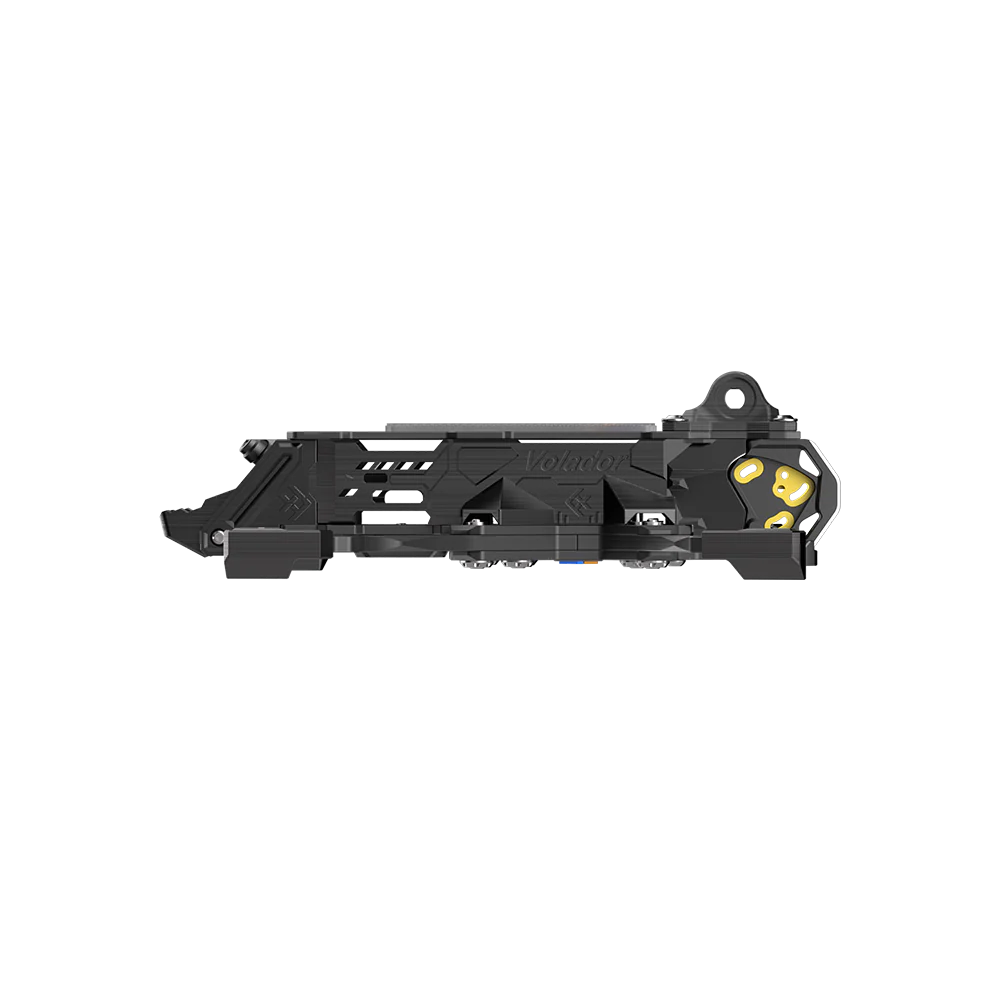

Engineered with FlyFishRC’s latest design innovations, the Volador VD4 features newly developed CNC-machined side plates combined with a silicone-damped camera mounting system. Optimized for the DJI O4 Air Unit, this setup effectively minimizes vibrations and eliminates jello effects, ensuring clear and stable footage throughout every flight.

Strong, Lightweight & Easy to Build

The frame combines premium T700 carbon fiber with high-strength CNC aluminum alloy components to achieve an ideal balance of strength, durability, and low weight. Precision chamfered carbon edges help protect wires and electronic components while contributing to a refined, premium appearance.

A carefully engineered locking structure helps suppress frame resonance and unwanted vibrations, improving flight stability and overall performance. High-quality custom TPU components further enhance durability, protection, and installation convenience while maintaining a clean and professional build.

Flexible Compatibility & Enhanced Vibration Control

Designed for maximum versatility, the Volador VD4 features multiple mounting options for flight controllers, ESCs, VTX systems, and motors. Its flexible layout supports a wide range of modern analog and HD FPV systems, making it suitable for various build configurations.

To ensure the best possible video quality, FlyFishRC has incorporated specially designed silicone damping pads for the camera system. These vibration-isolating components help eliminate DVR jello and improve image stability, allowing pilots to capture smoother and more professional-looking footage.

The frame includes all the accessories required for both analog and digital builds, making assembly straightforward and efficient for pilots of all experience levels.

Specifications:
Arm Thickness: 4mm
Top Plate Thickness: 2mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Brace Thickness: 4mm
CNC Side Plate Thickness: 5mm
Propeller Size: 4 inch
Material: T700 Carbon Fiber
FPV Camera Spacing: 19mm/20mm
Weight: Approx. 127g (including printed parts)
Color: Black/Yellow
Frame Dimensions: 195*155*33mm
Wheelbase: 183mm
Flight Stack Mounting Holes: 20*20mm (M3) / 30.5*30.5mm (M3)
Flight Stack Mounting Height: 22mm
VTX Mounting Holes: 20*20mm (M2) / 25.5*25.5mm (M2)
Motor Mounting Holes: 12*12mm (φ2mm) / 16×16mm (φ3mm)

Includes:
1x Volador VD4 O4 Pro Frame Kit
