GEPRC TAKER F405 BLS 60A V2 STACK

Description

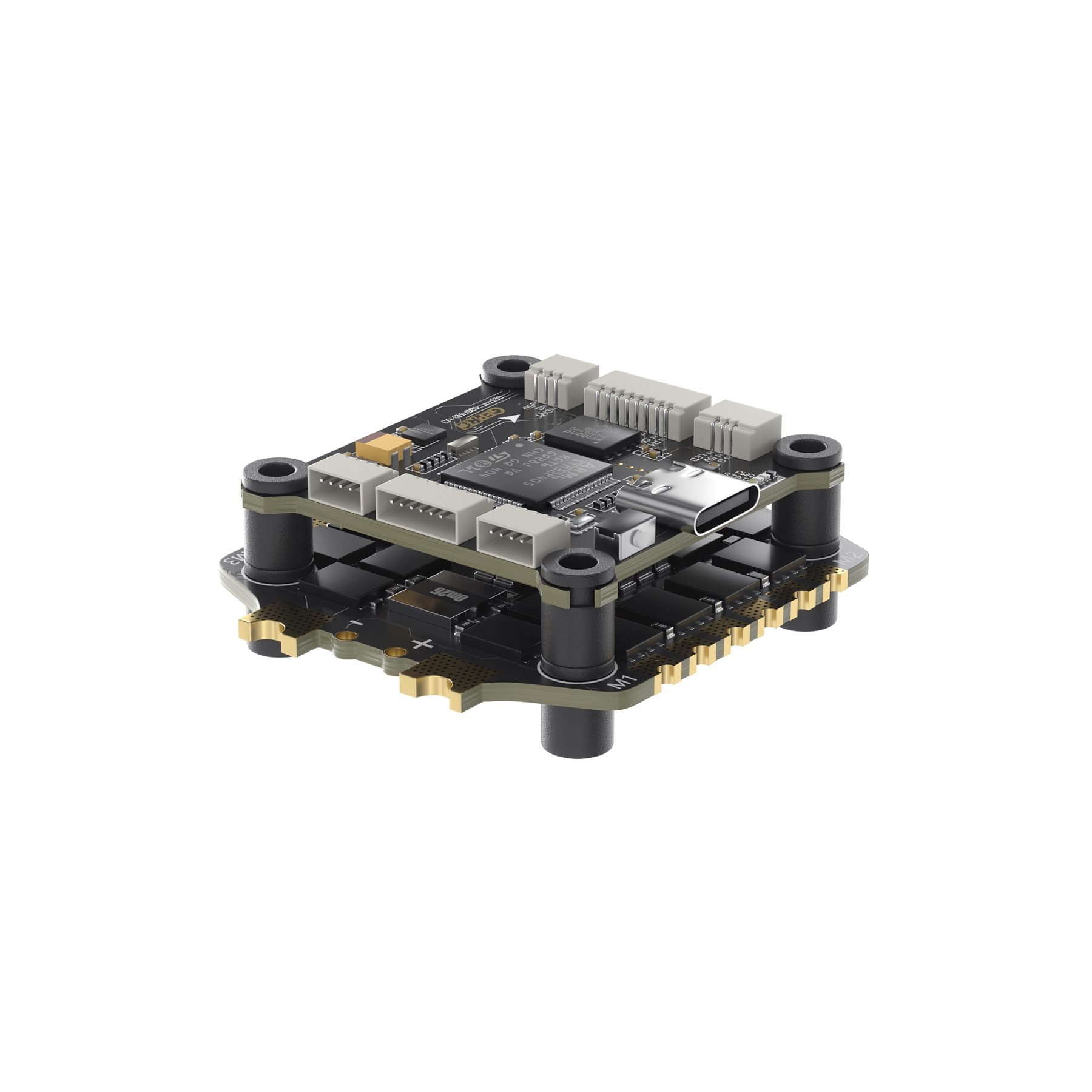

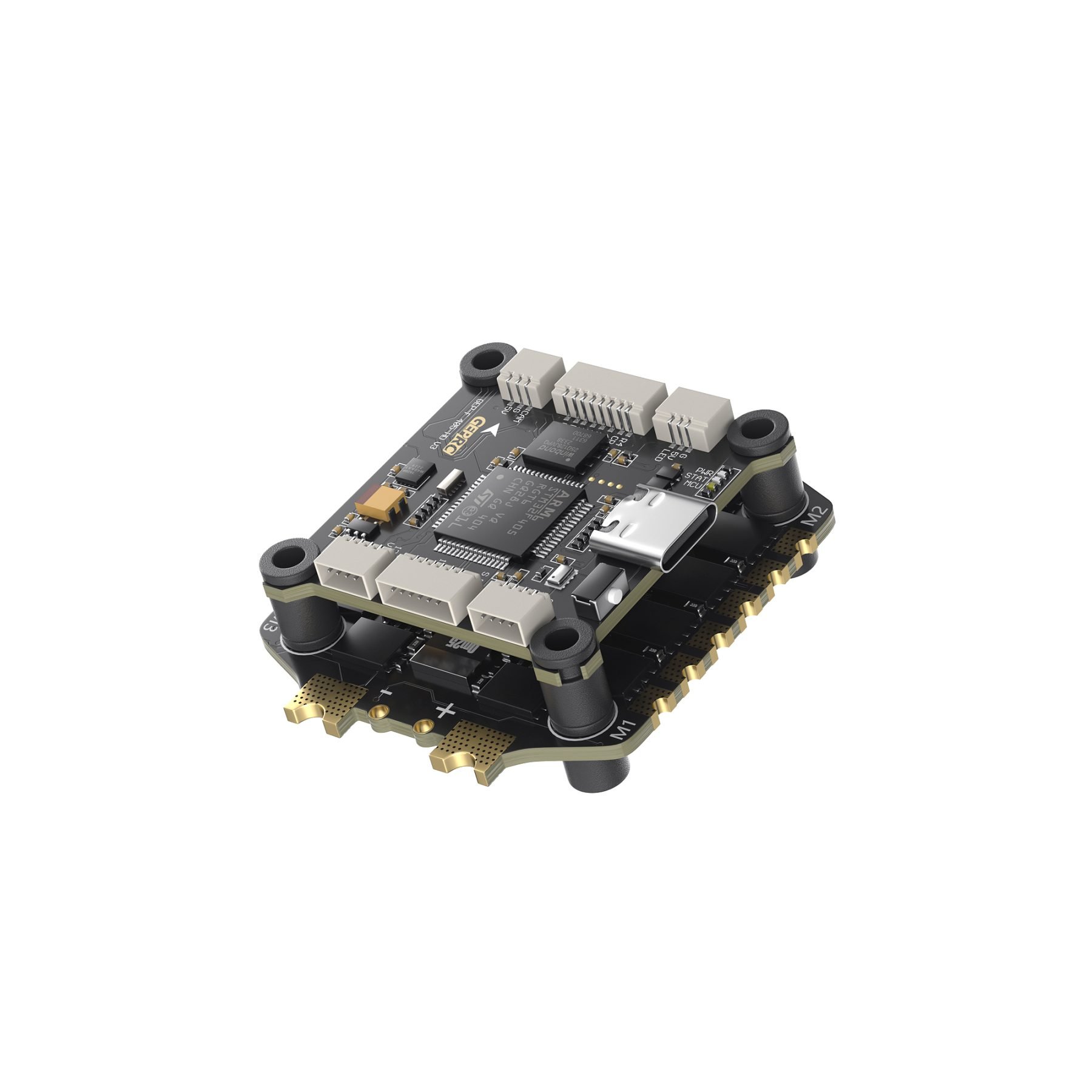

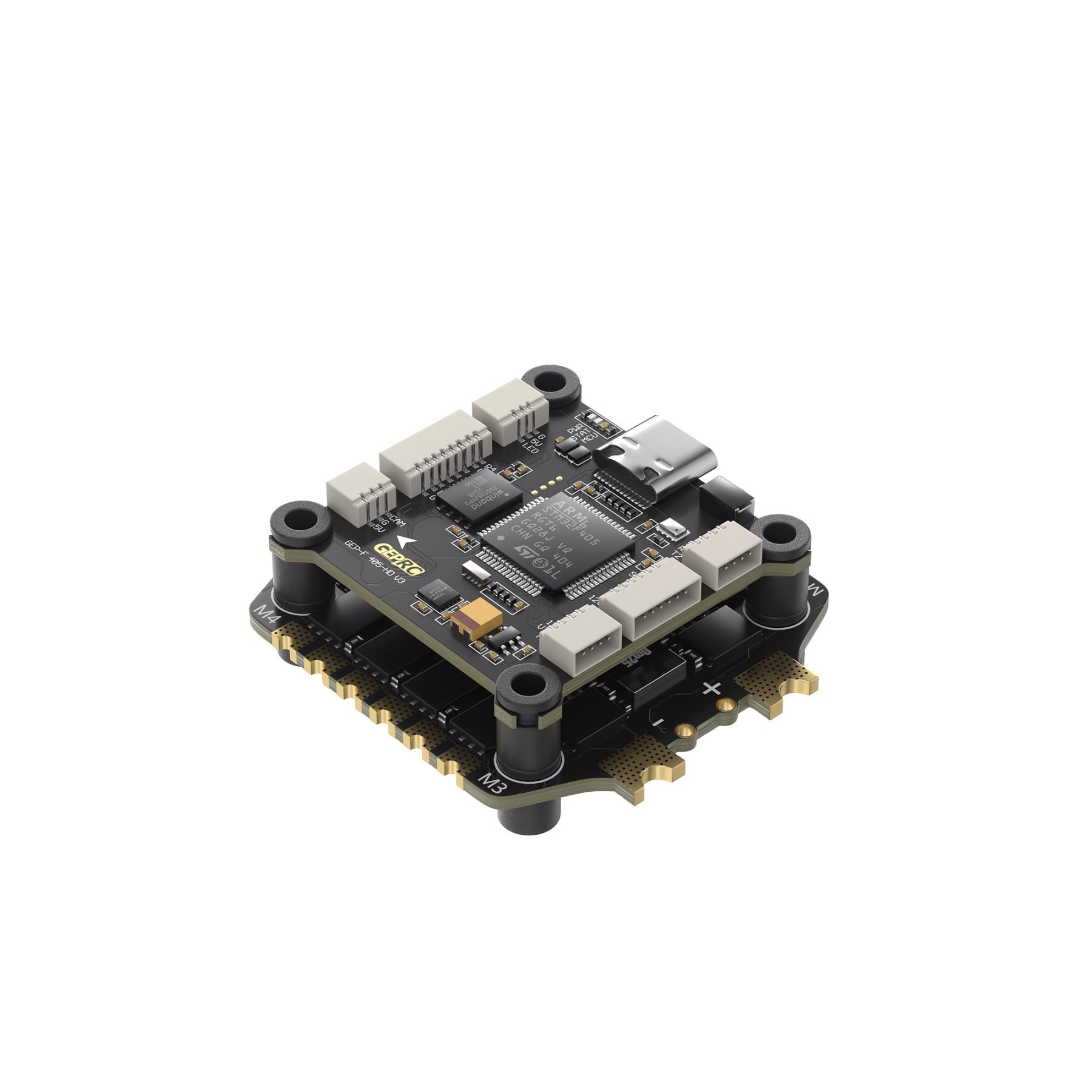

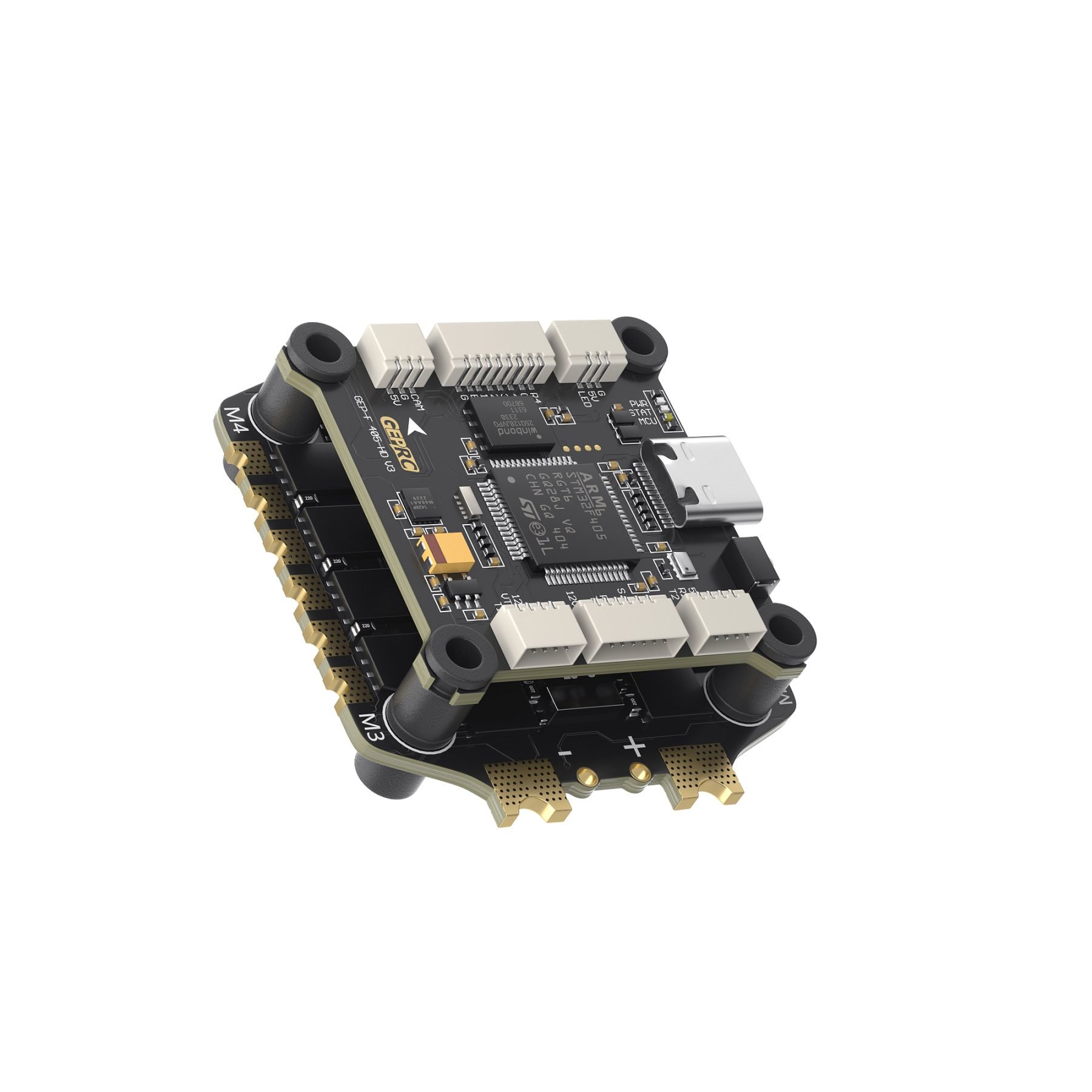

The GEPRC TAKER F405 BLS 60A V2 Stack is a high-performance flight control system designed for FPV freestyle, racing, and long-range drones. Combining the GEP-F405-HD V3 Flight Controller with the TAKER H60_BLS 60A 4-in-1 ESC, this stack delivers exceptional reliability, smooth flight performance, and seamless compatibility with modern FPV electronics. It features the powerful STM32F405 MCU, the latest ICM42688-P SPI gyroscope, and 16MB onboard Blackbox memory for precise flight tuning and data logging.

Designed for convenience, the stack includes a direct plug-and-play connection for DJI Air Units, eliminating unnecessary soldering and simplifying installation. An upgraded USB Type-C interface, integrated LC power filter, and dual independent 12V 2.5A and 5V 3A BEC outputs ensure clean, stable power delivery for HD video systems, receivers, GPS modules, and other accessories. The silicone shock-absorbing mounting system further minimizes vibration, resulting in accurate gyro readings and an incredibly smooth flying experience.

Whether you’re building a high-performance freestyle quad or a dependable long-range platform, the TAKER F405 BLS 60A V2 Stack provides the durability, processing power, and clean electronics needed for confident flying.

Features

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky

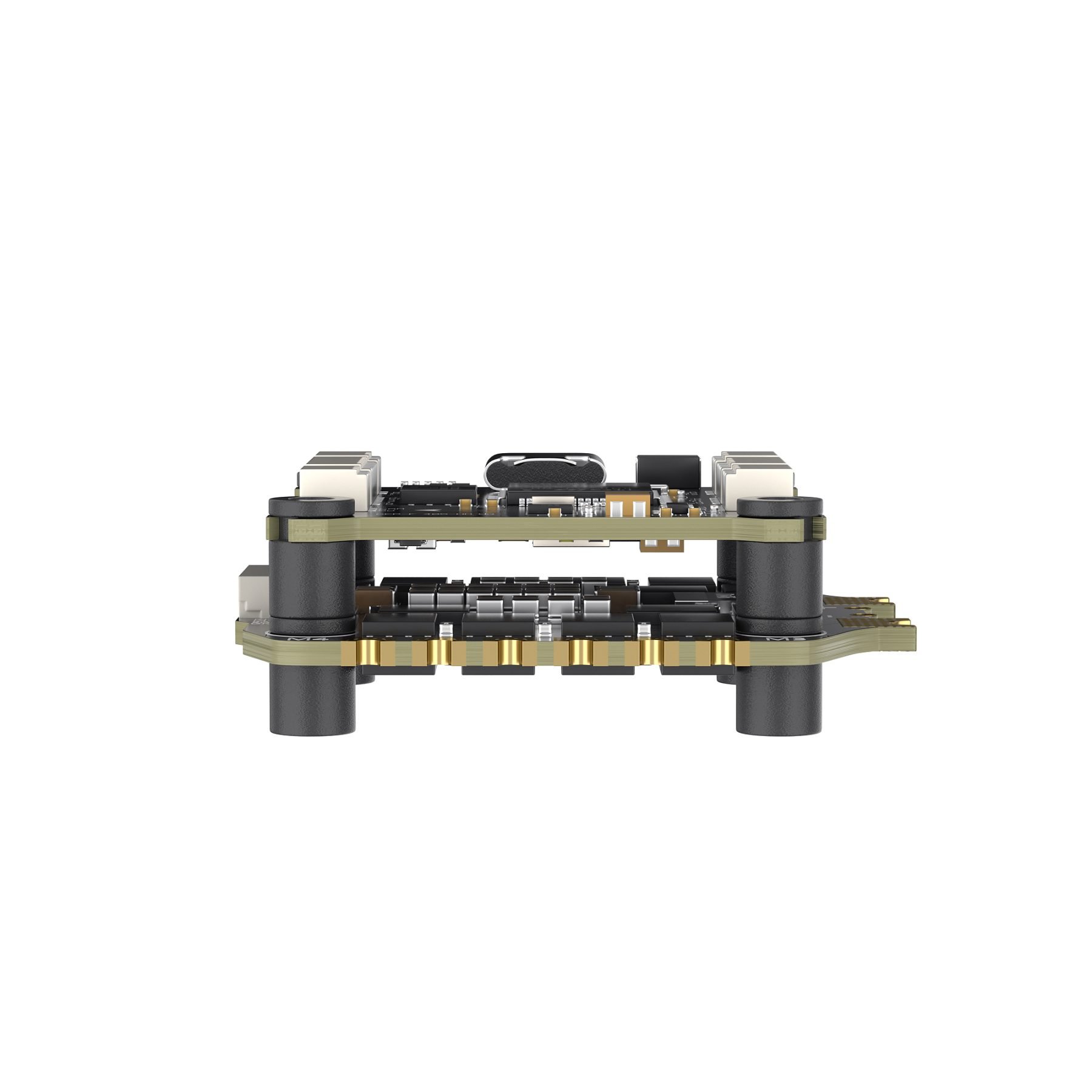

8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. 12V@2.5A + 5V@3A dual independent BEC

Specifications

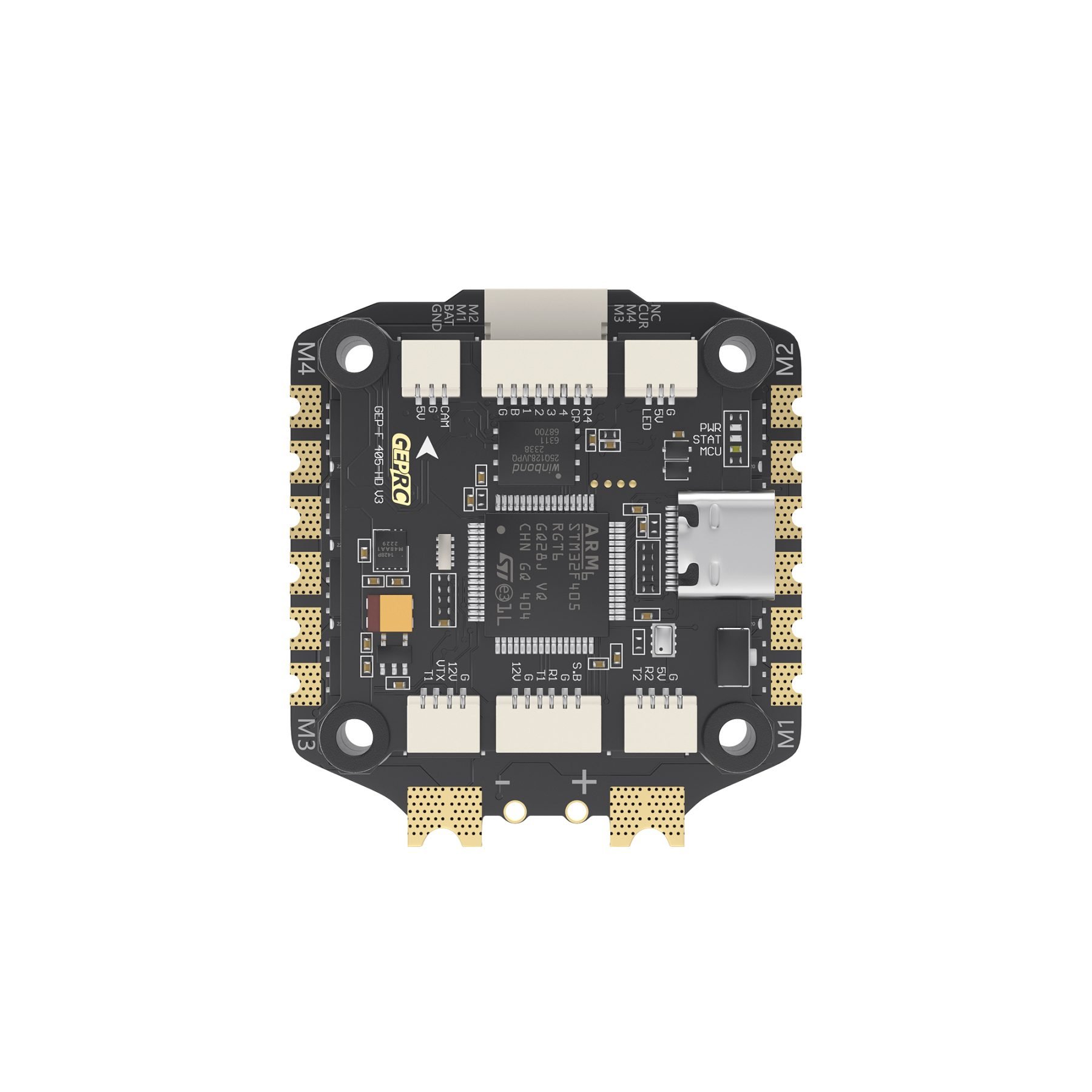

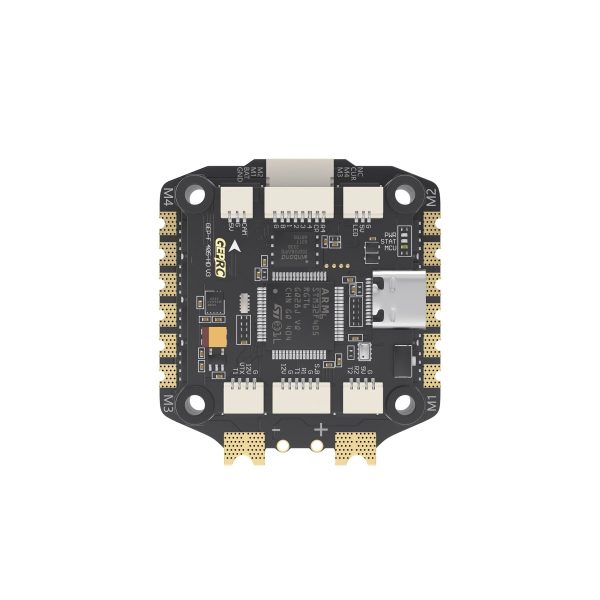

GEP-F405-HD V3 Flight Controller

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• Barometer: BMP280
• Motor outputs：M1-M6
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,12V@2.5A dual BEC
• Firmware Target：GEPRCF405
• Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage：3-6S LiPo
• UART：6 UARTs
• Power Filter：Integrated LC filter
• Weight：7.3g

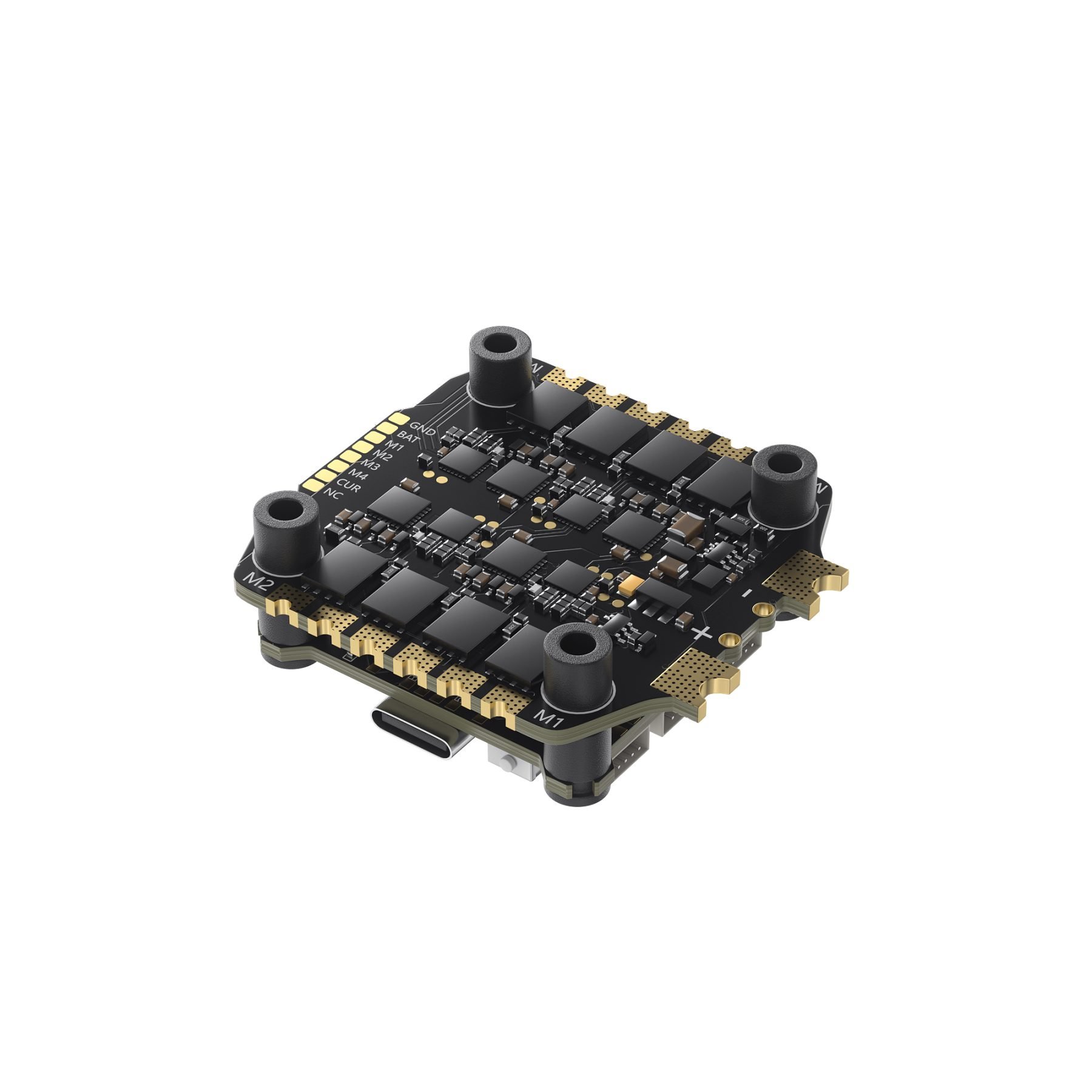

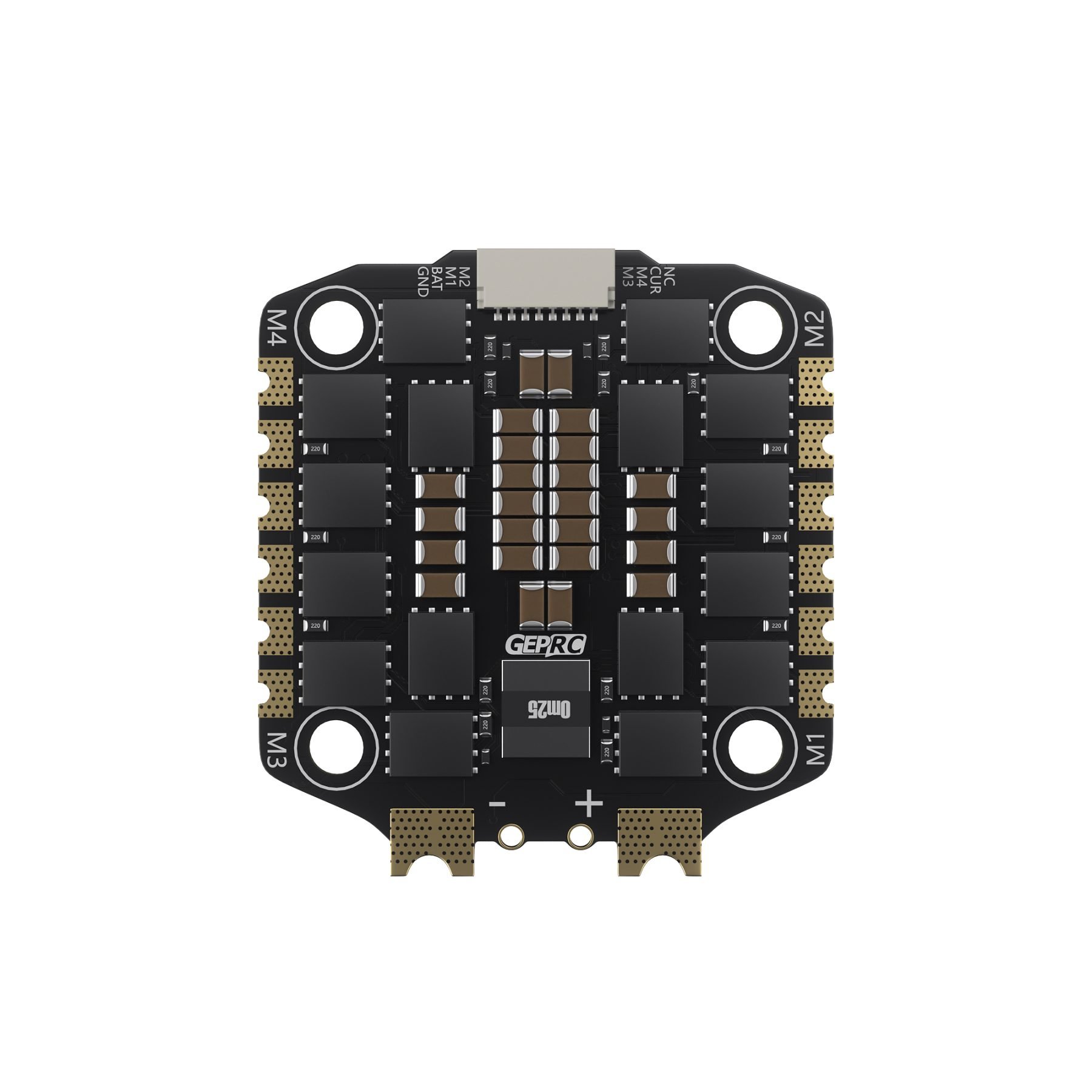

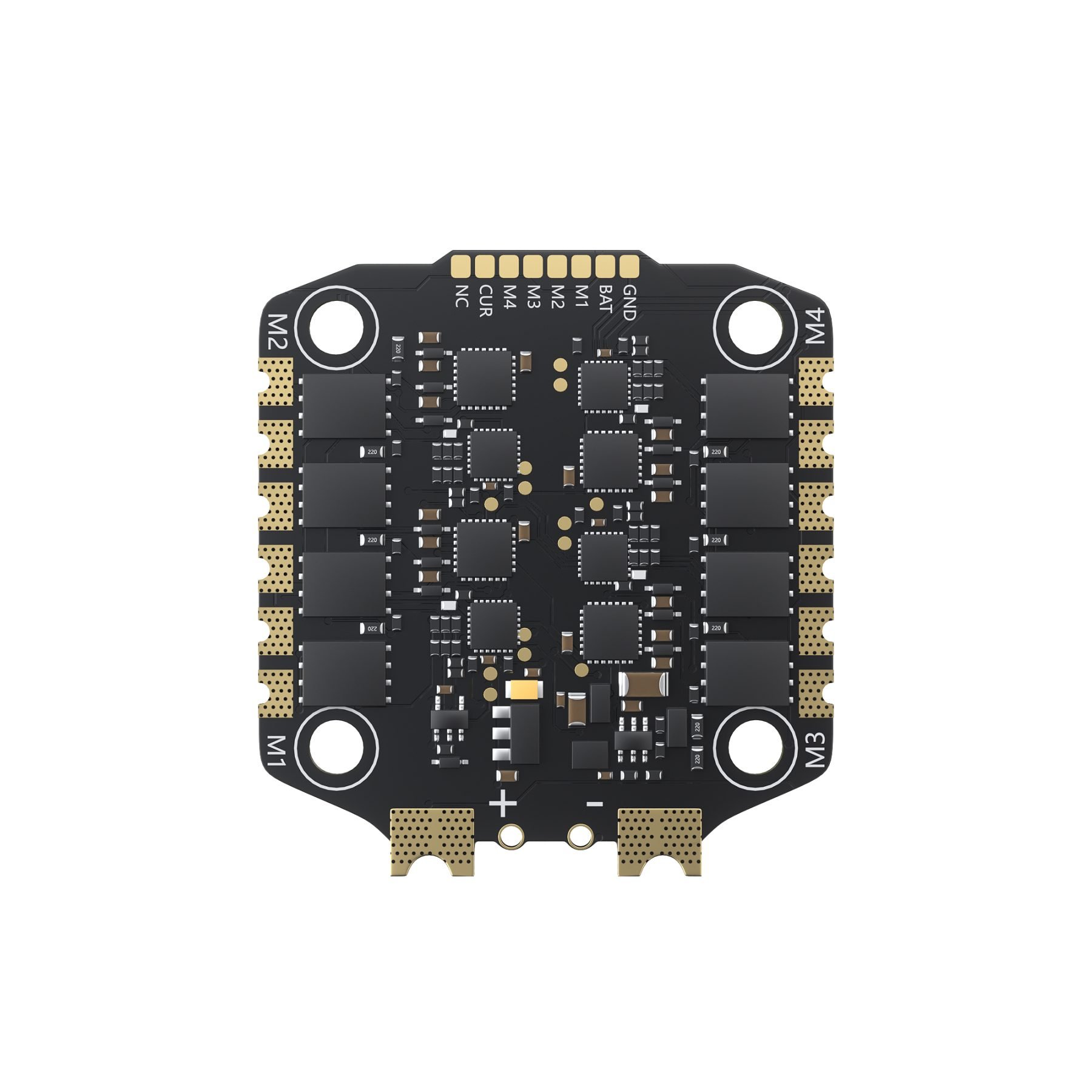

TAKER H60_BLS 60A 4IN1 ESC

• Input Voltage: 3-6S Lipo
• Ammeter: Support
• Continue Current：60A
• Burst Current：65A（5 second）
• Support Protocol: Dshot 150/300/600
• Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
• Weight: 14.9g
• Target: B_X_30

Includes

1 x Flight Controller

1 x ESC

1 x Capacitor

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

1 x XT60 Power cable

4 x M3*30 Screws

4 x M3*25 Screws

8 x Nylon nuts

8 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
