GEP-CL35 V3 Frame

Description

Available at Multirotors, the GEPRC GEP-CL35 V2 is the result of extensive refinement and engineering by the GEPRC team, designed to deliver enhanced durability, improved compatibility, and an exceptional flying experience.

Building upon the success of the original CL35 platform, the V2 version introduces several key upgrades, including full support for the DJI O3 Air Unit. The camera system features a bottom-mounted shock-absorbing gimbal specifically designed to reduce IMU resonance and unwanted vibrations, helping to achieve smoother footage and improved stabilization performance.

To further enhance structural strength, GEPRC has reinforced the frame with high-strength 7075 aluminum components integrated into both the main carbon fiber structure and injection-molded propeller guards. This results in increased rigidity and durability while maintaining excellent flight characteristics.

The battery mounting system has also been upgraded, utilizing a secure strap design combined with precision-machined 7075 aluminum mounting components for improved stability during flight. Additionally, the integrated XT60E1-M power connector and carbon plate design provide a cleaner installation and more convenient battery connection experience.

Thoughtful improvements continue with the propeller guard design, which now includes dedicated access for the O3 Air Unit storage card and USB port, allowing quick data transfer and easier access without disassembling the aircraft.

Every detail of the GEPRC GEP-CL35 V2 has been carefully engineered to provide reliability, convenience, and a premium flying experience for FPV pilots and aerial content creators alike.

Specification

• Model: GEP-CL35 V2

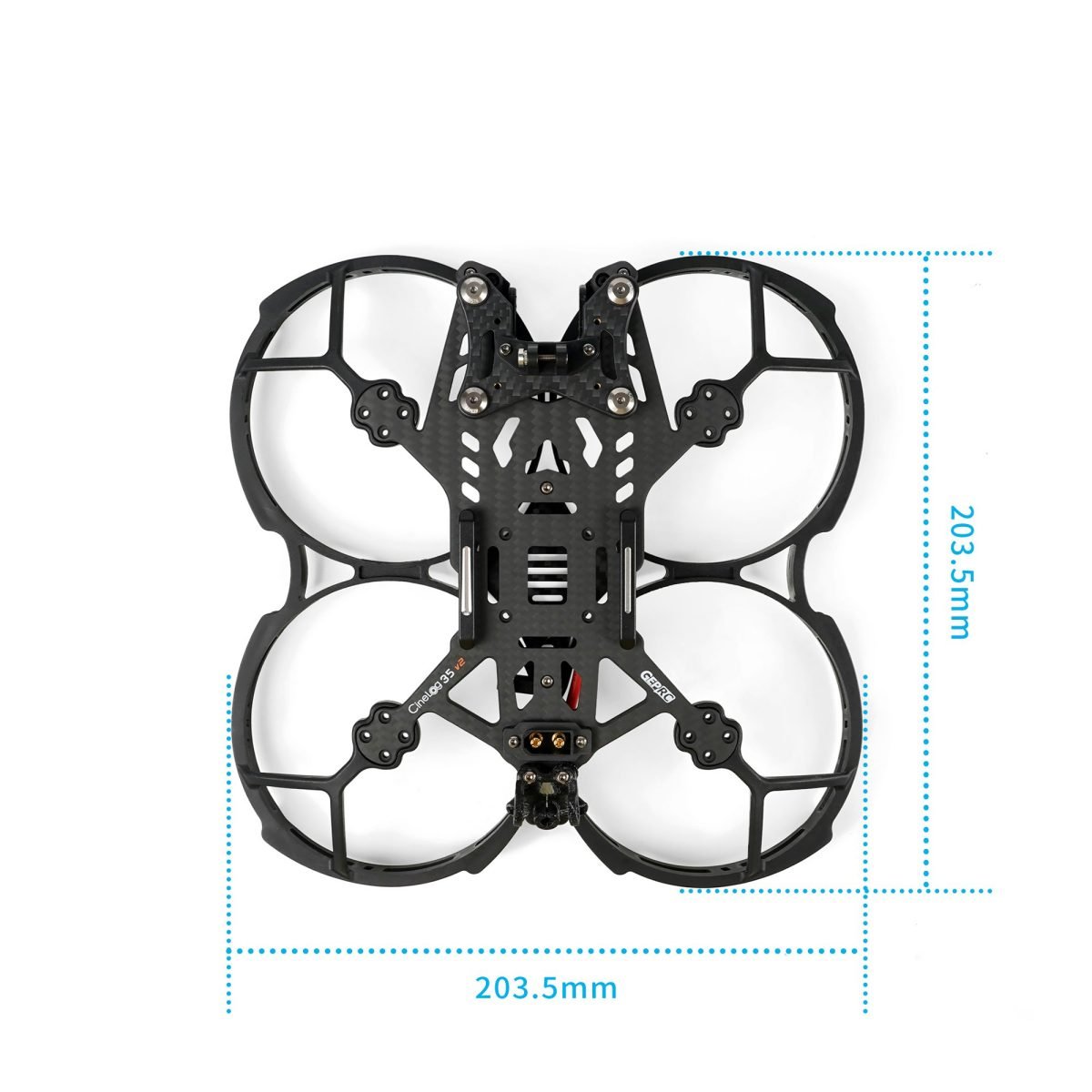

• Motor to Motor: 142mm
• Top Plate: 2mm
• Bottom Plate: 1.5mm
• Arm Plate: 3.5mm
• FC Mounting Hole: 25.5mm x 25.5mm
• VTX Mouning Hole : 20mm x 20mm/25mm x 25mm
• Motor Mounting Hole: 12mm x 12mm
• Camera Installation Space: 20mm
• Propeller Guard Internal Diameter: 95mm
• Suitable Propeller Size: 3.5 inch propeller

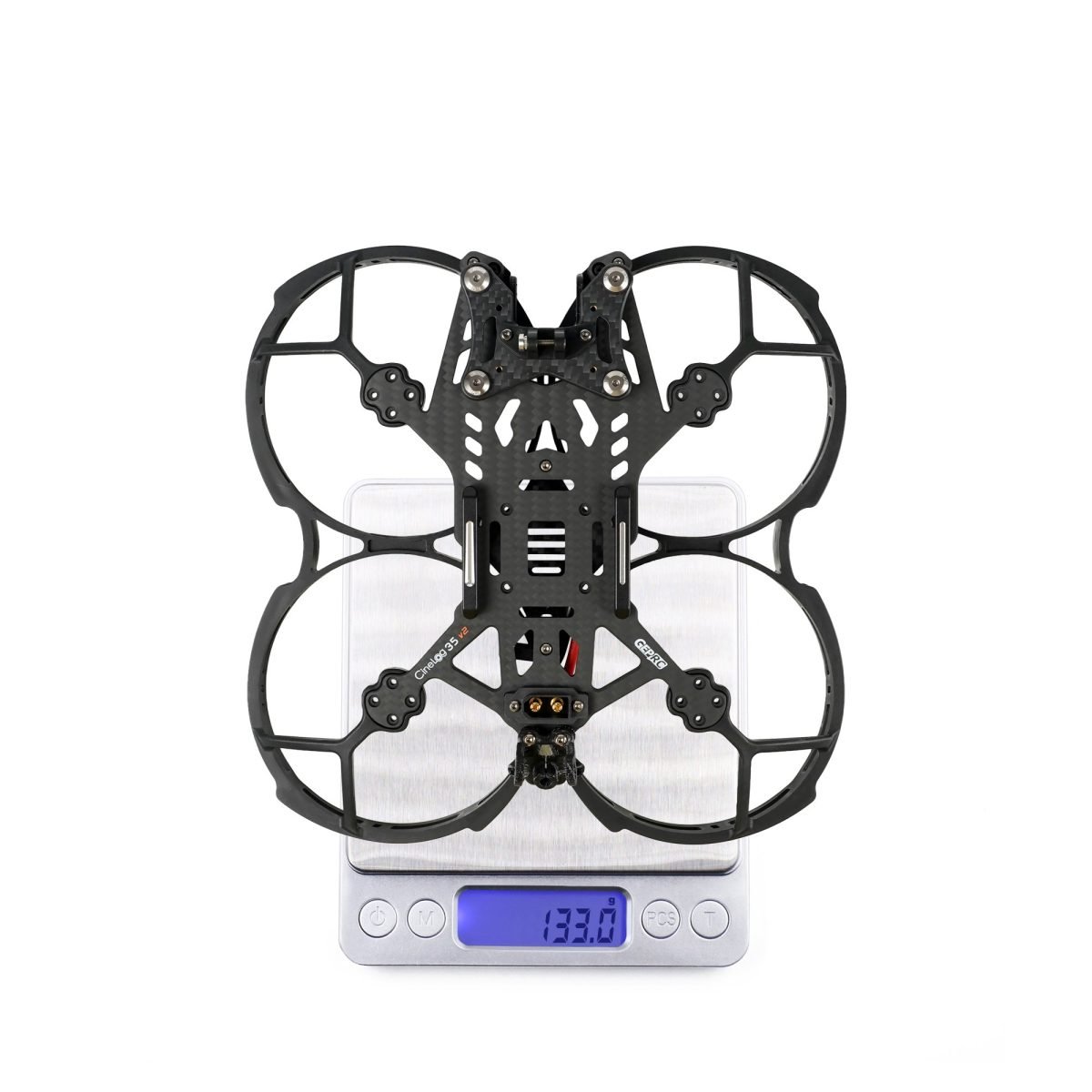

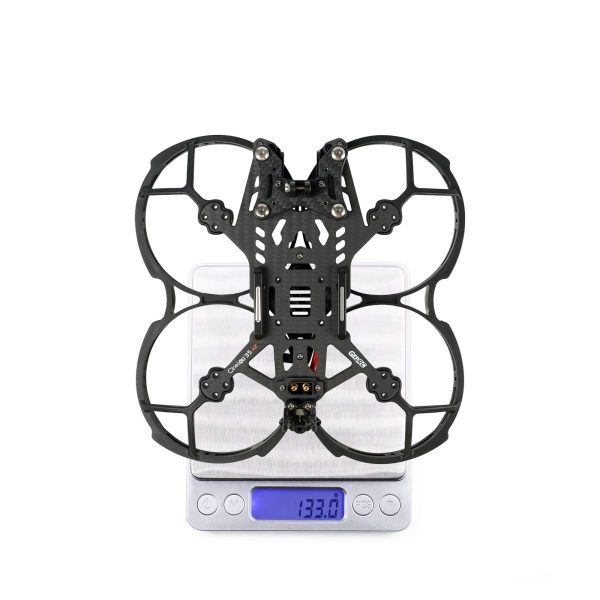

• Weight: 133.7g

Features

1. Prop guard for O3 Air Unit adds storage card and USB port for easy data reading.
2. Innovative camera shock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.
3. Battery installation method using a strap with 7075 aluminum parts fixed, solid and stable.
4. Power cable using XT60E1-M plug and carbon plate integrated design, user-friendly.
5. Injection molding prop guard is tough and impact-resistant, and the connection between the frame and the carbon plate is strengthened with aluminum columns.

Includes

Carbon Plate

1 X Main carbon plate 3.0mm

1 X Top Plate 2.0mm

1 X Bottom plate 1.5mm

Screw Kits

2 X Battery strap fixed aluminum parts

2 X 7075 mesh aluminum column M2*11.5*4

4 X 7075 mesh aluminum column M2*25*3.3

4 X Custom half crescent head screws M3*15

6 X Cup head screw M2*18

2 X Round head screws M2*16

4 X Round head screws with pad M2*4

4 X Round head screws M2*5.5

30 X Round head screws M2*7

14 X Round head screws M2*12

16 X Round head screws M2*8

6 X Round head screws M1.6*8

4 X Round head screws M2*6

6 X Round head screws M2.5*6

1 X Chamfered Hexagon Socket Screws M5x28

4 X Press Rivet Nuts M3

4 X self-tightening nuts M2

18 X Iron nuts M2

1 X Flange Nut M5

12 X Press Rivet Nut_Brass Color M2*1.9-OD4.9

3D Printed Parts

1 X Camera mount 2 holes

1 X Camera mount 4 holes

1 X Receiver mount

1 X T-shaped antenna mount

1 X VTX antenna mount

1 X Capacitor mount

1 X Power plug printed parts

1 X GP Camera base mount

Injection Molded Parts

1 X Injection molded prop guard

4 X Vibration dampening rubber for FC M2*6

6 X Camera vibration dampening rubber

4 X Camera gimbal shock absorbing rubber ring M3*10.5*10.25

Other Accessories

1 X Power XT60E1-M plug with cable

4 X Motor hub M7*15mm

3 X 5.8G VTX extension cable 80mm

7 X Heatshrink tube

1 X Naked GP Camera base mount( 1 X base mount, 2 X round head M2*12, 2 X press rivet nut M2)

4 X BEC pads

2 X Battery non-slip pads for Cinelog 35 v2

2 X Receiver Antenna Stick 100mm

1 X Battery strap M20*250

1 X Battery strap M20*220

1 X L-shaped screwdriver 1.5MM

1 X L-shaped screwdriver 2.0MM

1 X L-shaped screwdriver 3.0MM

1 X M5 wrench

1 X Keychain

1 X Guide for Quick Start

2 X GEPRC Stickers

1 X Service card

1 X Packaging box

1 X User manual

1 X Promotion Card
